Research Paper Volume 5, Issue 8 pp 623—636

Berberine suppresses gero-conversion from cell cycle arrest to senescence

class="figure-viewer-img"

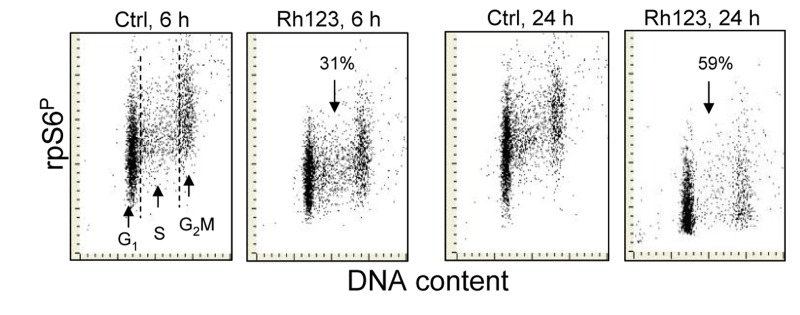

Figure 6. Effect of treatment of A549 cells with Rh123 on the level of expression of phosphorylated rpS6.

Exponentially growing A549 cells were treated for 6 h or 24 h with 1 μM Rh123. Expression of rpS6P in cytoplasm was detected by phosphospecific Ab and measured by the iCys laser scanning cytometry. The figures indicate percent decree in expression of RP-S6P in the Rh123 treated cells vis-à-vis the respective control (Ctrl) cells.
