Research Paper Volume 5, Issue 9 pp 653—661

Meta-analysis of genetic variants associated with human exceptional longevity

class="figure-viewer-img"

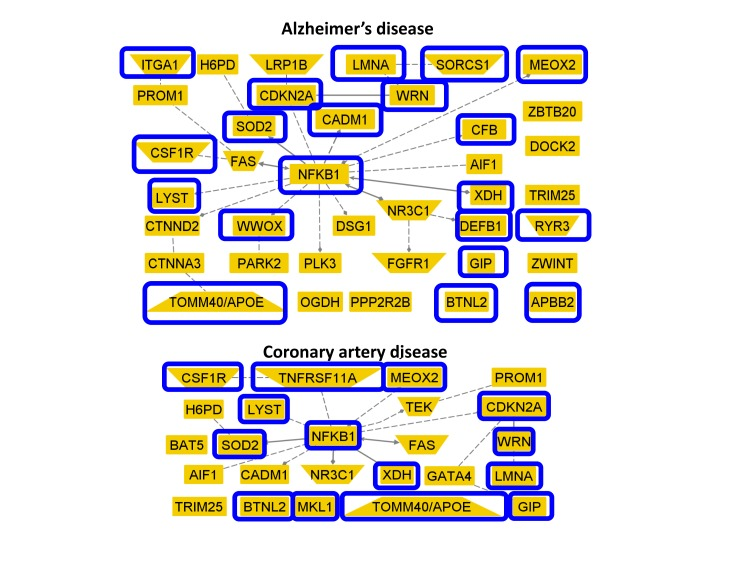

Figure 3. Genes with SNPs that reach statistical significance with meta-analysis and were implicated in Alzheimer's and coronary artery disease.

The two networks display 38 genes linked to Alzheimer's disease (top) and 24 genes linked to coronary artery disease (bottom) that included SNPs in the list of 281 in [1]. Genes circled in blue include SNPs that reached statistical significance in the meta-analysis.
