Research Paper Volume 5, Issue 9 pp 692—703

Age-associated miRNA Alterations in Skeletal Muscle from Rhesus Monkeys reversed by caloric restriction

class="figure-viewer-img"

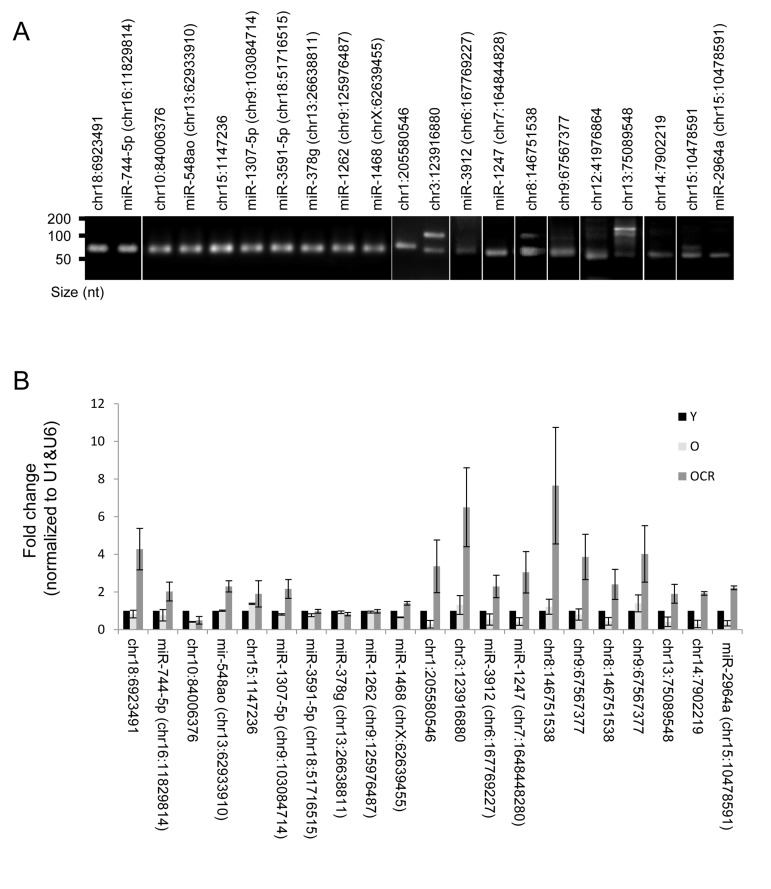

Figure 6. Novel miRNAs and impact of CR.

(A) Representative qPCR products visualized in ethidium bromide-stained agarose gels. These products were obtained using RNA isolated from rhesus monkeys skeletal muscles. (B) RT-qPCR analysis of the indicated novel miRNAs and the impact of CR on miRNA expression in OCR samples.
