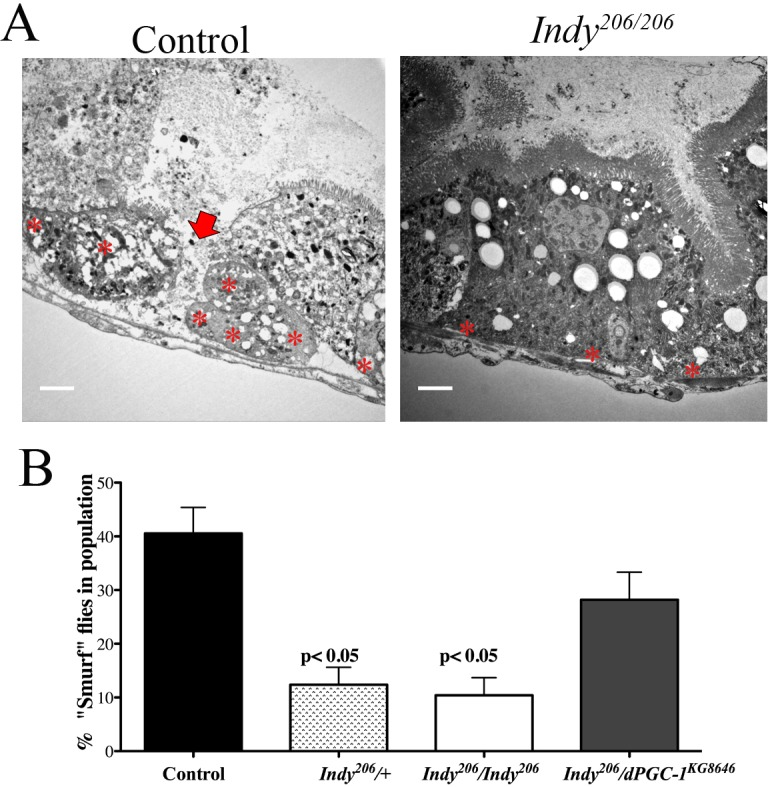

Figure 4.
Indy mutations preserve intestinal integrity. (A) Electron micrograph of yw control (left) and Indy206/Indy206 (right) midgut imaged at 1000x. Arrow shows damaged tissue and asterisks mark ISCs. Scale bar represents 1 μm. (B) Quantitative analysis of blue staining of female control and Indy206/Indy206 flies fed food containing 2.5% w/v FD&C blue dye for 150 minutes at 40 days. Blue coloring throughout body indicates loss of intestinal integrity. Control and Indy206/dPGC-1KG08646 flies have a significantly higher number of blue flies compared to Indy206/+ and Indy206/Indy206 mutants (p<0.01, n>50).
