Research Paper Volume 6, Issue 12 pp 1064—1075
Pathway activation profiling reveals new insights into Age-related Macular Degeneration and provides avenues for therapeutic interventions

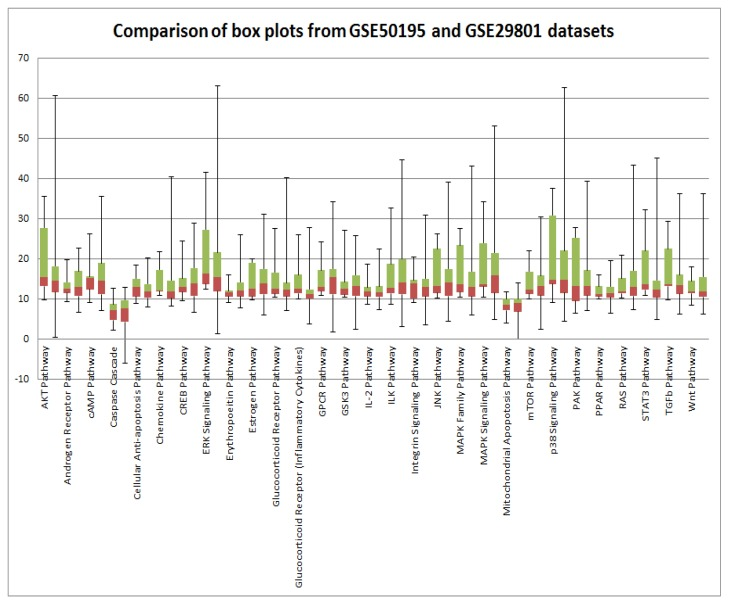

Figure 3. Comparison of GSE29801 derived PAS distribution and GSE50195 derived PAS distribution.
Box plots of GSE29801 (right) derived PAS and GSE50195 (left) derived PAS for each pathway. All PAS values for each pathway from two independent data sets are comparable; moreover box plots for GSE50195 derived PAS lay inside of box plots for GSE50195 derived PAS. Box plot whiskers represent min and max values for each pathways.
