Research Paper Volume 7, Issue 9 pp 718—733
Attenuation of p38α MAPK stress response signaling delays the in vivo aging of skeletal muscle myofibers and progenitor cells

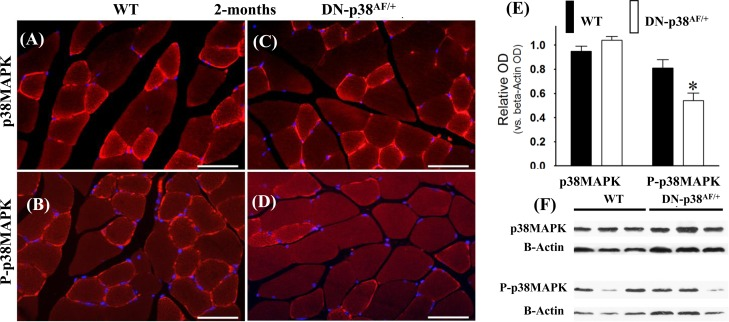

Figure 1. Expression of p38α and phospho-p38α in the gastrocnemius of young (2 mos old) wild type and DN-p38αAF/+ mice.
(A-D) Immunohistofluorescence analysis of the levels of p38α and P-p38α in cross sections of the gastrocnemius of young (2 mos) (A, B) WT and (C, D) DN-p38AF/+ mice. The red immunohistofluorescence depicts levels of p38α or P-p38α using antibodies specific for p38α and P-p38α; The blue immunofluorescence depicts DAPI stained nuclei; Scale bar = 50 μm. (E) A bar graph presentation of the western blot data in (F). The data in (E) are depicted as relative OD vs. β-Actin values of western blots. *p < 0.05 vs. corresponding WT. (F) Western blot (immunoblot) analysis of the levels of total p38α and total P-p38α in (A, B) young WT (2 mos) and (C, D) DN-p38αAF/+ mice.
