Research Paper Volume 7, Issue 12 pp 1094—1108

Age-related neuroinflammation and changes in AKT-GSK-3β and WNT/ β-CATENIN signaling in rat hippocampus

class="figure-viewer-img"

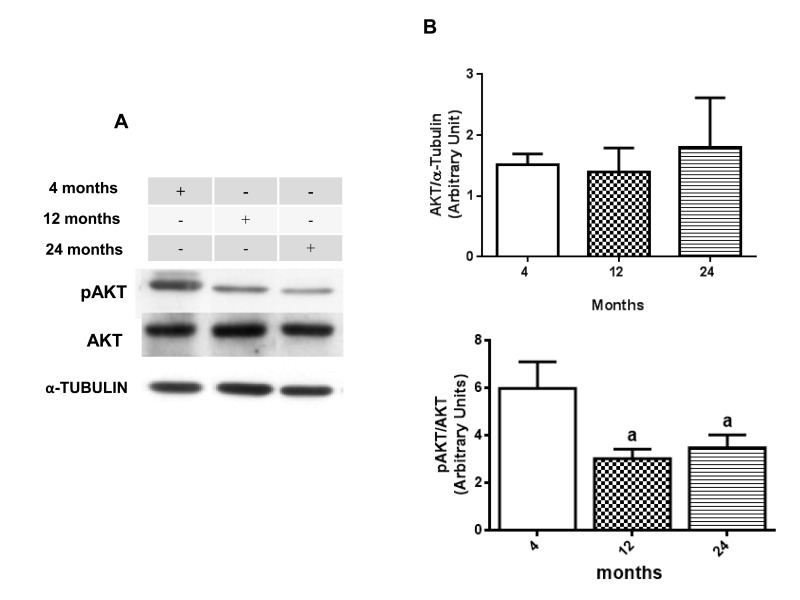

Figure 3. Changes in the pAKT/AKT ratio in hippocampus of 4-, 12- and 24-month-old rats.

(A) Representative Western blotting autoradiographs of cytosolic AKT/α-TUBULIN and pAKT/AKT. (B) Densitometric analysis (arbitrary units) of the ratio of data presented in A panel are shown. No significant difference in densitometric analysis of AKT/α-TUBULIN values was found between all groups. Results are expressed as mean ± S.E.M. from three individual experiments. ANOVA followed by Newman-Keuls. (a) p<0.05 vs. 4-month-old basal sample.
