Research Paper Volume 11, Issue 7 pp 2082—2097

Role of global aberrant alternative splicing events in papillary thyroid cancer prognosis

class="figure-viewer-img"

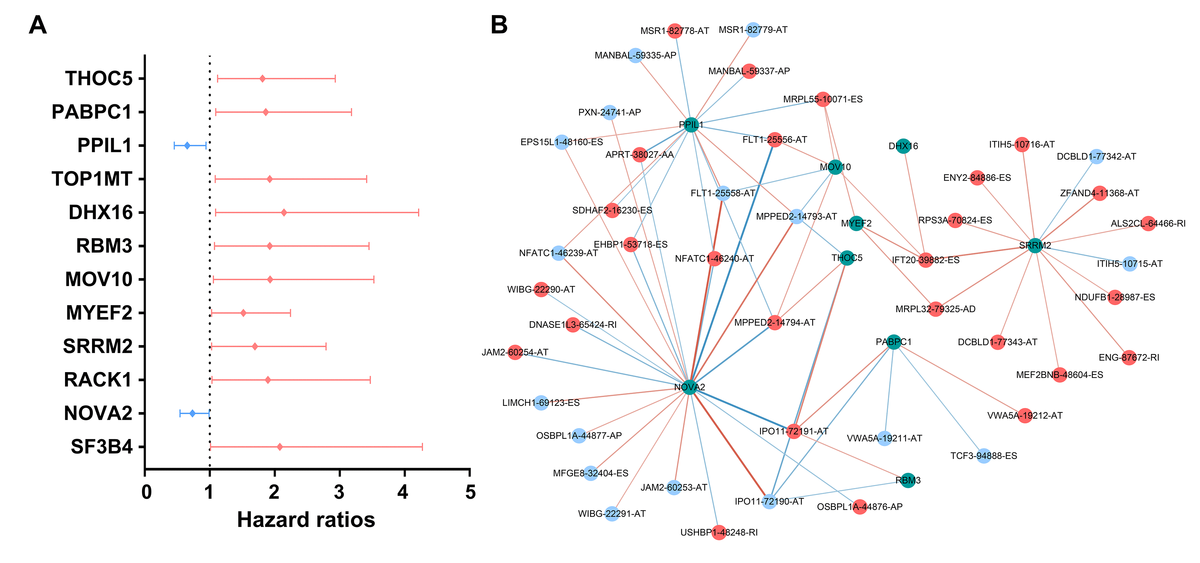

Figure 10. Survival-associated splicing factors and splicing correlation network in papillary thyroid cancer. (A) Survival-associated alternative splicing events; (B) Alternative splicing events whose PSI values were positively/negatively correlated with survival times are represented with red/blue dots. Green dots are survival-associated splicing factors. The positive/negative correlations between expressions of splicing factors and PSI values for alternative splicing are represented with red/blue lines.
