Research Paper Volume 11, Issue 21 pp 9478—9491
Identifying hub genes of clear cell renal cell carcinoma associated with the proportion of regulatory T cells by weighted gene co-expression network analysis

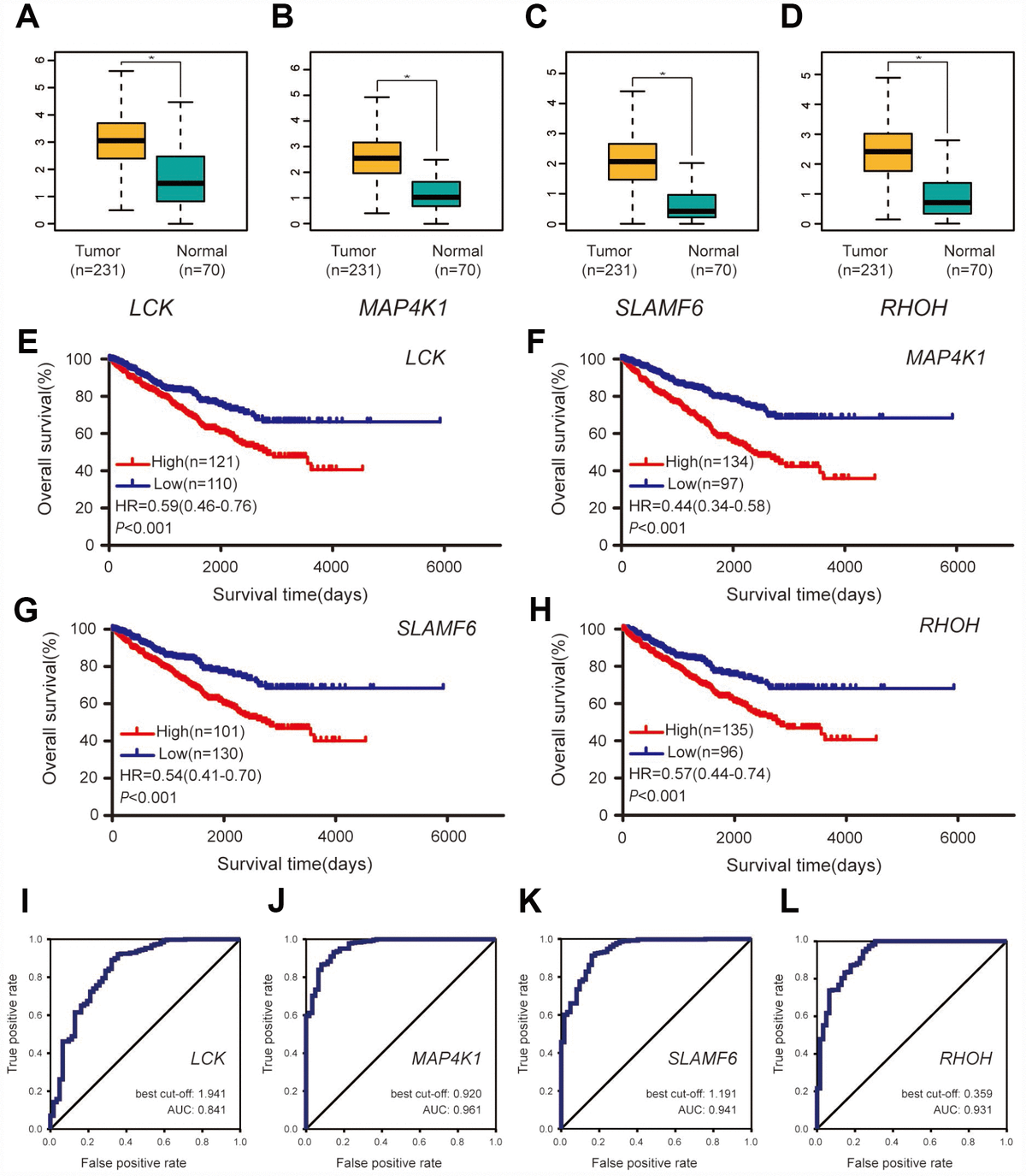

Figure 6. Validation of the four hub genes based on the ICGC cohort. (A–D) Expression levels of the four hub genes between ccRCC samples and normal tissues. (E–H) Overall survival between patients with high and low expression of the four hub genes. (I–L) ROC curves of the four genes to evaluate their capability in distinguishing tumor tissue and normal kidney tissue.
