Research Paper Volume 12, Issue 9 pp 8397—8412
EFEMP2 indicates assembly of M0 macrophage and more malignant phenotypes of glioma

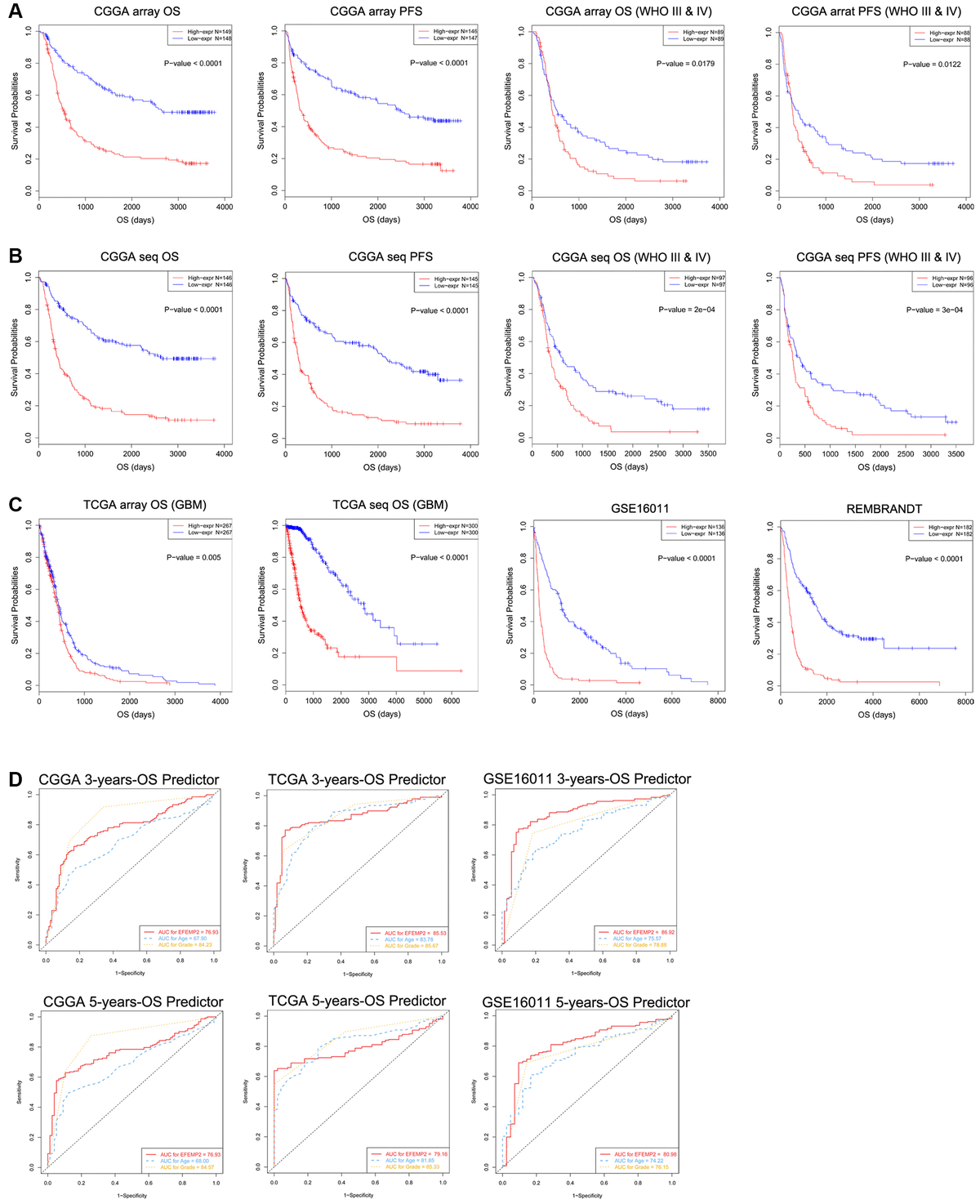

Figure 3. Patients with higher EFEMP2 transcription level exhibits poorer OS and PFS. (A) The half of patients with higher EFEMP2 expression exhibited shorter OS and PFS in Kaplan-Meier analyses based on CGGA mRNA array dataset. (B) The half of patients with higher EFEMP2 expression exhibited shorter OS and PFS in Kaplan-Meier analyses based on CGGA mRNA sequencing dataset. (C) Kaplan-Meier analyses of OS based on TCGA mRNA array, TCGA mRNA sequencing data, GSE16011 and REMBRANDT datasets. (D) The ROC curves indicating the sensitivity and specifcity of predicting 3- or 5-years of overall survival with EFEMP2-level in CGGA, TCGA, or GSE16011 database.
