Research Paper Volume 12, Issue 19 pp 19641—19659
Identification of immune landscape signatures associated with clinical and prognostic features of hepatocellular carcinoma

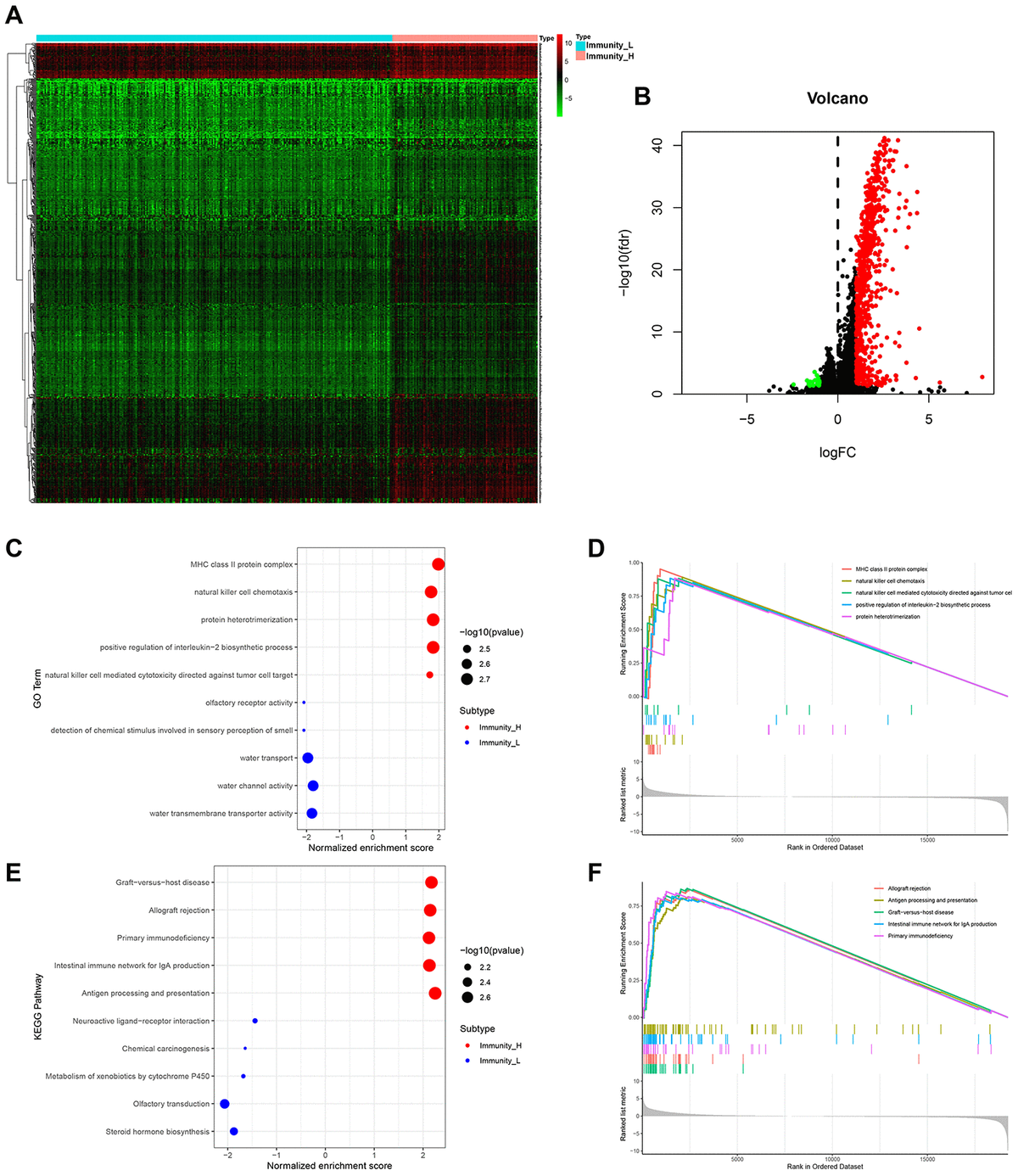

Figure 2. HCC subtype-specific gene expression profiles. (A, B) Heatmap and volcano plot of differentially expressed genes between Immunity_H and Immunity_L. Red, green and black dots indicate upregulated, downregulated and unchanged genes. It also applies to the following figures. (C–F) Significantly enriched GO terms (C, D) and KEGG pathways (E, F) of HCC subtypes.
