Research Paper Volume 13, Issue 5 pp 7067—7083

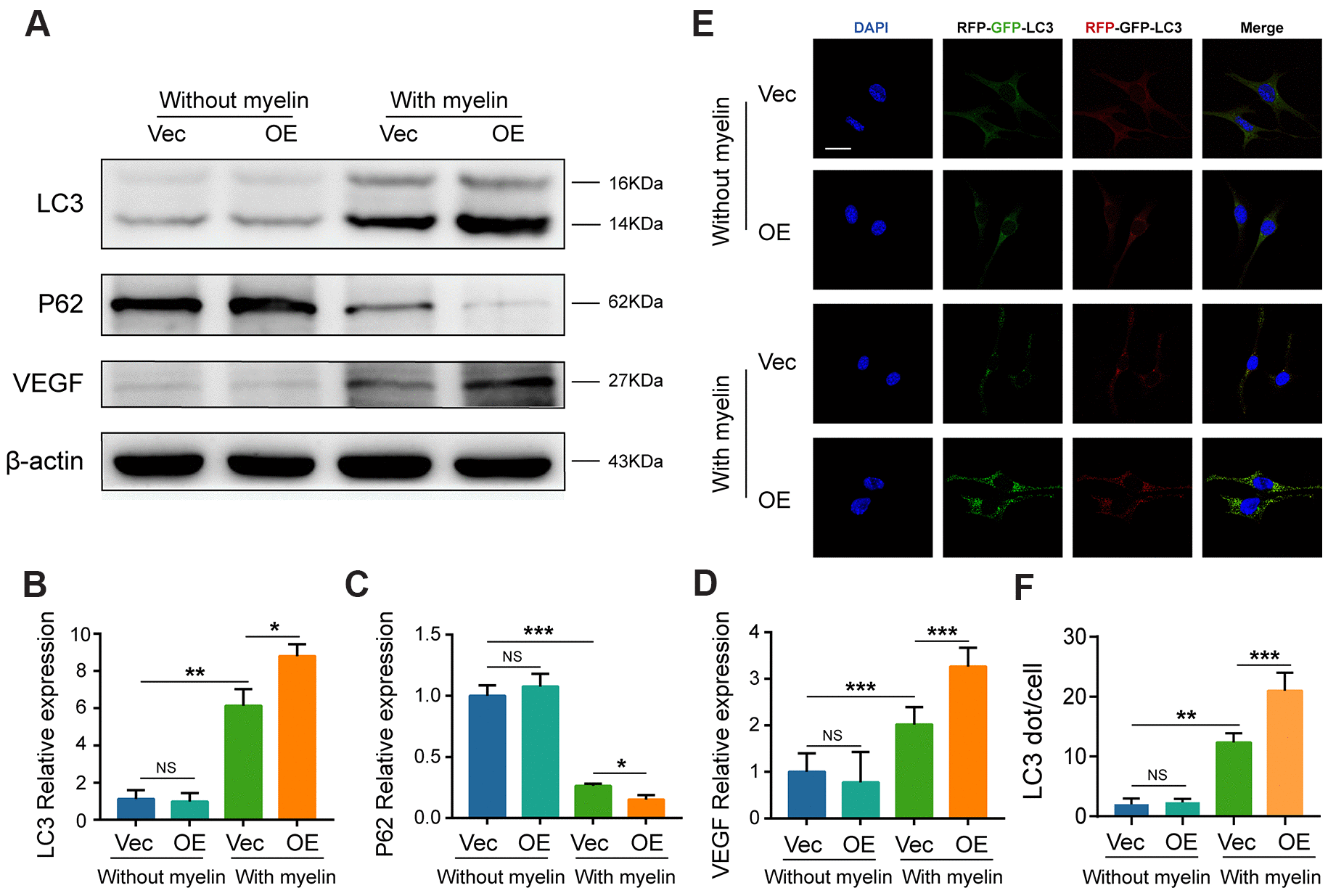

Figure 8. Overexpression of GIT1 increases myelin-induced autophagy in vitro. (A–D) LC3, P62, and VEGF levels in BMECs from the control and GIT1-OE groups after being treated with or without myelin debris for 72 h. (E) BMECs from the control and GIT1-OE groups were transfected with mRFP-GFP-LC3 adenovirus. The cells nuclei were stained using DAPI (blue). Bar, 10 μm. (F) Numbers of yellow and red puncta. N = 5 per group. NS represents no significance, ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.
