Research Paper Volume 13, Issue 7 pp 10289—10311

A novel immune-related prognostic signature in epithelial ovarian carcinoma

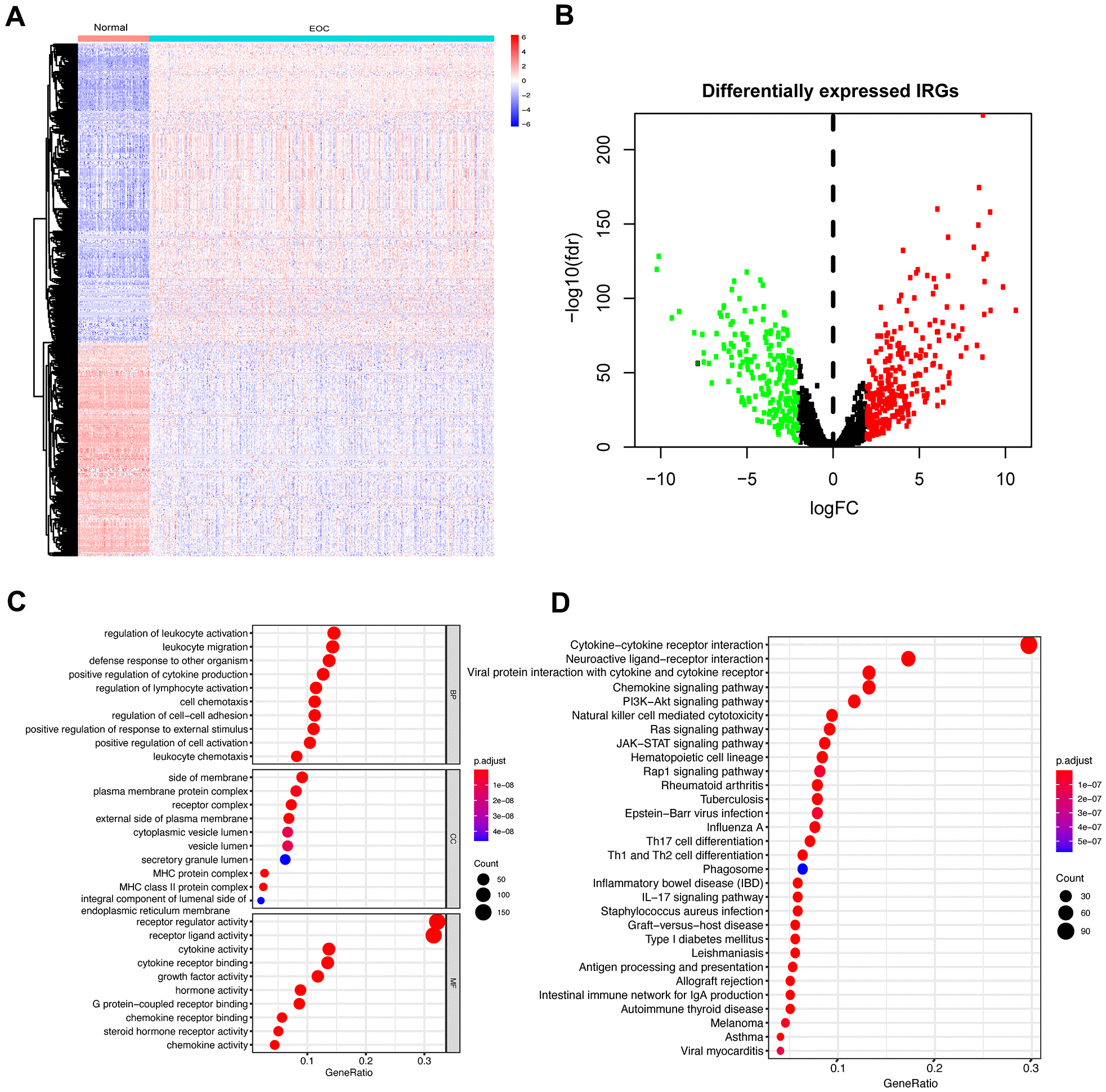

Figure 1. Differentially expressed IRGs in EOC and functional enrichment analysis of differentially expressed IRGs. (A) Heatmap of significantly differentially expressed IRGs in EOC. The color from blue to red represents the progression from low expression to high expression. (B) Volcano plot of differentially expressed IRGs. The red dots in the plot represent upregulated genes, and green dots represent downregulated genes. Black dots represent no differentially expressed genes. (C) GO analysis. From top to bottom, the figure represents BP, CC, and MF, respectively. (D) KEGG pathways analysis. The top 30 significant pathways are screened.
