Research Paper Volume 13, Issue 23 pp 25271—25290
An integrative pan-cancer analysis reveals the oncogenic role of mutS homolog 6 (MSH6) in human tumors

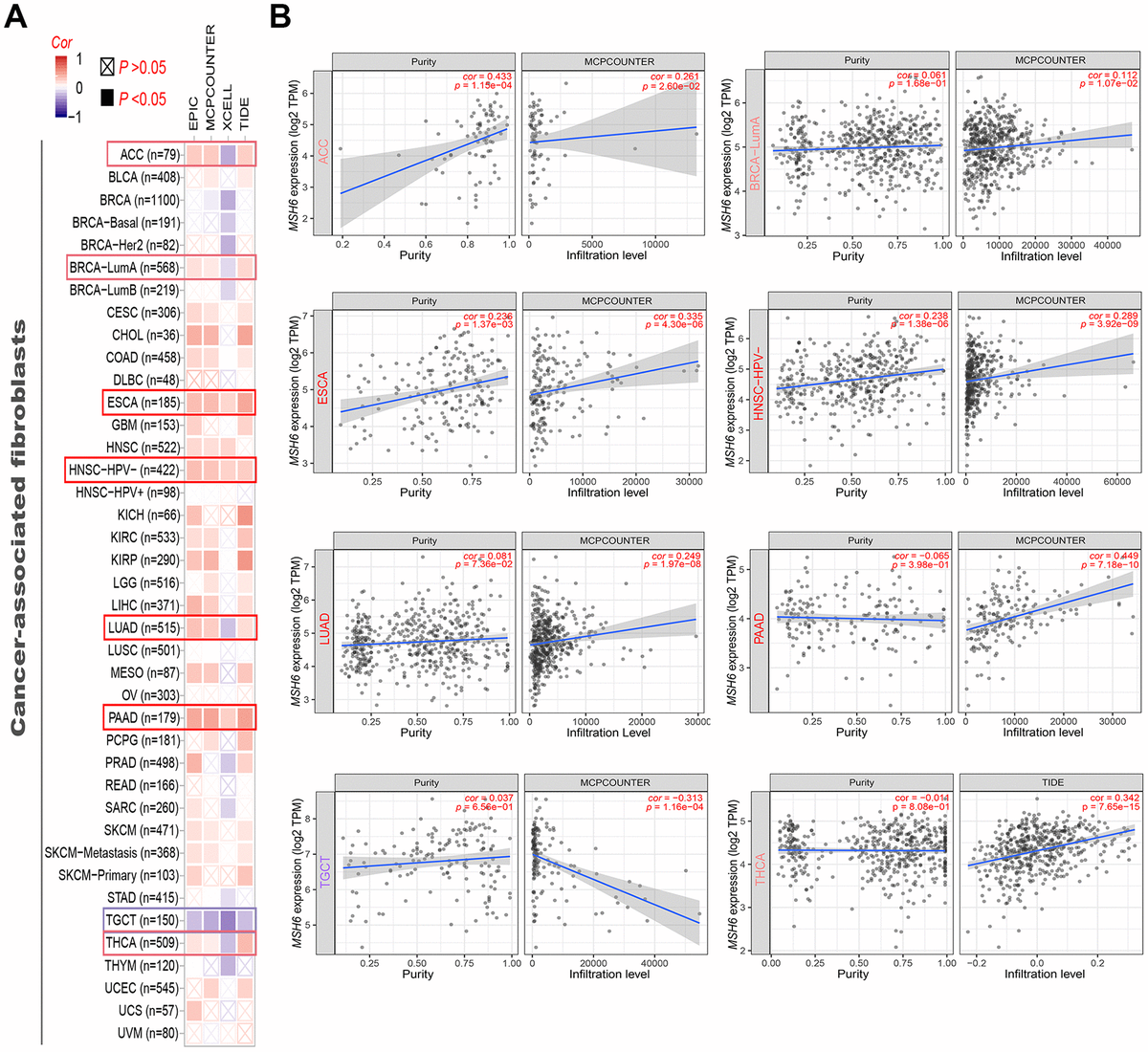

Figure 5. Correlation analysis between MSH6 gene expression and immune infiltration of cancer-associated fibroblasts. (A) Different algorithms (including MCPCOUNTER, EPIC, XCELL and TIDE) were applied to evaluate the relationship between MSH6 expression and the immune infiltration level of cancer-associated fibroblasts for all TCGA tumors. (B) The scatterplot data of the selected tumor generated using one of the algorithms were supplied.
