Research Paper Volume 14, Issue 6 pp 2590—2606
The TLR4/NF-κB/MAGI-2 signaling pathway mediates postoperative delirium

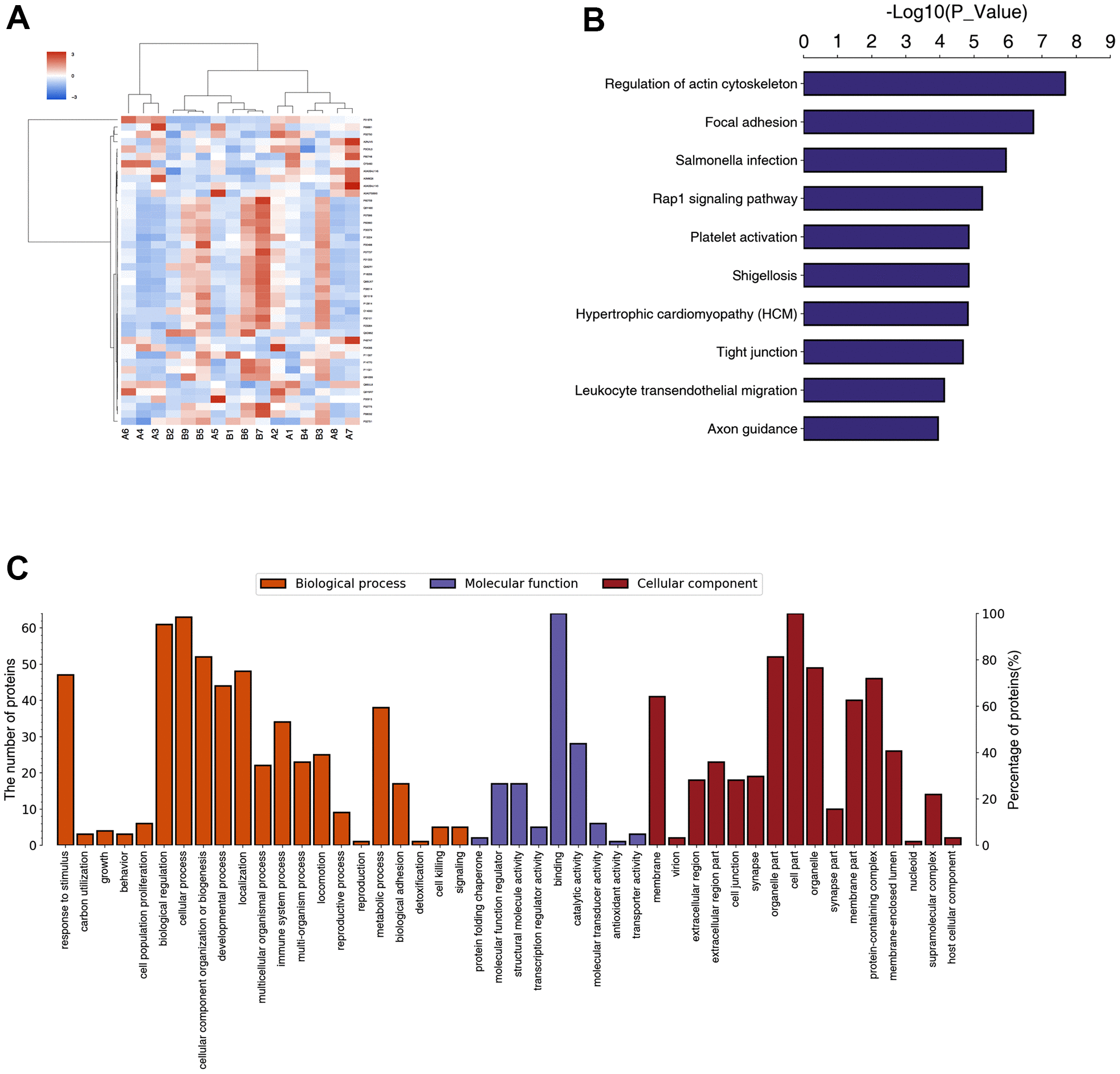

Figure 5. Result of proteomics in POD patients and non-POD patients. Eight POD patients and eight non-POD patients were randomly selected, from whom peripheral blood on the third postoperative day (T2) was collected for testing through Data Independent Acquisition (DIA) proteomics study. A total of nine proteins were upregulated and 55 proteins were downregulated in the peripheral blood of POD patients compared with non-POD patients (A). KEGG pathway annotation and enrichment analysis were shown in (B). The GO annotation and enrichment analysis were shown in (C).
