Research Paper Volume 14, Issue 7 pp 3084—3104
Mechanisms of action of triptolide against colorectal cancer: insights from proteomic and phosphoproteomic analyses

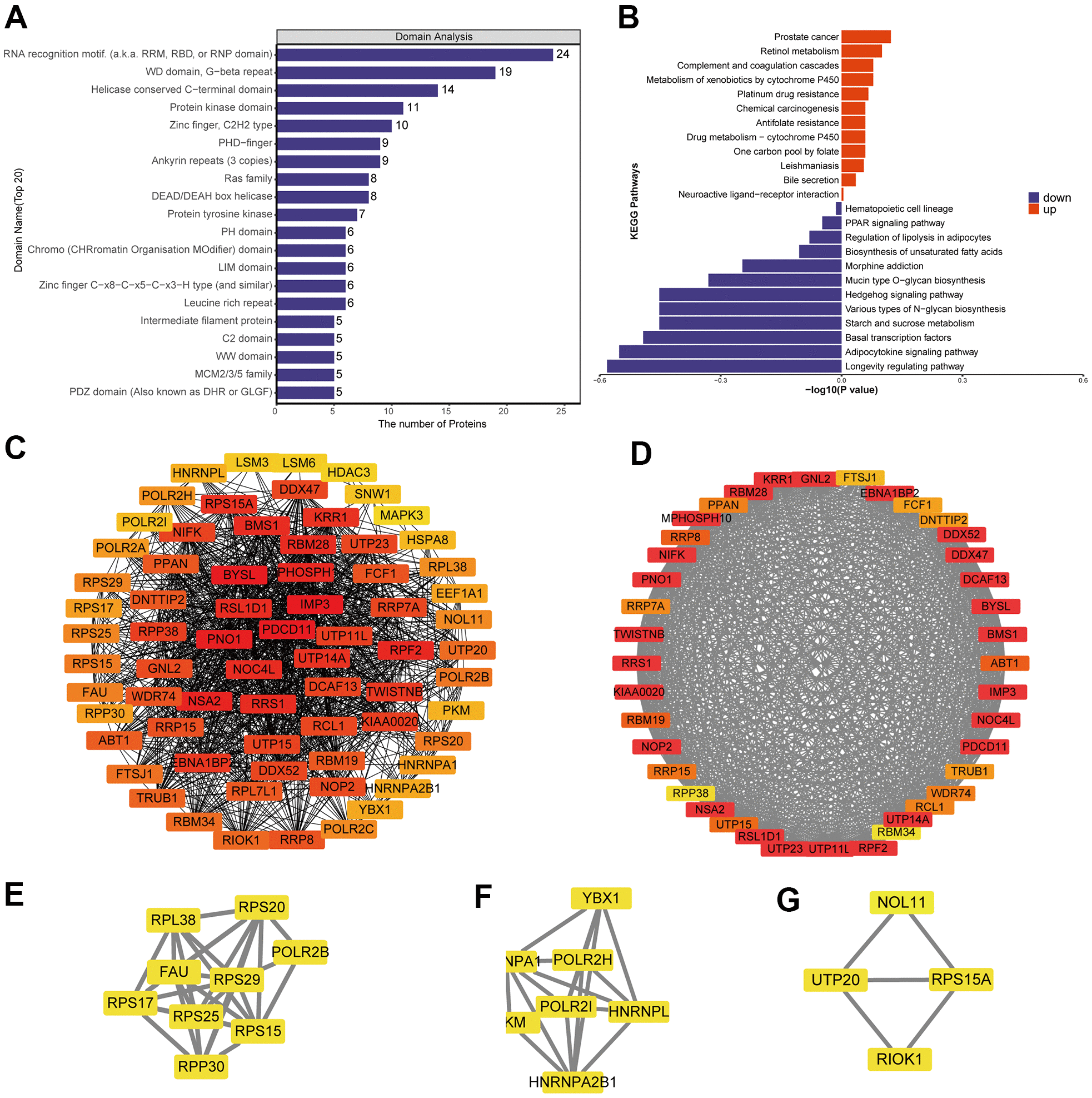

Figure 3. Analysis of predicted interactions among differentially expressed proteins. The four most significant modules were identified by the molecular complex detection (MCODE) algorithm. (A) Enrichment of domains in differentially expressed proteins. (B) Enrichment of KEGG pathways in differentially expressed proteins. (C) Interaction network of differentially expressed proteins. (D–G) The four most significant MCODE modules.
