Research Paper Volume 14, Issue 9 pp 3973—3988

Comprehensive analysis to identify noncoding RNAs mediated upregulation of maternal embryonic leucine zipper kinase (MELK) correlated with poor prognosis in hepatocellular carcinoma

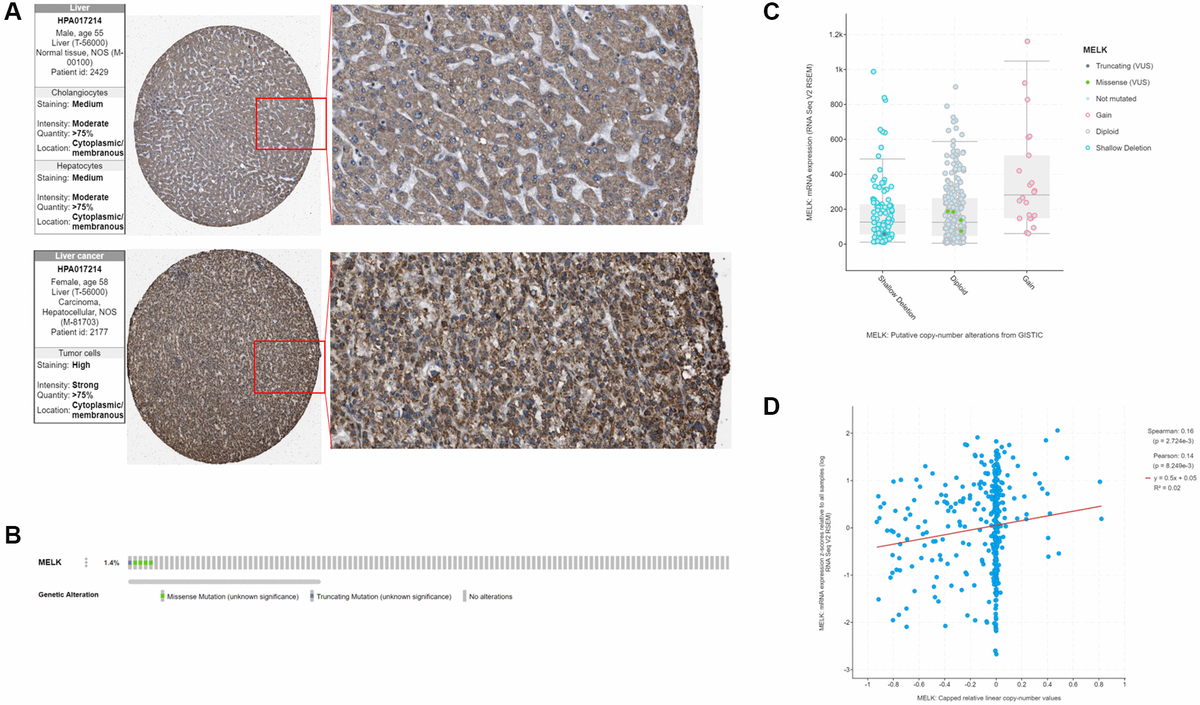

Figure 3. MELK in HCC (A) Verification of MELK protein levels using immunohistochemical data from the Human Protein Atlas database. (B) MELK genomic alterations in TCGA HCC shown on a cBioPortal OncoPrint plot. Association between MELK copy number and mRNA level shown by dot plot (C) and correlation plot (D) using cBioPortal.
