Research Paper Volume 14, Issue 9 pp 3973—3988

Comprehensive analysis to identify noncoding RNAs mediated upregulation of maternal embryonic leucine zipper kinase (MELK) correlated with poor prognosis in hepatocellular carcinoma

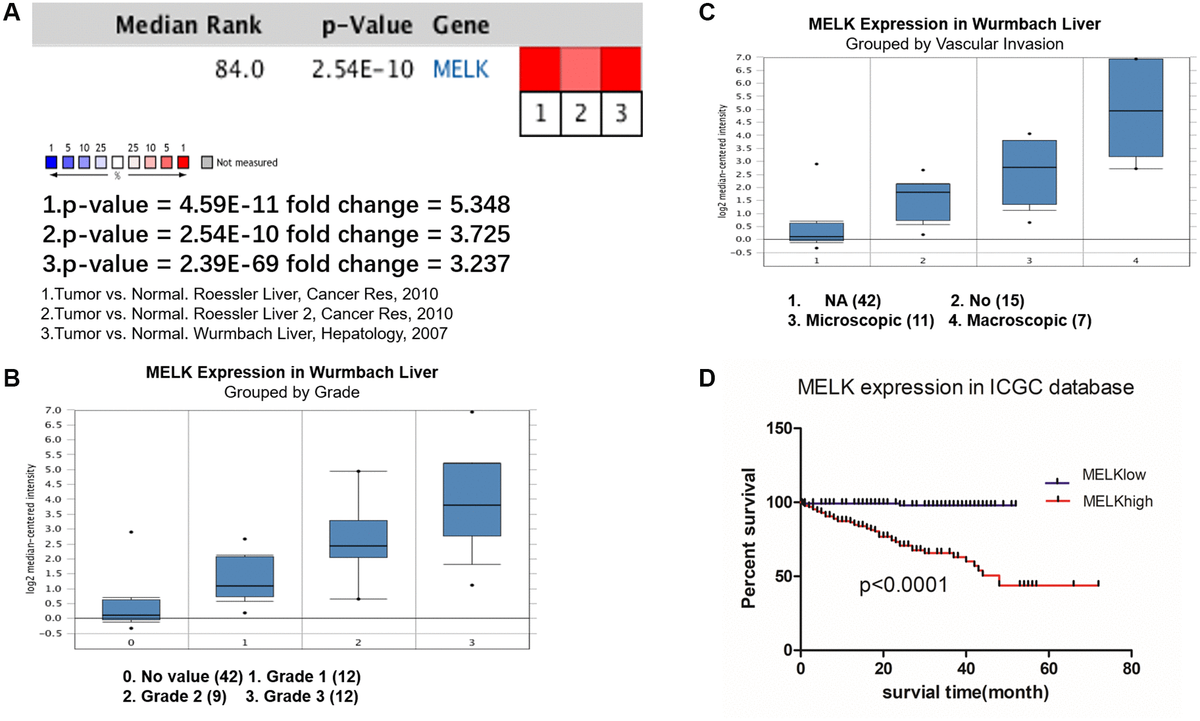

Figure 4. Oncomine and ICGC database analysis of MELK in HCC. Oncomine analysis of MELK expression in cancer and normal tissues. (A) Heatmaps showing MELK expression in clinical HCC samples vs. normal tissues. Association between MELK expression and tumor grade (B) and vascular invasion (C) in the Wurmbach Liver dataset. (D) Overall survival analysis of MELK expression in the ICGC database.
