Research Paper Volume 14, Issue 9 pp 3973—3988

Comprehensive analysis to identify noncoding RNAs mediated upregulation of maternal embryonic leucine zipper kinase (MELK) correlated with poor prognosis in hepatocellular carcinoma


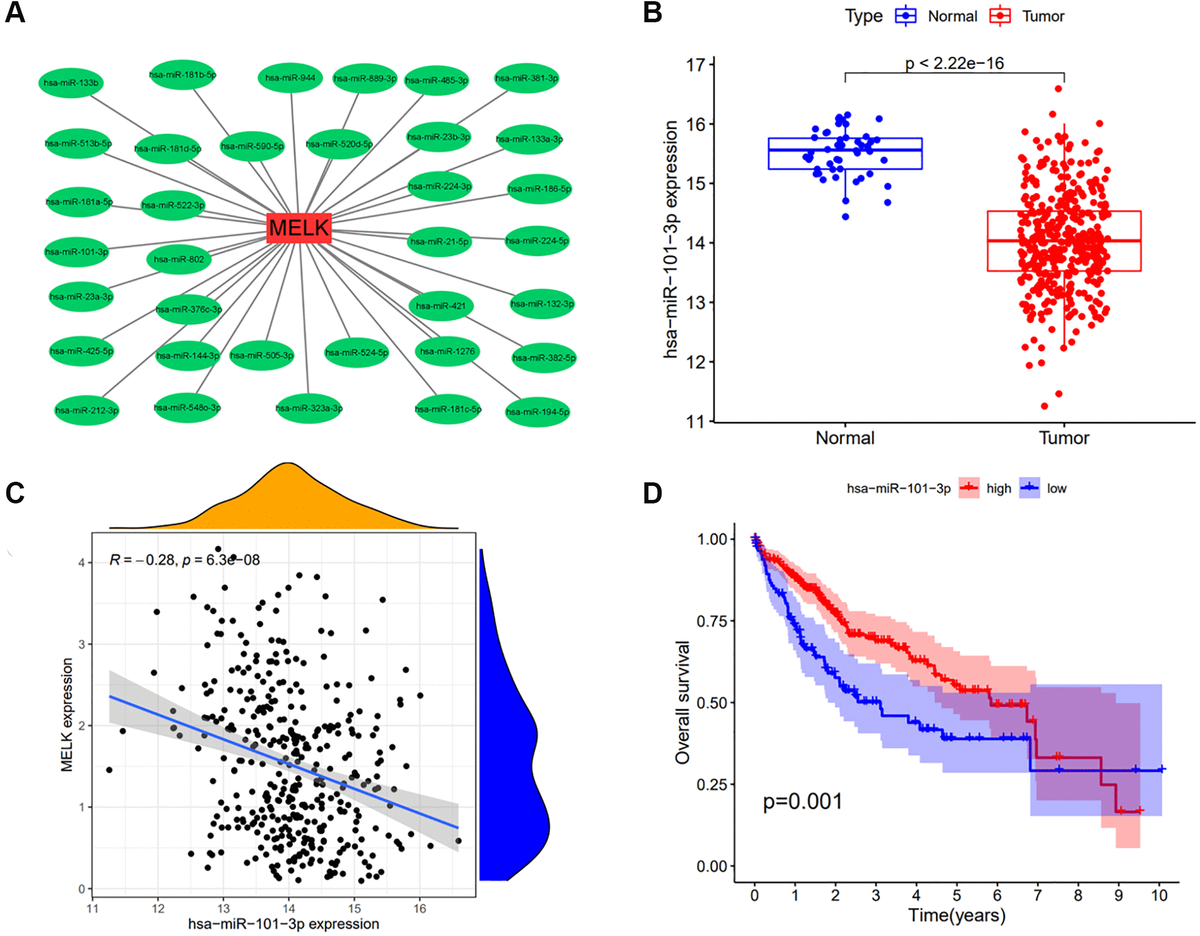

Figure 5. Analysis of has-miR-101-3p as an upstream regulator of MELK in HCC. (A) miRNA-MELK regulatory network constructed by Cytoscape. (B) Association of MELK and miRNA expression analyzed by starBase. (C) Expression of hsa-miR-101-3p in tumor and normal tissue analyzed by starBase. (D) Prognostic value of hsa-miR-101-3p assessed by Kaplan-Meier survival analysis.
