Research Paper Volume 14, Issue 10 pp 4402—4424
Intra-tumoral angiogenesis correlates with immune features and prognosis in glioma

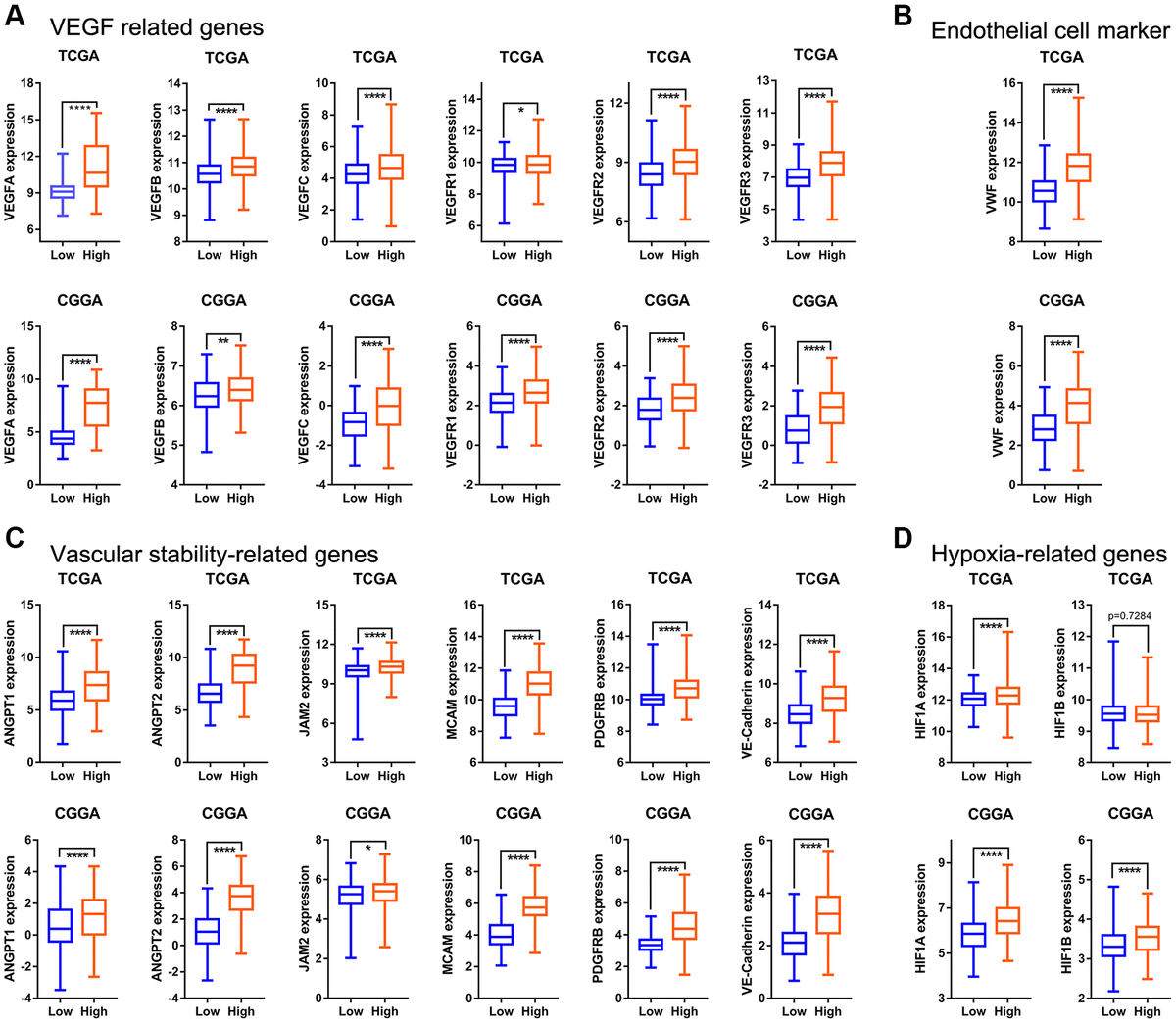

Figure 1. The relationship between angiogenesis pathway score and angiogenesis regulatory factors in the TCGA and CGGA datasets. (A) Expression of VEGF-related genes (VEGFA, VEGFB, VEGFC, VEGFR1, VEGFR2, VEGFR3) in high- and low-score groups. (B) VWF (endothelial cell marker) expression in different groups. (C) Expression levels of ANGPT1, ANGPT2, JAM2, MCAM, PDGFRB, and VE-Cadherin in different groups. (D) Gene expression levels of hypoxia-related genes (HIF1A and HIF1B).
