CCL19 has potential to be a potential prognostic biomarker and a modulator of tumor immune microenvironment (TIME) of breast cancer: a comprehensive analysis based on TCGA database

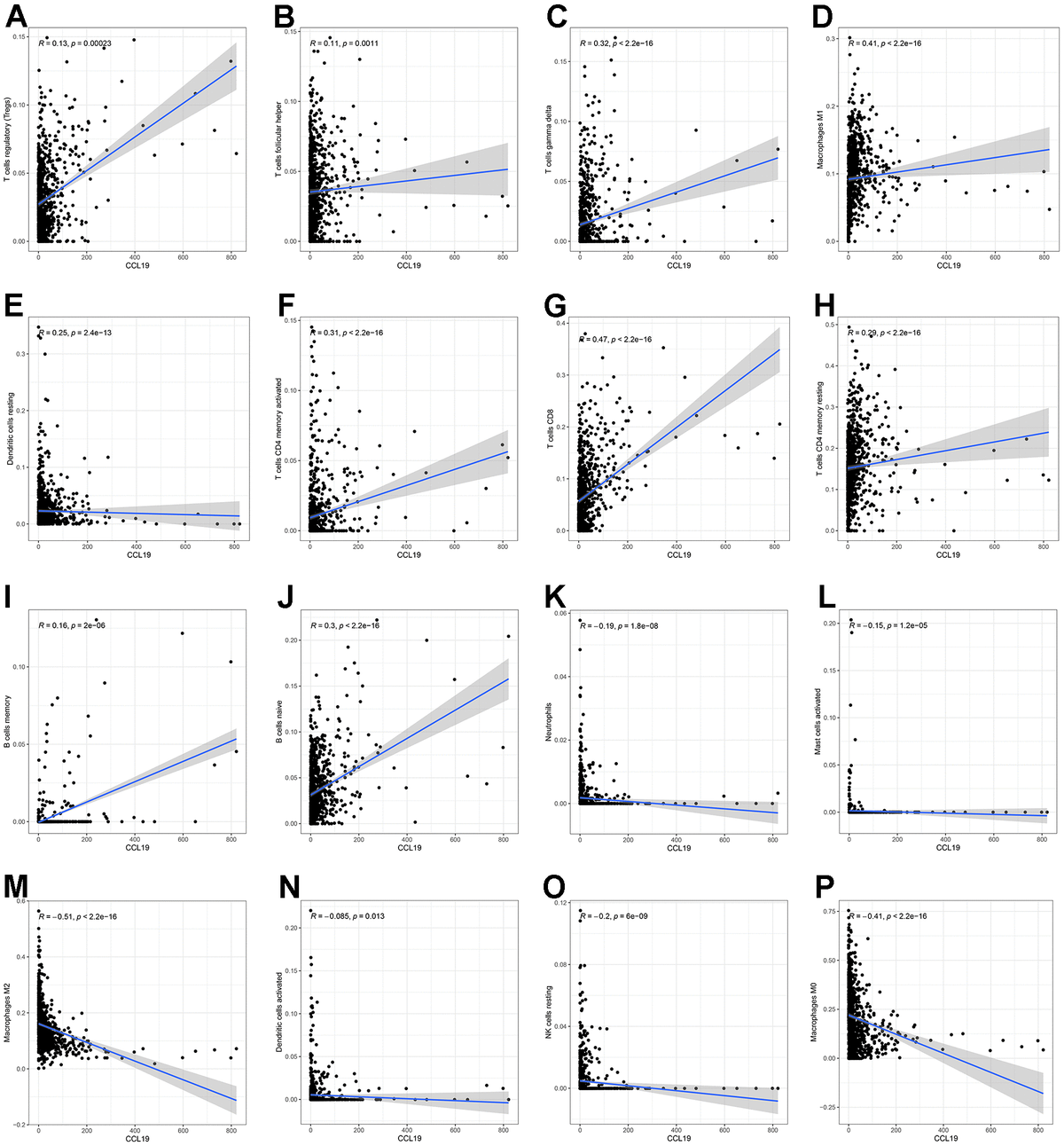

Figure 7. Scatter plots indicated the correlation between 16 TICs and the expression of CCL19, p<0.05 was considered to be statistically significant. (A) The correlation between Tregs and the expression of CCL19; (B) The correlation between T cells follicular helper and the expression of CCL19; (C) The correlation between T cells gamma delta and the expression of CCL19; (D) The correlation between Macrophages M1 and the expression of CCL19; (E) The correlation between Dendritic cells resting and the expression of CCL19; (F) The correlation between T cells CD4 memory activated and the expression of CCL19; (G) The correlation between T cells CD8 and the expression of CCL19; (H) The correlation between T cells CD4 memory resting and the expression of CCL19; (I) The correlation between B cells memory and the expression of CCL19; (J) The correlation between B cells naive and the expression of CCL19; (K) The correlation between Neutrophils and the expression of CCL19; (L) The correlation between Mast cells activated and the expression of CCL19; (M) The correlation between Macrophages M2 and the expression of CCL19; (N) The correlation between Dendritic cells activated and the expression of CCL19; (O) The correlation between NK cells resting and the expression of CCL19; (P) The correlation between Macrophages M0 and the expression of CCL19.
