Research Paper Volume 14, Issue 11 pp 4858—4873

A novel ALG10/TGF-β positive regulatory loop contributes to the stemness of colorectal cancer

class="figure-viewer-img"

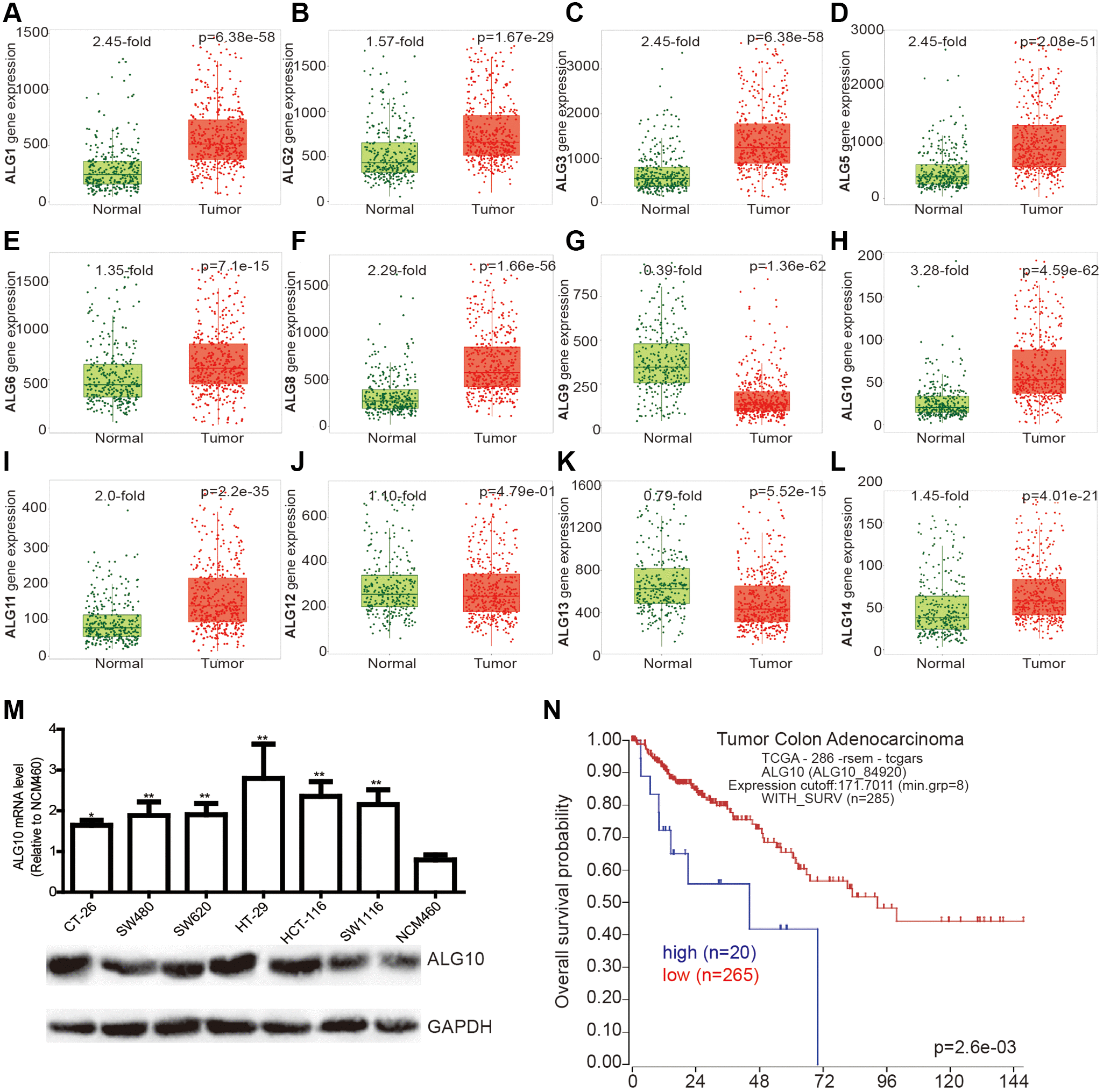

Figure 1. ALG10 was highly expressed in CRC tissues. (A–L) The expression of ALG family members (ALG1, ALG2, ALG3, ALG5, ALG6, ALG8, ALG9, ALG10, ALG11, ALG12, ALG13, ALG14) in CRC and normal tissues was evaluated through the online analytic tool (TNMplot: https://tnmplot.com/analysis/). (M) ALG10 mRNA and protein expression was detected in CRC cells and normal colorectal epithelial cells. n = 3, *P < 0.05, **P < 0.01 vs. Control. (N) The correlation between ALG10 expression and survival of CRC patients was determined through the online analytic tool (R2: Genomics Analysis and Visualization Platform).
