Comprehensive landscape of immune-based classifier related to early diagnosis and macrophage M1 in spinal cord injury

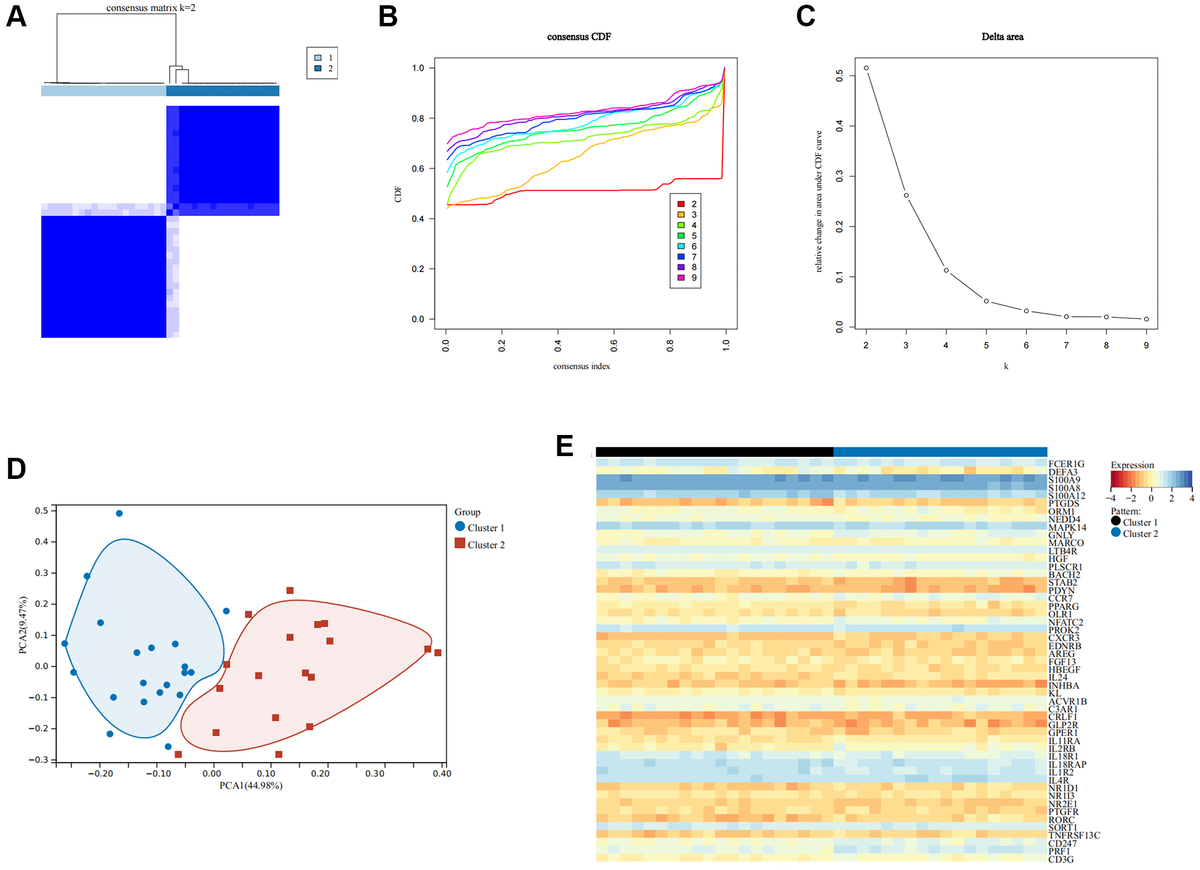

Figure 6. Recognition of immune modulation patterns in SCI. (A–C) Clustering matrix plot at k = 2 via unsupervised clustering analysis; (D) PCA analysis of immune modulation patterns; (E) Heat map showing the expression of important IRGs.
