Mechanism of baixiangdan capsules on anti-neuroinflammation: combining dry and wet experiments

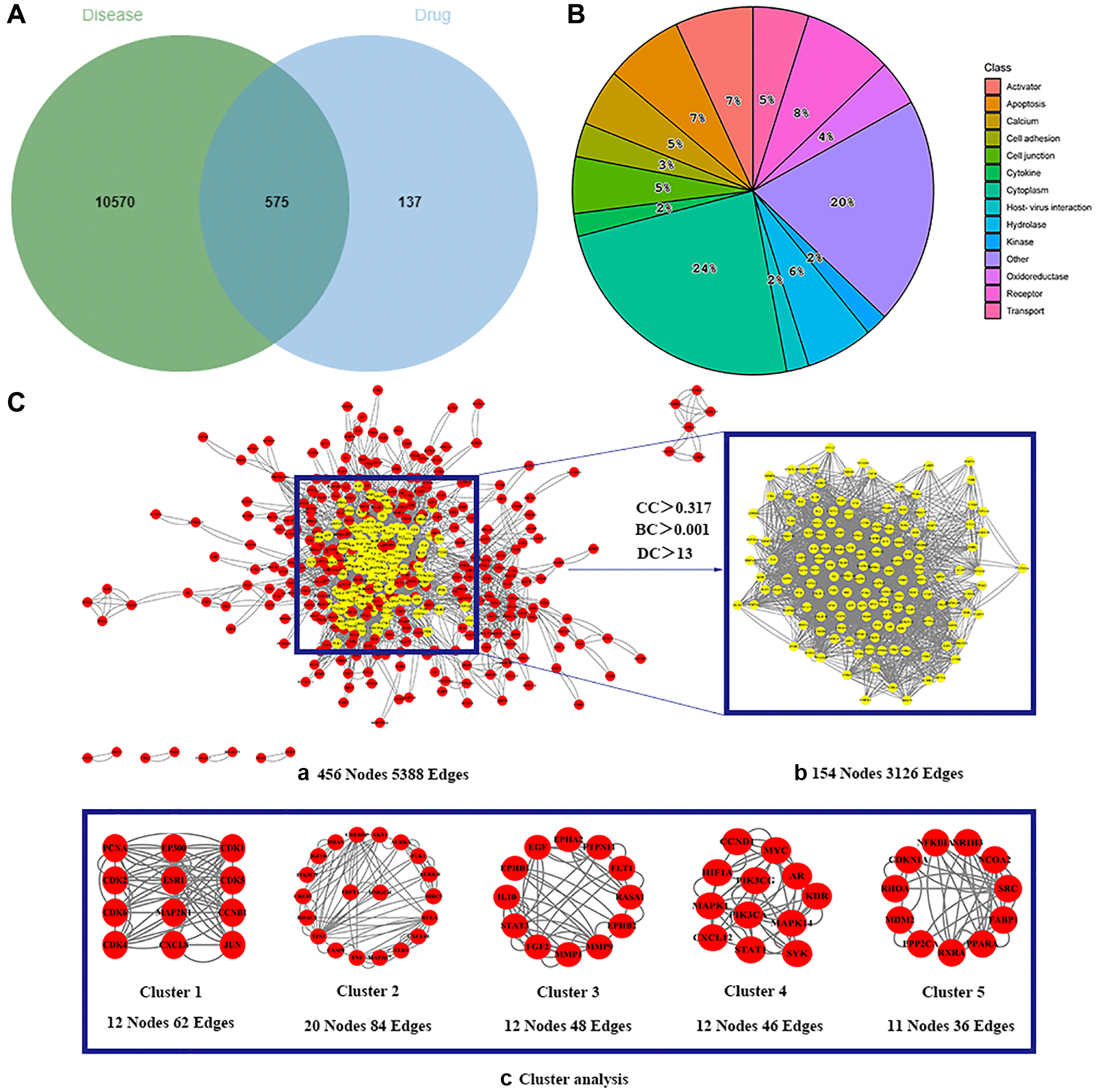

Figure 2. Identification of potential targets of BXD for the treatment of neuroinflammation. (A) Venn diagram of overlapping targets for BXD and neuroinflammation. (B) The BXD anti-inflammatory target classes. (C) Identification of candidate targets for BXD against neuroinflammation via PPI analysis. (a) PPI networks of shared targets between BXD and neuroinflammation analyzed by STRING 11.5. (b) Most significant module identified by the topology selection. (c) Core 154 targets in the PPI network based on clustery analysis using the MCODE plug-in.
