Research Paper Volume 15, Issue 17 pp 8948—8975
Prognostic value and immunological role of CSNK1D in human cancers

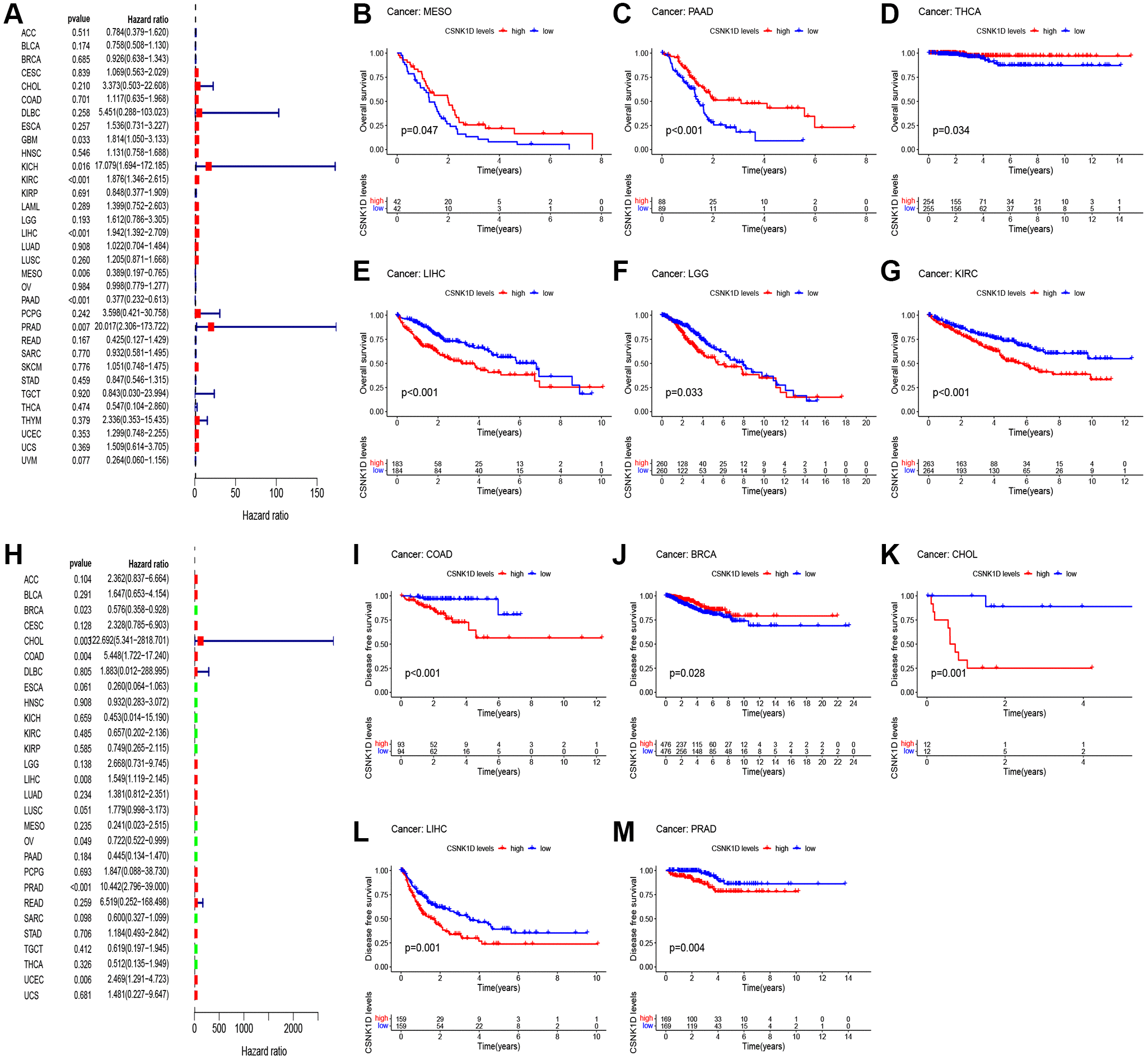

Figure 2. Relationship between CSNK1D expression and patient prognosis. (A) Correlation between the expression of CSNK1D and overall survival (OS) in multiple tumor types based on TCGA cohort. (B–G) Difference in the OS between the CSNK1D high and low expression groups. (H) Correlation between the expression of CSNK1D and disease-free survival (DFS) in multiple tumor types based on TCGA cohort. (I–M) Difference in the DFS between the CSNK1D high and low expression groups.
