Improved health-span and lifespan in mtDNA mutator mice treated with the mitochondrially targeted antioxidant SkQ1

SkQ1 treatment attenuated the manifestation of kyphosis and alopecia in mtDNA mutator mice

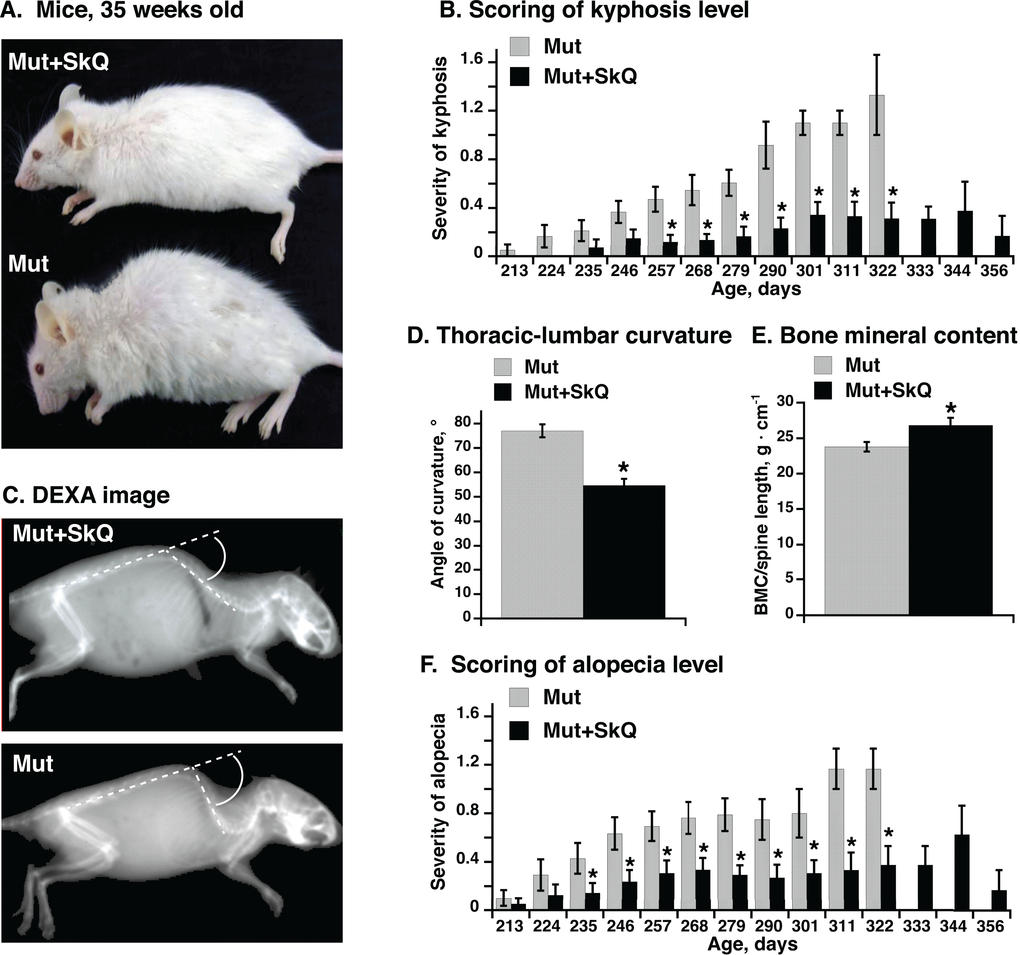

Already at an age of less than 230-250 days, mtDNA mutator mice show features normally associated with aging, as exemplified with the ≈250 days old mtDNA mutator mouse in Fig. 1A which confirms observations originally published by [12,13]. Strikingly, treatment of these mice with the SkQ1, not from birth but only from an age of ≈100 days, markedly diminished this phenotype, resulting in mice presenting a mouse much more similar to wild-type mice of this age (Fig. 1A). These dramatic improvements were quantitatively analyzed in the ensuing graphs.

One feature of the aging process is the occurrence of (hyper)kyphosis, i.e. (over)curvature of the spine [12,13]. The severity of this malfunction has been manually scored in Fig. 1B every 11^th day (as exemplified in Supp. Table S1). Whereas hyperkyphosis developed gradually but consistently in the non-treated mtDNA mutator mice, the occurrence was low and fairly stable in the SkQ1-treated age-matched mice, even though the SkQ1-treated mice lived longer (see below) and thus could be followed to a higher age. Hyperkyphosis can be quantitated through X-ray analysis. Fig. 1C illustrates such a measurement, performed on mice of equal age. The mean values of these measurements are compiled in Fig. 1D. As seen, there was a significant effect of SkQ1 in diminishing the degree of kyphosis.

Measurement of bone minerality of the spinal cord from scapula to lumbar revealed a higher bone mineral content of this area in the SkQ1-treated mtDNA mutator mice (Fig. 1E).

Non-treated mtDNA mutator mice showed severe alopecia (hair loss) [12,13]. This pathology was much less evident in mice treated with SkQ1 (Fig. 1F). It may especially be noted that these cohorts of mice were single-caged. Thus, the alopecia and the loss of whiskers were mouse-autonomous effects. Earlier studies have kept mice in larger groups where mouse-mouse interaction (particularly between males) may substantially affect the outcome, leading to exaggerated fur loss (barbering). – As fur protects against heat loss [26] and as the mice were living at 22 °C, i.e. below their thermoneutral zone, the implication is that the SkQ1-induced amelioration of the fur status is not only a general indication of less rapid advancement of aging features but also that it can diminish the heat loss and thus the risk for hypothermia [27].

SkQ1 treatment prevented loss of fat and improved the estrus state in mtDNA mutator mice

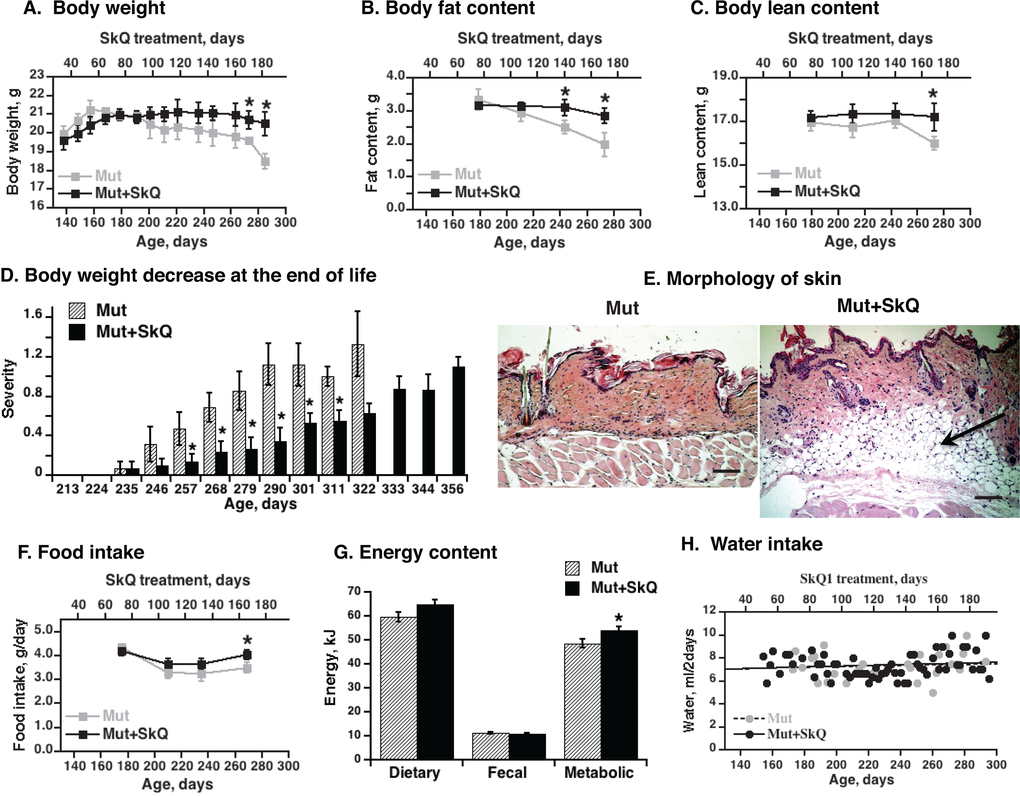

The SkQ1-treated mtDNA mutator mice showed no decrease with age in body weight and body fat content. Both these parameters significantly decreased in the non-treated mice (Fig. 2A, B). Lean body mass was kept at stable levels longer than fat mass, but from an age of ≈270 days, it decreased in the non-treated mtDNA mutator mice (Fig. 2C). SkQ1 treatment prevented this loss of lean body mass (Fig. 2C). Acute body weight loss is an important criterion for the running assessment of mouse health (Supp. Table S1). As seen on Fig. 2D, this parameter was much improved in the SkQ1-treated mice.

In mtDNA mutator mice of 290 days, there were nearly no subdermal lipid stores left whereas the stores were well maintained in the SkQ1-treated mice (Fig. 2E). During the time when the weight curves for the non-treated and SkQ1-treated mice diverged, the food intake and metabolic energy consumption in the SkQ1-treated animals was slightly larger than that of the non-treated mtDNA mutator mice (Fig. 2F and G). This was probably secondary to the generally better status of the SkQ1-treated mice. Addition of SkQ1 to the drinking water did not change the water intake (Fig. 2H).

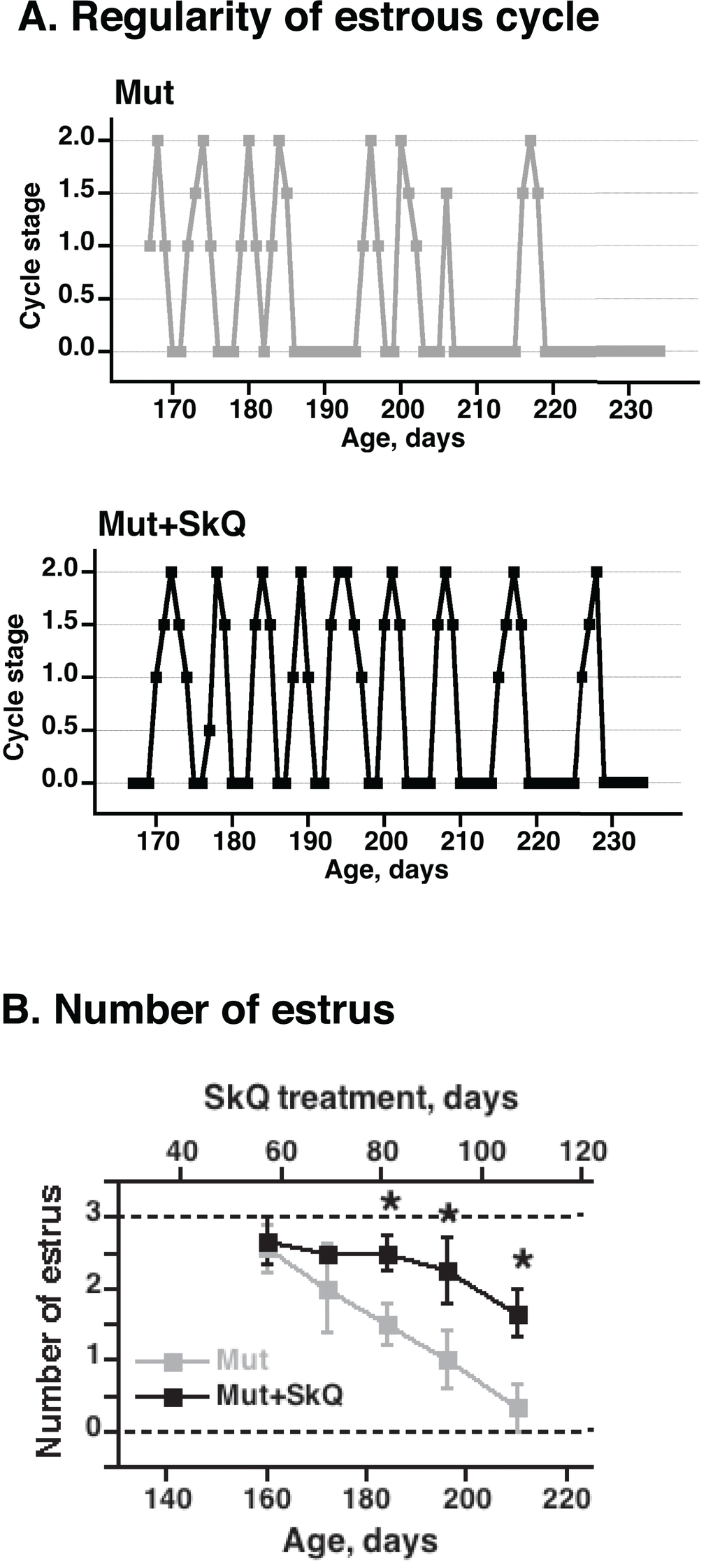

Through leptin signaling [28], body lipid stores may affect ovulation in the mice. Accordingly, non-treated mtDNA mutator mice exhibited a successively impaired estrus cycle with irregularity and loss of estrus (Fig. 3). The SkQ1 treatment increased the number of estruses and ameliorated the irregularity of the estrus cycle (Fig. 3).

Positive effects of SkQ1 treatment could be attributed to its antioxidant properties

The data collected above demonstrate that treatment of mtDNA mutator mice with SkQ1 significantly delays the aging characteristics observed in the mtDNA mutator mice. As SkQ1 was originally developed as a mitochondrially targeted antioxidant [21], we examined whether the treatment of mtDNA mutator mice with SkQ1 would affect ROS-related parameters that may be linked to SkQ1’s beneficial effects.

In the typical lipid peroxidation process, ROS will interact with omega-6 and omega-3 fatty acids (mainly linoleic acid and arachidonic acid) in the membrane phospholipids, leading to the release of malondialdehyde (MDA) and 4-hydroxynonenal (4-HNE) that may form adducts with proteins. We examined whether these parameters were affected by the SkQ1 treatment.

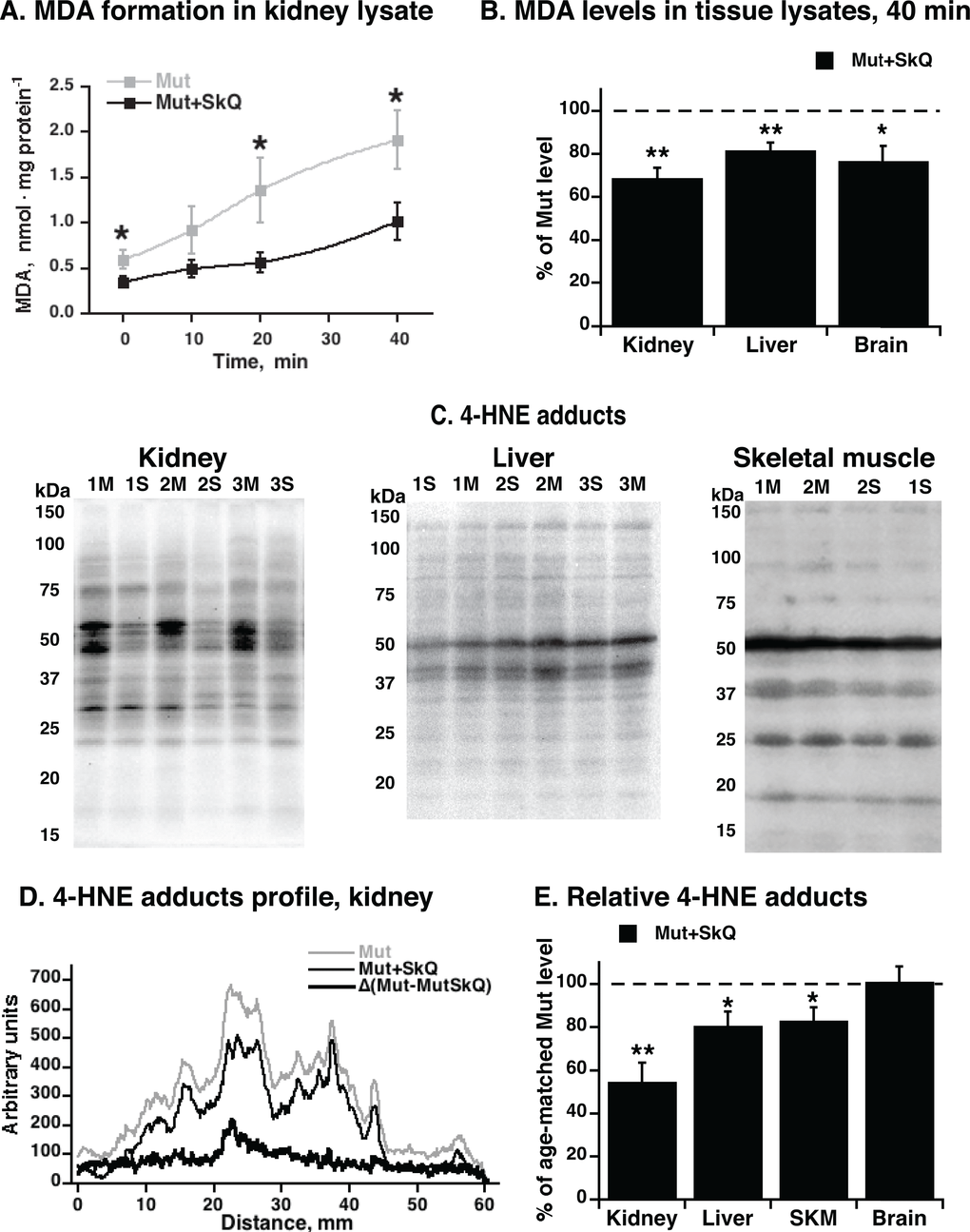

We followed the formation of MDA in kidney lysates (Fig. 4A). The rate of formation was markedly lower in the lysates from the SkQ1-treated mtDNA mutator mice. We made similar observations in lysates from liver and brain (Fig. 4B). These experiments thus indicated that at least in vitro, tissues obtained from SkQ1-treated mice were less prone to lipid peroxidation than tissues from non-treated mice.

To examine whether similar differences occurred in vivo, we estimated the endogenous level of lipid peroxidation by analysis of the in vivo formed 4-HNE adducts to cellular proteins. A lower content of 4-HNE-adducts was observed in kidney samples from SkQ1-treated mice as compared with the level in kidneys of non-treated mice (Figs. 4C - E). Also in liver and skeletal muscle, 4-HNE adducts were significantly (although less markedly) lower in SkQ1-treated mice (Fig. 4C - E); in brain, no difference was observed (Fig. 4E). These findings are in line with our data that the in vivo administrated SkQ1 accumulates in brain in much smaller amount than in kidney, liver and skeletal muscle (A. Andreev-Andreevsky et al., in preparation).

As one of the main sources of the released MDA and 4-HNE are the polyunsaturated fatty acids of the mitochondrial membrane phospholipids [29], we examined the effect of SkQ1 on the phospholipid composition of mitochondria from different tissues. This experiment is exemplified for skeletal muscle and liver in Table 1. As seen in Table 1, neither the mutation nor the treatment with SkQ1 had any marked effect on the content of most phospholipid classes. However, one phospholipid class, cardiolipin, was relatively decreased in the mtDNA mutator mice as compared to wild-type mice. This effect was revealed in both skeletal muscle and liver (Table 1). Further, the SkQ1-treatment restored the cardiolipin amount in the mtDNA mutator mice to wild-type levels in the mtDNA mutator mice (Table 1).

We further analyzed the fatty acyl composition of the total phospholipids of the mitochondrial membranes. The content of polyunsaturated n-6 fatty acids (PUFA n-6) in mtDNA mutator mice was markedly decreased to only 2/3rd of wild-type levels both in skeletal muscle and liver mitochondria of mtDNA mutator mice (Table 1). The lowering of polyunsaturated fatty acids level was compensated for by saturated fatty acids. The SkQ1 treatment of the mtDNA mutator mice fully prevented this remodeling, such that wild-type levels were retained.

As cardiolipin generally contains 4 linoleyl (18:2, n-6) moieties per molecule, it is likely that the decrease in cardiolipin amount (by ≈5 mol %) is largely responsible for the loss of n-6 PUFAs (by ≈10 mol %), and that the retention of the n-6 PUFAs by SkQ1 treatment is due to the preservation of cardiolipin in the SkQ1-treated mtDNA mutator mice.

SkQ1 normalized mitochondrial ultrastructure in liver and heart

Cardiolipin is believed to be important for mitochondrial structure and function [32]. We therefore examined whether the large changes in cardiolipin amount were associated with alterations in these parameters.

Fig. 5 shows electron microscopic pictures of liver cells from wild-type mice, mtDNA mutator mice and SkQ1-treated mtDNA mutator mice. The mitochondria in mtDNA mutator mice seemed larger than those in wild-type mice. Moreover, some of the mitochondria in the mtDNA mutator mice contained elongated electron-dense inclusions composed of series of membranes packed in a myelin-like manner. The SkQ1 treatment prevented both these changes.

Safdar et al. [33] observed similar mitochondrial alterations in skeletal and heart muscles of mtDNA mutator mice. We confirmed this observation in heart muscle. Also in this tissue, SkQ1 prevented disorganization of the mitochondrial ultrastructure (Fig. 6). Moreover, the number of mitochondria per µm² of heart muscle was increased by SkQ1 from 100 ± 5% to 128 ± 6% (P < 0.05) in the wild-type mice and from 69 ± 3% to 125 ± 6% (P < 0.001) in the mtDNA mutator mice. SkQ1 did not influence the area occupied by the inner mitochondrial membrane in the wild-type mice but prevented 42% (P < 0.01) decrease in this area observed in the mtDNA mutator mice.

SkQ1 improved the function of isolated mitochondria

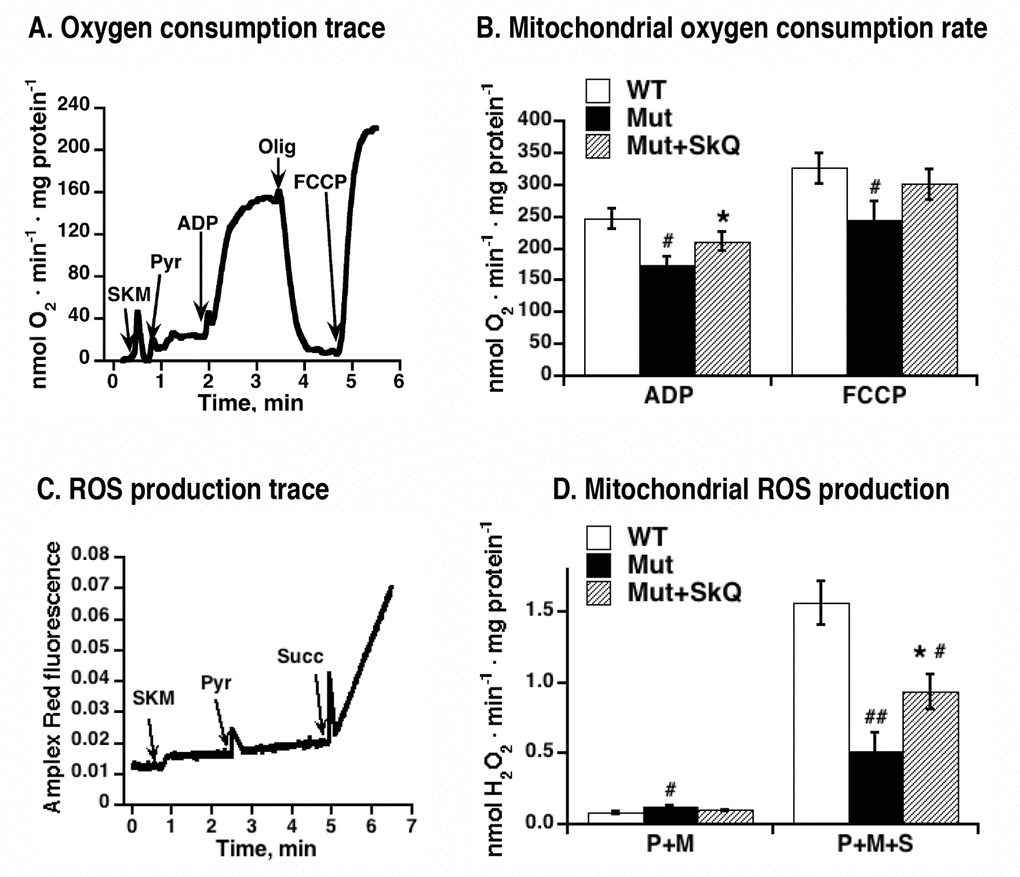

In the mtDNA mutator mice, there is a significant decline of ADP- and FCCP-inducible respiration of liver and heart mitochondria, as compared to wild-type mitochondria [15]. To examine whether SkQ1 treatment would affect the development of this mitochondrial deterioration, we analyzed the oxygen consumption of skeletal muscle mitochondria isolated from SkQ1-treated and non-treated mtDNA mutator mice. Fig. 7A exemplifies the bioenergetic kinetics observed in such experiments. As summarized in Fig. 7B, ADP-stimulated respiration was higher in mitochondria from SkQ1-treated mtDNA mutator mice than in mitochondria from mtDNA mutator mice. There was no observable effect on state 4 respiration (i.e. after oligomycin) but there was a tendency to a higher maximal respiratory capacity (i.e. after addition of the artificial uncoupler FCCP). Thus, both ultrastructural and bioenergetic features of mitochondria from mtDNA mutator mice were ameliorated by SkQ1 treatment.

Higher mitochondrial ROS production in SkQ1-treated mice reflects an improved respiratory chain capacity

Hydrogen peroxide production resulting from oxidation of a complex I substrates (pyruvate+malate) or of mixed complex-I and complex-II substrates (pyruvate +malate+succinate) was measured in skeletal muscle mitochondria from non-treated and SkQ1-treated mtDNA mutator mice, as exemplified in Figs. 7C and D. Hydrogen peroxide production supported by complex I substrates alone was not affected by SkO1-treatment (Fig. 7D). However, on mixed substrates hydrogen peroxide production rate in isolated mitochondria from SkQ1-treated mice was higher than in mitochondria from non-treated mice (Fig. 7D). This effect of SkQ1 may be the result of an improved respiratory electron transfer activity and/or more directly from a higher membrane potential in the mitochondria of SkQ1-treated mice. It is shown that the ROS production that results from reverse electron flow from exogenously provided succinate is augmented by a higher membrane potential [34–37]. As to the in vivo SkQ1 treatment, it does not lead to increased general oxidative damage (4-HNE adduct formation was actually decreased following SkQ1 treatment, see Fig. 4E).

SkQ1 treatment improves thermogenic capacity of brown adipose tissue

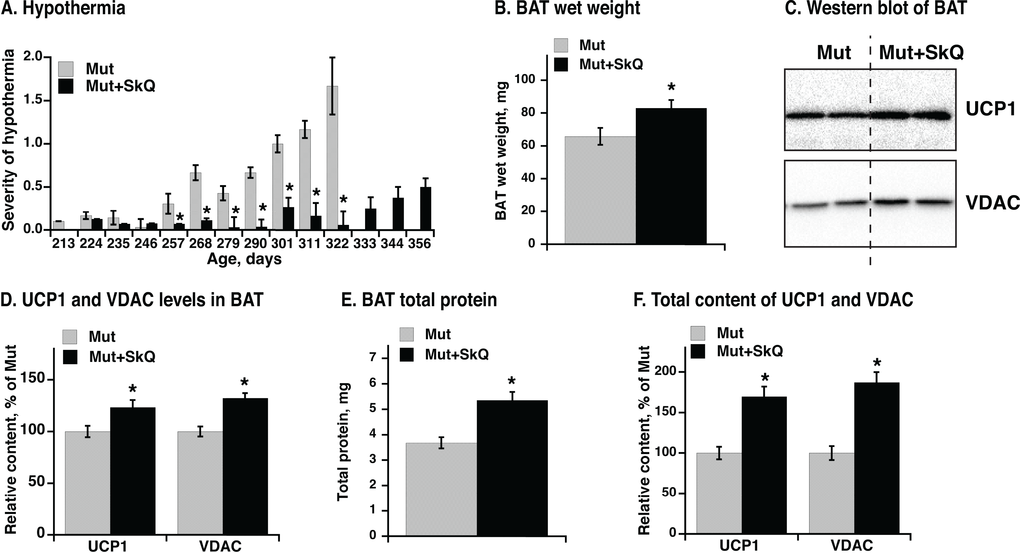

Hypothermia is a characteristic feature of mtDNA mutator mice and develops markedly after about 220 days, as evaluated qualitatively in Fig. 8A. SkQ1-treated mtDNA mutator mice show almost no indication of hypothermia during this period. Additionally, whereas mtDNA mutator mice to a very high degree developed hypothermia towards the end of their life, the SkQ1-treated mtDNA mutator mice did not present with this problem even as they became moribund (Fig. 8A).

A main source for sustained regulatory heat production in mammals is brown adipose tissue. There was a significant positive effect of SkQ1 treatment on interscapular brown adipose tissue mass (Fig. 8B). Analysis of mitochondrial proteins in brown adipose tissue homogenate revealed a higher level of mitochondrial voltage-dependent anion channel (VDAC) per mg brown adipose tissue total protein (Figs. 8C, D) in SkQ1-treated mtDNA mutator mice, indicating an increase in the number of mitochondria. More functionally, there was also an increase in the amount of the rate-limiting protein for thermogenesis, i.e. uncoupling protein (UCP1) (Fig. 8C, D). The total brown adipose tissue protein was also higher in SkQ1-treated mtDNA mutator mice (Fig. 8E). For thermogenesis on whole organism level, the total thermogenic capacity is more important than concentration of proteins. Therefore we estimated the total content of VDAC (≈ amount of mitochondria) and UCP1(≈ total thermogenic capacity) in the interscapular brown adipose tissue (Fig. 8F) by multiplying the specific content of each of these proteins (Fig. 8D) with the total amount of protein (Fig. 8E). The outcome was that the total mitochondrial content and particularly the total content of UCP1 was more than 50% higher in the SkQ1-treated mtDNA mutator mice than in the non-treated mice (Fig. 8F). These observations indicate that the lack of hypothermia in the SkQ1-treated mtDNA mutator mice can largely be ascribed to an enhanced (or preserved) capacity for heat production in their brown adipose tissue.

SkQ1 treatment delays development of mtDNA mutator mice immobility

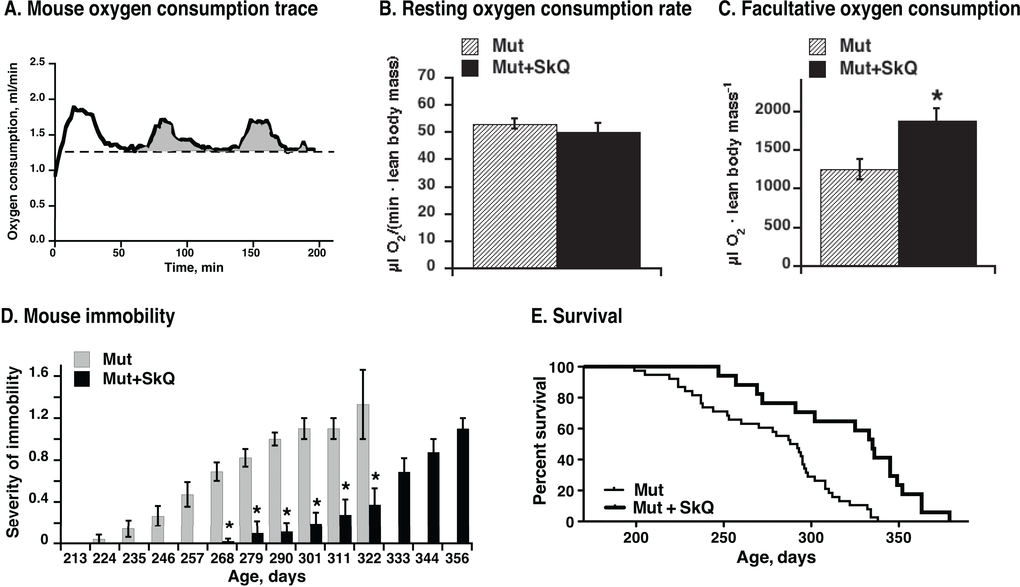

Oxygen consumption of mice at their living temperature 22 °C (Fig. 9A) reflects mouse general activity inclu-ding adaptive thermogenesis. The SkQ1-treated mtDNA mutator mice exhibited higher metabolism (oxygen consumption rates) above the resting rates (Fig. 9B and C), probably related to visibly higher mobility of animals (Fig. 9D), better retention of mitochondrial oxidative phosphorylation (Fig. 7B) and improved brown adipose tissue thermogenic capacity (Fig. 8F).

Significance of improved thermogenic capacity and physical activity on cause of death in SkQ1-treated mtDNA mutator mice

In Table 2, we have collected descriptions of phenotypic features of mtDNA mutator mice treated and non-treated with SkQ1 at the point of euthanasia. It may be noted that in the non-treated mtDNA mutator mice, more than 50% of the mice displayed phenotypes related to body temperature regulation problems: low body temperatures, piloerection, shivering. In the SkQ1-treated mice, these features were not at all prominent. Thus, the SkQ1 treatment retained mitochondrial bioenergetic capacity, both in muscle and in brown adipose tissue, thereby eliminating a major cause of death. In the SkQ1-treated group, anemia and body weight decrease became the prominent features in the moribund mice.

Postmortem examination also revealed positive effects of SkQ1 treatment (Table 3). Particularly, the heart pathology (Fig. S2A) often observed in the mtDNA mutator mice [12,22] was much rarer (Table 3). Liver (Fig. S2B), as well as kidney (Fig. S2C), pathology was milder, and the hydrocephalus observed occasionally in the mtDNA mutator mice was not found in the SkQ1-treated mice (Table 3). In contrast, certain other pathological findings occurred irrespectively of SkQ1 treatment: cecum and colon displayed pathological changes in all animals in both groups, and particularly the spleen was also pathological in nearly all animals, irrespective of SkQ1 treatment or not (Table 3). The spleen pathology is probably related to the paleness observed to a high extent in the SkQ1-treated mice during their last days (Fig. S2D). It would simply seem that the SkQ1-treated mtDNA mutator mice lived so much longer than the non-treated mice that anemia had time to develop sufficiently to become life-threatening.

SkQ1 treatment increased the lifespan of mtDNA mutator mice

It is implicitly evident from several of the above data series that in addition to the general positive effect that SkQ1 had on the general health of the mtDNA mutator mice, SkQ1 also prolonged the life of these mice. This is directly shown in Fig. 9F. The first mouse from the non-treated group died at an age of 199 days whereas the first SkQ1-treated mouse lived for 70 days longer. The median survival time for the non-treated group was 290 days; for the SkQ1-treated group it was 335 days, an increase in life expectancy of 45 days or 16%.

Thus, the SkQ1-treated mtDNA mutator mice not only increased their life-span; they also experienced a healthier life, with prolonged estrus cycles, adequate weight maintenance and less pathology.

A mechanism of action for SkQ1

The experiments presented here point to a series of events that could largely explain the ameliorating effect of SkQ1 on the health of mtDNA mutator mice. There are several issues to be discussed concerning the suggested mode of action.

SkQ1 is an antioxidant and was developed as such to counteract oxidative damage in mitochondria [21]. However, it is a controversial issue as to whether there is increased oxidative stress (and damage) in mtDNA mutator mice, and an antioxidant should only work if there is increased oxidative stress. Initial studies of the mtDNA mutator mice indicated that there was no evidence (e.g. in the form of carbonylation) that the mitochondria of these mice displayed significantly increased oxidative damage [13,16,17]. However, this point has weakened over the years [20]. Particularly, direct measurement of hydrogen peroxide in the mitochondria indicated that in the mtDNA mutator mice an increased hydrogen peroxide level could be detected with age [38], and there are several indirect observations that are most easily explained by in increased ROS exposure in these mitochondria [22,23]. To this should evidently be added the observations that we report here, of decreased cardiolipin and polyun-saturated fatty acid levels in the mtDNA mutator mice.

We observed changes in cardiolipin levels in mtDNA mutator mice and reversal of these changes by SkQ1. Under oxidative stress, cardiolipin is peroxidized earlier than any other phospholipids [39] and its decomposition is prevented by SkQ1 in vitro [40]. Cardiolipin protection is probably the primary target for SkQ1 operating as an antioxidant [41,42]. In the mitochondria, the SkQ1 cation may combine directly with the cardiolipin anion [41].

It may be suggested that the mitochondria in the mtDNA mutator mice truly produce slightly more ROS than mitochondria in wild-type mice [38]). However, the increase is rather small so that it to a large extent is scavenged by the easily oxidized polyunsaturated fatty acids mainly found in the mitochondrial cardiolipin, leading to the formation of 4-HNE that then forms adducts with (mitochondrial) proteins. Thus, the ROS levels may never rise to such levels that other signs of oxidative stress become measurable. The problems caused by cardiolipin diminishment and formation of 4-HNE protein adducts may be sufficient to explain most of the negative effects observed; at least, as seen here, when cardiolipin levels in vivo are protected, mitochondrial competence is markedly improved.

A therapeutic role for SkQ1 and SkQ1-like compounds in mitochondrial diseases and aging.

The mtDNA mutator mice do show mitochondrial damage akin to that occurring in some mitochondrial diseases, and the ability of SkQ1 to ameliorate the effect points to a possibility to ameliorate some mitochondrial diseases by treatment with antioxidants. Indeed, antioxidant treatments such as mitochondrially overexpressed catalase [22] and supplying large amounts of N-acetyl cysteine [23] have been shown to be beneficial against mitochondrial problems. The advantage of SkQ1, as well as of MitoQ [43], are that they are mitochondrially targeted antioxidants that can be directly supplied in relatively small amounts. The present studies could therefore promote further attempts to use such compounds therapeutically.

A classical hypothesis for aging was that mitochondrial damage would result in increased ROS production that in its turn would increase mitochondrial oxidative damage that then in a deleterious cycle, would augment itself [8]. However, this idea has lost general acceptance in recent years. A not insignificant reason for this has been reports from studies of the mtDNA mutator mice that the mitochondria seemingly do not display enhanced ROS production or enhanced oxidative damage. However, studies such as the present one do imply that oxidative damage may be important for the aging characteristics observed, at least in the mtDNA mutator mice, and these studies may thus resurrect the ROS hypothesis for aging. We found increased longevity in the SkQ1-treated mtDNA mutator mice. Although these mice may correctly be considered an artificial model, the marked effects of SkQ1 treatment would imply that counteracting ROS damage could be one factor leading to prolonged life. There are indeed indications that treatment with targeted antioxidants such as SkQ1 not only are effective against specified diseases or in artificial models, but may also prolong lifespan in general, in wild-type animals [21,44,45].

Animal breeding, maintaining and treatment

All animal experiments were performed at the Wenner-Gren Institute, Stockholm University. MtDNA mutator animals were obtained by intercrossing of mice heterozygous for the PolgA^mutallele, developed as described [12]. The mice were genotyped as previously described [12]. For the present studies, homozygous mutant (PolgAmut/PolgAmut) mice were used. When wild-type mice were studied, they were homozygotes for the wild-type; heterozygotes were not used in the present experiments. Mice were successively recruited to the study, as they became available. The mice had been backcrossed to C57Bl/6 for at least 7 generations, but as the PolgA gene is located on chromosome 7 at the 45.04 cM location close to the tyrosinase gene determining black/white color [46], the mice were either black or white. The mice were fed ad libitum (R70 Standard Diet, Lactamin AB, Vadstena, Sweden), had free access to water, and were kept on a 12:12 h light:dark cycle at 22 °C.

For treatment with SkQ1, the mice were singly housed from an age of ≈100 days when also the treatment started. The experimental mice were treated with SkQ1 dissolved in ethanol and added to the drinking water provided in 30 ml volume in a small bottle; the water was changed every second day. The final concentration of ethanol was 0.1%; this ethanol concentration was also present in the water of the control (non-treated) mice. SkQ1 doses (taking into account absorbance of SkQ1 on the inner surface of the bottle) were 0.7-0.8 µmol/(day • kg body weight) for males and 0.9-1.0 µmol/(day • kg) for females.

Several experimental designs were used, as specified in the figure legends. In the “survival” experiments, the mice were followed until they were moribund (defined as the day when the General Condition score (see below) exceeded 2.5), at which time the mice were euthanized, according to the requirements of the ethical committee. Some of these mice underwent postmortem analysis performed at the Swedish State Veterinary Institute to establish the cause of death and general health. In the ”simultaneous” set-up, mice (6 from each group) were killed at a time where a clear distinction in health had developed between the SkQ1-treated and non-treated mtDNA mutator mice (i.e. at an age of ≈250 days, after 150 days of SkQ1 treatment). In the “paired death” experiments, one age- and sex-matched mouse from the SkQ1-treated group was killed when one mouse in the non-treated group became moribund (8 females and 5 males from each group).

Animal protocols were in accordance with the guidelines for the humane treatment of animals and were reviewed and approved by the Animal Ethics Committee of the North Stockholm Region.

Monitoring of physiological parameters, metabolic rate and DEXA

From an age of about 140 days, body temperature, body weight, body fat content, lean body mass, food and water intake and estrus cycle were monitored. The body temperature was measured with a rectal probe for mice (RET-3 plugged to amplifier BAT-12, Physiterm Instruments Inc., NJ, USA). Measurements of body weight and body temperature were made every 10-14 days, always at the same time (14.00-14.30). Magnetic resonance relaxometry (EchoMRI^TM Whole Body Composition Analyzer, Echo Medical Systems, LLC, Texas, USA) was performed every month to measure live body composition in terms of fat and lean tissue content. For food intake studies, ad libitum food intake of individually housed mice was measured over a period of 5 consecutive days every month. Known excess amounts of food were added on the first day, and leftover food was measured after 5 days for each mouse individually. To determine net energy intake, diet and fecal samples were analyzed for energy content, using adiabatic bomb calorimetry (Oxygen Bomb Calorimeter 6300, Parr Instrument, USA). Water intake was measured over periods of 2 days.

For monitoring metabolic rates, oxygen consumption was measured by indirect calorimetry (INCA system, Somedic, Hörby, Sweden). The mouse remained in its own cage with food and water, and the cage was placed in a constant airflow in a temperature-controlled chamber. Oxygen consumption measurements were performed for 3 hours (light period, 22 °C). Metabolic rate at 22 °C (“resting metabolic rate”) was defined as the average of the stable lowest level of oxygen consumption for at least 10 minutes. Facultative (additional) metabolism (mainly related to a physical activity) was estimated as the total area above the lowest metabolic rate during the last 2 hours (the mice were agitated during the first hour in the metabolic chamber and this period was not used for estimation of this parameter).

Determination of the reproductive status of the female mice was made by microscopic examination of unstained vaginal secretion smears. The proportion between cell types was used for the determination of estrus cycle phases [47].

The carcasses of some killed mice were placed at –20°C and used for densitometer dual energy X-ray absorptiometry (DEXA) assay to measure bone minerality (assessment of osteoporosis) and to make X-ray pictures for quantitative determination of kyphosis. DEXA was performed using PIXImus small animal DEXA system (Lunar, Madison, WI, USA).

Survival curve and scoring of phenotype features and symptoms of poor welfare

Every week during the entire experiment, the mice were assessed and scored for features of aging phenotype (signs of alopecia, kyphosis) and for clinical signs of poor welfare [paleness, immobility, discoordination with asymmetry of movement, piloerection, withdrawnness, dehydration (squared tail and lowered skin turgor), shivering, anal prolapse with bleeding, soft feces, and skin damage]. The scoring was made by a veterinarian [to whom the code of treatment was not known (blinded experiment)] together with a researcher to state the general appearance for each individual animal. Individual records of body weight, fat content and body temperature were taken into consideration for the welfare evaluation. Mild symptoms scored between 0 and 1, moderate symptoms between 1 and 2 and severe above 2. An example of a scoring table is shown in Supp. Table S1.

Histopathological analysis

In the survival experiment, the following tissues were collected for histopathological analysis: liver, spleen, kidney, pancreas, lung, heart, brain, stomach and different parts of the digestive tract, and skin. Tissues were fixed in 10% formalin, processed using routine procedures, and embedded in paraffin. A 5 µm section was cut from each block and stained with haematoxylin and eosin.

Protein oxidative modification biomarker

Oxidative stress biomarker [4-hydroxynonenal (4-HNE) adducts] were analyzed in total tissue homogenates of gastrocnemius skeletal muscle, brain, liver and kidney. For collection of tissues, mice from the paired-death experimental setup [8 age- and gender-matched (268-300 days) mice (5 females and 3 males) in each group] were anaesthetized for 1-2 min by a mixture of 79% CO₂ and 21% O₂ and decapitated. Tissues were dissected out and rapidly placed in liquid nitrogen; the tissues were powdered under liquid nitrogen, weighed, divided into small amounts and stored under nitrogen gas at –80 °C. A small amount was homogenized in RIPA buffer with proteinase inhibitor (Complete mini, Roche), and protein concentration was quantified using the Lowry method. 4-HNE-adducts were detected by immunoblot analysis with polyclonal antibodies from Alpha Diagnostics (HNE12-S, dilution 1:1000) as described [48]. 4-HNE-BSA protein conjugate (HNE12-C, Alpha Diagnostics) was used as an internal control. For in vitro 4-HNE adduct formation, wild-type skeletal muscle tissue homogenate was incubated with 64 or 640 μM 4-HNE for 20 min at 37 °C in the medium used for the mitochondrial oxygen consumption measurements.

Susceptibility to lipid peroxidation

Susceptibility to lipid peroxidation was estimated based on the kinetics of malondialdehyde (MDA) formation, principally as described [48]. MDA was assumed to be the main released substance that reacts with thiobarbituric acid [49]. In brief, tissue powdered as above was homogenized with 50 mM Tris-HCl buffer (pH 7.5). The MDA level was measured during incubation at 37 °C under vortexing every 10 - 20 min. After precipitation with trichloroacetic acid, an equal volume of 0.38% (w/w) thiobarbituric acid solution in 0.25 M HCI was added to the samples. The mixture was heated at 90 °C for 10 min, and then cooled on ice. Light absorbance was read at 532 nm. 1,1,3,3-tetraethoxypropane was used for calibration. Malondialdehyde was expressed as nmol MDA/mg protein.

Immunoblotting of mitochondrial proteins

Interscapular depots of brown adipose tissue were collected from mice from the paired-death experimental setup [5 age-matched (268-300 days) females in each group]. Aliquots of homogenates were stored at –80 °C after supplementation with protease inhibitor cocktail (Complete Mini, Roche Diagnostics GmbH, Mannheim, Germany). The protein concentration of the samples was quantified using the Lowry method. Western blot analysis was performed on protein extracts as described [50]. Samples were loaded on 15% SDS-polyacrylamide gel (15 µg/lane) and run for 3 h in 1 x Tris-glycine-SDS running buffer (BioRad). Protein samples were transferred by electroblotting to a PVDF membrane (Amersham Pharmacia Biotech, Buckinghamshire, UK). UCP1 and VDAC expressions were examined using either a UCP1 antibody produced in rabbit against the C-terminal UCP1 decapeptide at a dilution of 1:3000 (in-house product) or a VDAC antibody from Cell Signaling (#4661S) diluted 1:2000.

After incubation with primary antibodies, the membranes were washed with PBST buffer and incubated with secondary anti-mouse antibodies conjugated with horseradish peroxidase (Cell Signaling Technology, Inc. Danvers, MA, USA, dilution 1:2000). The membranes were washed in PBST and incubated with detection reagents (ECL Plus Kit, Amersham Biosciences); the chemiluminescence signal was measured with a CCD (charge-coupled device) camera. The blots were quantified using the Image Gauge V3.45 program (Fuji Film, Tokyo, Japan).

Isolation of mitochondria

Mice from the simultaneous experimental setup [6 age-matched (245 – 252 days) mice in each group] were anaesthetized for 1 min by a mixture of 79% CO₂ and 21% O₂ and decapitated. Mitochondrial preparations from SkQ1-treated and non-treated mtDNA mutator mice were directly compared on the same experimental day. Skeletal muscles from the hind limbs of one mouse were placed into ice-cold medium containing 100 mM sucrose, 50 mM KCl, 20 mM K-TES, 1 mM EDTA and 0.1% (w/v) fatty acid-free bovine serum albumin (BSA) and were freed of white fat and connective tissue, weighed and used for mitochondrial isolation. Liver mitochondria were isolated as previously described [15]. The tissues were finely minced with scissors and homogenized in a Potter homogenizer with a Teflon pestle. During mincing and homogenizing, the skeletal muscles were treated with nagarse added to the medium at a concentration of 1 mg per g tissue. Throughout the isolation process, tissues were kept at 0-2 °C.

Mitochondria were isolated by differential centrifugation. The tissue homogenates were centrifuged at 8 500 g for 10 min at 2 °C using a Beckman J2-21M centrifuge. The resulting supernatant, containing floating fat and nagarse, was discarded. The pellet was resuspended in ice-cold medium containing 100 mM sucrose, 50 mM KCl, 20 mM K-TES, 1 mM EDTA and 0.2% BSA. The resuspended homogenate was centrifuged at 800 g for 10 min, and the resulting supernatant was centrifuged at 8 500 g for 10 min. The resulting mitochondrial pellet was resuspended in the same buffer (but albumin-free) and centrifuged again at 8 500 g for 10 min. The final mitochondrial pellets were resuspended by hand homogenization in a small glass homogenizer in the buffer remaining in the pellet. The concentration of mitochondrial protein was measured using fluorescamine [51] with BSA as a standard. Mitochondrial suspensions were kept on ice for no longer than 4 h.

Mitochondrial oxygen consumption

Skeletal muscle mitochondria (0.25 mg protein/ml) were incubated at 37 °C under magnetic stirring in a buffer consisting of 100 mM sucrose, 20 mM K₊-TES (pH 7.2), 50 mM KCl, 2 mM MgCl₂, 1 mM EDTA, 4 mM KP_i, 3 mM malate and 0.1% fatty-acid-free BSA. Oxygen consumption rates were monitored with a Clark-type oxygen electrode (Yellow Springs Instruments, Yellow Springs, OH, USA) in a sealed incubation chamber at 37 °C as described [52]. The output signal of the oxygen electrode amplifier was electronically time-differentiated and collected every 0.5 s by a PowerLab application program Chart v5.1.1. (AD Instruments Ltd, Oxford, UK).

Mitochondrial ROS production

Mitochondrial H₂O₂ production was determined fluorometrically using Amplex Red reagent (Molecular Probes, Eugene, OR, USA). Oxidation of Amplex Red coupled with horseradish peroxidase to reduction of H₂O₂ results in formation of resorufin, a red fluorescent product. Mitochondria (0.16 mg mitochondrial protein ml^-1) were incubated at 37 °C under magnetic stirring in a buffer containing 100 mM sucrose, 20 mM K₊ TES (pH 7.2), 50 mM KCl, 2 mM MgCl₂, 1 mM EDTA, 4 mM KP_i, 3 mM malate, 0.1% fatty-acid-free BSA, 5 µM Amplex Red, horseradish peroxidase (12 units ml^-1) and superoxide dismutase (45 units ml^-1). The reaction was initiated by adding 5 mM pyruvate followed by the addition of 5 mM succinate. The increase in fluorescence emitted through a band pass filter of 600 ± 20 nm (excitation, 545 nm) was followed in a 3 ml cuvette for 10-15 min in a Sigma spectrofluorometer. The rate of H₂O₂ production was calculated as a change in fluorescence intensity, as described earlier [36]. Calibration curves were obtained by adding to the assay medium freshly diluted H₂O₂ (the concentration of stock solution was checked at 240 nm using a molar extinction coefficient of 43.6).

Mitochondrial phospholipid analysis

Lipids were extracted from skeletal muscle or liver mitochondria (1-2 mg by protein content) isolated from mtDNA mutator mice as well as from wild-type mice (each strain treated or not with SkQ1) according to [53]. Phospholipids were separated by 2D-thin layer chromatography (TLC) on Silica gel 60 plates (Merck, Darmstadt, Germany) at 25 °C in an oxygen-depleted system. All solvents and chromatography tanks were deoxygenated by nitrogen for at least 1 h. Each sample was loaded on a 12x12 cm plate in the left bottom corner. For separation in the first direction, an eluent composed of chloroform/methanol/25% NH3 (65:35:5 per vol) was used. After front migration to the top of the plate, the plate was dried under a stream of nitrogen. As the second chromatography system, an eluent composed of chloroform/acetone/methanol/acetic acid/water (50:20:10:10:5 per vol) was used. After drying under a stream of nitrogen, phospholipids were visualized on TLC plates by staining with iodine vapour, scraped off and quantified according to [54]. Identification of single phospholipids positions was done according to migration of standards (Avanti Polar Lipids, USA), separated at the same conditions.

For analysis of the fatty acid composition, phospholipids were converted to their methyl esters through methanolysis in oxygen-free 14% methanol solution of boron trifluoride at 100 °C. Fatty acid methyl esters (FAME) were separated by gas chromatography with a flame-ionization detector (GC/FID) on Hewlett-Packard 5890, using a CP Sil 88 50 capillary column with helium as carrier gas. Identification and quantification of fatty acids were made by comparison of their retention times to FAME GLC-68B standards (NuCheck Inc., USA).

Electron microscopy

Liver and heart were collected from mice in the simultaneous experimental setup [6 age- and gender-matched (≈250 days old) mice in each group]. The pieces of tissue were fixed with a 3% glutaraldehyde solution (pH 7.4) for 2 hours at 4 °C, then overfixed with 1% osmium tetraoxide solution for 1.5 hours and dehydrated in an alcohol series with increasing alcohol concentrations (70% alcohol saturated with uranyl acetate). The tissues were embedded in an Epon-812 epoxy resin. Ultrathin sections were made with a Leica Ultracut UCT microtome (Germany) followed by lead citrate staining according to Reynolds [55]. The resulting preparations were scanned and photographed using an H-12 electron microscope (Hitachi, Japan).

Statistics

All data are presented as means ± S.E. Differences between genotypes were examined with Student’s t-test. Survival curves were analyzed using the method of Kaplan and Meier, and comparisons of survival curves were made using the log-rank (Mantel-Cox) test and the Gehan-Breslow-Wilcoxon test.
