Cumulus cell-released tumor necrosis factor (TNF)-α promotes post-ovulatory aging of mouse oocytes

CCs underwent apoptosis and released sTNF-α during in vitro aging

CCs recovered from newly ovulated oocytes were cultured in CZB medium alone or with 200 µM H₂O₂, and at different times of the culture, rates of apoptotic cells were observed following Hoechst or annexin-V staining, and concentrations of sTNF-α in the conditioned medium (CM) were measured. The results of Hoechst staining showed that percentages of apoptotic CCs increased with culture time in either CZB alone or with H₂O₂, and at each time point, the apoptotic percentage was significantly higher with than without H₂O₂ (Fig. 1A to D). The concentrations of sTNF-α also increased significantly with culture time, and were significantly higher with than without H₂O₂ (Fig. 1E). Our annexin-V staining (Fig. 1 F to H) further confirmed the results from Hoechst staining by showing a similar proportion between the annexin-positive and Hoechst-detected apoptotic cells in both freshly ovulated CCs (13.3 vs. 4.6%) and the CCs cultured for 24 h with H₂O₂ (93.9 vs. 90.8%). The results suggested that CCs underwent apoptosis and continuously released sTNF-α during in vitro aging, and that H₂O₂ significantly enhanced apoptosis and sTNF-α secretion in CCs.

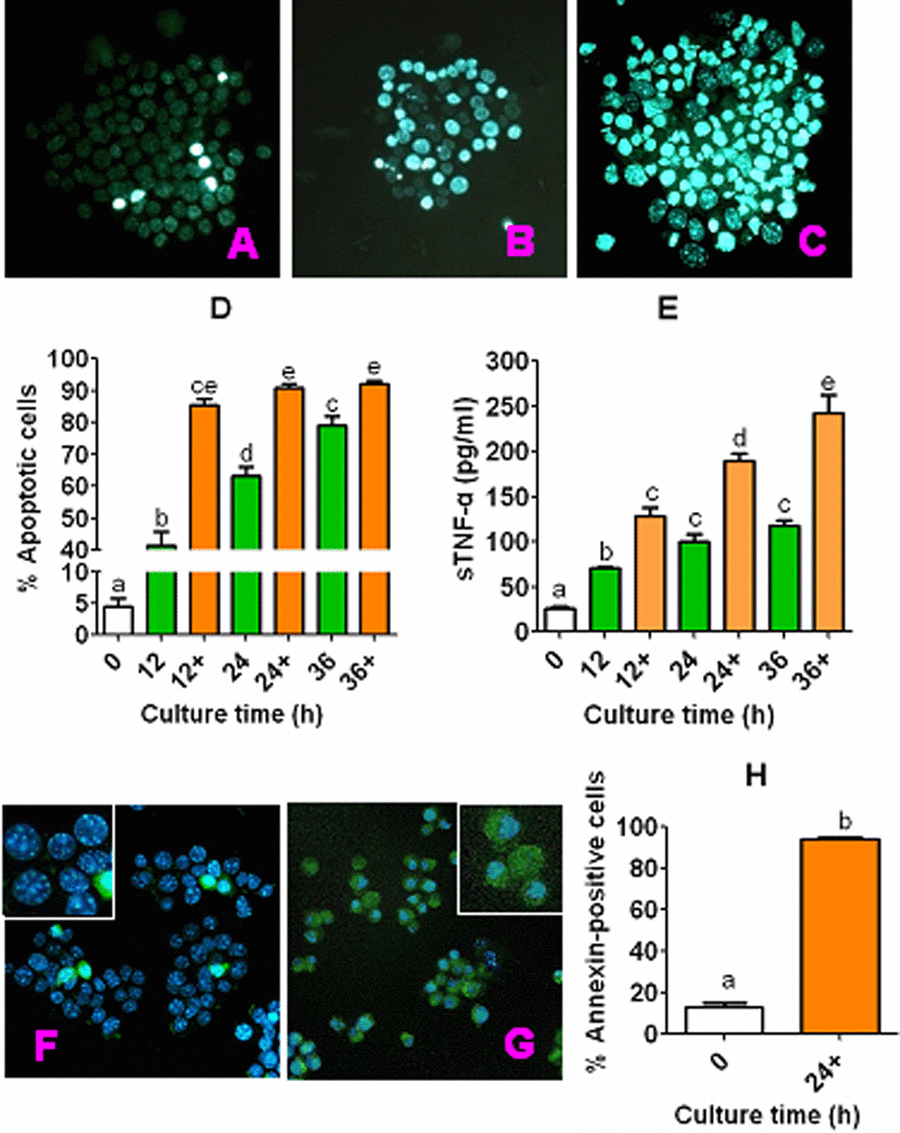

Figure 1. Apoptosis and sTNF-α release during culture of CCs. CCs recovered from newly ovulated oocytes were cultured in CZB medium alone or with 200-µM H₂O₂ (+). At different times of the culture, rates of apoptotic cells were observed after Hoechst or annexin-V staining, and concentrations of sTNF-α in CM were measured by ELISA. Both the Hoechst and annexin-stained smears were observed under a fluorescence microscope (Original magnification ×400). Micrographs (A), (B) and (C) show Hoechst-stained smears of CCs cultured for 0 h or 24 h in CZB alone or CZB with H₂O₂, showing approximately 6%, 54%, and 85% apoptotic cells, respectively. Micrographs (F) and (G) show Hoechst and annexin-V double-stained smears of CCs cultured for 0 and 24 h, respectively, in CZB with H₂O₂, showing approximately 13% and 94% apoptotic cells, respectively. The photos are merged images with Hoechst and annexin-V colored blue and green, respectively. Graphs (D) and (H) show percentages of apoptotic CCs revealed by Hoechst and annexin-V staining, respectively. Each treatment was repeated 3-4 times with each replicate containing CCs from about 60-90 freshly recovered (0 h) COCs or from one well of cultured cells. Graph E shows levels of sTNF-α in CM, and each treatment was repeated 3 times with each replicate including 100 µl of CM from one culture well. a–e: Values with a different letter above bars differ significantly (P < 0.05).

Expression of TNF-R1 in mouse oocytes during in vitro aging

Newly ovulated DOs recovered at 13 h post hCG injection were cultured in CZB medium, and at different times of the culture, localization of TNF-R1 was observed by immunofluorescence microscopy and its quantification was conducted by Western blotting. The immunofluorescence microscopy showed that mouse oocytes contained a large quantity of TNF-R1 granules distributed on the plasma membrane and throughout the cytoplasm (Fig. 2A). The western blot quantification indicated that the intra-oocyte TNF-R1 level (ratio of TNF-R1/GAPDH) did not change significantly up to 36 h of aging in CZB medium (Fig. 2C). Together with the above results that CCs undergoing apoptosis released sTNF-α which accumulated with time during in vitro aging, our results on TNF-R1 suggested that the TNF-α system is increasingly active in aging mouse oocytes.

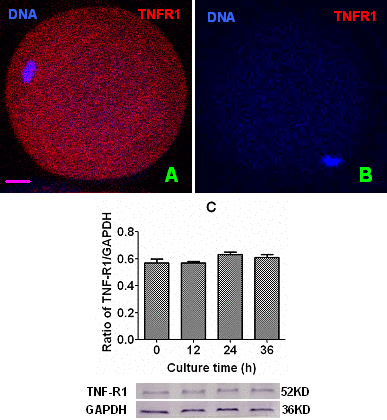

Figure 2. Levels of TNF-R1 in aging oocytes. Panels (A) and (B) are a merged image from laser confocal microscopy (original magnification ×400) showing localization of TNF-R1 in newly-ovulated oocytes. In the images, DNA and TNF-R1 were pseudo colored blue and red, respectively, and the bar is 10 µm. Image (B) is a negative control image showing an oocyte treated with the primary antibody against TNF-R1 omitted. Graph (C) shows levels of TNF-R1 (ratios of TNF-R1/GAPDH) by Western blot quantification in oocytes aging for different times in CZB medium. Each treatment was repeated 3 times with each replicate containing about 200 oocytes. Ratios of TNF-R1/GAPDH did not differ significantly (P>0.05) between culture times.

Effects of culture in CM on aging of DOs

To determine that mouse CCs facilitate oocyte aging by releasing sTNF-α, mouse DOs collected 13 h post hCG were cultured for 12 h in CZB, or in CM collected at 24 or 36 h of CCs culture before ethanol activation to assess oocyte activation susceptibility or assay for MPF activity. The results showed that while activation rates were higher, the MPF activity was lower significantly after culture of DOs in 36-h CM than in 24-h CM (Fig. 3). Together with the above results that sTNF-α accumulated with increasing time of CCs culture (Fig. 1E), the results confirmed that CCs facilitated oocyte aging by releasing sTNF-α.

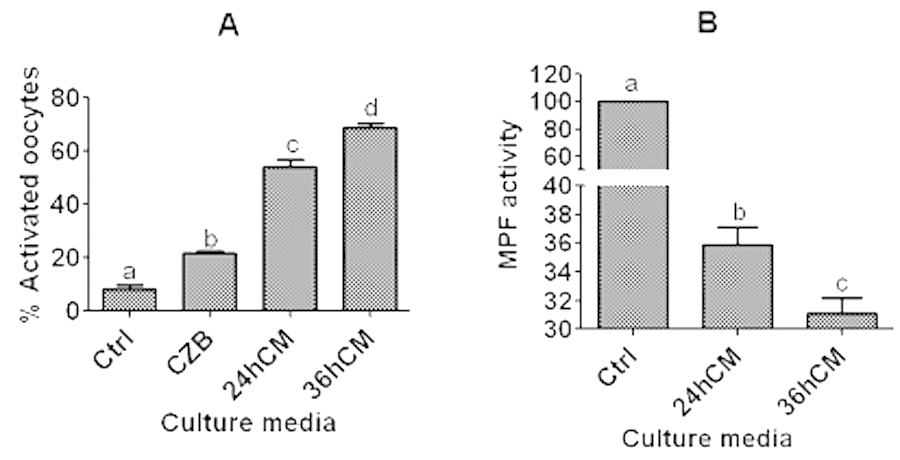

Figure 3. Ethanol activation rates and MPF activity after mouse DOs collected 13 h post hCG were cultured for 12 h in different media. To prepare CM, CCs were cultured in regular CZB medium for 24 (24hCM) or 36 h (36hCM) following a 24-h culture in CZB containing 200-µM H₂O₂. For controls (Ctrl), some newly ovulated oocytes were activated with ethanol or assayed for MPF activity immediately after recovery. For activation, each treatment was repeated 4-5 times and each replicate contained 25-30 DOs, and for MPF assay, each treatment was repeated 4-6 times with each replicate containing about 50 oocytes. a-d: Values with a different letter above bars differ significantly (P<0.05).

Effects of culture with different concentrations of sTNF-α or sFasL on activation susceptibility and embryo developmental potential of aging DOs

Mouse DOs collected 13 h post hCG were cultured for 12 h in CZB medium containing different concentrations of sTNF-α or sFasL before assessment of activation susceptibility and embryo development potential. Ethanol and Sr²⁺ activation were conducted to examine activation susceptibility and embryo development, respectively. The results showed that while activation rates increased, blastocyst rates decreased significantly with increasing concentrations of both sTNF-α and sFasL. However, while maximum ethanol activation was obtained with 5 ng/ml sTNF-α, (Fig. 4A), it was not achieved until 10 ng/ml sFasL (Fig. 4B). Similarly, while blastocyst rates decreased to the lowest level with 5 ng/ml sTNF-α (Fig. 4C), the lowest blastocyst rate was not observed until 10 ng/ml sFasL (Fig. 4D). The results suggested that both sTNF-α and sFasL promoted early manifestations of oocyte aging, and that aging mouse oocytes were more sensitive to sTNF-α than to sFasL in vitro.

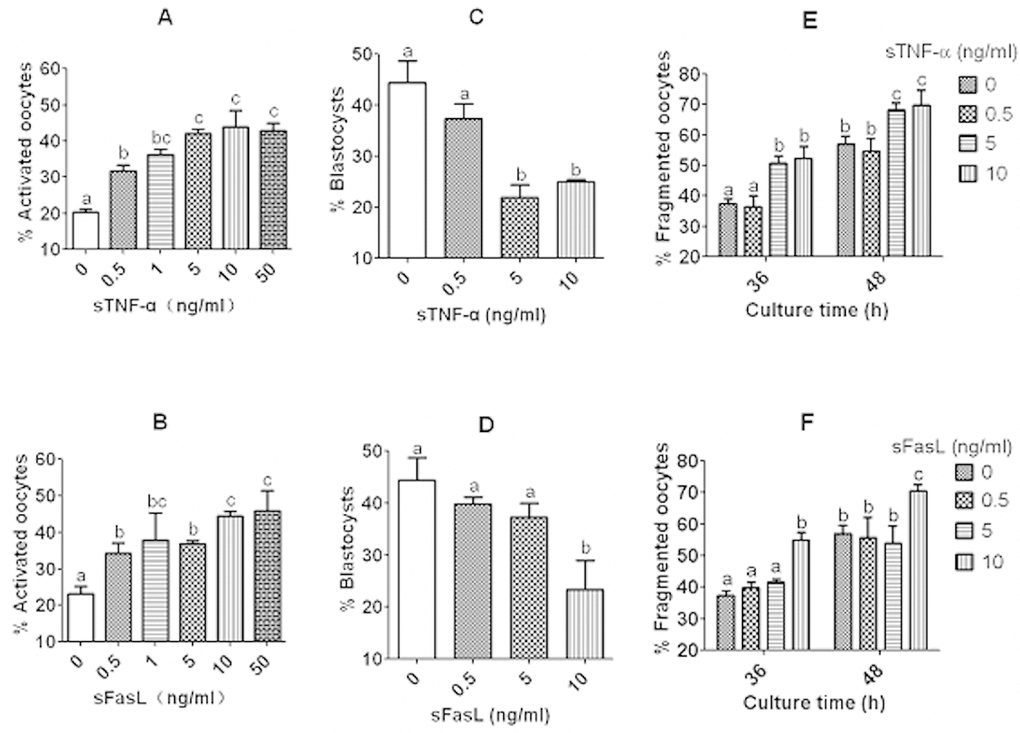

Figure 4. Effects of culture with different concentrations of sTNF-α or sFasL on activation susceptibility, embryo developmental potential and cytoplasmic fragmentation of aging DOs. While (A) and (B) show rates of ethanol-activated oocytes, (C) and (D) show blastocyst rates of Sr²⁺ activated oocytes. Mouse DOs collected at 13 h post hCG were cultured for 12 h in CZB medium containing different concentrations of sTNF-α or sFasL before activation treatment with ethanol or SrCl₂. Each treatment was repeated 3 times with each replicate including about 30 oocytes. E and F show percentages of fragmented oocytes after newly ovulated DOs were cultured for 36 or 48 h in CZB with different concentrations of sTNF-α (E) or sFasL (F). Each treatment was repeated 4 times with each replicate containing about 30 oocytes. a–c: Values with a different letter above bars differ significantly (P < 0.05).

Effects of culture with different concentrations of sTNF-α or sFasL on cytoplasmic fragmentation and spindle/chromosome morphology of aging DOs

Newly ovulated DOs were cultured for 36 or 48 h with different concentrations of sTNF-α or sFasL before observation for cytoplasmic fragmentation. Oocytes with a clear moderately granulate cytoplasm, and an intact first polar body, were considered to be un-fragmented, and oocytes with more than two asymmetric cells were considered to be fragmented. When observed at either 36 h or 48 h of culture, fragmentation rates increased with both sTNF-α and sFasL concentrations. However, while percentages of fragmented oocytes increased to maximum with 5 ng/ml sTNF-α (Fig. 4E), maximum fragmentation was not observed until the concentration of sFasL increased to 10 ng/ml (Fig. 4F).

To observe spindle/chromosome morphology, newly ovulated DOs were first aged for 12 h in CZB containing different concentrations of sTNF-α or sFasL, then cultured for 24 h in CZB medium. At the end of the second culture, oocytes were examined for morphology of spindles and chromosomes by confocal microscopy. The results (Fig. 5) showed that while treatment with 5 ng/ml sTNF-α decreased the proportion of normal oocytes with tine pole spindle and congressed chromosomes while increasing that of abnormal oocytes with disintegrated spindle and congressed chromosomes significantly (Fig. 5E), the proportion of normal oocytes did not change significantly until the concentration of sFasL increased to 10 ng/ml (Fig. 5F). Taken together, the results further confirmed that both sTNF-α and sFasL facilitated late manifestations of oocyte aging, and that aging mouse oocytes were more sensitive to sTNF-α than to sFasL in vitro.

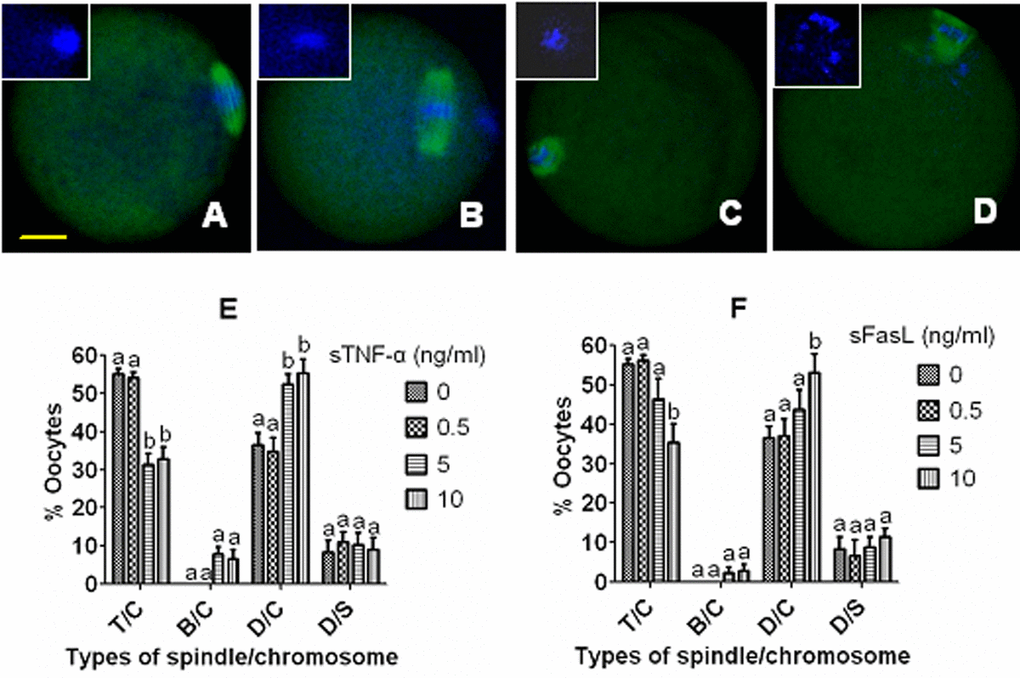

Figure 5. Effects of culture with different concentrations of sTNF-α or sFasL on spindle/chromosome morphology of aging mouse oocytes. Oocytes that had aged for 12 h in CZB containing different concentrations of sTNF-α or sFasL were cultured for 24 h in CZB medium before examination for morphology of spindles and chromosomes. In the confocal images, DNA and α-tubulin were pseudo-colored blue and green, respectively. Bar is 15 µm and applies to all images. Image (A) shows an oocyte with a tine-pole spindle and chromosomes congressed on the metaphase plate (T/C), image (B) shows an oocyte with a barrel-shaped spindle and congressed chromosomes (B/C), image (C) shows an oocyte with a disintegrated spindle and congressed chromosomes (D/C), and image (D) shows an oocyte with a disintegrated spindle and scattered chromosomes (D/S). Graphs (E) and (F) show percentages of oocytes with different spindle/chromosome configurations following oocytes were aged with different concentrations of sTNF-α or sFasL, respectively. Each treatment was repeated 3-4 times with each replicate containing about 20 oocytes. a,b: Values with a different letter above bars differ significantly (P<0.05) within spindle/chromosome morphologies.

Contents of sTNF-α and sFasL in CM conditioned with CCs for different times

The CCs collected from newly ovulated oocytes recovered at 13 h post hCG injection were cultured in CZB medium containing 200 µM H₂O₂, and at different times of the culture, concentrations of sTNF-α and sFasL in CM were measured by ELISA. No significant difference in concentrations was observed between sTNF-α and sFasL at all the time points examined (Fig. 6), suggesting that the apoptotic CCs released the same amount of sTNF-α and sFasL during oocyte aging. The results further substantiated the conclusion that CCs facilitated oocyte aging by releasing both sTNF-α and sFasL.

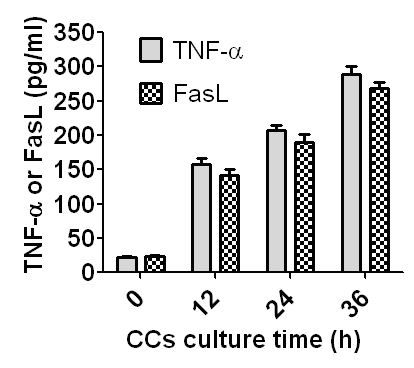

Figure 6. Concentrations of sTNF-α and sFasL in CM conditioned with CCs for different times. CCs recovered from newly ovulated oocytes were cultured in CZB medium containing 200-µM H₂O₂, and at different times of the culture, CM was recovered for ELISA measurement of sTNF-α and sFasL. One CM sample recovered was divided into two parts: one part for sTNF-α and the other part for sFasL measurement. Each treatment was repeated 3-4 times and each replicate contained 100 µl of CM from one culture well. Difference between sTNF-α and sFasL concentrations was insignificant (P>0.05) at all time points observed.

Experiments using TNF-α-knockdown CCs and the COCs from TNF-α-knockout mice

To further verify that CCs facilitate oocyte aging by secreting sTNF-α, two experiments were conducted using TNF-α-knockdown CCs and the COCs from TNF-α-knockout mice, respectively. In the first experiment, expression of TNF-α in CCs was knocked down by RNA interference before CM preparation. Then, DOs recovered 13 h post hCG injection were cultured in the CM for 12 h before examination for rates of ethanol activation or fragmentation. The results showed that oocyte activation rates were significantly lower after culture in CM produced by CCs transfected with any of the three small interfering RNAs against TNF-α than in CM conditioned with CCs transfected with negative control (NC) siRNAs (Fig. 7A). To observe fragmentation rates, the DOs that had been treated for 12 h in CM were cultured in CZB for different times before examination for fragmentation. Up to 36 h of the CZB culture, oocyte fragmentation rates did not differ between the NC siRNA and siRNA-1 groups, but after 48 h of the CZB culture, the fragmentation rate was significantly lower in the siRNA-1 group than in the NC siRNA group (Fig. 7B). Our measurement of sTNF-α in CM indicated that CCs transfected with any of the three small interfering RNAs released significantly less sTNF-α than the CCs transfected with NC siRNAs did (Fig. 7C). Our measurement of sFasL in CM demonstrated that CCs transfected with siRNA-1 produced significantly less sFasL than the CCs transfected with NC siRNA did (Fig. 7D).

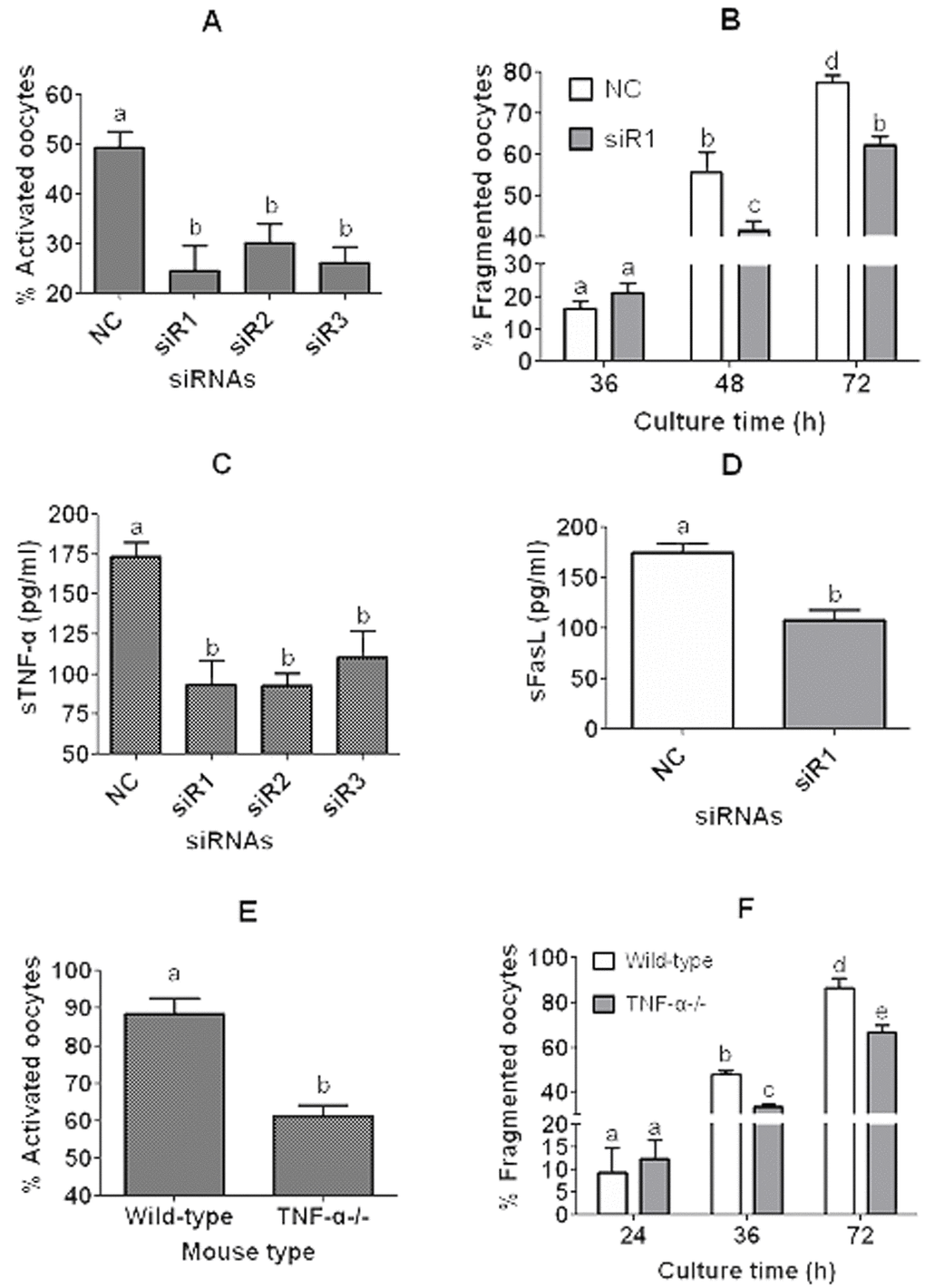

Figure 7. Experiments using TNF-α-knockdown CCs and the COCs from TNF-α-knockout (TNF-α^-/-) mice. In panels (A) to (D), CCs were transfected with negative control siRNA (NC) or siRNAs (siR) 1, 2 or 3 against TNF-α before culture in CZB containing 200-µM H₂O₂ and CM collection. In panels (A) and (B), DOs recovered 13 h post hCG injection were cultured in the CM for 12 h before ethanol treatment for activation (A) or culture in CZB for different times for fragmentation observation (B). In panels (C) and (D), concentrations of sTNF-α or sFasL in the CM were measured by ELISA, respectively. In panels (E) and (F), COCs recovered 13 h post hCG injection from wild-type C57BL/6J mice and TNF-α^-/- mice were cultured for 12 h in CZB medium before examination for ethanol activation (E) or for fragmentation (F). To observe fragmentation, the COCs were freed of CCs and the resulting DOs were cultured in CZB for different times before examination for fragmentation. To examine activation or fragmentation, each treatment was repeated 3-5 times with each replicate including about 30 oocytes. For measurement of sTNF-α or sFasL in CM, each treatment was repeated 3 times with each replicate including 100 µl of CM from one culture well. a-e: Values with a different letter above bars differ significantly (P < 0.05).

In the second experiment, COCs recovered 13 h post hCG injection from wild-type C57BL/6J mice and TNF-α^-/- mice were cultured for 12 h in CZB medium before examination for rates of ethanol activation or fragmentation. Activation rates of COCs from TNF-α^-/- mice were significantly lower than those of COCs from wild-type C57BL/6J mice (Fig. 7E). To observe fragmentation rates, the COCs that had been cultured for 12 h in CZB were freed of CCs and the resulting DOs were cultured in CZB for different times before fragmentation examination. Up to 24 h of the DO culture, oocyte fragmentation rates did not differ between the wild-type and TNF-α^-/- mice, but after 36 h of the DO culture, the fragmentation rate was significantly lower in the TNF-α^-/- mice than in the wild-type mice (Fig. 7F). Taken together, the results further confirmed that CCs facilitate oocyte aging by secreting sTNF-α and that TNF-α facilitates sFasL secretion in aging CCs.

Oocyte recovery

Mice of the Kunming breed, which were bred in this laboratory, were used in most of the experiments in this study. The TNF-α^-/- mice with a C57BL/6J genomic background were obtained from Model Animal Research Center of Nanjing University, Nanjing, China. The wild-type C57BL/6J mice were purchased from Shandong University Center for Laboratory Animals. The mice were kept in a room under a 14L:10D photoperiod, with lights-off at 20:00. Female mice (6–8 weeks of age) were superovulated with 10 IU equine chorionic gonadotropin (eCG, i.p.) and 10 IU human chorionic gonadotropin (hCG, i.p.) at a 48-h interval. Both eCG and hCG were purchased from Ningbo Hormone Product Co., Ltd., China. The superovulated mice were sacrificed 13 h after hCG injection, and COCs were recovered from the oviducts. After dispersing and washing three times in M2 medium, the COCs were denuded of CCs by pipetting with a thin pipette in a drop of M2 medium containing 0.1% hyaluronidase to prepare DOs.

Preparation of CCs and conditioned medium (CM)

The CCs isolated during the preparation of DOs were washed twice by centrifugation (200× g, 5 min each) in regular CZB medium. The pellets were then resuspended in a proper volume of CZB containing 200 µM H₂O₂ to obtain a final suspension of 5–8×10⁵ CCs/ml. The H₂O₂ was used because our previous study had shown that the presence of H₂O₂ at this concentration significantly increased the apoptotic rates and sFasL secretion of the CCs [6]. The cell suspension was then added to wells of a 96-well culture plate (200 µl per well) and incubated at 37.5°C for 24 h in a humidified atmosphere containing 5% CO₂. At the end of the treatment, CCs were harvested and washed by centrifugation. The resultant pellets were resuspended in regular CZB, and the cell suspension was incubated at 37.5°C for 24 or 36 h in a humidified atmosphere containing 5% CO₂. At the end of the incubation, CM was recovered and centrifuged at 300×g for 5 min to remove cells and debris. The CM obtained was frozen at −80°C until use.

To prepare CM from TNF-α-knockdown CCs, CCs were transfected with siRNAs. The siRNAs targeting mRNAs and the negative control siRNA were designed and synthesized by RiboBio (Guangzhou, China). The sense strands of targeting siRNAs for TNF-α gene included siRNA-1 (5'-GAC AAC CAA CTA GTG GTG C-3'), siRNA-2 (5'-CCA ACG GCA TGG ATC TCA A-3', siRNA-3 (5'-CGT CGT AGC AAA CCA CCA A-3'), and siR-RiboTM for negative control. Transfection with 100 nM siRNAs was conducted using lipofectamine RNAiMAX reagent (Invitrogen/Life Technologies, Grand Island, NY). Briefly, 0.5 µl of a 20 µM solution of each siRNA were diluted in 4.5 µl of Opti-MEM medium (Invitrogen) and mixed with 0.3 µl of Lipofectamine RNAiMAX reagent (Invitrogen) in 4.7 µl of Opti-MEM medium. After incubation for 5 min at room temperature, the transfection complex was mixed with 90 µl regular CZB medium to obtain transfection culture medium. Then, freshly recovered CCs were resuspended in proper volume of the transfection culture medium to obtain a final suspension of 5–8×10⁵ CCs/ml. The cell suspension was incubated at 37.5°C for 48 h in a humidified atmosphere containing 5% CO₂. At the end of the transfection, the CCs were cultured for 24 h in CZB containing 200-µM H₂O₂ and then incubated in regular CZB for 24 h before CM collection.

In vitro aging of oocytes

For in vitro aging, DOs were cultured in CM or regular CZB medium supplemented with different concentrations of sTNF-α or sFasl. Briefly, CM or CZB with sTNF-α or sFasl was placed in wells of a 96-well culture plate (100 ml per well). About 30 DOs were transferred to each well, covered with mineral oil, and cultured for different times at 37.5°C under 5% CO₂ in humidified air. Stock solutions of recombinant mouse sFasL (100 µg/ml) and recombinant mouse TNF-α (100 µg/ml) were prepared by dissolving the recombinant sFasL (R&D System) or TNF-α (R&D System) in PBS containing 0.1% bovine serum albumin. The stock solutions were stored at −20°C and were diluted to desired concentrations with CZB immediately before use.

Assessment of CCs apoptosis

The CCs obtained from 60-90 freshly recovered COCs or from one well of cell culture were separated by centrifugation (200×g, 5 min at room temperature). For Hoechst staining, the pellets of CCs were resuspended in 50 µl of M2 medium supplemented with 10 µg/ml of Hoechst 33342 and stained in the dark for 5 min. For annexin and Hoechst double staining, an Annexin V-FITC apoptosis detection kit (KGA105-KGA108, KeyGEN BioTECH) was used. Briefly, 5 µl of Annexin V-FITC were mixed with 500 µl Binding buffer. Then, the CCs pellets were resuspended in the above mixture and stained in the dark for 20 min. After centrifugation for 5 min at 200×g, the CCs pellets were resuspended in 50 µl of M2 medium supplemented with 10 µg/ml of Hoechst 33342 and stained in the dark for 5 min. The stained cells were then centrifuged for 5 min at 200×g. After about half of the supernatant was removed, a 5-µl drop of suspension was smeared on a slide and the smear was observed under a Leica DMLB fluorescence microscope at a 400× magnification. On the Hoechst-stained smears, the heterochromatin was heavily stained with Hoechst giving bright fluorescence. Whereas the apoptotic CCs showed pyknotic nuclei full of heterochromatin, healthy CCs displayed normal nuclei with sparse heterochromatin spots. On the annexin and Hoechst double-stained smears, cells with more than 50% of the plasma membrane showing green fluorescence were considered annexin-positive. On each smear, 6-8 fields were randomly examined and the percentages of apoptotic cells were calculated from 60–80 CCs in each field. All images were reviewed by 2 investigators in a double blind manner.

Enzyme-linked immunosorbent assay (ELISA) for sTNF-α and sFasL in CM

Contents of sTNF-α and sFasL in CM were measured by ELISA using a mouse tumor necrosis factor α (TNFα) Elisa kit (BLUE GENE, Shanghai, China) and a mouse factor related apoptosis ligand (FASL) Elisa kit (BLUE GENE, Shanghai, China), respectively. Briefly, 100 µl of standards or samples were added in duplicate to wells of a micro-titer plate pre-coated with mouse monoclonal antibodies, then 50 µl of conjugate was added to each well and incubated for 60 min at 37°C. After the micro-titer plate was washed using the wash solution and dried using paper towels, 50 µl of substrate A and 50 µl of substrate B were added to each well and incubated for 15 min at 25°C. The optical density was measured at 450 nm using a plate reader (BioTek-ELx808, BioTek Instruments, Inc.) within 15 min after the reaction was terminated by 50 µl of stop solution. The concentrations of sTNF-α and sFasL in CM were calculated against the respective standard curves.

Immunofluorescence microscopy for detection of TNF-R1 and tubulin

All the detection procedures were conducted at room temperatures unless otherwise mentioned. DOs were washed three times in M2 between procedures. DOs were (1) fixed for 30 min in PBS with 3.7% paraformaldehyde; (2) zona pellucida were removed by a 10-second treatment with 0.5% protease in M2; (3) permeabilized with 0.1% Triton X-100 in PBS at 37.5°C for 10 min; and (4) blocked with 3% BSA in PBS at 37.5°C for 30 min. For TNF-R1 detection, the blocked oocytes were first incubated at 4°C overnight with rabbit polyclonal anti-TNF-R1 (IgG, 1:100, Abcam) in 3% BSA in M2 medium, and then, with Cy3-conjugated goat-anti-rabbit IgG (1:800, Jackson ImmunoResearch) in 3% BSA in M2 for 1 h. Finally, the oocytes were incubated for 10 min with 10 µg/ml Hoechst 33342 in M2 to stain chromatin. Samples in which the primary antibody was omitted were also processed to serve as negative controls. For tubulin staining, the blocked DOs were first incubated at 37°C for 1 h in PBS containing FITC-conjugated anti-α-tubulin monoclonal antibodies (1:50), and then, incubated for 10 min with 10 µg/ml Hoechst 33342 in M2 to stain chromatin. The stained oocytes were mounted on glass slides as follows. Oocytes were transferred with as little accompanying medium as possible to the center of 4 wax spots on a microscopic slide. The wax was made of 15 parts of vaseline, 1 part of paraffin and a small amount of bee wax; mixed by melting and applied to the slide with a needle. The oocytes were then pushed together with a needle, compressed moderately under a coverslip, and observed with a Leica laser scanning confocal microscope (TCS SP2). Blue diode (405 nm), argon (488 nm), and helium/neon (543 nm) lasers were used to excite Hoechst, FITC, and Cy3, respectively. Fluorescence was detected with bandpass emission filters: 420–480 nm for Hoechst, 505–540 nm for FITC, and 560–605 nm for Cy3, and the captured signals were recorded as blue, green and red, respectively.

Western blot analysis

About 200 DOs were placed in a 1.5 ml microfuge tube containing 20 µl sample buffer (20 mM Hepes, 100 mM KCl, 5 mM MgCl₂, 2 mM DTT, 0.3 mM PMSF, 3 mg/ml leupetin, pH 7.5) and frozen at −80°C until use. For running the gel, 5 µl of 5× SDS-PAGE loading buffer was added to each tube and the tubes were heated at 100°C for 5 min. The samples were separated on a 12% SDSPAGE and transferred onto PVDF membranes. The membranes were washed twice in TBST (150 mM NaCl, 2 mM KCl, 25 mM Tris, 0.05% Tween-20, pH 7.4) and blocked for 1.5 h with TBST containing 3% BSA at room temperature. The membranes were then incubated at 4°C overnight with primary antibodies at a dilution of 1:1000 in 3% BSA-TBST. After being washed three times in TBST (5 min each), the membranes were incubated for 1 h at 37°C with second antibodies diluted to 1:2000 in 3% BSA-TBST. After washing 3 times in TBST, the membranes were detected by a BCIP/NBT alkaline phosphatase color development kit (Beyotime Institute of Biotechnology, China). The relative quantities of proteins were determined by analyzing the sum density of each protein band image using Image J software. GAPDH was used as internal controls. The primary antibodies used included rabbit anti-TNF-R1 polyclonal antibody (Abcam, ab19139) and mouse anti-GAPDH monoclonal antibody (ComWin Biotech, CW0100M). The secondary antibodies included goat anti-rabbit IgG AP conjugated (ComWin Biotech, CW0111) and goat anti-mouse IgG AP conjugated (ComWin Biotech, CW0110).

Oocyte activation

Two activation protocols were used in this study: ethanol plus 6-dimethylaminopurine (6-DMAP) was used to assess oocyte activation susceptibility, while SrCl₂ was used to evaluate oocyte developmental potential. During the ethanol+6-DMAP treatment, oocytes were first treated with 5% ethanol in M2 medium for 5 min at room temperature, and then, cultured in CZB medium containing 2 mM 6-DMAP for 6 h at 37.5°C in a humidified atmosphere containing 5% CO₂ in air. For SrCl₂ activation, oocytes were incubated for 6 h in Ca²⁺-free CZB medium supplemented with 10 mM SrCl₂ and 5 µg/ml cytochalasin B. At the end of the activation culture, oocytes were observed under a inverted microscope for activation. Oocytes showing one or two pronuclei, or showing two cells each having a nucleolus, were judged as activated.

Embryo culture

The Sr²⁺-activated oocytes were cultured in regular CZB medium (about 30 oocytes per well containing 100 µl medium) at 37.5°C under a humidified atmosphere with 5% CO₂ in air. On day 2 of culture, oocytes were examined for 4-cell development, and were transferred to CZB medium containing 5.55 mM glucose for further culture. On day 4.5 of the culture, oocytes were examined for blastocyst formation.

Assessment of oocyte fragmentation

At different times of the aging culture, DOs were examined under a phase contrast microscope for morphological feature. Oocytes with a clear moderately granulate cytoplasm, and an intact first polar body, were considered un-fragmented. Oocytes with more than two asymmetric cells were considered fragmented.

Maturation-promoting factor (MPF, p34^cdc2 kinase) assay

The MPF (p34^cdc2 kinase) activity was assayed using a MESACUP cdc2 kinase assay kit (code 5234; MBL, Nagoya, Japan). Briefly, about 50 DOs were placed in a plastic tube containing 10 µl of cell lysis buffer (50 mM Tris [pH 7.5], 150 mM NaCl, 2 mM EDTA, 5 mM EGTA, 1% [v/v] Triton X-100, 2.5 mM sodium pyrophosphate, 1 mM β-Glycerophosphate, 1 mM Na₃VO₄, 1 µg/ml leupeptin, and 1 mM PMSF). The tubes were then frozen at −80°C and thawed three times at room temperature. The resultant cell extracts were stored at −80°C until use. To conduct the assay, 10 µl of oocyte extracts were mixed with 35 µl of kinase assay buffer B (25 mM Hepes buffer [pH 7.5, MBL], 10 mM MgCl₂ [MBL], 10% [v/v] MV peptide solution [SLYSSPGGAYC, MBL], 0.1 mM ATP), and the mixture was incubated for 30 min at 30°C. Then 200 ml PBS containing 50 mM EGTA (MBL) were added to terminate the reaction. The phosphorylation of MV peptides was detected at 492 nm using a plate reader (BioTek-ELx808, BioTek Instruments, Inc.). The value of MPF activity in the newly ovulated control oocytes was set as 100% and the other values were expressed relative to this value.

Data analysis

In all the experiments, each treatment was repeated at least three times. Data were arcsine transformed before being analyzed with ANOVA. A Duncan multiple test was performed to determine the differences. The software of SPSS 11.5 (SPSS Inc.) was used. Data are expressed as mean ± SEM, and P < 0.05 was considered significant.
