Integrated DNA methylation and gene expression analysis in the pathogenesis of coronary artery disease

Data preprocessing and identified differentially methylated positions (DMPs) and differentially expressed genes (DEGs)

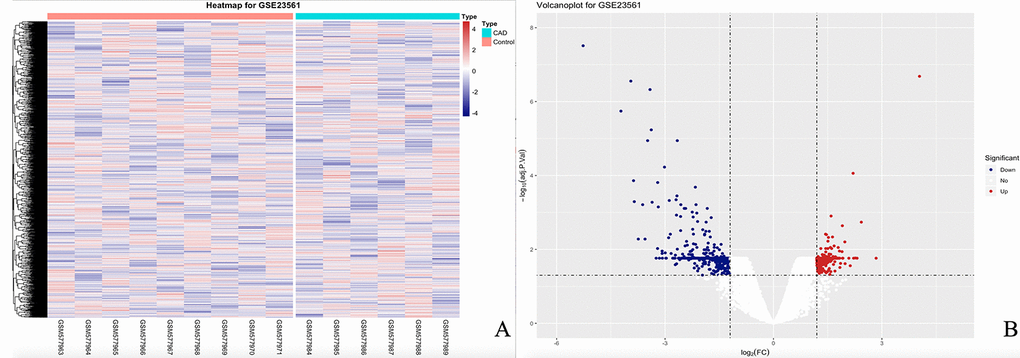

When each gene expression and profile was analyzed from GSE23561, we obtained a total of 54 560 expression probes. After the data were analyzed, 3 882 DEGs were obtained, of which 471 were downregulated, and 3 411 upregulated. The heat map and volcano plot of the DEGs are presented in Fig. 1.

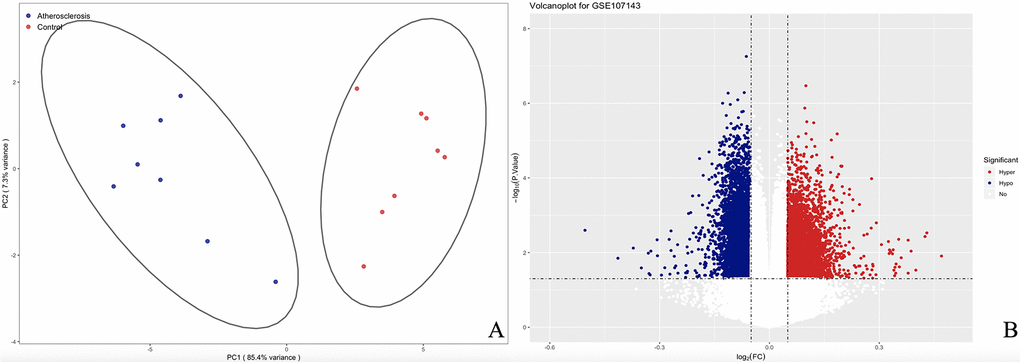

We measured DNA methylation levels at 460 295 methylation sites in GSE107143. After quality control and screening procedure, 454 325 methylation positions were subjected to differential analysis. In total, 1 2559 DMPs, including 5 015 hypermethylated and 7 544 hypomethylated DMPs were identified. According to the annotation, 8707 DMPs were physically located within 4558 unique genes. The principal component analysis (PCA) map and volcano plot of DEGs are presented in Fig. 2.

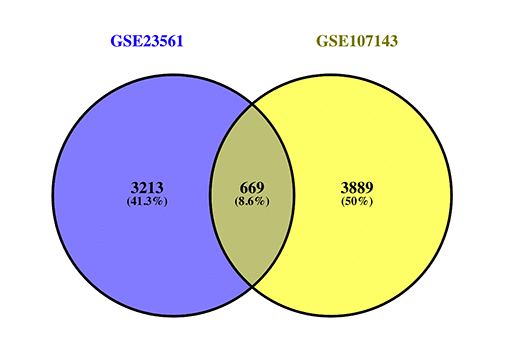

When differentially methylated genes (DMGs) were matched to the DEGs, approximately 669 genes (DMaGs) had been selected for subsequent analysis (Fig. 3). The details of the 669 genes are shown in Supplementary Table 1.

Analysis of DMaG functional enrichment

We performed functional and pathway enrichment analysis to identify genes with the same function and pathway in CAD for further analysis. In the analysis of gene ontology (GO) functions, approximately 150 biological processes, 45 cellular components, and 7 molecular functions were identified with an adjusted P < 0.05. Approximately 50 pathways were enriched for the Kyoto Encyclopedia of Genes and genomes (KEGG) pathway and 115 disease ontology (DO) item analysis of the screened DMGs at P < 0.05 (false discovery rate, FDR set at < 0.2).

Among these items, GO:0007156 homophilic cell adhesion via plasma membrane adhesion molecules, GO:0098742 cell-cell adhesion via plasma-membrane adhesion molecules, GO:0016339 calcium-dependent cell-cell adhesion via plasma membrane cell adhesion molecules, GO:0050808 synapse organization, GO:0061564 axon development, GO:0043235 receptor complex, GO:0000982 transcription factor activity, RNA polymerase II proximal promoter sequence-specific DNA binding and GO:0045296 cadherin binding in GO functions; hsa04750 inflammatory mediator regulation of transient receptor potential (TRP) channels, hsa04020 calcium signaling pathway, hsa04060 cytokine-cytokine receptor interaction, hsa04514 cell adhesion molecules (CAMs), hsa04010 mitogen-activated protein kinase (MAPK) signaling pathway and hsa04151 phosphatidylinositol 3' -kinase-Akt (PI3K-Akt) signaling pathway in the KEGG pathways; DOID:423 myopathy, DOID:9352 type 2 diabetes mellitus, DOID:5844 myocardial infarction, DOID:0050700 cardiomyopathy, DOID:3393 coronary artery disease and DOID:9970 obesity in Disease Ontology were related to CAD. The genes related to these items were selected for further analysis.

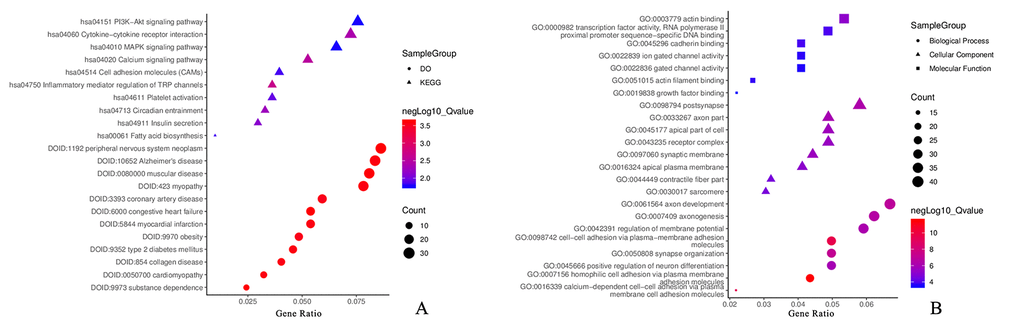

Fig. 4 represents the most valuable items in the development of CAD; detailed information is provided in Supplementary Table 2.

Protein-protein interaction (PPI) network construction and submodule analysis

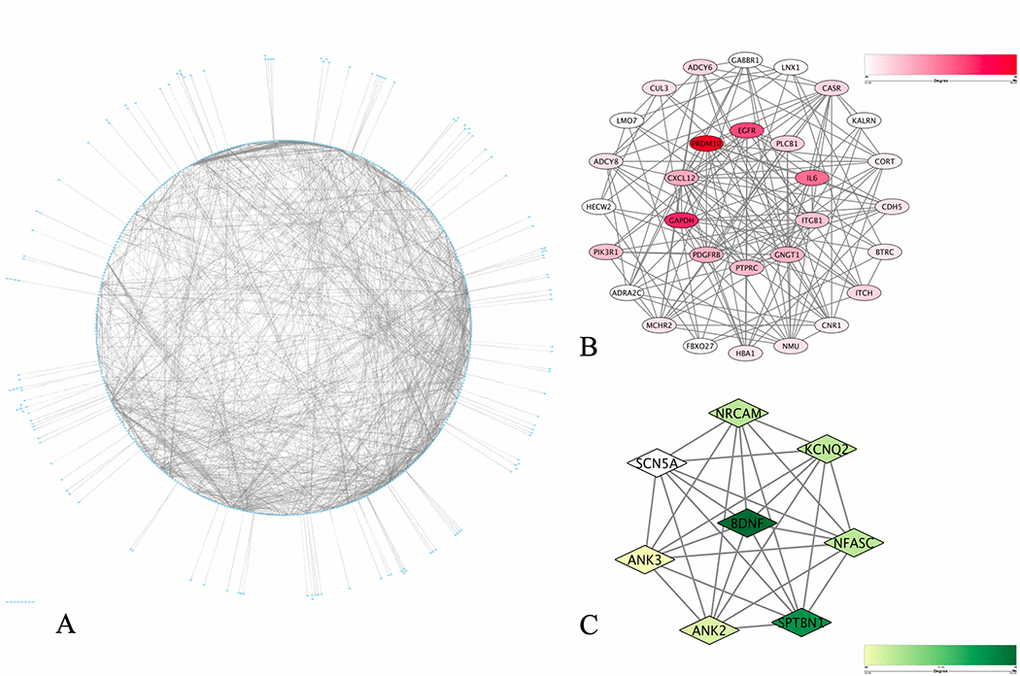

To elucidate the PPI in these matched genes, data analysis was performed using the STRING database, from which 1 662 protein pairs and 397 nodes were revealed with a combined score > 0.9. Fig. 5A shows the net analysis in Cytoscape. For detection using the Molecular Complex Detection (MCODE) app, two modules with a score > 6 were found and are presented in Fig. 5B and Fig. 5C. These two modules included a total of 38 genes. After a comprehensive analysis of the GO, DO, and KEGG data, we selected 11 DMaGs related to the onset of CAD, which demonstrated a high degree of association simultaneously, as well as in the submodule analysis. These genes included brain-derived neurotrophic factor (BDNF), beta-transducing repeat containing E3 ubiquitin protein ligase (BTRC), cadherin 5 (CDH5), C-X-C motif chemokine ligand 12 (CXCL12), epidermal growth factor receptor (EGFR), interleukin-6 (IL-6), integrin subunit beta 1 (ITGB1), platelet derived growth factor receptor beta (PDGFRB), phosphoinositide-3-kinase regulatory subunit 1 (PIK3R1), phospholipase C beta 1 (PLCB1) and protein tyrosine phosphatase receptor type C (PTPRC), and the details are presented in Table 1.

Validation of the DNA methylation–mRNA regulatory net

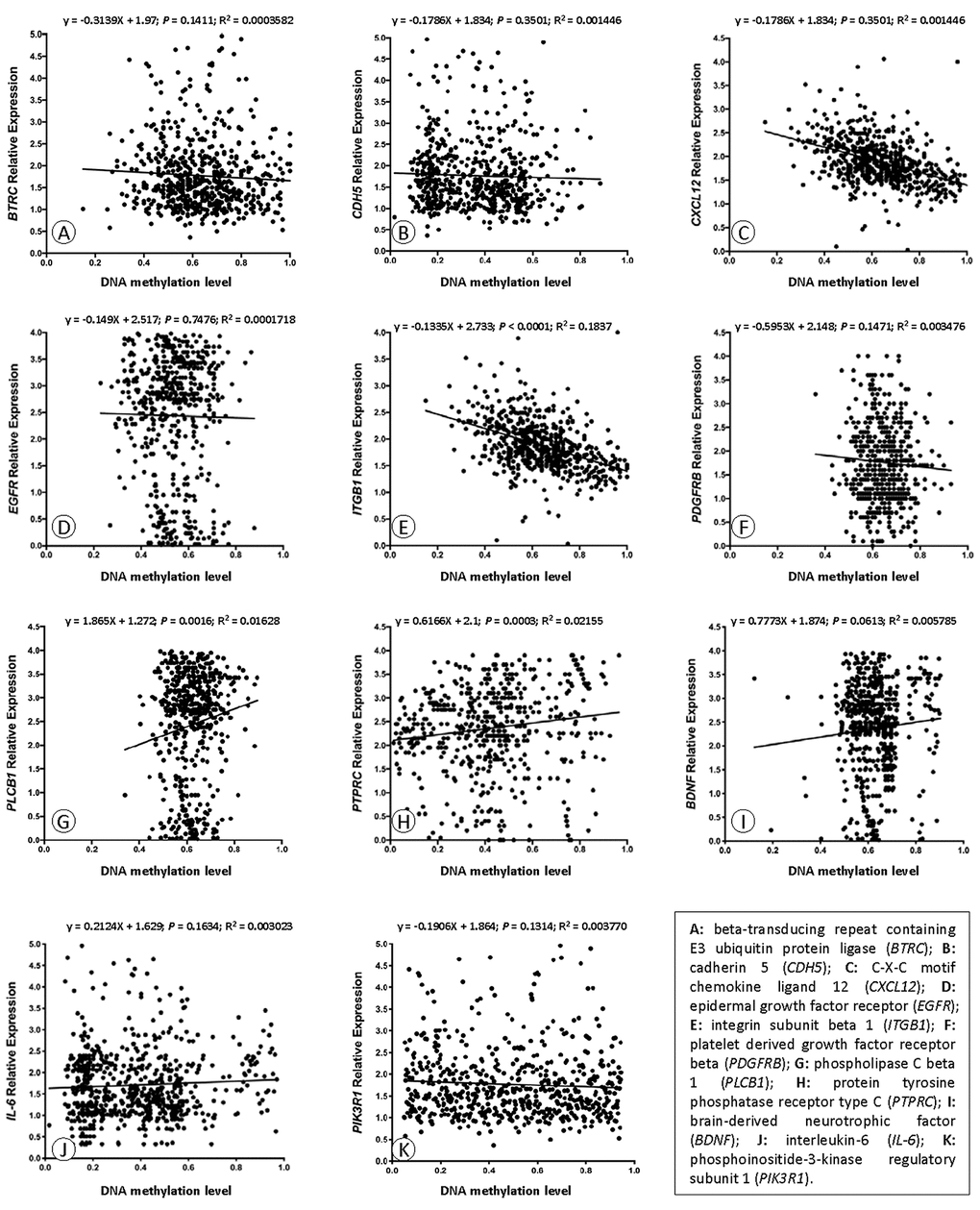

We carried out correlation analysis to detect whether DNA methylation causes CAD by regulating gene expression. The addition of methyl groups at cytosine-guanine dinucleotides (CpGs) in regulatory/promoter regions in DNA, known as DNA methylation, typically leads to transcriptional repression and decreased expression of the gene in question [6]. However, the DNA methylation was positively correlated with the gene expression in BDNF, IL-6 and PIK3R1. We selected all the methylation-mRNA pairs to evaluate the relationship between DNA methylation and gene expression in a total of 606 samples (303 healthy controls and 303 CAD patients). The 606 verification samples were matched for age and gender. The weight, body mass index (BMI), waist circumference, smoking status, serum glucose, serum total cholesterol (TC) and low-density lipoprotein cholesterol (LDL-C) levels were higher in the CAD than in the control groups (Table 2). Eleven DMPs corresponding to 11 unique genes were identified, including BDNF – cg26949694, BTRC - cg24381155, CDH5 - cg02223351, CXCL12 - cg11267527, EGFR - cg27637738, IL-6 - cg13104385, ITGB1 - cg20545410, PDGFRB - cg25613180, PIK3R1- cg00559992, PLCB1 - cg27178677 and PTPRC - cg09247619. First, we analyzed the methylation of these 11 genes in two samples, and we found that CXCL12 was less hypomethylated in the CAD group (Fig. 6). Then, the relative expression of CXCL12 was found to be higher in CAD samples, whereas those of ITGB1, PDGFRB and PIK3R1 were lower in CAD samples (Fig. 7). Next, we performed a correlation analysis between DNA methylation and gene expression in the same samples, and we found that CXCL12 and ITGB1 methylation was negatively correlated with their respective expression (Fig. 8). After a comprehensive analysis, we found that CXCL12 DNA methylation had a significantly negative correlation with its expression.

Microarray data

Two profile data sets were selected. GSE23561 [20] was retrieved from the GPL10775 Human 50K Exonic Evidence-Based Oligonucleotide array for gene expression. Microarrays were performed for 35 subjects, including 6 CAD patients and 9 healthy controls (mean age = 50.53 ± 12.17, 7 males and 8 females). Log (base 2) transformation of the downloaded raw data was performed with the GEOquery module available in R [21]. The CEL files were transformed into the expression value matrix using the Affy package in R with robust multiarray (RMA) methods to normalize the expression value matrix [22]. Subsequently, Bioconductor in R was used to convert the probe data to the gene [23]. The expression of some probes was too high or too low. We determined that such probes were outliers and had to be removed without further analysis. In cases in which many probes corresponded to one gene, we used the average expression value to screen for differential genes. For any gene that corresponded to multiple probes, the mean expression value of such a gene should be chosen. GSE107143 [24] was designed as bisulfite converted DNA from whole the blood of 8 atherosclerotic patients and 8 healthy subjects were hybridized to the Illumina Infinium HumanMethylation 450 BeadChip (mean age = 62.25 ± 18.18, 16 males and no females). These data were processed using the GEO2R online analysis tool (https://www.ncbi.nlm.nih.gov/geo/geo2r/) to compare atherosclerotic patient samples and normal samples [25]. The samples for these two datasets were age-matched (P = 0.062), and the source of the microarrays was peripheral blood.

DEGs and DMGs analysis

The limma package in R [26] enabled the identification of DEGs based on the comparisons between the control and the CAD samples, and provided good normalization of the expression matrix. The threshold values were |log₂-fold-change| > 1.2 and P < 0.05 (FDR < 0.2). The DMPs were calculated by GEO2R based on comparisons between the controls and atherosclerotic patients. DMPs located in the gene region were assigned to the corresponding genes, which were defined as DMGs. The threshold values were | log₂-fold-change | (Δβ) > 0.05 and P < 0.05 (FDR < 0.2). Subsequently, the differentially methylated genes were matched to the DEGs, and only the matched genes (DMaGs) could be selected for further analysis.

DMaGs functional enrichment analysis

Studies of large-scale transcription data or genomic data are usually performed based on functional enrichment analyses consisting of DO, KEGG pathway and GO analyses. In the current study, we used clusterProfiler and DOSE package in R [27] to complete the above analysis.

PPI network construction and module analysis

The protein prediction and experimental interactions were analyzed using the STRING database (version 10.5) [28]. Gene fusion, coexpression experiments, databases, text mining, neighborhoods and cooccurrence are typical prediction methods for the database. In addition, a combined fraction was used to show the interaction of protein pairs in the database. In this study, DMaGs were mapped to PPIs, and a combined score > 0.9 was used as the cutoff value [29] to analyze key genes in the network. Degrees served as a valuable way to determine the role of protein nodes in the network. Network modules represented one of the cores of the protein networks and may have specific biological implications. The MCODE in the Cytoscape software package (version 3.61) [30,31] was used to identify the major and the most notable clustering modules. Subsequently, we choose EASE ≤ 0.05 and a count ≥ 2 for the cutoff value, and a MCODE score > 6 as the threshold for further analysis.

Sample verification and diagnostic criteria

A total of 606 subjects had complaints about their chests in the First Affiliated Hospital, Guangxi Medical University from Jan. 1, 2015 to Dec. 31, 2017. The levels of TC, triglyceride (TG), high-density lipoprotein cholesterol (HDL-C), LDL-C, apolipoprotein (Apo) A1, ApoB and the ratio of ApoA1 to ApoB defined as normal values were 3.10–5.17, 0.56–1.70, 0.91–1.81, 2.70–3.20 mmol/L, 1.00–1.78, 0.63–1.14 g/L, and 1.00–2.50; respectively [32]. Since angiographic examination was performed for CAD and/or other suspected diseases, all participants were examined using coronary angiography by two experts. CAD was confirmed as more than one of the three major coronary arteries or their major branches (branched diameter ≥ 2 mm) (≥ 50%) [33]. Participants who had a history of CAD, type I diabetes mellitus and congenital heart disease were excluded. Through clinical examination, medical history and questionnaires, the control group was judged to have no CAD. Medical history and general information were obtained using a standard questionnaire [34]. The investigation conformed to the rules of the Helsinki Declaration of 1975 (http://www.wma.net/en/30publications/10policies/b3/) and the new edition of 2008. The research design was approved by the Ethics Committee of the First Affiliated Hospital of Guangxi Medical University (No: Lunshen-2011-KY-Guoji-001; March 7, 2011). All procedures are conducted in conformity to ethical standards. Written informed consent was obtained from all the participants upon receipt of a complete explanation of the study. In the initial evaluation, all clinical data were collected based on the medical records. Clinical data collection and biochemical measurements were performed according to previous studies [35].

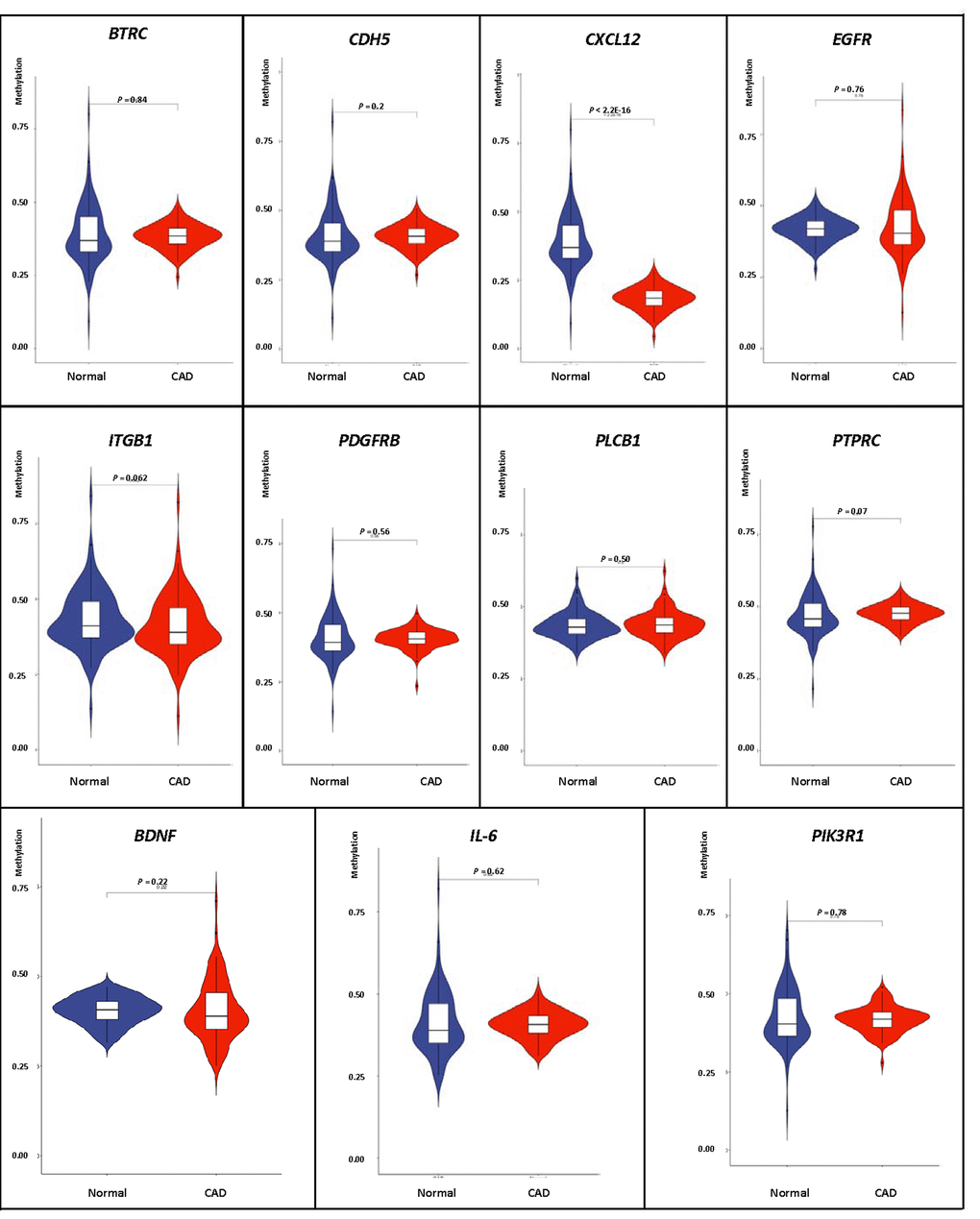

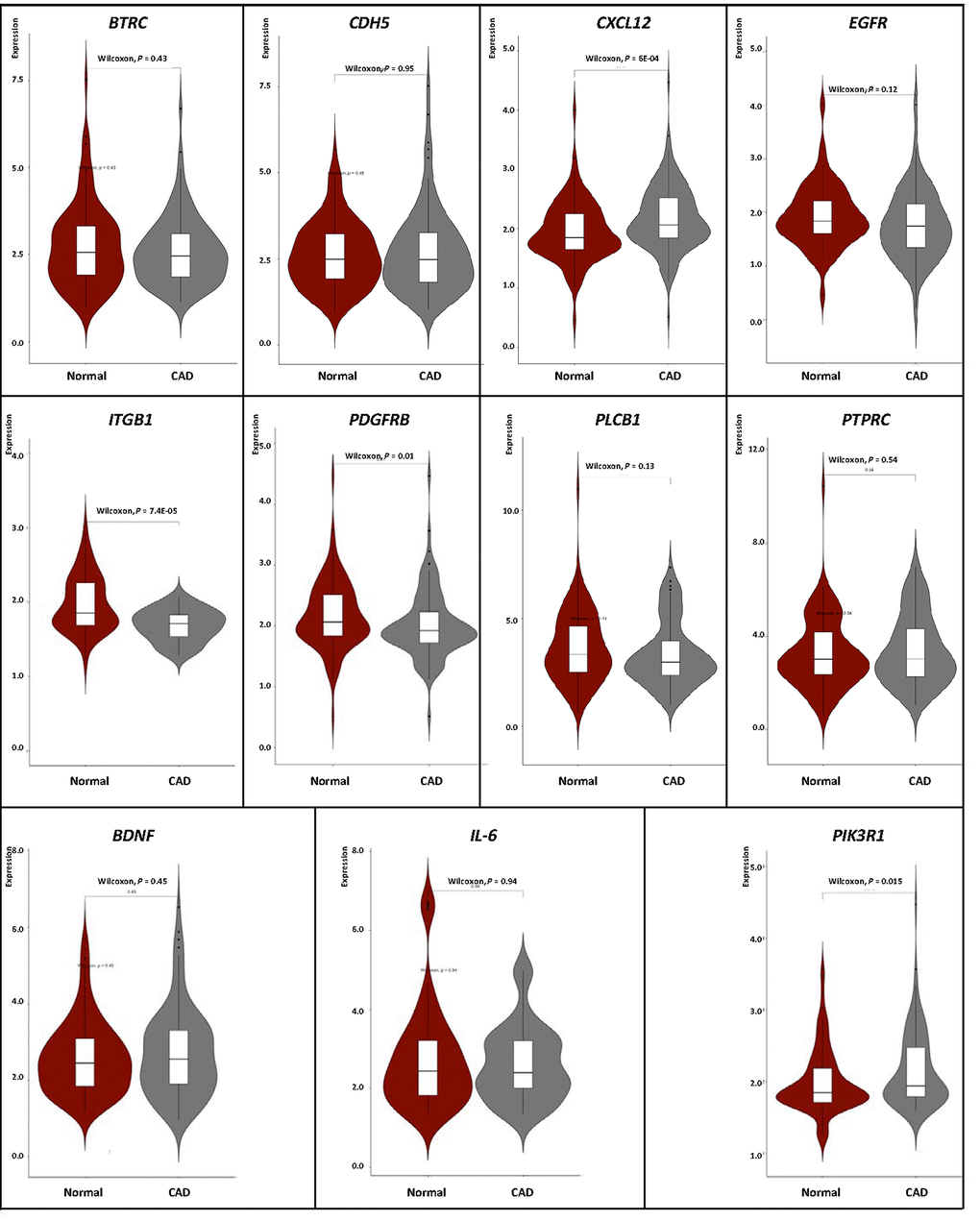

Validation of differential methylation and mRNA expression of DMaGs of interest

Focused on identified regulatory network, we selected eight DMaGs to validate methylation and gene expression in an additional sample, respectively. These selected DMaGs met the following criteria: (1) the DMP was located in the promoter region; (2) the methylation level of the DMP was significantly correlated with gene expression; (3) the CpG dinucleotide content was enriched in the 300-bp up- and downstream regions around the DMP; and (4) genes in the identified regulatory network were prioritized. Targeted bisulfite sequencing was used to validate the DMPs. Primer design and optimization were performed by GeneSky Corporation (Shanghai, China). The primers were designed to flank each targeted CpG site and span 100-300 bp. The primers information is summarized in the Supplementary Table 3.

Peripheral blood samples were obtained from CAD patients and healthy controls. The peripheral blood mononuclear cells (PBMCs) were isolated from 15 ml peripheral blood by density gradient centrifugation using Lymphoprep (Sigma, life science, USA) within 4 hours after phlebotomy. Total RNA was isolated from PBMCs by standard phenol-chloroform extraction using TRIzol reagent (Invitrogen Life Technologies, Carlsbad, USA) according to the manufacturer’s instructions, and the concentration was measured using a Nanodrop ND-1000 Spectrophotometers (Thermo Fisher Scientific, Waltham, USA). The RNA quality was checked using a Bioanalyzer Nanochip (Agilent Technologies, Santa Clara, USA). Genomic DNA was isolated using genomic DNA extraction kits (Life Technologies, Gaithersburg, USA), and the DNA integrity was analyzed by agarose gel electrophoresis. Following primer validation, study specimen DNA was bisulfite-converted using the EZ DNA Methylation-Gold Kit (ZYMO, CA, USA). Samples were amplified, barcoded and sequenced (MiSeq, Illumina, Inc., San Diego, USA) using the paired-end sequencing protocol according to the manufacturer’s guidelines.

Quantitative real-time PCR (qRT-PCR) was used to validate the differential expression for the above eleven selected DMaGs. Total RNA from PBMCs was isolated using TRIzol reagent, according to the instructions recommended by the manufacture, and reverse-transcribed. Reverse transcription was performed in a total volume of 20 μl, which contained 1 μl oligo (dT) (100 μM), RNase-free water 11 μl, 25 mM each dNTPs 0.4 μl, recombinant RNase inhibitor 0.5 μl, Moloney murine leukemia virus (M-MLV) 0.5 μl, 5 × M-MLV buffer 4 μl and RNase-free water 2.6 μl, and took place under the conditions of 42 °C for 60 min, 85 °C for 5 min, and 4 °C forever. The cDNA served as template for amplification by qPCR using SYBR Green assays. The assay was performed using a SYBR Green MasterMix kit in a volume of 10 μl, which contained 0.2 × cDNA 1 μl, 2 × SYBR master mix 5 μl and 0.625 mM each primer 4 μl. The cDNA amplification was monitored using a Roche light cycler 480II under 1 cycle of pre-degeneration of 95°C for 10 min, 40 cycles of 95 °C for 10 s and 60 °C for 20 s. This assay was carried out in triplicate for each sample, including a no-template control. Ct values were averaged for each sample after two PCR experiments. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) served as the mRNA’s internal standard. The amplification conditions were performed according to the instructions. The primer information is summarized in Supplementary Table 4. Relative quantification of expression was performed compared with the internal standard using the 2 ^-∆∆CT method.

Statistical analysis

The statistical software package SPSS 22.0 (SPSS Inc. Chicago, IL, USA) and Prism 7.0 (GraphPad Software) were used for all statistical analyses. Chi-square analysis was applied to assess differences in ratios among groups. Continuous data are presented as the means ± SD for those that were normally distributed, and the median and quartile ranges for TG that were not normally distributed. Comparison of continuous data sets was performed using Mann-Whitney nonparametric and Kruskal-Wallis tests [36]. R software (version 3.5.0) was used for further bioinformatic analysis. Pheatmap and ggplot2 packages (https://cran.r-project.org/) were utilized for the heat map, volcano plot, PCA analysis and Venn map. To determine whether the methylation level was associated with gene expression, we extracted mRNA data from the genome-wide mRNA expression profile based on same annotated gene symbol with DMaGs, followed by correlation test using GraphPad Prism (Version 7.0) and retesting by SPSS. For those genes with a significant correlation, the mRNA expression levels between CAD patients and healthy controls were compared using the Student’s t-test (calculated by GraphPad Prism and retested by SPSS).
