DNMT3B silencing suppresses migration and invasion by epigenetically promoting miR-34a in bladder cancer

Correlation of DNMT3B expression and clinicopathological characteristics

DNMT3B expression in 30 bladder cancer tissues was assessed using tissue microarrays and scored independently by two senior pathologists. Based on the total scores, DNMT3B was found to be weakly expressed in 10 bladder cancer tissues and highly expressed in 20 bladder cancer tissues (Figure 1A). The association between the expression of DNMT3B and clinicopathological characteristics was analyzed using the Fisher exact test. DNMT3B expression was not correlated with gender (P >0.9999), age (P = 0.6821), or tumor size (P=0.7055), but was correlated with tumor (T) stages (P=0.0187), node metastasis (P =0.0235), and the muscle-invasive stage (P =0.0449) (Table 1).

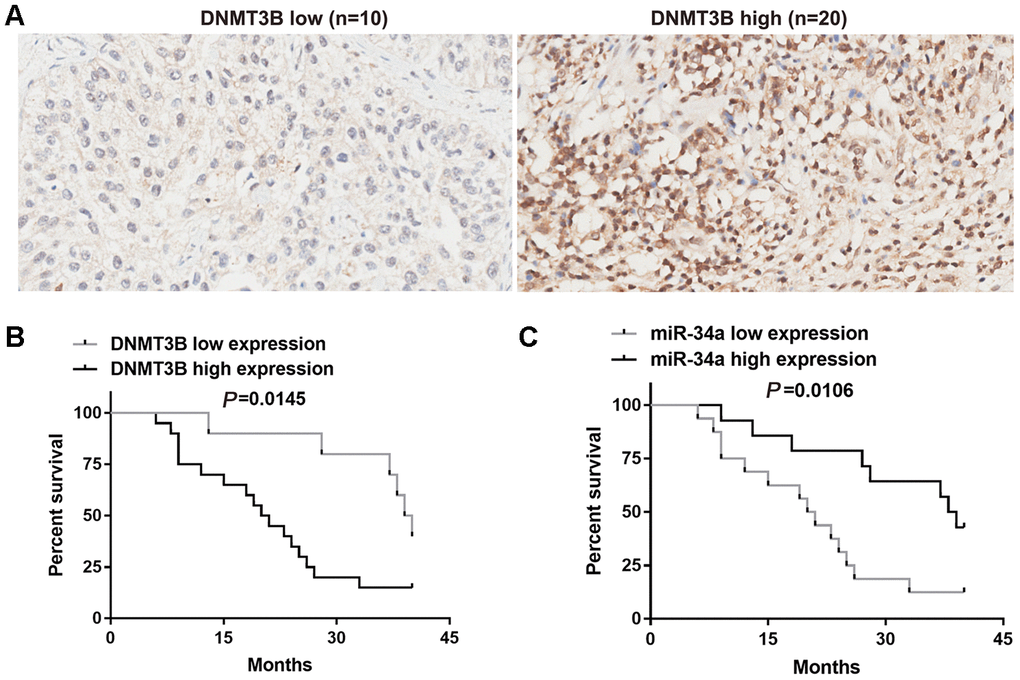

Figure 1. Correlation between DNMT3B and miR-34a in bladder cancer tissues. (A) The protein level of DNMT3B was assessed using tissue microarrays in 30 bladder cancer tissues. (B, C) Overall survival analysis of bladder cancer patients who were divided into two groups based on the expression level of DNMT3B (B) or miR-34a (C). Survival analysis was performed using the Kaplan-Meier method and the logrank test. DNMT3B, DNA methyltransferase 3B.

Survival analysis of bladder cancer patients with different expression of DNMT3B and miR-34a

The bladder cancer patients were divided into two groups by the protein levels of DNMT3B. Overall survival was assessed using the Kaplan-Meier method and the logrank test. The median survival time in the group with low DNMT3B expression (n=10) was 39.5 months (Figure 1B), and that in the group with high DNMT3B expression (n=20) was 20.5 months (Figure 1B). This indicated that patients with lower expression of DNMT3B had a longer overall survival compared to those with higher expression of DNMT3B (Figure 1B). Thereafter, we assessed the level of miR-34a expression in the 30 bladder cancer tissues. Based on the median miR-34a level, bladder cancer tissues were divided into low-miR-34a-expression group and high-miR-34a-expression group. The median survival time in the low-miR-34a-expression group (n=16) was 20.5 months (Figure 1C), and that in the high-miR-34a-expression group (n=14) was 38.5 months (Figure 1C). This indicated that patients with higher expression of miR-34a had longer overall survival compared to those with lower expression of miR-34a (Figure 1C).

Correlation of DNMT3B and miR-34a levels in bladder cancer tissues

According to the level of DNMT3B protein expression, bladder cancer tissues were divided into the low-DNMT3B-expression group and the high-DNMT3B-expression group. miR-34a expression was higher in bladder cancer tissues with low DNMT3B expression compared to those with high DNMT3B expression (Figure 2A). Furthermore, the level of miR-34a was negatively correlated with the level of DNMT3B based on the linear regression analysis (r=-0.4522, P=0.0121, Figure 2B).

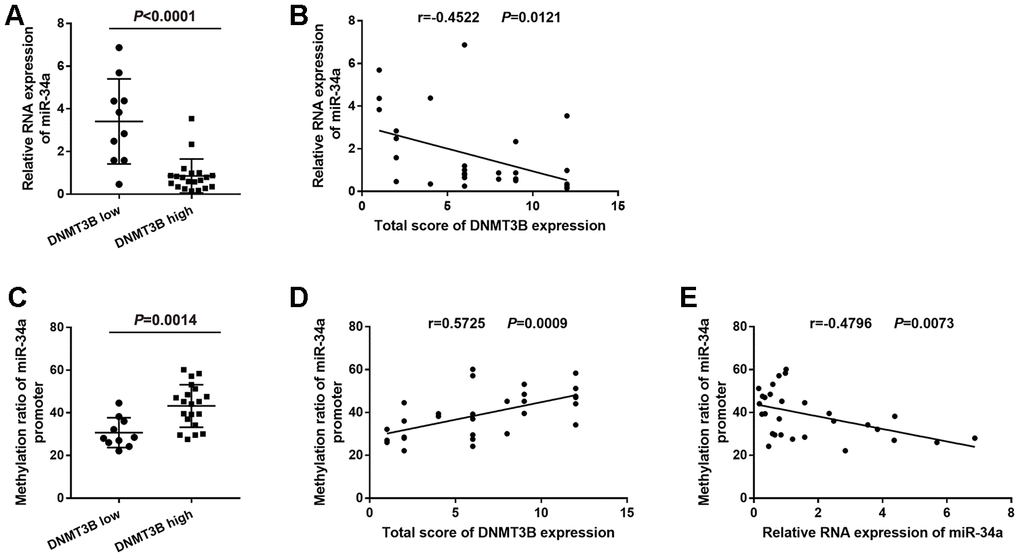

Figure 2. Correlation between the level of DNMT3B and the methylation ratio of the miR-34a promoter in bladder cancer tissues. (A) Relative RNA expression of miR-34a in low-DNMT3B-expression and high-DNMT3B-expression bladder cancer tissues. (B) Correlation between the total score of DNMT3B expression and the relative RNA expression of miR-34a in bladder cancer tissues. (C) The methylation ratio of the miR-34a promoter in low-DNMT3B-expression and high-DNMT3B-expression bladder cancer tissues. (D) Correlation between the total score of DNMT3B expression and the methylation ratio of the miR-34a promoter in bladder cancer tissues. (E) Correlation between the relative RNA expression of miR-34a and the methylation ratio of the miR-34a promoter in bladder cancer tissues. DNMT3B, DNA methyltransferase 3B.

Correlation of the DNMT3B level and methylation ratio of miR-34a promoter in bladder cancer tissues

Bisulfite genomic sequencing (BSP) analysis showed that the methylation ratio of the miR-34a promoter was lower in the low-DNMT3B-expression bladder cancer tissues compared to that in the high-DNMT3B-expression tissues (Figure 2C). Furthermore, the methylation ratio of the miR-34a promoter was positively correlated with the level of DNMT3B (r=0.5725, P=0.0009, Figure 2D), and was negatively correlated with the level of miR-34a (r=-0.4796, P=0.0073, (Figure 2E) based on the linear regression analyses.

Knockdown of DNMT3B increased miR-34a expression and decreased methylation in the promoter of miR-34a

Based on the results from bladder cancer tissues, we hypothesized that DNMT3B reduced the expression of miR-34a via miR-34a promoter methylation, which was verified using bladder cancer cell lines. As shown in Figure 3A, the mRNA level of DNMT3B was higher and the level of miR-34a was lower in the EJ and UMUC3 bladder cancer cell lines compared to those in the T24 and BIU-87 bladder cancer cell lines. Therefore, EJ and UMUC3 cells were chosen for subsequent analyses. To further investigate the role of DNMT3B, EJ and UMUC3 cells were infected with lentiviral vectors containing the short hairpin RNA (shRNA) targeting DNMT3B to construct the DNMT3B-knockdown cells, termed as the shRNA group. Cells infected by empty lentivirus were used as the negative control (NC) group. As shown in Figure 3B and 3C, the mRNA and protein levels of DNMT3B in the shRNA groups of EJ and UMUC3 cells were decreased compared to those in the NC group, confirming that the DNMT3B-knockdown cells were successfully constructed. Thereafter, we examined the miR-34a expression in the DNMT3B-knockdown cells. Our data revealed that the miR-34a levels were increased in the shRNA groups of EJ and UMUC3 cells compared to those in the NC groups, indicating that DNMT3B knockdown increased miR-34a expression in both EJ and UMUC3 cells (Figure 3D). In addition, the BSP data showed that the methylation ratios of the miR-34a promoter were decreased in the shRNA groups of EJ and UMUC3 cells compared to those in the NC group cells, which indicated that DNMT3B knockdown decreased miR-34a promoter methylation in both EJ and UMUC3 cells (Figure 3E). Moreover, we investigated the effect of DNMT3B knockdown on the transcriptional activity of the miR-34a promoter. A luciferase reporter plasmid containing the miR-34a promoter (pGL3-miR-34a) was transfected into the NC and shRNA groups of EJ and UMUC3 cells. The empty luciferase reporter plasmid pGL3 was used as a negative control. As shown in Figure 3F and 3G, the relative luciferase activity of pGL3-miR-34a was higher in the shRNA groups of EJ and UMUC3 cells compared to those in the NC group cells, demonstrating that DNMT3B knockdown increased the transcriptional activity of the miR-34a promoter in both EJ and UMUC3 cells.

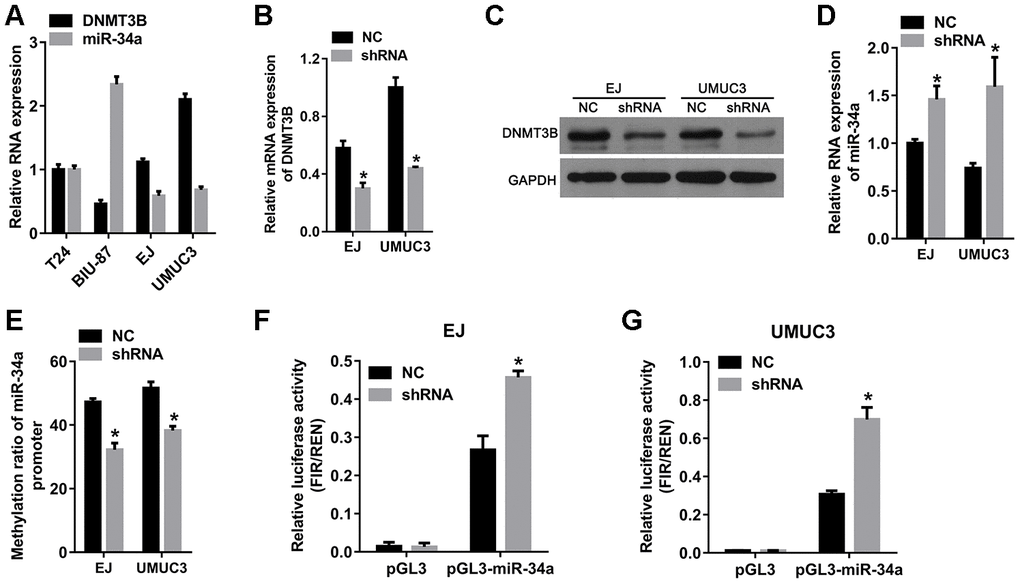

Figure 3. The knockdown of DNMT3B increased miR-34a expression and decreased the methylation of the miR-34a promoter. EJ and UMUC3 cells were infected with lentiviral vectors expressing shRNAs targeting DNMT3B (shRNA)to construct DNMT3B-knockdown cells, termed as the shRNA group. EJ and UMUC3 cells infected with empty lentivirus were used as the negative control (NC) group. (A) Expression of DNMT3B in bladder cancer cells measured by qRT-PCR. (B, C) Expression of DNMT3B in the NC and shRNA groups as detected by qRT-PCR (B) and western blot analysis (C). (D) The levels of miR-34a in the NC and shRNA groups as detected by qRT-PCR. (E) The methylation ratio of the miR-34a promoter as determined by bisulfite genomic sequencing. DNMT3B knockdown decreased methylation in the promoter of miR-34a. (F–G) The effects of DNMT3B knockdown on the transcription activity of the miR-34a promoter. (A) luciferase reporter plasmid containing the miR-34a promoter (pGL3-miR-34a) was transfected into the shRNA groups of EJ and UMUC3 cells. The empty vector pGL3 was used as NC. The relative luciferase activity was calculated using the ratio of firefly and Renilla luciferase activities. Data were presented as means±SD. *p<0.05 between NC and shRNA. DNMT3B, DNA methyltransferase 3B; qRT-PCR, quantitative reverse transcription polymerase chain reaction; NC, negative control; SD, standard deviation.

To verify the results in the DNMT3B-knockdown cells, DNMT3B-overexpression plasmid (ov-DNMT3B) was constructed and transfected into BIU-87 cells to overexpress DNMT3B. Empty plasmid pcDNA3.1 was transfected as a negative control. As shown in Supplementary Figure 1A, the DNMT3B protein level was substantially increased in the ov-DNMT3B transfected BIU-87 cells compared to that in the pcDNA3.1 transfected cells, confirming the overexpression of DNMT3B. The level of miR-34a was decreased (Supplementary Figure 1B), the methylation ratio of the miR-34a promoter was increased (Supplementary Figure 1C), and the relative luciferase activity of pGL3-miR-34a was higher (Supplementary Figure 1D) in the ov-DNMT3B transfected BIU-87 cells compared to those in the pcDNA3.1 transfected cells. These results indicated that DNMT3B overexpression decreased miR-34a expression, increased miR-34a promoter methylation, and decreased the transcriptional activity of the miR-34a promoter.

Knockdown of DNMT3B inhibits migration, invasion, and epithelial-mesenchymal transition (EMT)

In order to investigate whether DNMT3B was involved in the migration and invasion of bladder cancer, we evaluated the effects of DNMT3B knockdown on the migration, invasion, and EMT in EJ and UMUC3 cells. The results of the wound healing assay revealed that the percentage of wound closure was decreased in the shRNA groups of EJ and UMUC3 cells (Figure 4A) compared to those in the NC groups. The Transwell assays revealed that the numbers of migrated and invasive cells in the shRNA groups of EJ and UMUC3 cells were lower than those of the NC groups (Figure 4B and 4C). These results suggested that DNMT3B knockdown resulted in decreased migration and invasion capabilities in EJ and UMUC3 bladder cancer cell lines. Furthermore, the expression of vimentin, N-cadherin, Snail, twist family bHLH transcription factor 1 (TWIST1), zinc finger E-box binding homeobox 1 (ZEB1), matrix metallopeptidase 2 (MMP2), and MMP9 was decreased, and the expression of E-cadherin was increased in the shRNA groups of EJ and UMUC3 cells (Figure 4D). Together, our data indicate that the suppression of DNMT3B inhibits EMT in bladder cancer cells.

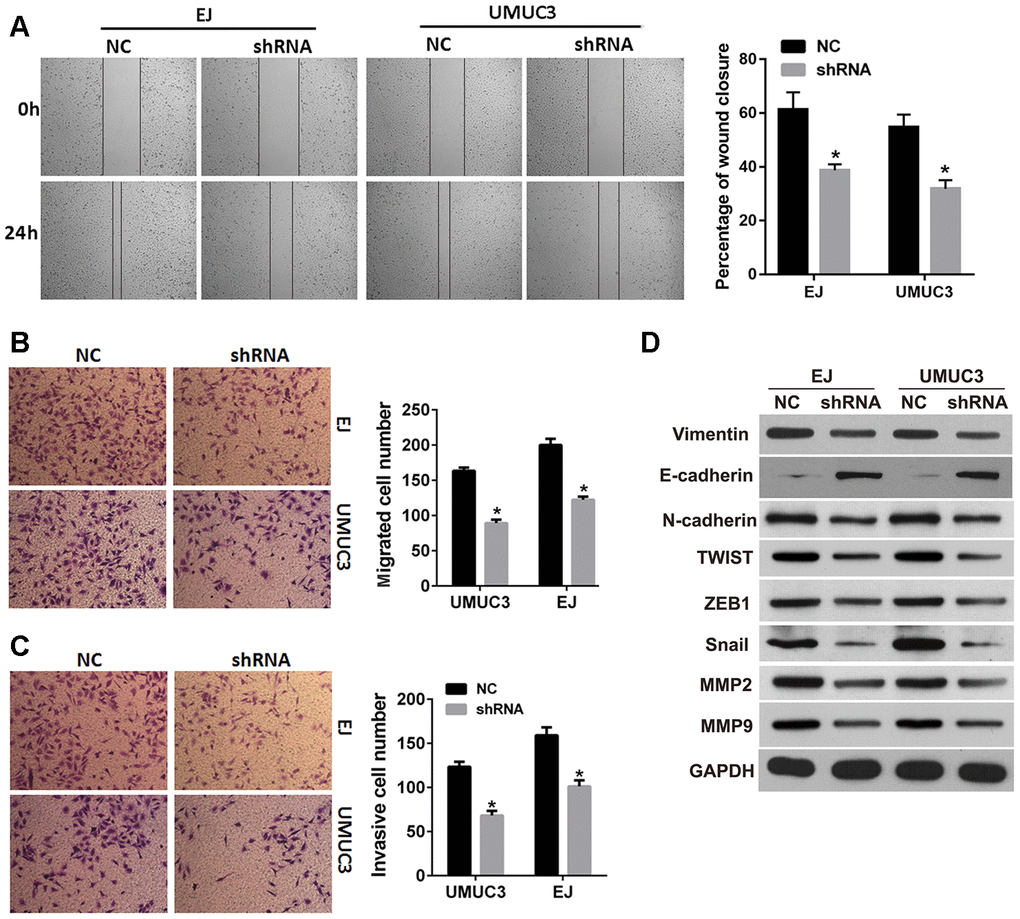

Figure 4. DNMT3B knockdown inhibits migration, invasion, and EMT in bladder cancer cells. EJ and UMUC3 cells were infected with lentiviral vectors expressing shRNAs targeting DNMT3B (shRNA)to construct DNMT3B stable knockdown cells, termed as shRNA group. EJ and UMUC3 cells infected with empty lentivirus were used as the NC group. (A, B) The wound healing assay (A) and the Transwell migration assay (B) were performed to evaluate the migration capability. (C) The Transwell invasion assay was performed to evaluate the invasion capability. Data were presented as mean±SD. *p<0.05 between NC and shRNA. (D) Expression of epithelial-mesenchymal transition markers as detected by western blot analysis. DNMT3B, DNA methyltransferase 3B; EMT, epithelial-mesenchymal transition; NC, negative control; SD, standard deviation.

Inhibition of miR-34a reduced the effects of DNMT3B knockdown on migration, invasion, and EMT

We next investigated whether inhibiting miR-34a rescued the inhibitory effects of DNMT3B knockdown on the migration, invasion, and EMT in bladder cancer cells. After transfecting the miR-34a inhibitor into the shRNA groups of EJ and UMUC3 cells, the miR-34a level was verified by quantitative reverse transcription polymerase chain reaction (qRT-PCR). As shown in Figure 5A, the miR-34a level was lower in the shRNA groups of EJ and UMUC3 cells transfected with the miR-34a inhibitor compared to those transfected with the negative control microRNA (miR-NC), indicating that the miR-34a inhibitor successfully attenuated the effect of DNMT3B knockdown on miR-34a. Additionally, the percentage of wound closure increased in the shRNA groups of EJ and UMUC3 cells transfected with the miR-34a inhibitor compared to those transfected with miR-NC (Figure 5B). The Transwell assays showed increased numbers of migrated and invasive cell in the shRNA groups of EJ and UMUC3 cells transfected with the miR-34a inhibitor compared to those transfected with miR-NC (Figure 5C and 5D). The expression of vimentin, N-cadherin, Snail, TWIST1, ZEB1, MMP2, and MMP9 was increased, and the expression of E-cadherin was decreased in the shRNA groups of EJ and UMUC3 cells transfected with the miR-34a inhibitor, compared to those transfected with miR-NC (Figure 5E). These results reveal that inhibiting miR-34a reduced the inhibitory effects of DNMT3B knockdown on migration, invasion, and EMT.

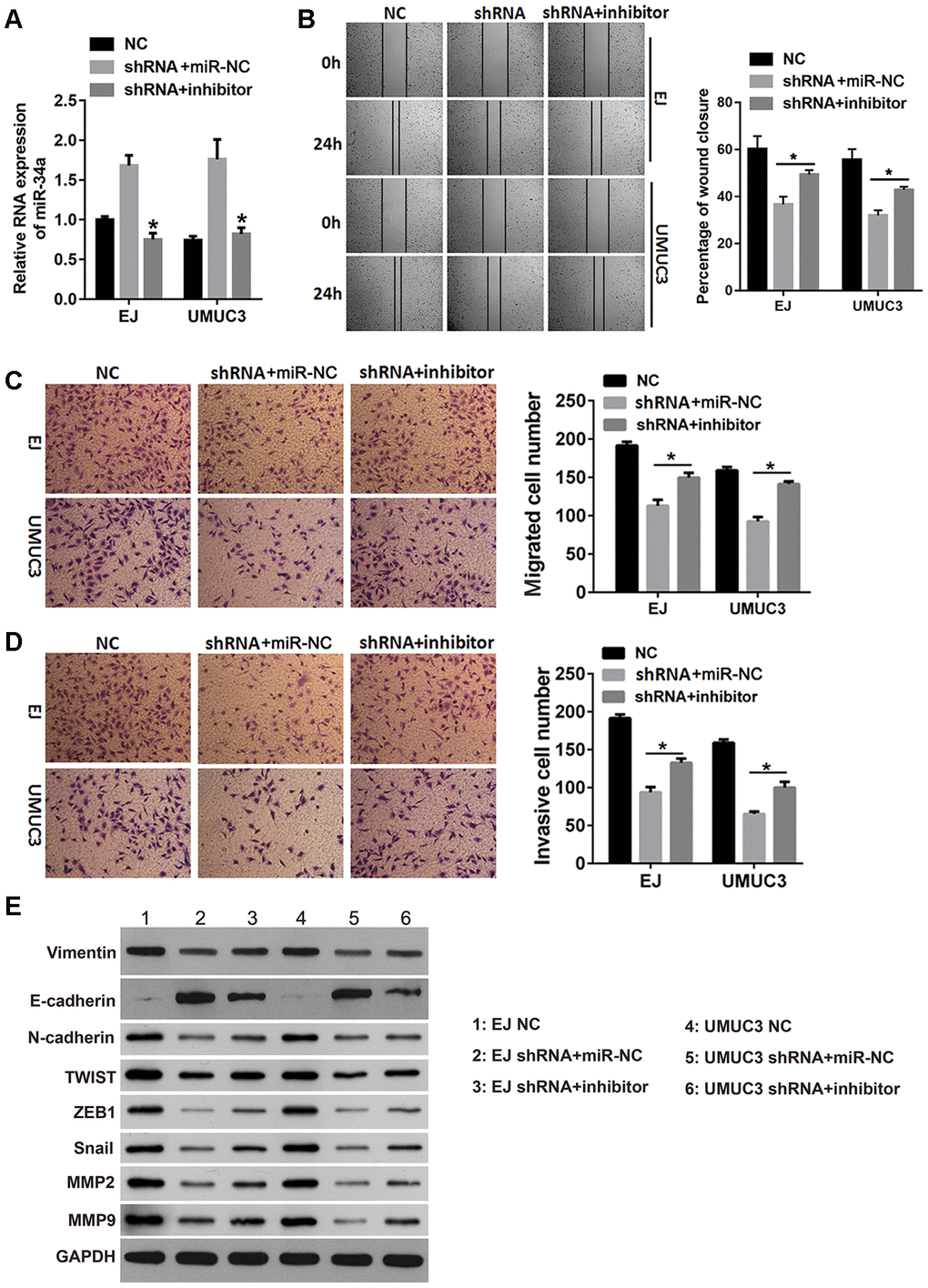

Figure 5. The miR-34a inhibitor reduced the effects of DNMT3B knockdown on migration, invasion, and EMT. The shRNA groups of EJ and UMUC3 cells were transfected with the miR-34a inhibitor (shRNA+inhibitor) or the negative control miRNA (shRNA+miR-NC). The NC groups were used as the control. (A) The miR-34a level was confirmed by qRT-PCR. (B, C) The wound healing assay (B) and the Transwell migration assay (C) were performed to evaluate the migration capability of each group of cells. (D) The Transwell invasion assay was performed to evaluate the invasion capability of each group of cells. (E) The expression of the EMT markers was assessed using western blot analysis, using GAPDH as the loading control. Data were presented as means±SD. *p<0.05 between shRNA+miR-NC and shRNA+inhibitor. DNMT3B, DNA methyltransferase 3B; EMT, epithelial-mesenchymal transition; NC, negative control; qRT-PCR, quantitative reverse transcription polymerase chain reaction; SD, standard deviation.

Effects of DNMT3B knockdown on the targets of miR-34a

To further investigate the underlying mechanisms of DNMT3B, we examined the expression of the downstream targets of miR-34a. Several studies have indicated that miR-34a modulates the migration and invasion of tumor cells by down-regulating hepatocyte nuclear factor 4 gamma (HNF4γ) and Notch1 [14–16]. As shown in Figure 1A, miR-34a has binding sites on the 3’ untranslated region (UTR) of HNF4γ and Notch1 mRNAs. miR-34a can downregulate the protein levels of HNF4γ and Notch1 in bladder cancer and endometrial cancer cells [14–16]. In this study, we further confirmed their targeted regulatory pathways in EJ and UMUC3 cells. The protein levels of HNF4γ and Notch1 were decreased in miR-34a-mimic transfected cells and increased in miR-34a-inhibitor transfected cells. These results indicate that HNF4γ and Notch1 are downstream targets of miR-34a in EJ and UMUC3 cells (Figure 6B). As shown in Figure 6C, the protein levels of HNF4γ and Notch1 were lower in the shRNA groups of EJ and UMUC3 cells compared to those in the NC groups, indicating that DNMT3B knockdown could decrease the protein levels of HNF4γ and Notch1 protein levels. Moreover, the protein levels of HNF4γ and Notch1 were higher in the shRNA groups of EJ and UMUC3 cells transfected with miR-34a inhibitor, compared to those transfected with miR-NC (Figure 6D), indicating that inhibiting miR-34a attenuated the inhibitory effects of DNMT3B knockdown on the downstream targets of miR-34a.

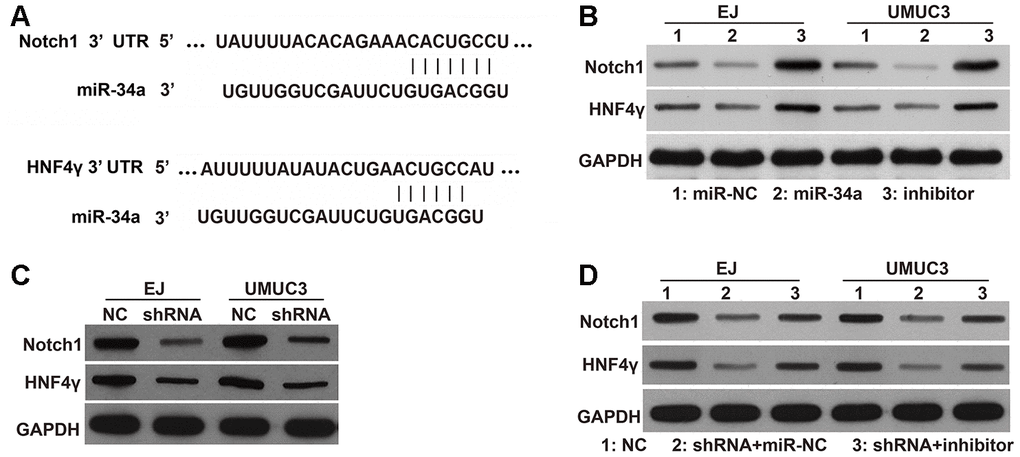

Figure 6. Effects of DNMT3B knockdown on the protein levels of HNF4γ and Notch1, which are downstream targets of miR-34a. (A) miR-34a has binding sites on the 3’ UTR of HNF4γ and Notch1 mRNAs. (B) The protein levels of HNF4γ and Notch1 in EJ and UMUC3 cells transfected with miR-NC, miR-34a mimic, or the miR-34a inhibitor (inhibitor). (C) The protein levels of HNF4γ and Notch1 in DNMT3B-knockdown EJ and UMUC3 cells after being infected with recombinant lentiviral vectors containing shRNAs targeting DNMT3B (shRNA) and negative control cells infected with empty lentivirus (NC). (D) The protein levels of HNF4γ and Notch1 in the shRNA groups of EJ and UMUC3 cells transfected with the miR-34a inhibitor (shRNA+inhibitor) or miR-NC (shRNA+miR-NC). NC cells were used as the control. DNMT3B, DNA methyltransferase 3B; HNF4γ, hepatocyte nuclear factor 4 gamma; UTR, untranslated region; NC, negative control; shRNA, short hairpin RNA.

Patient samples and tissue microarray assay

Bladder cancer tissues (n=30) were obtained from the Zhujiang Hospital of Southern Medical University between 2017 and 2018. Informed consent was obtained from each patient. This study was approved by the ethics committee of the Zhujiang Hospital of Southern Medical University.

Microarray analysis was performed on all tissue samples. The level of DNMT3B was assessed by immunohistochemistry (IHC) (Shanghai Outdo Biotech Co., LTD.), and the DNMT3B-stained tissues were scored independently by two senior pathologists according to the standard protocol [30]. The total scores were divided into two categories: a score between 1 and 4 was considered low expression, and a score between 5 and 12 was considered high expression.

BSP analysis

The genomic DNA of bladder cancer tissues and cells was extracted using the SolPure Cell DNA Kit (Magen). Bisulfite modification was carried out using an EpiTect Bisulfite Kit (Qiagen). The promoter region of miR-34a was amplified using HotStarTaq reagents (Qiagen) with 5'-GTTTTTGGTTTTAGAAGTTTTTT-3' and 5'-AATCCTAATCCTCATCCCCTTC-3' primers and cloned into a pGEM-T vector. Individual clones (n=10) from each group were sequenced and analyzed quantitatively using the online software BISMA.

Cell culture

Human bladder cancer cell lines T24, BIU-87, EJ, and UMUC3 were obtained from the American Type Culture Collection. All cells were cultured in the RPMI 1640 medium containing 10% fetal bovine serum, 100 U/mL penicillin G, and 100 μg/mL streptomycin, and maintained at 37 °C in a humidified 5% CO₂ incubator.

Construction of DNMT3B shRNA stable knockdown cells

To construct the lentiviral vector containing the shRNA targeting DNMT3B (shRNA), the shRNA was amplified and inserted into a pLVX-shRNA2-Puro vector (Invitrogen). The sequence of the shRNA targeting DNMT3B was: 5'-AATTAAAAAAAGATGACGGATGCCTAGAGTCTCTTGAACTCTAGGCATCCGTCATCTCG -3'. EJ and UMUC3 cells were infected by either empty lentiviral vectors as the negative control (NC) or recombinant lentiviral vectors containing shRNAs targeting DNMT3B in the presence of 5 μg/mL polybrene (Sigma). Infected bladder cancer cells, namely NC or shRNA, were selected for 14 days using 2 μg/mL puromycin (Sigma). The knockdown of DNMT3B in infected bladder cancer cells was determined by qRT-PCR and western blot analyses.

qRT-PCR

Total RNA was extracted using the TRIzol reagent (Ambion) according to the manufacturer’s instructions. RQ1 RNase-Free DNase (Promega) was used for the removal of contaminating DNA. To determine the expression of DNMT3B and miR-34a, complementary DNA was obtained by reverse transcription of total RNA using M-MLV reverse transcriptase (Promega). The reverse transcription primer for DNMT3B detection was oligo(dT). The reverse transcription primer for miR-34a detection was designed based on the universal stem-loop primer method. The expression of DNMT3B and miR-34a was determined using SYBR Green qPCR SuperMix (Invitrogen). The relative expression of DNMT3B and miR-34a was calculated using the 2^-ΔΔCT method based on the expression of the internal references 18S rRNA or U6 snRNA. The qRT-PCR primers and reverse transcription primers for miR-34a and U6 are listed in Supplementary Table 1.

Western blot analysis

Total proteins were extracted using the RIPA Lysis Buffer and subjected to sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE). The proteins were transferred to polyvinylidene fluoride membranes. After blocking with 5% non-fat milk, the membranes were incubated with the primary antibodies anti-vimentin, 1:1000; anti-E-cadherin, 1:2000; anti-N-cadherin, 1:1000; anti-Snail, 1:2000; anti-TWIST1, 1:5000; anti-ZEB1, 1:1500; anti-MMP2, 1:1000; anti-MMP9, 1:2000; anti-HNF4γ, 1: 1000; anti-Notch1, 1:1500; and anti-GAPDH, 1:3000 (all antibodies were purchased from Abcam). The protein bands were visualized by incubating the membranes with the Immobilon Western Chemiluminescent HRP Substrate (Millipore Corporation, Billerica, MA, USA).

Wound healing assay

Cells were seeded in six-well plates and cultured until confluent. A straight scratch was created using a pipette tip as previously described [31]. The wound healing at 0 h and 24 h were photographed using a LEICA microscope.

Transwell assays

The Transwell assay was performed as previously described [32]. Bladder cancer cells were plated in the upper chamber. The cells at the topside of the filter membrane were removed using a cotton swab. The cells at the bottomside of the membrane were fixed with 4% paraformaldehyde and stained with 0.1% crystal violet solution. The migrated and invaded cells were monitored and photographed using a LEICA microscope at 400× magnification. Six randomly selected areas were counted. The experiments were repeated three times.

Luciferase assays

miR-34a promotor luciferase reporter constructs were created by inserting the 1000 bp promoter region of miR-34a into a pGL3-Basic vector (Promega). The primers used for the miR-34a promotor were 5'-cggggtaccCCTTCCCACCCCAGCCCCCCGGGAC-3' and 5'-ccgctcgagCCCCGATCTGCGTGGTCACCGAGAA-3'. Cells were seeded in 24-well plates. The miR-34a promotor luciferase reporter plasmids and the internal control plasmids pRL-TK-Renilla (Promega) were co-transfected into the NC and shRNA groups of EJ and UMUC3 cells. The luciferase activity was examined 24 h after transfection using a Dual-Luciferase Assay Kit (Promega). The luminescence was examined using an Optima series luminometer.

DNMT3B-overexpressing plasmid, miRNA mimic and cell transfection

The full coding sequence of DNMT3B was cloned into pcDNA3.1 plasmid by artificial DNA synthesis to construct the DNMT3B-overexpressing plasmid. The miR-34a inhibitor and miR-NC were purchased from GenePharma (Shanghai, China). The miR-34a inhibitor and miR-NC were transfected into DNMT3B-knockdown cells using Lipofectamine 2000 (Invitrogen) according to the standard protocol. The expression of miR-34a was determined using qRT-PCR to evaluate the transfection efficiency of the miR-34a inhibitor.

Statistical analysis

Data were presented as means±standard deviations (SD). Statistical analysis was carried out using the SPSS 19.0 statistical analysis package (IBM Corporation, Armonk, NY, USA). The student’s t-test was performed to compare the effects of shRNA and NC on bladder cancer cells. The comparisons of more than two groups were conducted using one-way ANOVA followed by a post-hoc LSD test. Linear regression was performed for correlation analyses using GraphPad Prism version 7.0 (GraphPad Software, San Diego, CA, USA). Differences with P-values less than 0.05 were considered significant.
