Implication of integrins α3β1 and α5β1 in invasion and anoikis of SK-Mel-147 human melanoma cells: non-canonical functions of protein kinase Akt

Downregulation of the expression of α3β1 and α5β1 inhibits colony formation and invasive activity of melanoma cells and reduces the resistance of the cells to anoikis

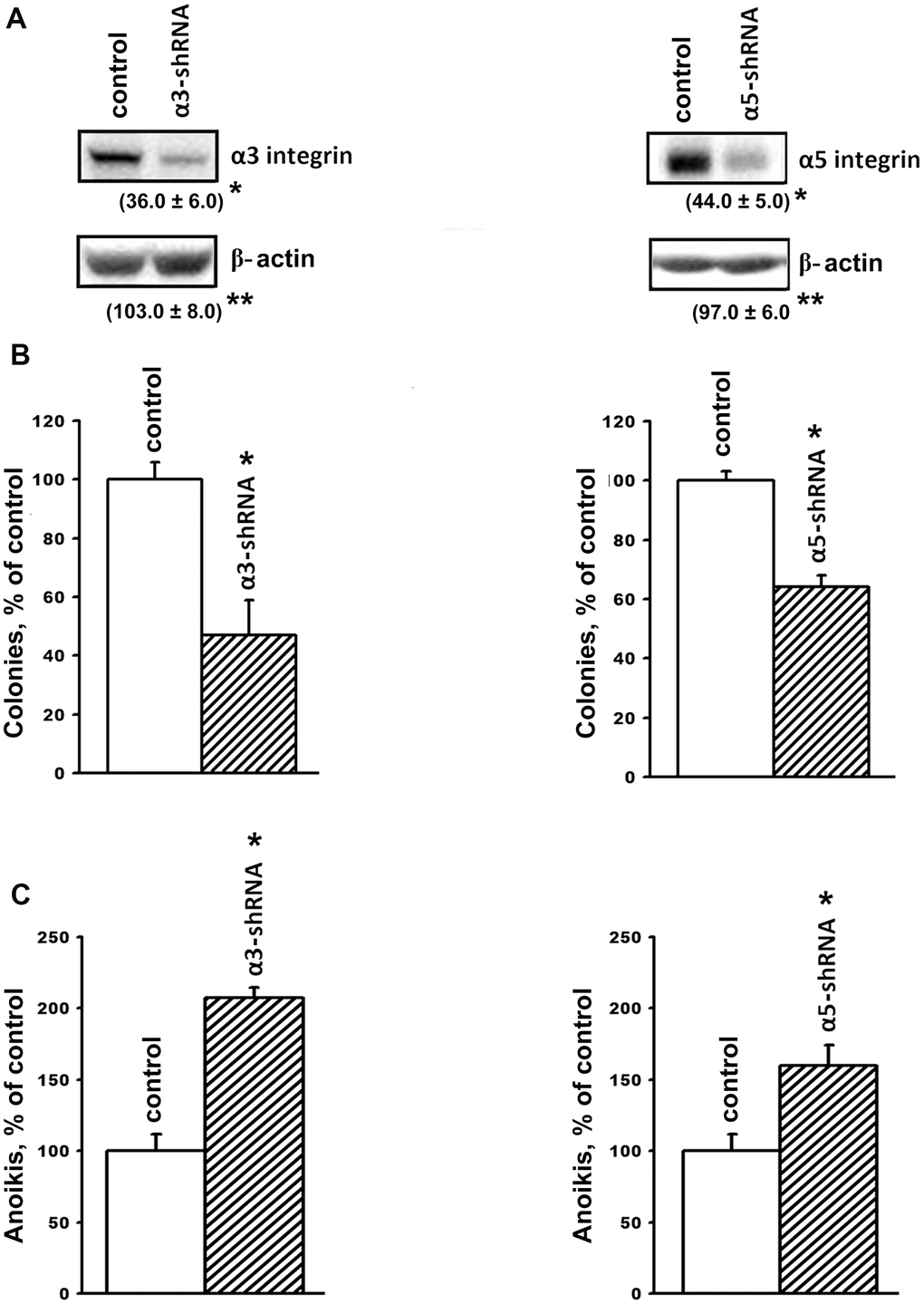

In this study, integrin expression was downregulated by transducing the cells with plasmid clones expressing α3- or α5-specific shRNAs. A Western blot analysis showed a high efficiency of these clones; the expression of α3β1 or α5β1 in the SK-Mel-147 cells transduced with α3 shRNA or α5 shRNA was much lower than in the control cells (Figure 1A).

Tumor progression is linked with the ability of tumor cells to grow in the absence of contact with the extracellular matrix and to form colonies in semi-liquid media, such as agarose and methyl cellulose. The ability of tumor cells to overcome anoikis is largely determined by the cell surface molecules, which include integrins. We previously demonstrated that blocking the expression of α2β1 in the SK-Mel-147 line led to a 2-fold decrease in the clonal activity of melanoma cells [19]. In this investigation, we found that suppression of α3β1 resulted in approximately the same decrease in the clonal activity of these cells (Figure 1B). The role of α3β1 and α5β1 in maintaining the viability of SK-Mel-147 cells in the absence of matrix–cell contact was confirmed by studying their growth on a non-adhesive substrate (Figure 1C). The suppression of α3β1 and α5β1 increased anoikis by 2.0 and 1.6 times, respectively, which clearly correlates with the results shown in Figure 1B. We previously observed a similar effect caused by the suppression of α2β1 in the SK-Mel-147 cells [19]. Thus, we found that the three integrins with different ligand specificity stimulated the clonal activity of melanoma cells and increased their resistance to anoikis.

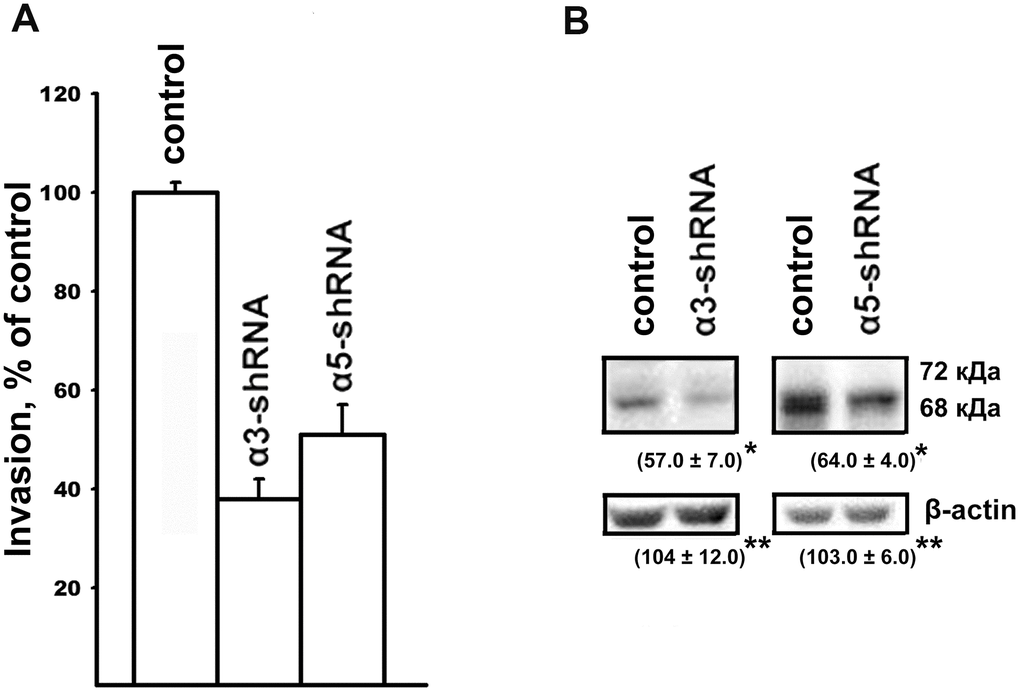

Along with resistance to anoikis, tumor progression is associated with an increase in the invasive activity of tumor cells. In this study, implication of α3β1 and α5β1 in the mechanisms of tumor cell invasion was evaluated by downregulating the receptors and looking at the effect on the in vitro invasion and levels of matrix metalloproteinases (MMPs) by the SK-Mel-147 cells. In a previous study, we showed that the suppression of α2β1 led to a 2-fold decrease in the in vitro invasion and a significant decrease in the activity of collagenases MMP-2 and MMP-9 in melanoma cells [19]. As can be seen from the data presented in Figure 2, blocking the expression of the α3β1 and α5β1 receptors was accompanied by a sharp decrease in the in vitro invasion and in the level of the active (68 kDa) form of collagenase MMP-2 in melanoma cells. Thus, as with the clonal activity, the three integrins differing in ligand specificity were found to have a stimulating effect on the in vitro invasion of melanoma cells. In contrast with the results presented in the cited article [19], collagenase MMP-9 and the inactive (72 kDa) form of MMP-2 were not found in this study. This was likely due to the use of cell cultures differing in the number of cell doublings.

The data found in this study agreed with the results of other studies that used culture models of tumors with different origins. For example, one study found that the downregulation of α3β1 in breast carcinoma cells with high metastatic potency led to a decrease in their in vitro invasion and tumorigenic activity [13]. Another study found that mouse keratinocytes, expressing E7 oncoprotein acquired invasive properties only if α3β1 was expressed on the surface of the cells [14]. Sharp increases in the in vitro invasions of colon carcinoma and gastric cancer cells occurred upon activation of some transcription factors, was shown to be due to the increased expression of α5β1 [9]. The data found in this investigation, using melanoma cells, as well as the results of our previous studies on breast carcinoma cells [21] showed that the knock-down of α5β1 significantly reduced the invasive activity of the cells and suppressed the activity of collagenase MMP-2. Our results demonstrated the protective effect of α3β1 and α5β1 against anoikis in melanoma cells and were confirmed by studies on cells of various origins, such as gastric cancer cells [22], primary prostate epithelium cell cultures [23], and bone marrow stem cells [18].

Signaling pathways that mediate effects caused by inhibition of α3β1 and α5β1: non-canonical functions of Akt1 and Akt2 in anoikis and invasion of SK-Mel-147 cells

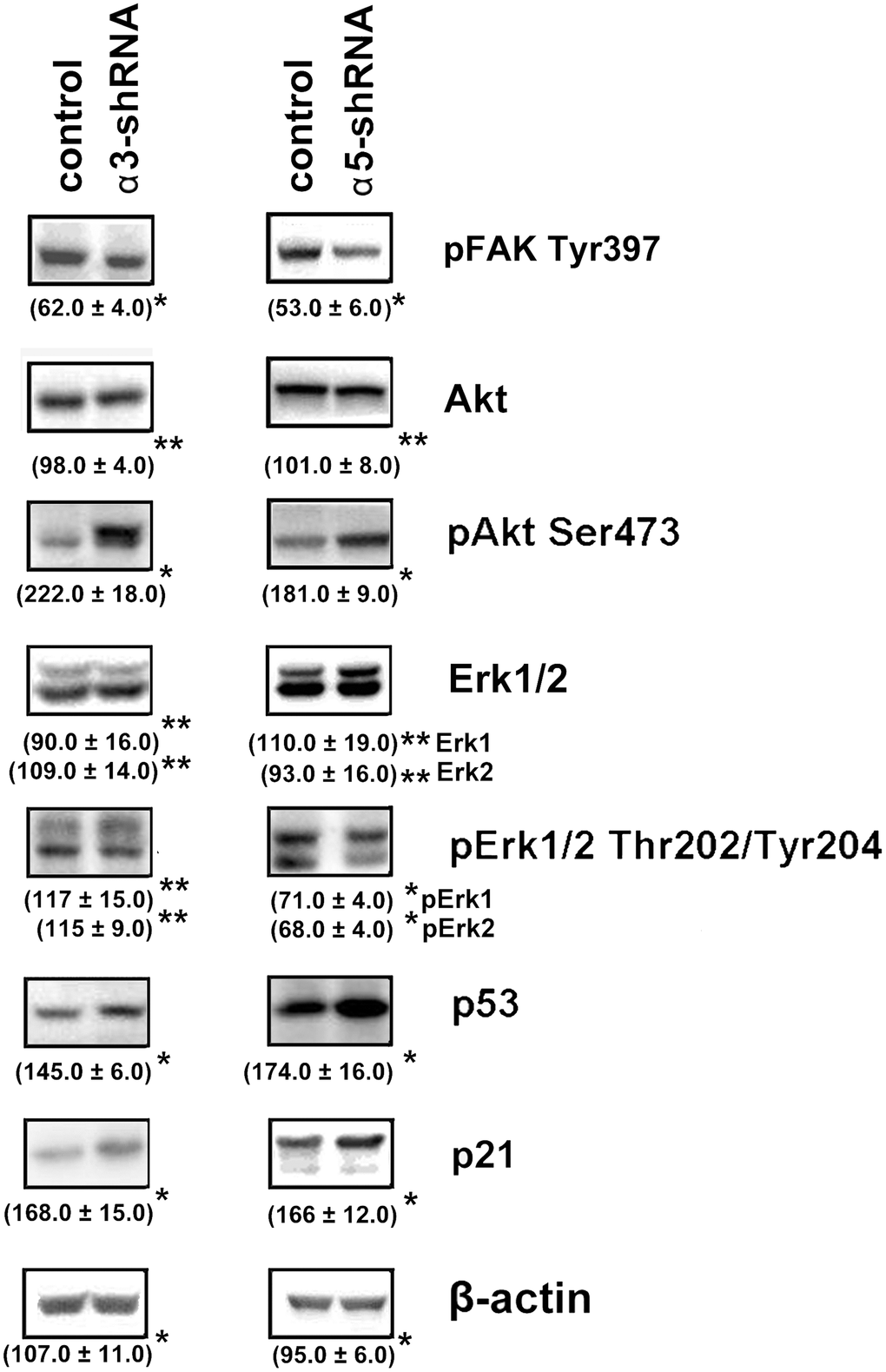

To clarify the mechanisms underlying the impact of α3β1 and α5β1 on tumor phenotype, we analyzed the expression of the signaling proteins that have been implicated in regulating various physiological functions of cells. A western blot analysis of cell protein lysates showed that blocking the expression of the two integrins led to a sharp increase in the levels of the apoptogenic protein p53 and the cell cycle inhibitor protein p21 (Figure 3). Many studies have demonstrated that these proteins inhibit tumor growth [24, 25]. The levels of p21 and p53 increased during suppression of invasion and stimulation of anoikis induced by downregulating α3β1 and α5β1, which indicated that p21 and p53 were involved in the signaling of these receptors. We also analyzed the levels of FAK, Erk, and Akt, which are other signaling proteins that play a role in integrin-dependent signaling. The activity of these enzymes was evaluated by determining the levels of their phosphorylated (active) forms in the cell lysates. As can be seen from Figure 3, the suppression of each of the receptors was accompanied by significantly reduced levels of FAK. FAK mediates the involvement of integrins in the signaling pathways, which determines the motility of the tumor cells, stimulates production of collagenases MMP-2 and MMP-9, and enhances the invasive activity [26]. Thus, a decrease in the level of the active form of FAK in cells with downregulated α3β1 and α5β1 receptors correlated with a reduction in the invasive activity of the cells and these results suggested that FAK was involved in signaling of both integrins. Figure 3 also shows that the suppression of α3β1 did not affect the levels of the total Erk kinase isomers (42 kDa and 44 kDa) and their phosphorylated forms in SK-Mel-147 cells. However, blocking α5β1 caused a noticeable decrease in the levels of the active forms, although it did not affect the content of the total protein. Erk is the final link in the Ras/Raf/MEK/Erk cascade that transfers integrin- or growth factor-initiated signals controlling cell proliferation, apoptosis, and cell senescence [27]. In a particular cell population, the choice of any of these responses depends on the intracellular localization of Erk and the strength of its signal (i.e., the level and duration of its active state) [28]. One would suggest that α3β1 and α5β1 differ in the strength of the Erk signal they induce in melanoma cells and α3β1 controls invasion and anoikis in these cells via Erk-independent pathways.

The results of this study also showed changes in the Akt protein kinase activity (Figure 3). As shown in the figure, there is a significant increase in the expression of the active form of Akt in response to the knock-down of the investigated integrins in melanoma cells. Most studies on Akt in oncogenesis have indicated that it plays a key role in the mechanisms involved in the invasion of tumor cells and their resistance to apoptosis. [29]. Therefore, an increase in the level of its active form in cells with reduced invasive activity and increased sensitivity to anoikis could indicate that Akt performs an unusual, or non-canonical, function in suppressing invasion and stimulating anoikis. In our recent studies, we showed that Akt1 protein kinase, one of three isoforms of the Akt family, suppressed an in vitro invasion and enforced anoikis in SK-Mel-147 cells depleted of α2β1 [19, 20]. We were interested in determining whether a similar mechanism was realized in the same cells upon suppression of α3β1 and α5β1, and whether Akt1 and/or another Akt isoform was involved in the mechanism. In this study, we used antibodies to phospho-Akt that were not isozyme-specific. Thus, an increase in its level would only be a trait that accompanied, but was not related to, the changes in invasion and anoikis of melanoma cells. To this end, the effect of isoform-specific Akt inhibitors on in vitro invasion and anoikis of SK-Mel-147 cells was analyzed (Figures 4, 5). Figure 4 shows that the inhibition of the Akt2 isoform did not significantly affect the in vitro invasion of the control cells and the cells with a reduced expression of each integrin. In contrast, inhibition of Akt1 markedly enhanced in vitro invasion of the control cells and greatly increased the invasive activity of the cells with a downregulated expression of both integrins.

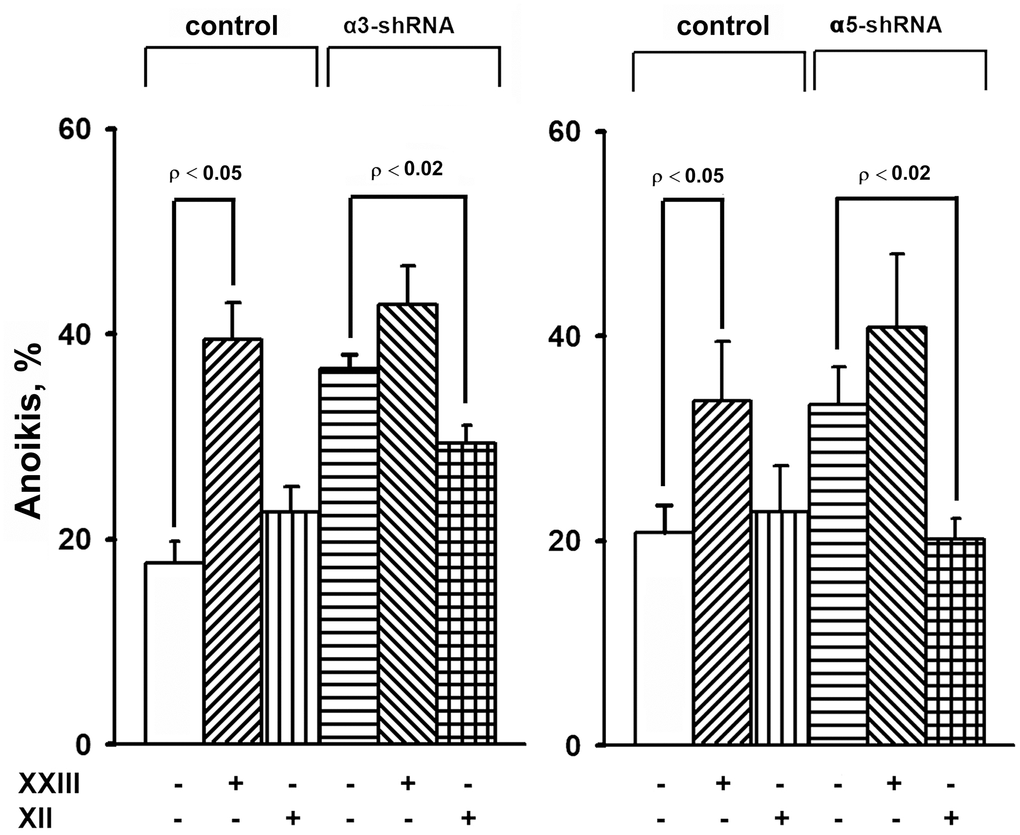

When determining the effect of inhibitors of Akt isoenzymes on anoikis of melanoma cells, we found that treatment with an Akt1 inhibitor significantly enhanced anoikis of the control cells (Figure 5). However, there was no visible impact on the anoikis of cells that had a reduced expression of α3β1 or α5β1. Cell treatment with an Akt2 inhibitor did not significantly affect anoikis of the control cells, whereas inhibition of Akt2 in cells depleted of α3β1 or α5β1 significantly reduced their anoikis (i.e. increased their resistance to this type of apoptosis).

The results of this investigation and previously obtained data [19, 20] showed that α2β1, α3β1, and α5β1, which differ in ligand specificity, have a common function: they enhance tumor progression of melanoma cells by stimulating the invasive phenotype and counteracting anoikis. However, the signaling mechanisms involved in these functions may be specific for both the individual receptors and phenotypic manifestations of progression. Each receptor controls the invasive phenotype of the SK-Mel-147 cells using a mechanism that involved the non-canonical functions of the Akt1 isoenzyme. In contrast, differences were found between the integrins in the signaling pathways controlling anoikis in these cells. For example, α2β1-dependent pathway was mediated via a non-canonical function of Akt1 [20], while α3β1- and α5β1-initiated pathways involved a non-canonical function of Akt2 (Figure 5).

Figure 5 shows that Akt2 exhibits noncanonical activity only in unattached cells depleted in integrins α3β1 or α5β1. In the unattached cells with unmodified expression of these receptors, Akt2, unlike Akt1, apparently does not transduce signals affecting anoikis, since its pharmacological suppression does not stimulate or suppress cell death. Similarly, Akt1 showed a non-canonical activity only in the unattached melanoma cells lacking integrin α2β1 [20]. A possible explanation for these transitions is a difference in intracellular localization of Akt isoforms. Akt2 was shown to localize at sites adjacent to the extracellular matrix and at the mitochondria while Akt1 was found mainly in cytoplasm [29, 30]. One would speculate that depletion of integrins in the cell membrane leads to relocation of Akt2 to another compartment followed by activating its noncanonical properties. This assumption is supported by the observation on another key signal kinase, Erk, which exhibits unusual (non-canonical) pro-apoptotic activity only upon its aberrant nuclear localization [27].

We have shown in our previous studies on human breast carcinoma and melanoma lines that downregulation of integrins α2β1 and α5β1 resulted in reduction of invasion, increase in anoikis and suppression of Erk activity, and similar phenotypic changes were observed in response to inhibition of this kinase [19–21, 31]. These findings support the involvement of Erk in α2β1- and α5β1- initiated pathways controlling invasion and anoikis in the cells in study. In the present investigation, α3β1 knock-down induced above changes in invasion and anoikis in SK-Mel-147 cells albeit did not affect activation of Erk (Figures 1, 3) A possible explanation is that in these cells, α2β1 and α5β1 control invasion and anoikis through Akt- and Erk-dependent signaling pathways, while α3β1 realizes this control through the AKT-dependent pathway. Published studies indicates that Akt and Erk can act independently of each other [32].

Numerous studies have described the non-canonical activities of Akt isoenzymes. The particular manifestations of the properties of Akt isoenzymes, such as the promotion or suppression of certain phenotypes, are cell type-specific. For example, one study on a prostate cancer line showed that Akt1 and Akt2 had a negative effect on in vitro invasion and cell migration [33]. However, a study on two lines of breast cancer cells found that Akt2 stimulated these activities, while Akt1 stimulated proliferation and inhibited invasion and migration [34]. Results of this study were the first to show that in the same cells, different integrins are able to control various manifestations of tumor progression through signaling pathways mediated by distinct Akt isoforms. These findings were obtained in a single melanoma cell line, so further investigations are required to clarify how widespread this phenomenon is among other tumor types.

The diverse mechanisms underlying the non-canonical activities of the Akt family are characterized by the cell type-specific patterns of the signaling pathways, which can interact with and oppose each other. For example, a study on a breast carcinoma line found that the anti-invasive and anti-migration activity of Akt1 is mediated via the actin-binding protein palladin, which is activated by Akt1 and not Akt2, followed by the aggregation of actin filaments and the blockage of the invadopodia formation [34]. However, in a prostate cancer cell line, an invasion suppressive mechanism was identified that was triggered by both Akt1 and Akt2 isoforms through different pathways. The Akt1 isoform inactivated the β1 integrins followed by interrupting the signal transfer to the EGFR and MET receptor tyrosine kinases, while the Akt2 isoform inhibited the synthesis of miR-200, thereby abrogating the miR-200-induced activation of the β1 integrins [33]. These data are consistent with our findings that demonstrate the role of Akt1 in the control of an invasive phenotype of melanoma cells by the three receptors of the β1 family. However, we found that Akt2 did not exhibit an inhibitory effect on the invasion of melanoma cells. In addition, in the cited report [33], the total activity of the β1-family was studied without determining the contribution of an individual receptor.

In conclusion, the results of this study can be considered in terms of clinical application. The mechanisms of almost all currently available targeted antitumor drugs are based on suppressing the activity of individual members of the signaling cascades maintaining the transformed phenotypes. Therefore, identification of previously unknown functions of signaling protein kinases is important for cancer therapy. Recently, clinical trials of several pan-Akt inhibitors in breast cancer are underway [35, 36]. Due to the pronounced side effects of pan-Akt inhibitors, Akt-isoforms specific inhibitors turned out to be promising. One of the allosteric inhibitors of Akt1 and Akt2 has been shown to be highly effective in suppressing tumor growth in mice and demonstrated moderate and transient side effects [29]. Obviously, antitumor effects of Akt isoforms are based on their canonical properties. However, if any neoplasms contain Akt isoforms with non-canonical traits, their use as a target in anticancer therapy may be harmful. Thus, it is important to take into consideration all individual functions of an anticancer target in a specific type of cancer.

Cell culture and chemicals

SK-Mel-147 human melanoma line was obtained from the Memorial Sloan Kettering Cancer Center (USA). Cells were cultured in DMEM medium containing 10% fetal calf serum, 2 mM L-glutamine, 100 U/ml penicillin, and 100 μg/ml streptomycin and incubated at 37° C in an atmosphere with 5% CO₂. Polyclonal antibodies against α3- and α5-integrin subunits were obtained from Chemicon (USA). Polyclonal antibodies against protein kinases Akt and Erk and their phosphorylated forms (pAkt Ser473 and pErk Thr202/Tyr204), protein kinase pFAK Tyr397, and proteins p53 and p21 were from Cell Signaling Tech (USA). Polyclonal antibodies to MMP-2 collagenase were from Santa Cruz Biothech (USA). Akt1- and Akt2-specific inhibitors, XXIII and XII, respectively, were purchased from Calbiochem (USA), and other chemicals were from Sigma (USA) unless otherwise stated.

Transduction of cells with shRNA

Bacterial glycerol clones containing lentiviral plasmid vector pLKO.1-puro with shRNA specific for the α3- and α5-integrin subunits and pLKO.1-puro lentiviral vector with scrambled shRNA (control) were purchased from Sigma. Lentivirus was produced in HEK293T cells by co-transfection with shRNA-containing or scrambled shRNA-containing vector with packing plasmids as described earlier [37]. Cells were transduced with lentivirus in the presence of polybrene (8 μg/ml) and selected with puromycin (1–2 μg/ml) for 4–6 days.

Clonal activity

About 2000 cells were plated on a 1% methylcellulose gel in complete medium in Petri dishes for 14 days. The colonies were stained with Crystal Violet, visualized in an optical microscope, and scanned.

Invasion in vitro

The assays were performed as previously described [21]. Briefly, cells (5–7)·10⁴ in 150 μl DMEM containing 0.5% fetal serum were applied on Matrigel (BD Pharmingen, USA) immobilized on 8 μm-pore membranes of the upper chamber of Transwell clusters (Corning, USA) with the bottom chambers containing 1 ml of the same medium. After incubation for 48 h at 37° C, the medium was removed from the upper chamber, and cells from the upper surface of the membrane were carefully removed using cotton swabs. The chamber was incubated in a trypsin / versene solution, the cells migrated through the membrane were scrapped off, combined with cells that entered the trypsin / versene solution, centrifuged, suspended and counted in a cytometer.

Anchorage-dependent apoptosis (anoikis)

Anoikis was assessed by the accumulation of cells non-survived after their cultivation on the non-adhesive substrate - polyhydroxyethylmethacrylate (poly-HEMA). The substrate was prepared in 6-well plates according to previously described procedure [38]. 3 x 10⁵ cells/well were incubated in medium containing 10% fetal serum, at 37° C for 24 h. Anoikis was assessed by percentage of cells stained in vivo with Trypan Blue, which was determined in an automatic cell analyzer Vi-Cell (Beckman Coulter).

SDS-PAGE and western blotting

The procedures were performed as described in [38]. 30 μg of cell lysate proteins were run on SDA-PAGE and electroblotted onto a PVDF membrane. After reaction with specific primary antibodies, the membrane was incubated with HRP-conjugated secondary antibodies, developed in an ECL detection system (Amersham, England) and imaged on ChemiDoc (Bio-Rad). Quantification of protein levels from western blot analysis was done using Image Lab software (Bio-Rad).

Statistical analysis

Differences between the groups were assessed using Student’s t-test and considered significant at p < 0.05.
