A novel gene signature for prognosis prediction and chemotherapy response in patients with pancreatic cancer

Identification of resistance-related differentially expressed genes (RRDEGs)

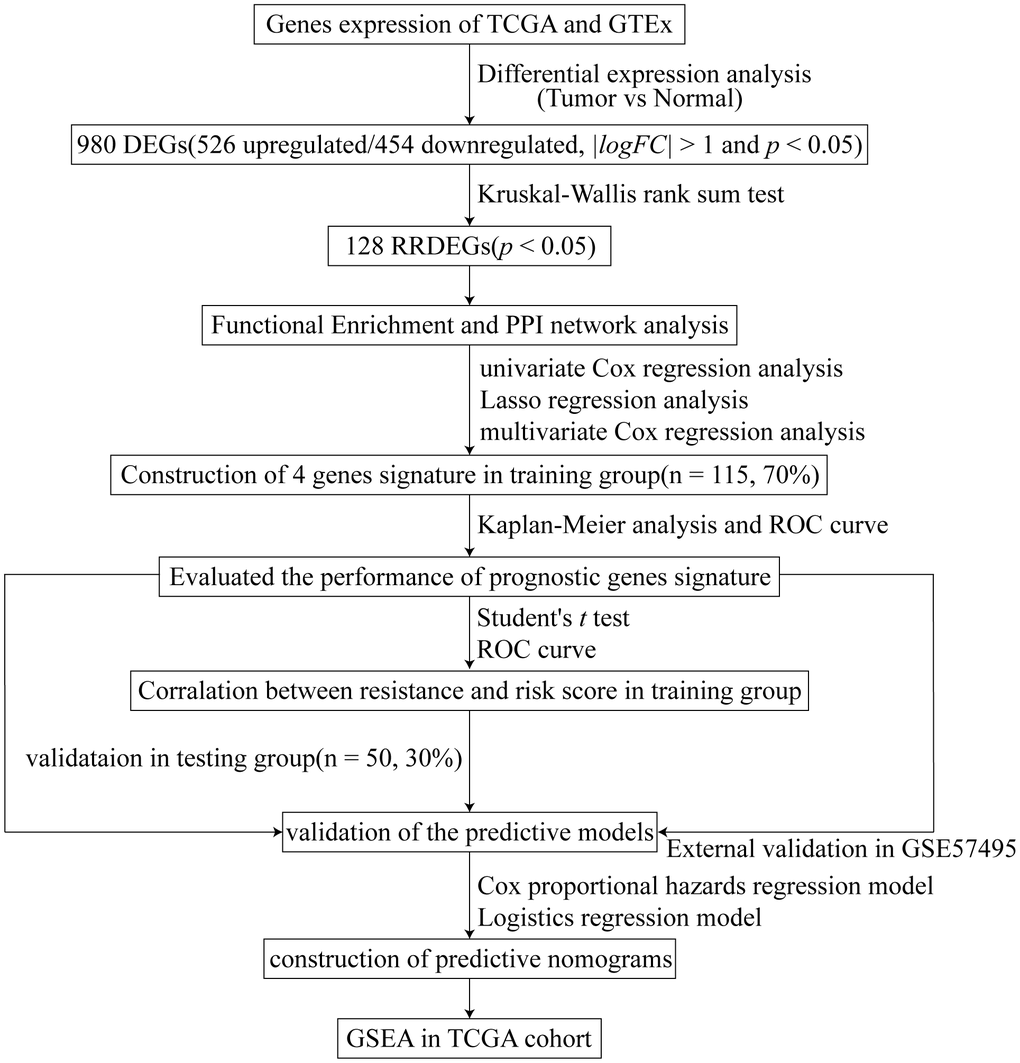

Figure 1 depicts a flowchart of the study. The clinical characteristics of patients with pancreatic cancer in TCGA dataset are shown in Supplementary Table 1. TCGA and GTEx datasets with 165 pancreatic cancer samples and 332 normal samples were used to conduct differential expression analysis between tumor samples and normal samples after removing the batch effect (Figure 2A, 2B); 980 differential expression genes (DEGs) (526 upregulated and 454 downregulated genes) were identified (|log2FC| > 1 and p < 0.05). As chemoresistance plays a significant role in the progression of pancreatic cancer, the expression of 71 patients with different responses after chemotherapy in the TCGA database was analyzed using a Kruskal-Wallis rank sum test. A total of 128 RRDEGs were identified (p < 0.05, Figure 2C, 2D and Supplementary Table 2).

GO and KEGG enrichment analysis of RRDEGs

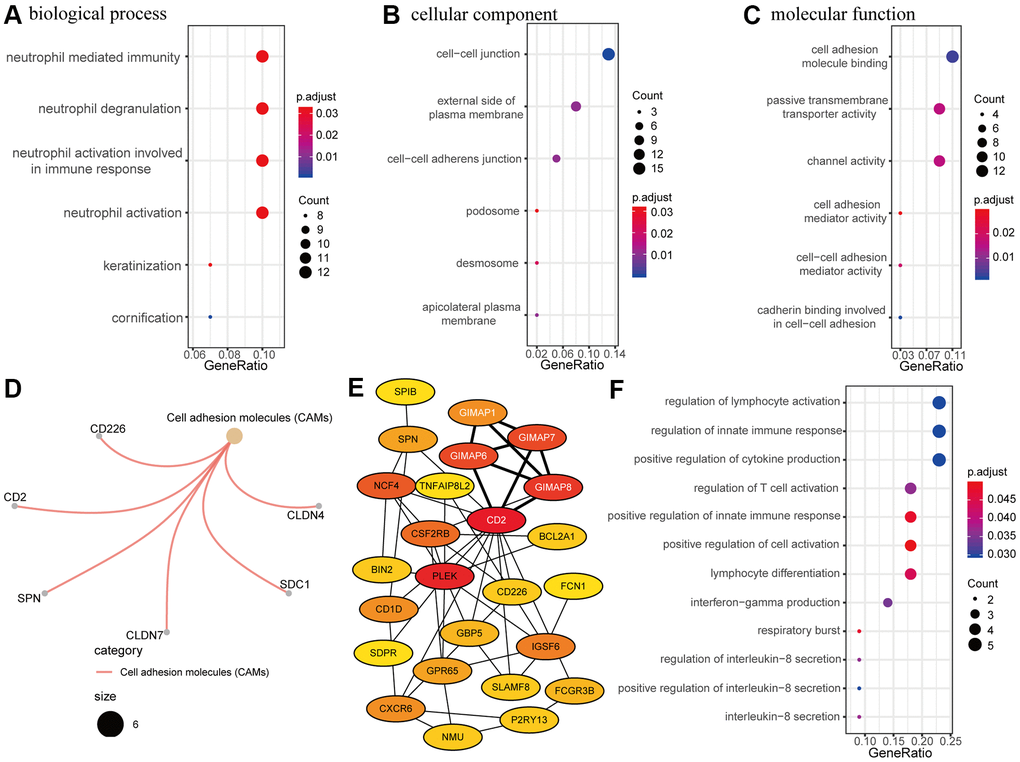

To explore RRDEGs function, RRDEGs were subjected to GO and KEGG enrichment analysis (Supplementary Table 3). RRDEGs were enriched in biological processes related to neutrophils, such as neutrophil degranulation and activation, which suggested that innate immunity plays an important role in tumor progression and chemoresistance (Figure 3A). GO enrichment analysis in cellular component and molecular function indicated that the RRDEGs were related to cell adhesion, which was consistent with the highly aggressive nature of pancreatic cancer and extrinsic resistance mechanisms (Figure 3B, 3C). Furthermore, KEGG pathway analysis also revealed that RRDEGs were related to cell adhesion (Figure 3D).

A PPI network of RRDEGs was created to identify protein interactions; the top candidate hub included 25 genes that played a significant role in this network (Figure 3E). Module analysis identified a meaningful clustering module with score 4.5 in the PPI network, which was marked with white font on the network (Figure 3E). Functional enrichment analysis of biological processes for these hub genes was associated with the immune response (Figure 3F), including the innate immune response, cytokine production, and lymphocyte activation. Thus, PPI network analysis showed that RRDEGs promoted pancreatic cancer progression and chemoresistance through immune regulation.

Construction of a four-gene signature associated with chemoresistance

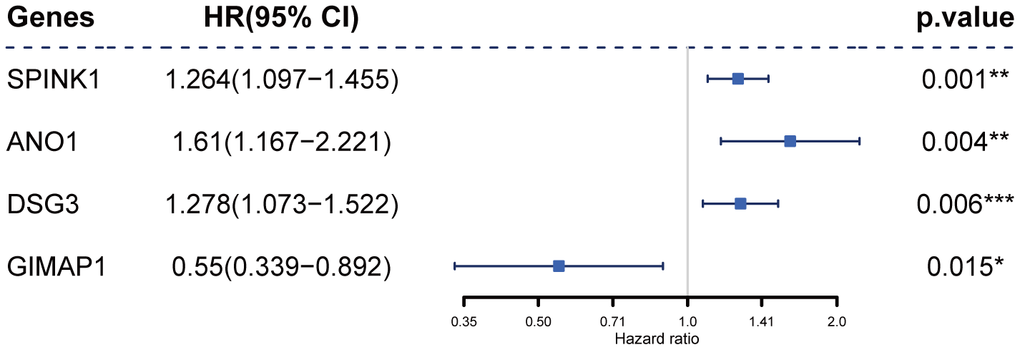

Next, univariate Cox regression analysis was performed to identify potential prognostic RRDEGs in the training group; 51 RRDEGs were identified that were significantly associated with overall survival (Supplementary Table 4). Lasso-penalized Cox analysis was then used to eliminate model over-fitting and showed that the expression of 10 RRDEGs was correlated with overall survival in patients with pancreatic cancer (Supplementary Figure 1A, 1B and Supplementary Table 5). Subsequently, a prognostic signature composed of four genes, including anoctamin 1 (ANO1), desmoglein 3 (DSG3), serine peptidase inhibitor Kazal type 1 (SPINK1) and GTPase, IMAP family member 1 (GIMAP1), was identified using stepwise multivariate Cox regression analysis (Figure 4). The downregulated gene GIMAP1, with a hazard ratio (HR) < 1, was regarded as a tumor suppressor, while the upregulated genes ANO1, DSG3, and SPINK1, with a HR > 1, were considered oncogenes. The risk score was calculated using the following formula:

$$\begin{array}{l}\text{Risk}\text{score}=(0.47599\times \text{Expression value}\text{of}\text{ANO}1)\\ +(0.24553\times \text{Expression value of}\text{DSG}3)\\ +(0.23389\times \text{Expression value of}SPINK1)\\ +[(-0.59799)\times \text{Expression}\text{value}\text{of}\text{GIMAP}1].\end{array}$$

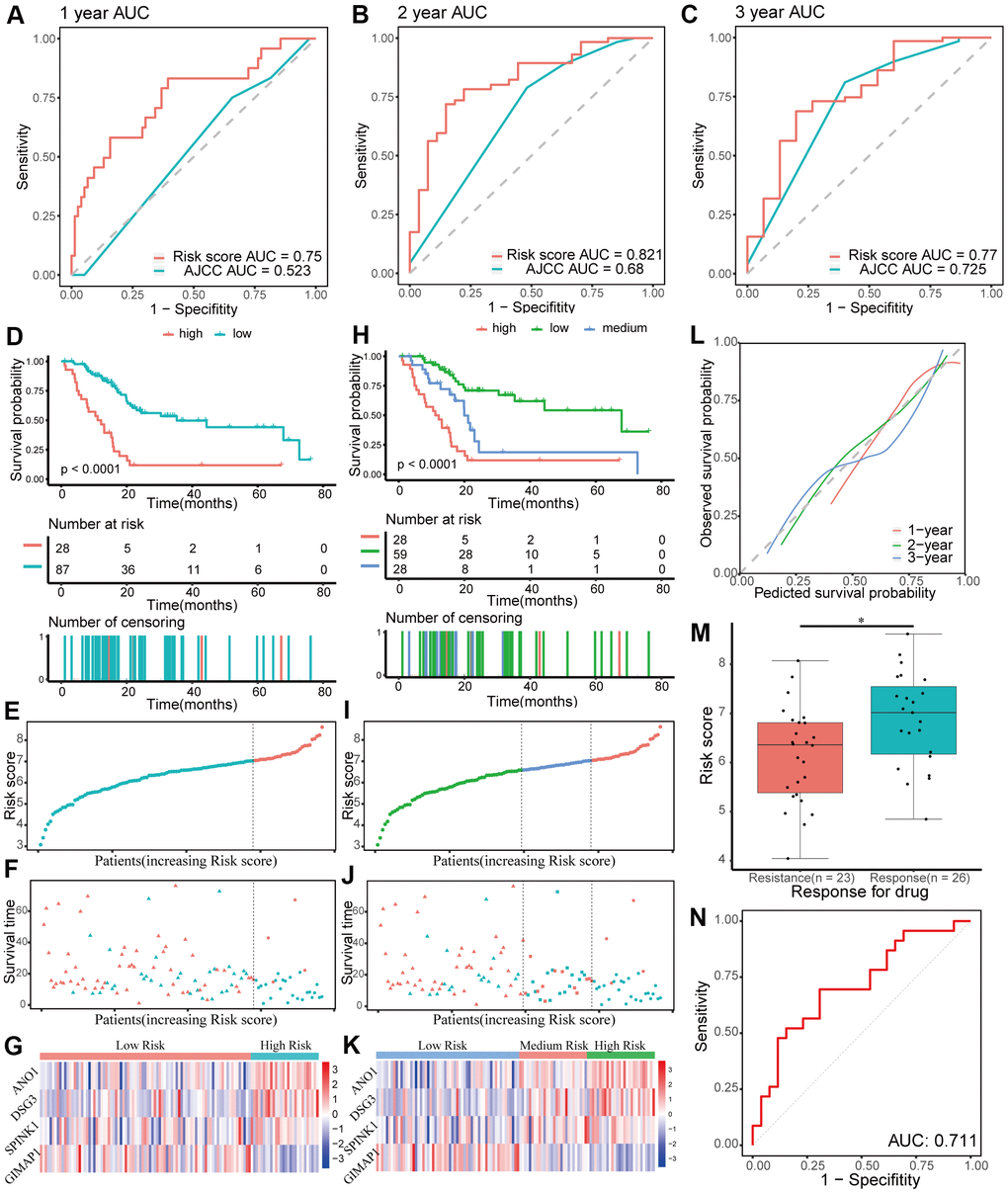

The patients in the training group were divided into two (cutoff value = 7.03) or three (cutoff values = 6.59 and 7.03, respectively) groups based on the optimal cutoff values generated by the X-tile software. Time-dependent ROC and C-index analyses were used to evaluate the prognostic value of the four-gene signature compared to the AJCC stage. The area under the curves (AUCs) for 1-, 2-, and 3-year overall survival predicted by the risk scores were 0.750 (95% CI: 0.631–0.869), 0.821 (95% CI: 0.725–0.916), and 0.770 (95% CI: 0.629–0.911), respectively (Figure 5A–5C). As a control, the AUCs for 1-, 2-, and 3-year overall survival predicted by the AJCC stage were 0.523 (95% CI: 0.419–0.628), 0.680 (95% CI: 0.569–0.791), and 0.725 (95% CI: 0.589–0.861), respectively. The C-index of the gene signature was 0.724 (95% CI: 0.650–0.798), while the C-index of the AJCC stage was 0.573(95% CI: 0.504–0.643). Kaplan-Meier survival curve analysis showed that patients with lower risk scores had a significantly more favorable prognosis (Figure 5D–5K). The calibration curve for the gene signature demonstrated a satisfactory fit in the training group (Figure 5L).

Chemoresistance is an important factor for poor progression of pancreatic cancer. In this study, the prognostic risk score based on patients with different responses after chemotherapy was closely related to chemoresistance in the training group (p < 0.05, Figure 5M). Moreover, the AUC for chemoresistance predicted by the risk score was 0.711(95% CI: 0.563–0.858, Figure 5N). In general, these data showed that the four-gene signature performed well in predicting prognosis and chemoresistance of pancreatic cancer.

Internal and external validation of the four-gene signature

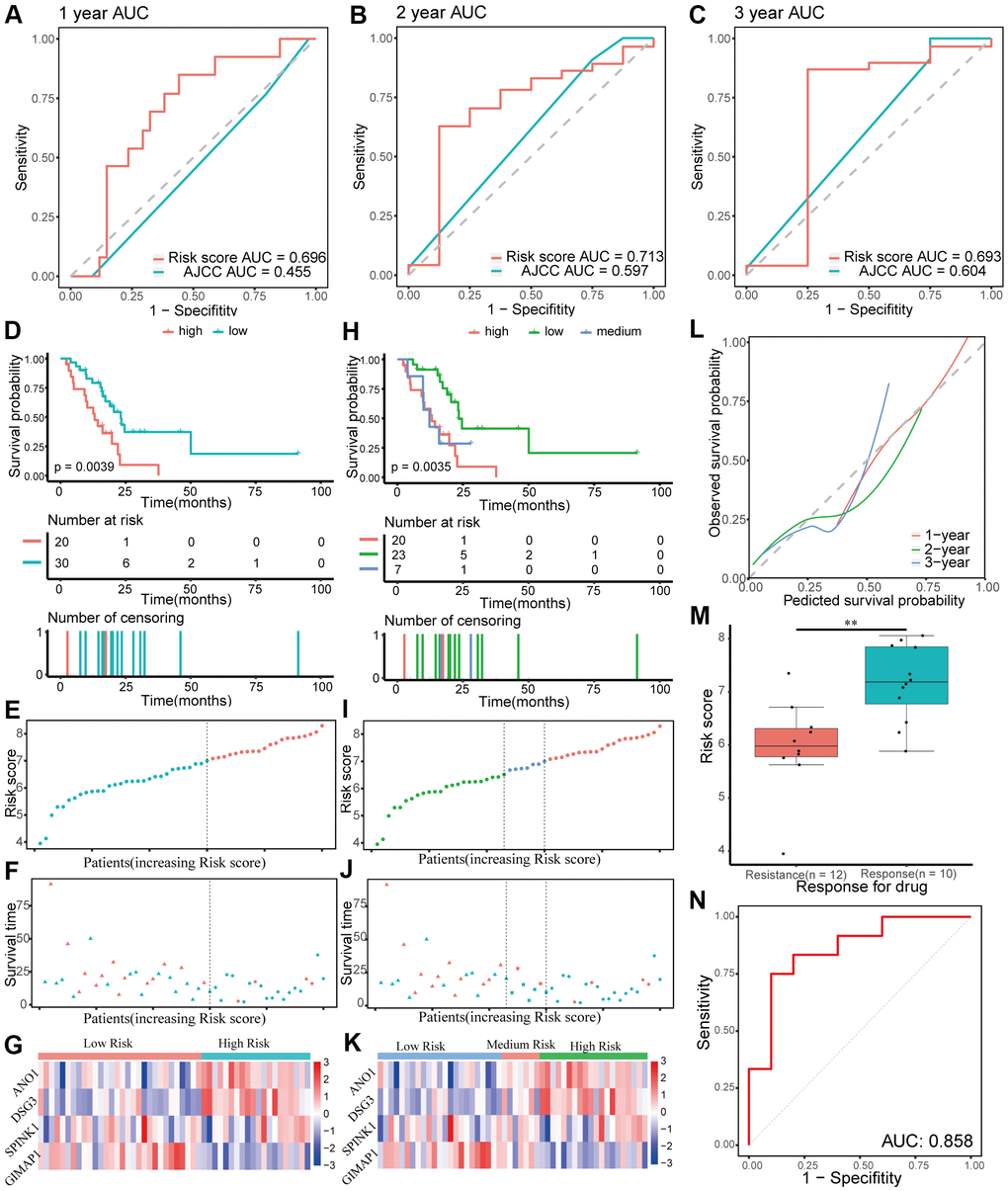

The performance of the gene signature was validated in the internal testing group and external GEO dataset, GSE57495. Risk scores were calculated according to the same formula for each patient. In the testing group, patients were divided into two or three groups using the same cutoff values used in the training group. Due to sequencing using different platforms, patients in the GEO dataset were divided into two (cutoff value = 6.71) or three (cutoff values = 6.24 and 6.90, respectively) groups according to the optimal cutoff values. Time-dependent ROC and C-index analyses were utilized to elevate the prognostic predictive value of the four-gene signature compared with the AJCC stage. In the testing group, the AUCs for 1-, 2-, and 3-year overall survival predicted by the risk score were 0.696, 0.713, and 0.693, respectively (Figure 6A–6C). The AUCs for 1-, 2-, and 3-year overall survival predicted by the AJCC stage were 0.455, 0.597, and 0.604, respectively. The C-index of the gene signature was 0.639 (95% CI: 0.540–0.737), while the C-index of the AJCC stage was 0.522 (95% CI: 0.431–0.614). In the external GEO dataset, the AUCs for 1-, 2-, and 3-year overall survival predicted by the risk score were 0.615, 0.653, and 0.674, respectively (Supplementary Figure 2A–2C), while the AUCs for the AJCC stage were 0.575, 0.682, and 0.584, respectively. The C-index of the gene signature for the GEO dataset was 0.603 (95% CI: 0.528–0.677), while the C-index of the AJCC stage was 0.594 (95% CI: 0.509–0.680). Kaplan-Meier survival curve analysis showed significant differences for overall survival between the different risk score groups both in the testing group and the external GEO dataset (p < 0.05, Figure 6D–6K and Supplementary Figure 2D–2K). Furthermore, the calibration curve for the gene signature revealed that the predicted overall survival was approximately consistent with the actual overall survival (Figure 6L and Supplementary Figure 2L). However, when the predicted 3-year overall survival in the testing group was higher than 50%, the signature might underestimate the overall survival in patients with pancreatic cancer. In the testing group, the correlation between response to chemotherapy and risk score was also explored and showed that patients with chemoresistance had a higher risk score (p < 0.01, Figure 6M). Moreover, the AUC for chemoresistance predicted by the risk score was 0.858 (95% CI: 0.695–1, Figure 6N). The internal and external validation indicated that the four-gene signature performed well in predicting overall survival and chemoresistance in patients with pancreatic cancer.

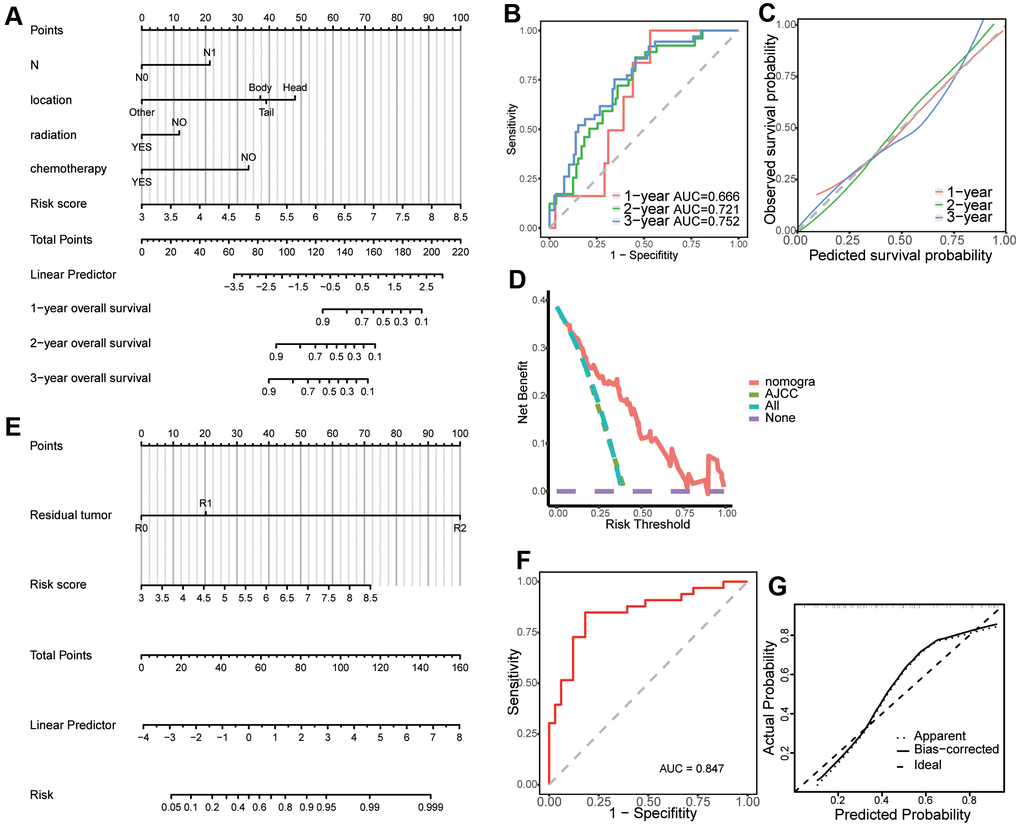

Building predictive nomograms

Patients with complete clinical information from TCGA dataset were included in the analysis. The clinical characteristics included gender, age, AJCC TNM stage, tumor dimension, tumor site, pathologic grade, chemotherapy, neoadjuvants, radiation, molecular therapy, residual tumor after surgery, tobacco smoking history, alcohol use history, history of chronic pancreatitis, and diabetes. Prognostic factors of overall survival for pancreatic cancer were identified using univariate and stepwise multivariate Cox regression analyses while chemoresistance predictive factors for pancreatic cancer were identified using univariate and stepwise multivariate logistics regression analyses.

Univariate Cox regression analysis revealed that risk score (p < 0.001), AJCC stage (p < 0.05), T stage (p < 0.05), N stage (p < 0.05), tumor dimension (p < 0.05), tumor site (p < 0.01), pathologic grade (p < 0.05), chemotherapy (p < 0.05), radiation (p < 0.05), and molecular therapy (p < 0.01) were corrected with overall survival of patients with pancreatic cancer. Stepwise multivariate Cox regression analysis indicated that the risk score (p < 0.001), N stage (p < 0.01, N1 vs N0), and chemotherapy (p < 0.001) were significantly correlated with overall survival of patients with pancreatic cancer. A prognostic nomogram predicting 1-, 2-, and 3-year overall survival based on the stepwise multivariate Cox regression model was developed (Figure 7A). The AUC of the 1-, 2-, and 3-year overall survival predictions for the nomogram was 0.666, 0.721, and 0.752, respectively (Figure 7B). The C-index of the nomogram was 0.791 (95% CI: 0.732–0.849). The calibration plot showed that the nomogram was effective at predicting 1-, 2-, and 3- year overall survival in patients with pancreatic cancer (Figure 7C). In the DCA, the results showed that the nomogram indicated a better net benefit than was achieved with the AJCC stage for predicting OS (Figure 7D).

Univariate logistics regression analysis revealed that risk score (p < 0.001), residual tumor after surgery (p < 0.05, R1 vs R0), and N stage (p < 0.05) were corrected with response after chemotherapy. Additionally, stepwise logistics regression analysis showed that the risk score (p < 0.01) and residual tumor after surgery (p < 0.05, R1 vs R0) were independent risk factors of disease progression after chemotherapy. A predictive nomogram predicting the probability of response after chemotherapy was built based on the logistics regression model (Figure 7E). The AUC of the disease progression probability predictions for the nomogram was 0.847 (Figure 7F) while the C-index of the nomogram was 0.847. The calibration plot showed good agreement between predictions and observations (Figure 7G).

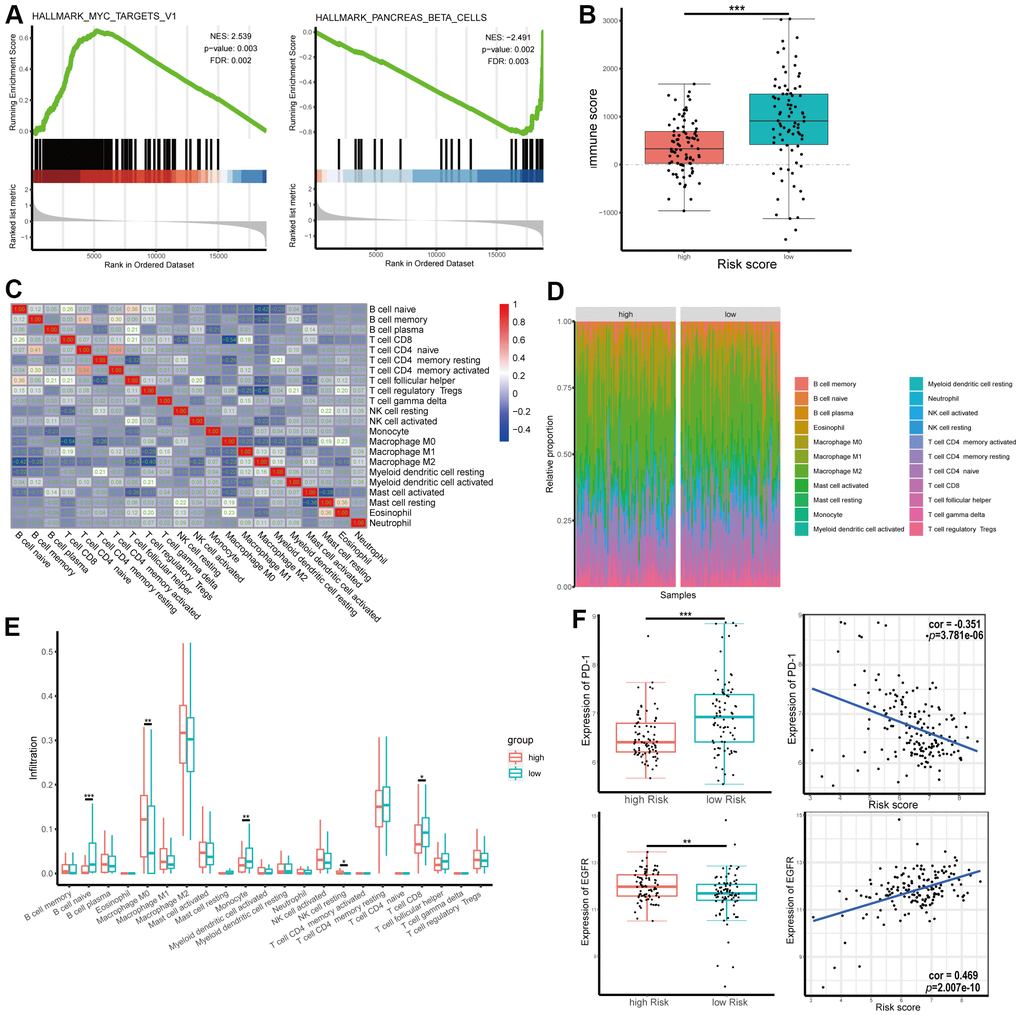

GSEA and tumor immunity relevance of the gene signature

To elucidate the molecular mechanisms of the four-gene signature, 165 patients in TCGA dataset were divided into two groups according to the median of the risk score and GSEA was used to compare the high and low risk groups. The results revealed the malignant characteristics of cancer and immunity relevance and included cholangiocarcinoma, breast cancer, pancreas beta cell, MYC, keratinization, and mutation of P53 and KRAS (Figure 8A and Supplementary Figure 3A–3C). Results of the GSEA are shown in Supplementary Table 6.

As shown above, RRDEGs might be related to tumor immunity. To further investigate the tumor immunity relevance of the gene signature, immune scores of TCGA-PAAD samples were downloaded from ESTIMATE, a database evaluating infiltrating immune cells in tumor tissues (https://bioinformatics.mdanderson.org/estimate/), and infiltration information of different immunocytes in TCGA-PAAD samples was downloaded from TIMER (http://timer.cistrome.org/). The immune score was significantly lower in the high-risk group, which revealed that the four-gene signature might play an important role in tumor immune escape (Figure 8B). Immune cell proportions were weakly to moderately correlated in patients with pancreatic cancer (Figure 8C). Infiltration levels of different immunocytes, including naïve B cells, macrophage M0s, monocytes and CD8+ T cells, were significantly different between different risk groups (Figure 8D, 8E). To evaluate the correlation between risk score and immunotherapy, correlation analysis between the expression of the immune checkpoint programmed cell death protein 1 (PD-1) and risk score was performed; the results showed that risk score was negatively correlated with the expression level of PD-1 (correlation coefficient = -0.351, Figure 8F). However, there was not significance difference between signature and the expression level of PD-L1 (Supplementary Figure 4A). The expression of EGFR, a target molecule of Erlotinib, was positively correlated with risk score (correlation coefficient = 0.469, Figure 8F), which suggested that these risk scores might be used as a reference for Erlotinib-targeted drug therapy. To further explore the role and the clinical relevance of genes, we analyzed the expression level of mRNA from dataset. The mRNA expression of SPINK1, DSG3, ANO1 were significantly increased in PAAD tumor tissue while GIMAP1 were significantly decreased compared with normal tissues (Supplementary Figure 4B–4E).

Gene expression data and clinical data

The gene expression profiles (HTSeq-Counts) of patients with pancreatic cancer (TCGA-PAAD) and their associated drug information were downloaded from TCGA using the R package “TCGAbiolinks,” while the other clinical information was obtained from the cBioPortal database (https://www.cbioportal.org/). Samples meeting the following criteria were excluded: (1) a metastatic tumor; (2) without pathological information; (3) with a pathological diagnosis of colloid (mucinous non-cystic) carcinoma or undifferentiated carcinoma; and (4) follow-up time less than 30 days. Meanwhile, eight cases without corresponding gene expression data were eliminated. Therefore, 165 cases, 165 tumor samples and 4 normal samples, were included in this study. Gene expression profiles (gene read counts) from normal pancreatic tissues (n = 328) of healthy individuals were downloaded from the GTEx project (https://www.gtexportal.org/). Then, TCGA and GTEx gene expression data were combined for further analysis. The gene expression microarray dataset, GSE57495, associated with follow-up information, was downloaded from GEO (https://www.ncbi.nlm.nih.gov/geo/) for the validation of the prognostic model.

Differentially expressed gene (DEG) identification and analysis

Gene expression data were normalized and a variance stabilizing transformation using the R package “DESeq2” was applied. To reduce the influence of a batch effect, a batch variate giving rise to a different database was designed as a covariant, and the batch effect was further removed using the removeBatchEffect () function in the R package “limma.” DEGs between tumor samples and normal samples were identified using “limma.” |log₂FC| > 1 and p < 0.05 were set as the cutoffs for DEGs. Then, RRDEGs were identified using a Kruskal-Wallis rank sum test between patients with different responses after chemotherapy, including “Clinical Progressive Disease”, “Partial Response”, “Stable Disease” and “Complete Response”. p < 0.05 was considered statistically different. Furthermore, gene ontology (GO) enrichment and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses were performed for RRDEGs using the R package “clusterProfiler.” A protein–protein interaction (PPI) network was conducted using the search tool for the retrieval of interacting genes/proteins (STRING) database (https://www.string-db.org/) and was visualized using Cytoscape v. 3.7.2 (http://www.cytoscape.org/).

Construction of a risk prognostic signature

A total of 165 tumor samples were randomly divided into two groups, a training group (n = 115, 70%) and a testing group (n = 50, 30%). There were 49 samples with chemotherapy information in the training group, while 22 samples had chemotherapy information in the testing group. A risk prognostic model was constructed based on the data from the training group and validated in the testing group and the GSE57495 dataset. First, a univariate Cox proportional hazards regression model was performed to identify potential survival-related RRDEGs for subsequent analysis. Lasso-penalized Cox regression analysis was performed to reduce over-fitting based on the “glmnet” package. Next, a stepwise multivariate Cox proportional hazards regression model was used to construct a risk prognostic signature, and the risk score was calculated through the summation of the gene expression multiplied by the regression coefficients from the multivariate Cox proportional hazards regression model. Patients with different responses after chemotherapy were divided into two groups. Patients with a response from “Clinical Progressive Disease” were assigned to one group and the others were assigned to another group. A student’s t-test was performed to evaluate the correlation between risk score and chemoresistance. The receiver operating characteristic (ROC) curve was performed to evaluate the predictive power of the gene signature for chemoresistance. Patients were separated into two or three groups based on an optimal cutoff value risk score using X-tile software (V3.6.1). Kaplan-Meier analysis, ROC curves, Harrell’s concordance indexes (C-index), and calibration plots were conducted to evaluate the performance of the prognostic gene signature. The AJCC stage was used as a control. The GSE57495 dataset, with follow-up information, was set as an external validation dataset and the same formula was used to calculate the risk score.

Construction of nomograms and DCA

To identify independent risk factors of prognosis, univariate and multivariate Cox regression analyses were performed, and clinical characteristics included age, gender, AJCC stage, T, N, M, dimension, location, grade, histopathology, neoadjuvant, radiation, molecular therapy, residual tumor, smoking, drinking, pancreatitis, diabetes, chemotherapy, and risk score. p < 0.05 was considered statistically different. All independent risk factors were included in the construction of prognostic nomograms using a stepwise Cox regression model in TCGA PAAD dataset. A univariate and multivariate binary logistics regression model was performed to identify chemoresistance risk factors, and all were included in the construction of a predictive nomogram using a stepwise method. The ROC curve, C-index, calibration plots, and DCA were conducted to evaluate the performance of the nomograms.

GSEA

GSEA was used to explore the potential molecular mechanism of a prognostic gene signature. All patients in TCGA dataset were divided into two groups according to the median of the risk score. The R package “limma” was used to acquire the DEGs between high and low risk groups, and GSEA was performed using the R package “clusterProfiler” [48], based on the Molecular Signatures Database v. 7.0. Hallmark gene sets included C2 (curated gene sets), C5 (GO gene sets) and C6 (oncogenic signatures). p < 0.05 was regarded as statistically different.

Data of tumor immunity relevance in pancreatic cancer

The data on tumor purity and the presence of infiltrating stromal/immune cells in TCGA PAAD sample tumor tissue were download from the Estimation of STromal and Immune cells in MAlignant Tumor tissues using Expression data (ESTIMATE) [49] (https://bioinformatics.mdanderson.org/estimate/). The abundance of different immunocyte immune infiltrates' in TCGA PAAD samples was downloaded from TIMER (http://timer.cistrome.org/) [50] and the CIBERSORT method was used to acquire the results [51].

Statistical analysis

Statistical analysis was performed in the programming language R (v3.6.2, https://www.r-project.org/). Pearson's chi-squared test was used to analyze categorical variables. A Wilcoxon signed rank test or Student’s t-test was used to compare two groups of continuous variables. A Kruskal-Wallis rank sum test was used to analyze multiple groups of continuous variables. Lasso regression analysis, and univariate and multivariate Cox regression analyses were performed for survival analysis. Univariate and multivariate binary logistics regression analysis were performed for regression analysis of binary category variables. p < 0.05 was regarded as statistically different.
