Ectopic expression of MELK in oral squamous cell carcinoma and its correlation with epithelial mesenchymal transition

Elevated MELK in human OSCC

The expression of MELK in protein level was measured by IHC in our OSCC TMA. As shown in Figure 1A, 1E and 1G, the positive MELK staining was primarily located in the cytoplasm of cancer cells, and the expression in OSCC was significantly higher than that in normal mucosa tissues. MELK immunohistochemistry scores correlated significantly with the degree of pathological differentiation, with the poorer the pathological differentiation, the higher the staining score (Table 1). Next, we analysed the relationship between MELK and clinical pathological features, and the results suggested that the primary OSCC with lymph node metastasis (N+, n = 41) had higher immunoreactivity than the OSCC with non-metastatic lymph nodes (N0, n = 21, Figure 1B and 1F). Additionally, MELK level was increased in metastatic lymph nodes (Figure 1C). We next performed Kaplan–Meier analysis to study the prognostic value of MELK in OSCC, and log-rank analysis indicated the overall survival rate of patients with high MELK expression levels exhibited poor prognosis (Figure 1D). On the strength of these results, we considered that MELK expression might benefit in OSCC development, particularly in the metastatic characteristic to cancer stem cells.

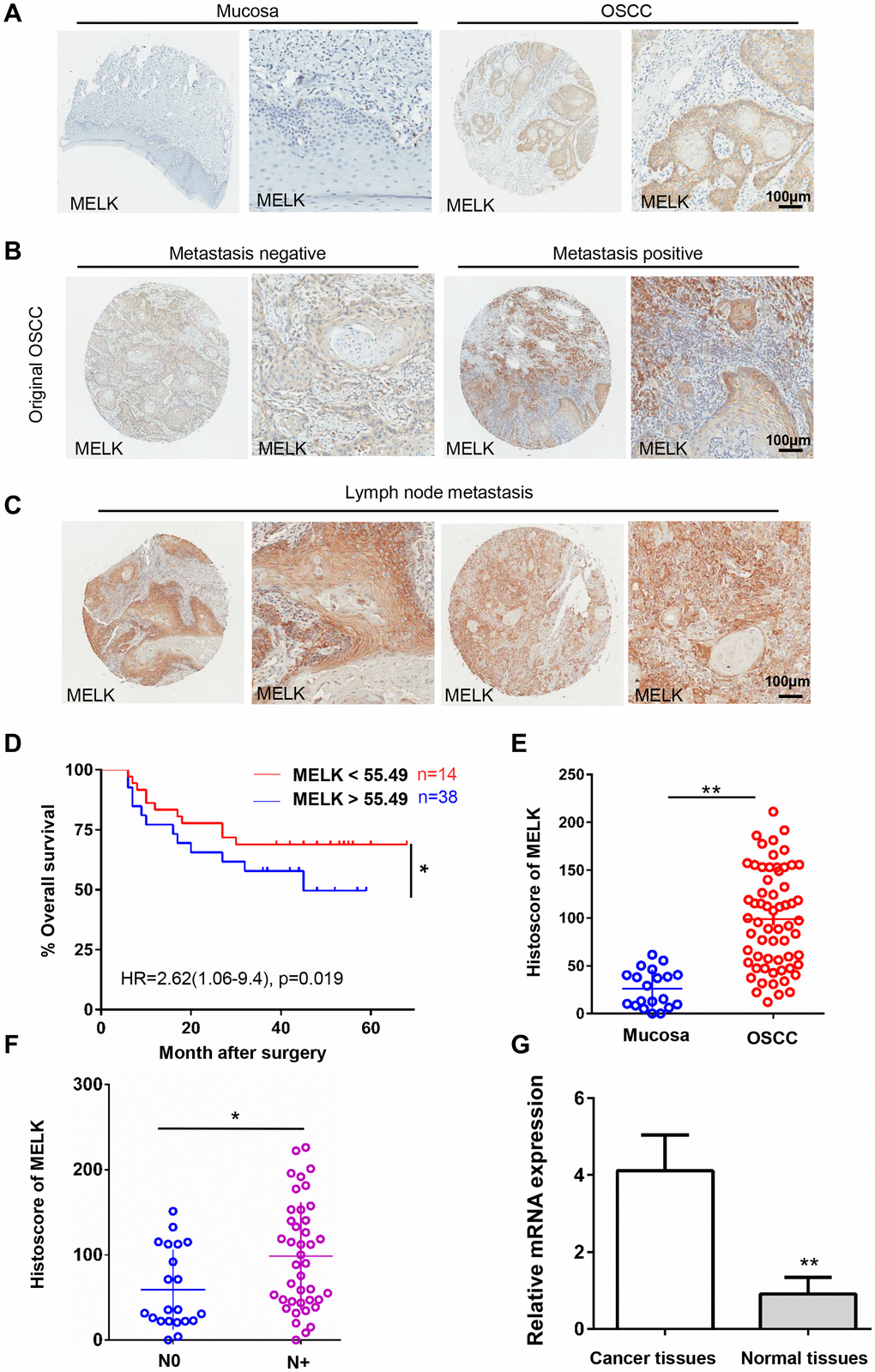

Figure 1. High MELK expression in OSCC tissues correlates closely with lymph node condition. (A) Representative images of MELK expression assessed via IHC staining normal oral mucosa (left) and OSCC (right). Scale bars = 100 μm. (B) Typical images of MELK expression assessed via IHC staining in metastasis-negative (left) and metastasis-negative OSCC (right). Scale bars = 100 μm. (C) Representative photographs of MELK in lymph node metastasis. Scale bars = 100 μm. (D) Kaplan–Meier analysis of OSCC patients with MELK expression level. (E) Score of MELK in oral mucosa (n = 20) and OSCC (n = 62). (F) Score of MELK in OSCC with or without lymph node metastasis. (G) The relative MELK mRNA level in patients with OSCC paired cancer and normal tissues. ^*P < 0.05; ^**P < 0.01; ^***P < 0.001.

MELK was closely associated with EMT in human OSCC

EMT is well known to impel cancer recurrence and progression. To investigate if there is a correlation between MELK and EMT, the protein expression levels in human OSCC TMAs were examined using EMT markers (i.e., E-cadherin (Figure 2B), Zeb2 (Figure 2C), Snail (Figure 2D), Twist1 (Figure 2E), Vimentin (Figure 2F) and Slug (Figure 2G)); the results indicated that the mentioned proteins were highly expressed in OSCC tissues (Figure 2A). Afterwards, we were shocked to find that the expression of MELK in OSCC correlated remarkably with EMT markers. All the above findings suggest that MELK is a vital part in regulating EMT process in human OSCC.

Figure 2. Increased MELK expression was associated with EMT markers in human OSCC tissues. (A) Typical images of IHC staining about N-cad, Zeb2, Snail, Twist1, Vimentin and Slug in human OSCC tissues. Scale bars:100 μm. (B–G) Correlation analysis among MELK and EMT-related proteins by Pearson’s correlation test based on the immunohistochemistry results.

MELK knockdown suppresses OSCC cells growth

To further investigate the function of MELK in OSCC, the expression levels of MELK were measured in several OSCC cell lines, and using OKCs as negative control.

There was high expression of MELK in SCC9, SCC23, FaDu and CAL27 cell lines, and the highest expression level was presented in the FaDu and SCC9 cells (Figure 3A). Therefore, the FaDu and SCC9 cell lines were chosen for functional assays in vitro. shRNAs were performed to knock down MELK. In addition, as MELK expression is linked to lymph node metastasis in human OSCC, we conjectured that MELK may also motivate the migration and invasion of OSCC cell lines. Next, the most efficient shRNA sequence was used for wound healing and Transwell assays in FaDu and SCC9 cells. The ability of wound closure was decreased sharply after MELK knockdown for 48 hours (Figure 3B and 3C). In addition, similar finding was observed in the Transwell invasion assay (Figure 3D). Overall, the invasion ability of human OSCC cells was cut down validly by MELK knocking down in vitro. Moreover, MELK knockdown also reduced the number of anchor-dependent colony formation (Figure 3E).

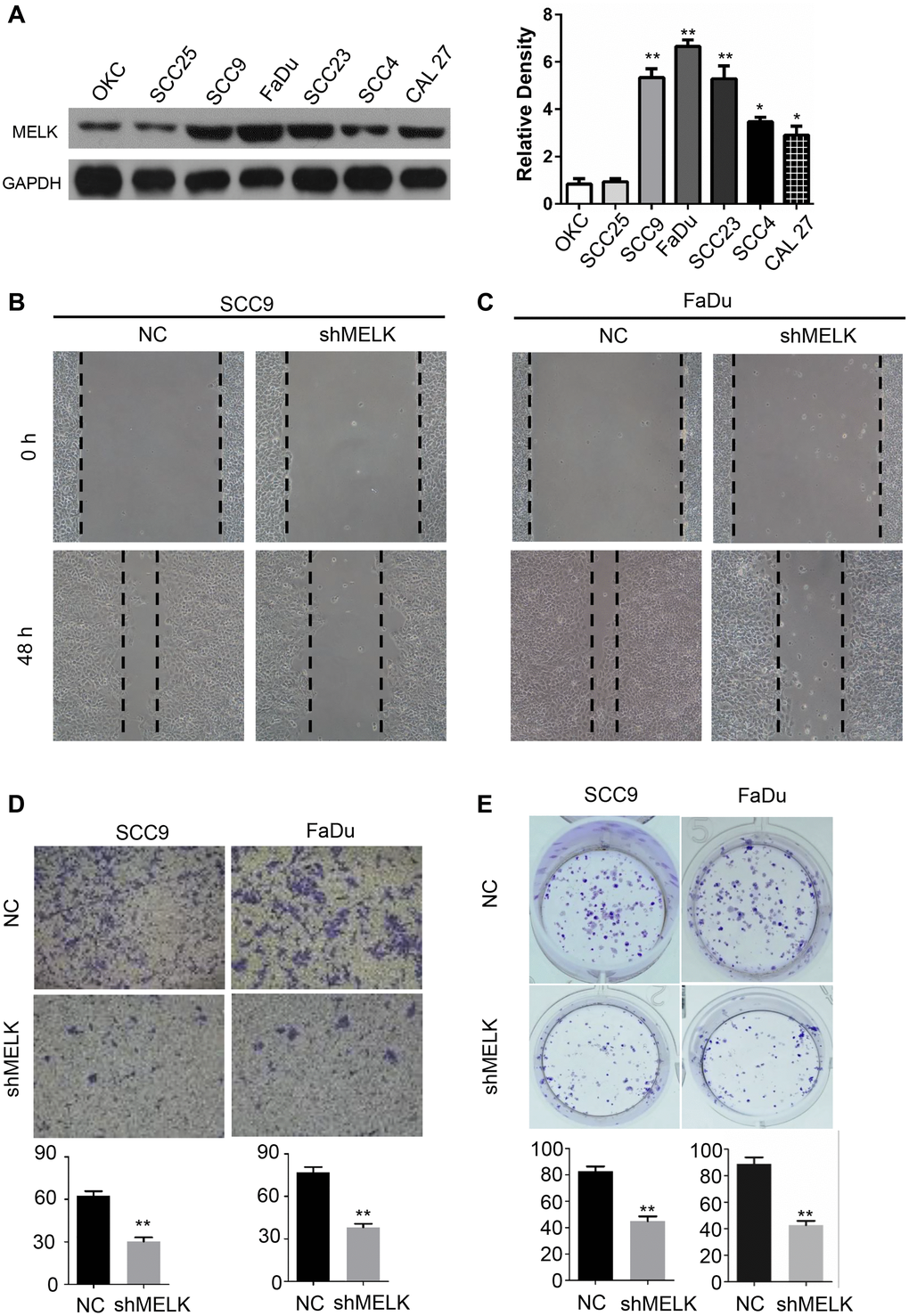

Figure 3. MELK downregulation impedes growth of OSCC cells. (A) Representative western blotting after transfection of shMELK in OKC and OSCC cell lines. Cell mobility of MELK knockdown in SCC9 (B) and FaDu (C) cell lines. (D) Iconic images and quantification of invaded cells. (E) Typical images and quantification of anchor-dependent colony formation. ^**P < 0.01.

MELK and Notch and Wnt signaling pathways are positively correlated

The accurate pathways by which MELK may be regulated in human OSCC have not yet clear. To impartially identify the pathways associated with MELK, UALCAN using high-throughput RNA-sequencing data of the HNSCC cohort in the TCGA database was performed. Figure 4A and 4B showed that the mainly include enrichment pathways for MELK-correlated genes determined through KEGG analysis performed by DAVID. The MELK-correlated genes were enriched in mRNA surveillance pathways, cell cycle, Wnt signalling pathway, fanconi anaemia pathway, and Notch signalling pathways. Nevertheless, differentially expressed MELK-correlated genes were localized in the KEGG pathway and enriched in 2 peculiar pathways, containing the Notch signalling pathway and Wnt signalling pathway. To further confirm the effects of MELK on Notch/Wnt signalling pathways, we also detected the expression of Notch/Wnt signalling pathway-related gene via MELK knocking down. As shown in Figure 4C and 4D, the mRNA levels of key downregulated Notch/Wnt components, i.e., CTBP2 and MAPK9, were remarkably decreased after treatment with MELK shRNA in FaDu cells and SCC4 cells. Whereas regulators else of the Notch/Wnt signalling pathway in the KEGG analysis, for instance, CACYBP, PPP2CA, RUVBL1, DTX3L, PPP3R1, MAML1 and SNW1, were not significantly changed after treatment with MELK shRNA (Figure 4C–4D).

Figure 4. MELK is positively correlated with the Notch and Wnt signalling pathways. The essential enriched pathways of the MELK-correlated genes classified by KEGG analysis through DAVID (A and B). SCC4 (C) and Fadu (D) cells were transfected by shMELK, and Wnt/Notch signalling pathway-related gene expression was measured. ^**P < 0.01.

MELK contributes to the EMT process in OSCC cell lines

Next, to certify the shape of relation between MELK and EMT process, the EMT markers were measured by immunoblotting after MELK knocking down. Interestingly, the expression of N-cadherin, vimentin and Slug were significantly downregulated after MELK shRNA transfecting (Figure 5A–5B). Furthermore, immunofluorescence was used to detect the morphological expression in the cells. Similar results were noticed in SCC9 cells: N-cadherin and vimentin were decreased after knockdown of MELK (Figure 5C–5D).

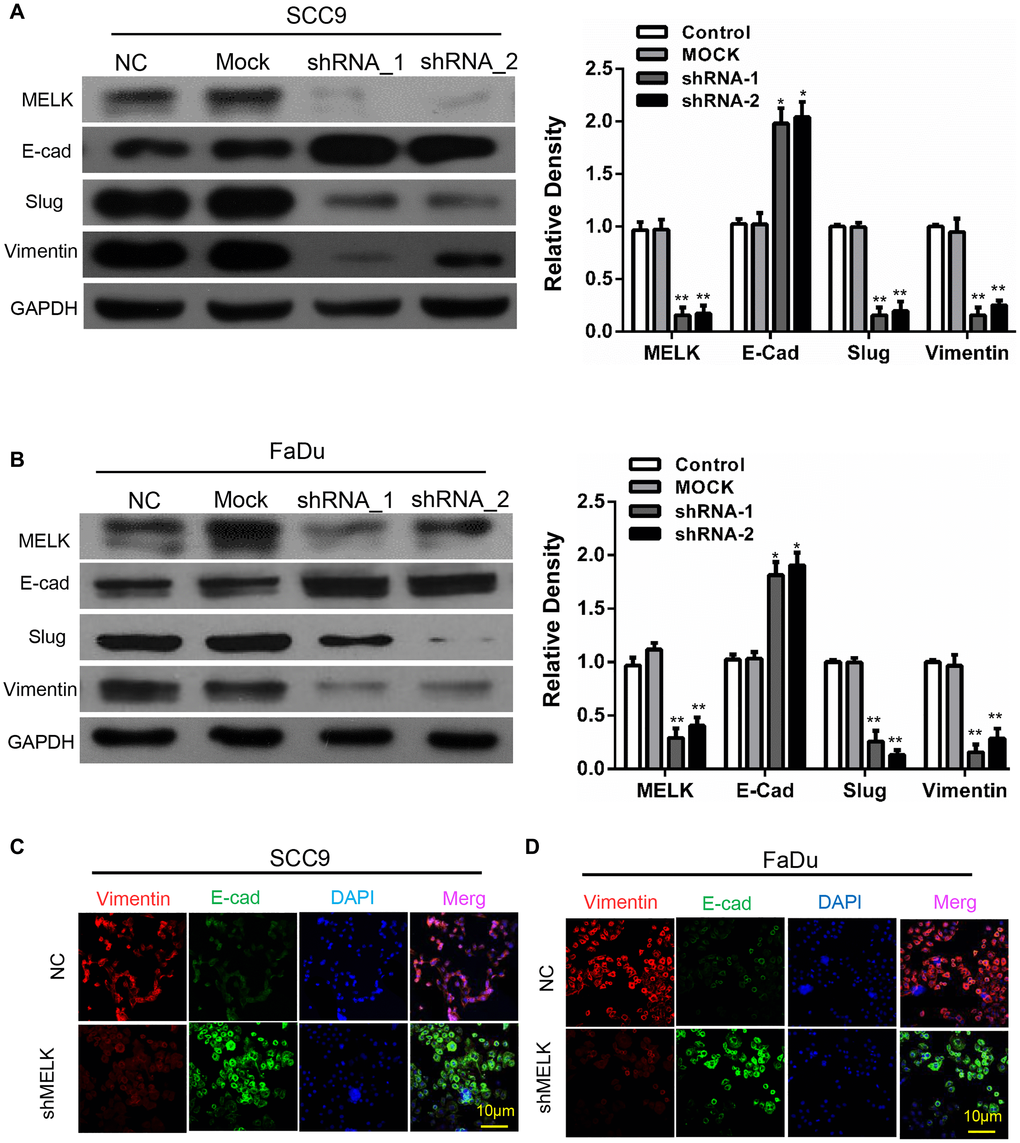

Figure 5. Blocking MELK diminishes the EMT progress in OSCC cell lines. Representative immunoblotting analysis of MELK, E-cad, Slug and vimentin expression after transfection of shMELK in SCC9 (A) and Fadu (B) cell. Immunofluorescence analysis of MELK, vimentin and E-cadherin in SCC9 (C) and FaDu (D) cells transfected with shMELK. Scale bars = 10 μm. ^*P < 0.05, ^**P < 0.01.

Downregulation of MELK restrains tumour proliferation, invasion and migration of OSCC in vivo

According to all the above findings in vitro, MELK was explored whether could promote the invasion and metastasis of OSCC in vivo. Establishment of a xenograft tumour model by subcutaneously injecting FaDu cells into nude mice. Inhibition of MELK sharply lessened tumour growth and decreased tumour volume (Figure 6A–6B). Moreover, IHC staining supported that MELK knockdown resulted in suppression of EMT markers (Figure 6C). Above all findings suggest that MELK exerts a vital regulatory function in EMT progress in human OSCC.

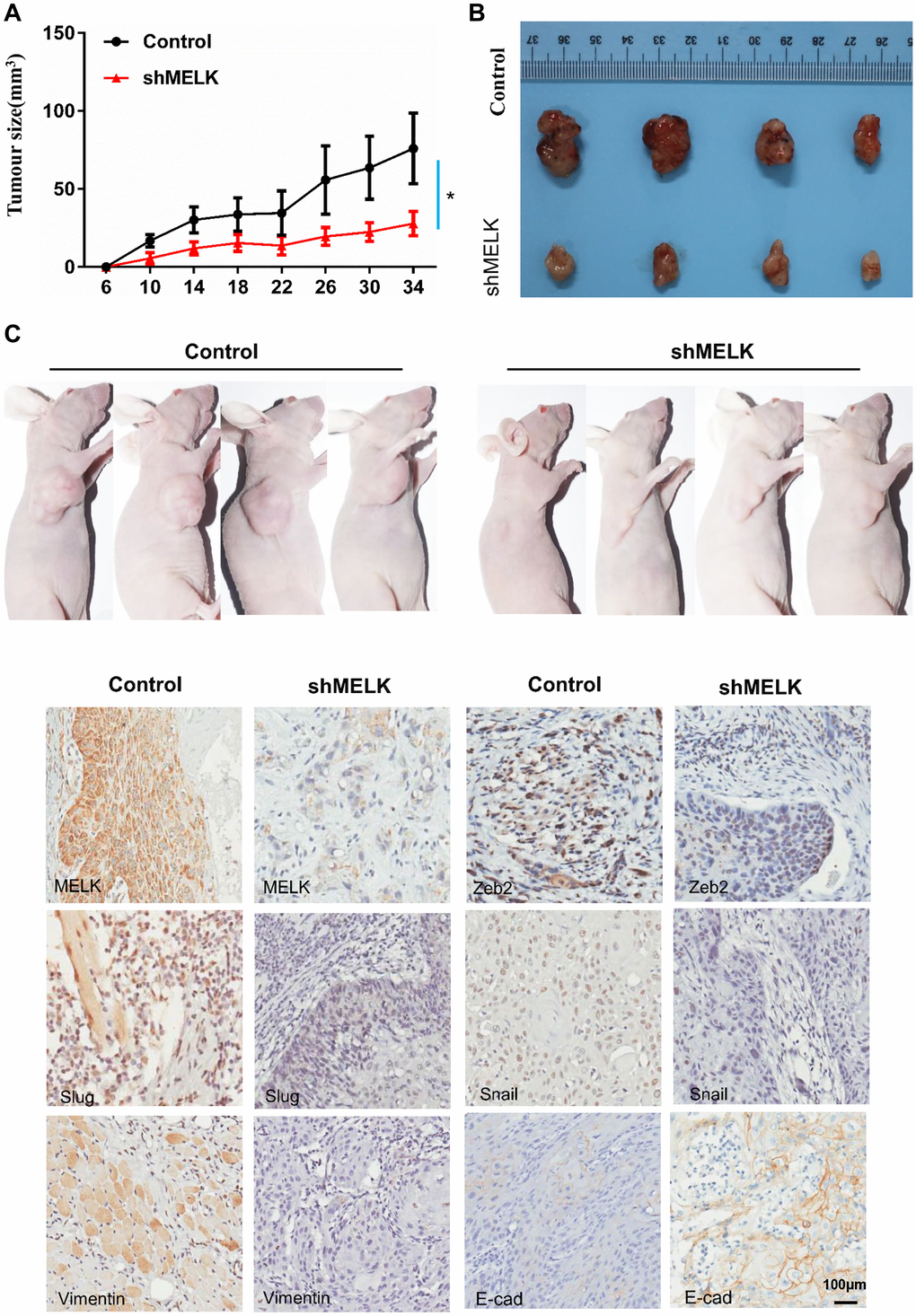

Figure 6. MELK downregulation attenuates OSCC xenograft tumour growth in nude mice. (A) Tumour growth curves for shMELK and NC mice. (B) Dissected tumours were photographed. (C) Representative images of IHC staining among MELK, Zeb2, Slug, Snail, Vimentin and E-cad in tumours; scale bar: 100 μm. ^*P < 0.05, ^**P < 0.01.

Ethics statement, patient specimens and human OSCC tissue microarray (TMA)

The acquisition of tumour samples from OSCC patients who were recruited in the present research was permitted by the Ethics Committee of Affiliated Hospital of Guilin Medical University. The proceedings for conducting human material are on the basis of the ethical requirement of the 1975 Declaration of Helsinki; the Declaration was last revised by the World Medical Association Congress in 2013. Original OSCC tissue specimens (n = 62) were gained from patients who endured surgery at the Department of Oral and Maxillofacial Surgery of Guilin Medical University, and tissue specimens of at least 3 cm of adjacent normal mucosa were obtained from the same group of patients as controls. The samples were collected from patients who did not accept chemotherapy prior to surgery from February 2010 to April 2011, and the survival patients had an average follow-up of ending in February 2015. Clinical staging and histological grading of OSCC according to appropriate guidelines. OSCC TMAs were contained with each patient’s specimen mentioned above and 1.5-mm tissue cylinders were performed by Shanghai Biochip Company, Ltd (Shanghai, China).

Immunohistochemistry

Fixed tissues were buried in paraffin, sectioned to a thickness of 3 μm and immunohistochemical staining with a mouse anti-human MELK antibody (Santa Cruz Biotechnology, Santa Cruz, CA, USA, 1:100). Sections were prepared in mounting medium enclosing glycerol (Beyotime, P0126) and reflected by light microscope (Leica, DM6000M).

Scoring system, hierarchical clustering

TMA sections were examined for background subtraction by Aperio ScanScope CS scanner (Vista, CA, USA) and evaluated (Version 9.1) for membrane, nuclear, or pixel quantification using Aperio Quantification software. Each tissue sample was scored based on the staining intensity (0, none; 1, weak; 2, moderate; 3, strong) multiplied by the percentage of stained cells (positive cells ≤25% of the cells: 1; 26–50% of the cells: 2; 51–75% of the cells: 3; ≥75% of the cells: 4). Calculated in the range 0–12. The median value of scores was engaged to verify the cut-off. Cancers scoring above the cut-off value were regarded as have expression of the mentioned molecule and vice versa.

Quantitative real-time PCR

Total RNA was extracted using RNAiso (Takara, Japan) and reverse transcribed by the PrimeScript™ RT Reagent Kit with gDNA Eraser (Takara). Evaluation of relative levels of mRNA expression in line with the 2-ΔΔCT method.

Cell culture

All cell lines were purchased from the Shanghai Cell Bank of the Chinese Academy of Sciences. SCC9, SCC15 and SCC25 cells were maintained in DMEM/F12 within 10% FBS and 400 ng/ml hydrocortisone, and Cal 27 and FaDu cells were cultivated in DMEM/high glucose with 10% FBS. The fundamental cultured OKC cells were retained in defined KSMF (Gibco BRL, Carlsbad, CA, USA). These cell lines were managed at 37°C in humidified atmosphere with 5% CO₂.

Generation of knockout cell lines

Transfecting with MELK shRNA was executed as stated in the manufacturer’s instructions. Briefly, FaDu and SCC9 cells were transfected with 1.4 μg/ml shRNA duplexes within Lipofectamine 2000 (Invitrogen). The human MELK sequences (5′-ccg ggc ctg aaa gaa act cca att act cga gta att gga gtt tct ttc agg ctt ttt g −3′ and 5′-aat tca aaa agc ctg aaa gaa act cca att act cga gta att gga gtt tct ttc agg c −3′) were confirmed by Sanger DNA sequencing (Source Biosciences, Berlin, Germany). Stable knock-down clones were collected and applied in subsequent studies.

Wound healing assay

Cells were inoculated in 6-well plates at 100% integration. The wound gap was scratched by a 5-μl pipette tip after 10 h serum starvation. After three washes in PBS, serum-free medium was added. 4 randomly selected fields of each well were photographed after 3 h and 6 h under the microscope (Nikon Corporation, Tokyo, Japan). Later, the distance of wound extension was evaluated by Nikon Application Suite.

Transwell assays

Transwell assays were measured by using Transwell chambers (Corning, Albany, NY, USA) as previous described. Transwell chamber coated with Matrigel (BD Biosciences) was used to detect Transwell invasion assay. SCC9 or FaDu cells were resuspended and seeded to the upper chamber containing medium without serum, and the lower chamber accommodated 10% FBS media. After regular treatment, the none-invaded cells were discarded and the invaded cells fixed, stained, photographed and countered.

Immunofluorescence and confocal microscopy

Cells were planted in 10-mm glass-bottom dishes (Nest Biotechnology). After appropriate treatment, cells were fixed by 4% paraformaldehyde and permeabilized in 0.1% Triton X-100. Then, the cells were blocked and incubated with primary antibodies (N-cadherin and Vimentin, 1:200, CST, MELK, 1:100, Source Bioscience) and secondary antibodies. Nuclei were revealed by diamidino-2-phenylindole (DAPI). Capture fluorescent images under the laser scanning confocal microscope (Olympus).

Bioinformatics analysis

UALCAN (http://ualcan.path.uab.edu/analysis.html) was performed to find the MELK-related genes in the HNSCC datasets of TCGA as previous described [33], and the DAVID functional annotation tools (https://david.ncifcrf.gov/) were performed to analyse the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway.

Western blot analysis

Total protein from cells were extracted by RIPA buffer (Beyotime) and quantified by BCA Protein Assay Kit (Beyotime). Antibodies against human MELK (Source Bioscience, 1:1000), E-cadherin (CST, 1:1000), Slug (CST, 1:1000), and vimentin (CST, 1:1000) were used as primary antibodies.

Mouse experiments

The animal administrations were permitted by the Animal Research Committee of the Experimental Animal Research Center of Guilin Medical University and in the light of the guidelines for international animal research. We established a subcutaneous tumorigenic model in nude mice as follows: male 1-month-old nude BALB/c mice (n = 6 per group) were subcutaneously injected with Cal27 (Scramble or sh-MELK) (1 × 10⁶) into both sides of buttocks of the mice. Tumours were measured every 4 days and the total tumour volume was calculated as V (volume, mm³) = 0.5 × L (length, mm) × W² (width, mm²). After 6 weeks, all mice were sacrificed and subcutaneous tumours were resected and weighed.

Statistical analysis

All data are presented as the mean ± SEM, and analysed using GraphPad Prism 5.01 (GraphPad Software, Inc., La Jolla, CA, USA) software. The differences in immunohistochemical staining were analysed via One-way ANOVA followed by Tukey’s post hoc or Bonferroni multiple comparison tests. Two-tailed Pearson correlation was used to analyse the relationship among MELK, Vimentin, E-cadherin, Zeb2, Snail, Twist1 and Slug. The TMA were determined by Mann-Whitney U test. All the experiments were executed at least three times independently, and the data are presented as the means ± SEM. P < 0.05 were considered to indicate statistical significance.
