miR-320 accelerates chronic heart failure with cardiac fibrosis through activation of the IL6/STAT3 axis

Bioinformatics

The GSE124176 and GSE104150 datasets were downloaded from the GEO database (https://www.ncbi.nlm.nih.gov/geo/). The differential analysis between the normal group and the case group was operated by the "edgeR" package (|logFC|>2, padj < 0.05) to obtain the differentially expressed mRNAs. GSEA software was conducted to pathway enrichment analysis of target miRNA to study the target miRNA’s mechanism and its target gene.

Establishment of cardiac hypertrophy models in mice

Male C57BL/6 mice aged between 8–10 weeks were anesthetized by intraperitoneal injection of 3% chloral hydrate. Arterial puncture (22G) was used to intubate the outer sheath, and the ventilator was used to construct control respiration (frequency = 90–100 breaths/min, tidal volume = 0.4–0.5 ml). The mice were placed on the operating table in the supine position and operated under a binocular stereomicroscope. The mice were fed in mouse IVC independent ventilation cage system and the relevant parameters: ventilation times: 15–50 times/h; Air velocity: 0.05–0.18 m/s; Air cleanliness: Class 100; Number of bacteria falling: 0/dish; Noise: ≤ 55dB. The hearts were dissected from the sternal fossa to the second rib level, and the aortic arch was exposed. A 6–0 silk thread was inserted between the cephalic-brachial trunk and the left common carotid artery, ligated with 25G or 27G needles. After cautiously pulling the needle out, we detected the increased volatility of the proximal aortic arch and elevated heartbeats in the mice. The layer was sutured, and the incision was closed to the chest. After the successful modeling of TAC operation, 3 groups of mice, model-group, miR-320 OE-group and miR-320 OE + BP-1-102-group were injected with negative control (NC) lentivirus, miR-320 (overexpression(OE)-lentivirus, miR-320 OE-lentivirus + BP-1-102 into the tail vein.

Echocardiography

Ventricular function was evaluated by Doppler echocardiography (MyLabAlpha, Esaote S.P.A) with a 2.5, 2.5, and 3.75 MHz phased array ultrasonic probe. Cardiac hypertrophy was assessed by measuring both systole and diastole, which obtained the following measurements left ventricular posterior wall thickness in diastole (LVPWD), left ventricular posterior wall thickness in systole (LVPWS), left ventricular internal diameter in diastole (LVIDD), left ventricular internal diameter in systole (LVIDS), left ventricular end-diastolic anterior wall thickness (LVAWD), and ejection fraction (E.F.).

Histological analysis and Masson’s collagen staining

Five weeks after the TAC operation, the mice were anesthetized with chloral hydrate and fixed on the examination platform. We opened the mice’s thoracic cavities under sterile conditions, perfused them with normal ice saline under normal pressure until the livers turned white, separated the hearts, and froze the apical tissue at −80°C. Then, we fixed the remaining myocardial tissue with paraformaldehyde and dehydrated it with gradient ethanol. After embedding these tissues in paraffin, we soaked them in a 15% sucrose solution in PBS for 18 h at 4°C for brazening. They sliced these tissues into five-μm pieces to prepare for Masson staining and immunofluorescence staining.

Immunofluorescence staining

C.M.s were fixed with 4% formaldehyde in PBS (pH 7.2) for 25 min and permeabilized in 0.1% Triton X-100 for 10 min, then washed three times in C.M.s with PBS and incubated with a primary antibody (ABCOM, dilution: 1:100) at 4°C overnight. After the secondary antibody, C.M.s have washed with PBS once again and incubated with the nuclear stain DAPI for 15 min. Imaging was completed under an Image-Pro Plus 6.0.

Luciferase reporter assay

Mice cardiac fibroblasts were co-transfected using commercial Lipofectamine^® 2000 following the manufacturer’s instructions. miR-320 mimics or inhibitors. The following oligonucleotide sequences were used: scramble NC, 5′-UUCUC CGAAC GU- GUC ACGUU U-3′; miR-320 mimic, 5′-AAAAG CUGGG UUGAG AGGGC GA-3′, miR-320 inhibitors: 5′-UCGCCCUCU CAACCCAGCUUUU-′3 (Shanghai GenePharma Co., Ltd., Shanghai, China). After 24 h transfection, cells were analyzed by using the Dual-Luciferase Reporter Assay System (Promega).

Cell viability assay

Mice cardiac fibroblasts cells were seeded in a 96-well plate with 5000 cells/well, and treated with the following conditions: fresh culture medium alone (control), fresh culture medium with different concentrations (0–200 μg/mL) of APS (Sigma-Aldrich), and/or fresh culture medium with 10 μM LPS. Cell viability was assessed by a Cell Counting Kit-8 (CCK-8; Beyotime Biotechnology, Nanjing, China) according to manufacturer’s instructions. Briefly, after treatment, the CCK-8 solution was added to the culture medium and incubated at 37°C for 1 h. The absorbance was read at 450 nm with a microplate reader. Cell viability was calculated by (experimental group absorbance value/control group absorbance value) × 100%.

Real-time PCR analysis

Total cellular RNA was obtained from mice cardiac tissues or cultured C.M.s by TRIzol (Invitrogen) following the manufacturer protocol, preventing remaining genomic DNA using RNase free DNase-I (Qiagen) following the manufacturer protocol. The quality of RNA was further detected by the ultraviolet spectrometer and formaldehyde-agarose gel electrophoresis. Purified RNA was used for quantitative PCR of miR-320 using MicroRNA-210 Assays (Life Technologies) according to the manufacturer’s commended procedure. Quantitative RT-PCR analysis was performed by Bio-Rad real-time PCR detection system using SsoFast Eva-Green Supermix (Bio-Rad, Hercules, USA). The comparative Ct method was performed to assess the expression of miR-320. Additionally, the PCR products were observed using 1% (wt./vol) agarose gel electrophoresis.

Western blot analysis

The cardiac tissues and C.M.s were homogenized in a lysis buffer containing 2% Triton X-100. Protein concentration was normalized and determined with a BCA protein assay kit (Thermo Scientific, Rockford, IL). Then separated protein using 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to a nitrocellulose membrane (G.E. Healthcare, Buckinghamshire, U.K.) and incubated the membranes with the primary antibody (1:1000 dilution, 4°C) overnight and secondary antibodies (1:10000 dilution, room temperature) for 1h. The expression levels were identified by luminous-image analyzer densitometry (Luminescent Image Analyzer lAS-1000: Fujifilm, Tokyo, Japan).

Statistical analysis

All values were presented as the mean ± SEM. Statistical analysis was performed by SPSS version 20.0. Student t-test compared the comparison of two means. ANOVA performed a comparison of more than two means. P < 0.05 was considered statistically significant.

The association between miR-320 and STAT3

To assess miR-320 expression in cardiac fibrosis patients, we obtained the GSE157331 and GSE104150 datasets from the GEO database, which comprised of cardiac fibrosis samples, and low clinical samples data were ignored. According to the data in GSE157331, we found STAT3 was significantly expressed in cardiomyocyte lines (Figure 1A), and 178 differentially expressed genes were obtained by “edgeR” for differential analysis (Figure 1B). Then we assessed the expression level of mir-320 in cardiac fibrosis from the data in GSE104150. Results revealed that the expression levels of miR-320 were higher in the cardiac fibrosis group, as compared with the controls (Figure 1C). Specifically, KLF9, a member of the Krüppel-like factor (KLF) family, regulates cell proliferation, differentiation, and apoptosis [15]. Additionally, a recent study has highlighted that KLF9 could repress JAK/STAT3 signaling pathway. Most importantly, our gene set enrichment analysis (GSEA) revealed that miR-320 was implicated in regulating the STAT3 signaling pathway, and they were positively related (Figure 1D). Correlation analysis found that miR-320 was negatively correlated with KLF9 protein expression in cardiac tissues (Figure 1E). These results hypothesize that miR-320 is positively correlated with JAK/STAT3 signaling pathway. To further evaluate the role of miR-320 in cardiac fibrosis, we evaluated the level of miR-320 in the serum samples from patients with cardiac fibrosis and matched controls. The relative expression levels of serum miR-320 were significantly elevated in patients with cardiac fibrosis (Figure 1F, P < 0.05). Therefore, these results imply that the STAT3 signal was activated and positively associated with miR-320 in cardiac fibrosis and hypertrophic disease. As such, we hypothesize that the regulation of miR-320 may be through the STAT3 signaling pathway in cardiac fibrosis and hypertrophic disease.

Figure 1. The expression of STAT3 in cardiomyocyte lines and miR-320 targeted-regulated STAT3. (A) The expression of STAT3 was low in standard samples (green) and high in case samples (red); P < 0.05. (B) Different expressed miRNA volcano map of standard group and case group in GEO dataset; (C) Venn diagram of predicted upstream, down-regulated, differently expressed miRNA for STAT3; (D) A heat map depicting miR-320 was higher in the cardiac fibrosis group, as compared with the controls; (D) GSEA pathway enrichment analysis results of STAT3; (E) Correlation analysis found that miR-320 was negatively correlated with KLF9 protein expression in cardiac tissues. (F) The relative expression levels of serum miR-320 were significantly elevated in patients with cardiac fibrosis. P < 0.05.

MiR-320 mimics induced left ventricular (LV) hypertrophy and cardiac fibrosis

To investigate the role of miR-320 in fibrosis and hypertrophic disease, miR-320 (overexpression of miR-320) OE, model mice were subjected to pressure overload by transverse aortic constriction (TAC). There was no hypertrophic phenotypic in cardiac function in the sham by echocardiographic scans (Figure 2A). However, after TAC, miR-320 OE mice exhibited severe left ventricle dilation, regional contractile dysfunction (Figure 2A). Cardiac dysfunction arose in model mice and miR-320 OE group after TAC, which was worse in miR-320 OE mice (Figure 2A). Moreover, comparing with the sham and model, miR-320 OE mice exhibited a significant cardiac hypertrophic response, as demonstrated by enlarged LVPWs and LVPWd, reduced LVIDs, LVIDd, and E.F. (Figure 2B, P < 0.05). These results suggested that our mice models of cardiac hypertrophy were established successfully and that miR-320 OE could induce worse left ventricular (LV) hypertrophy and cardiac function damage.

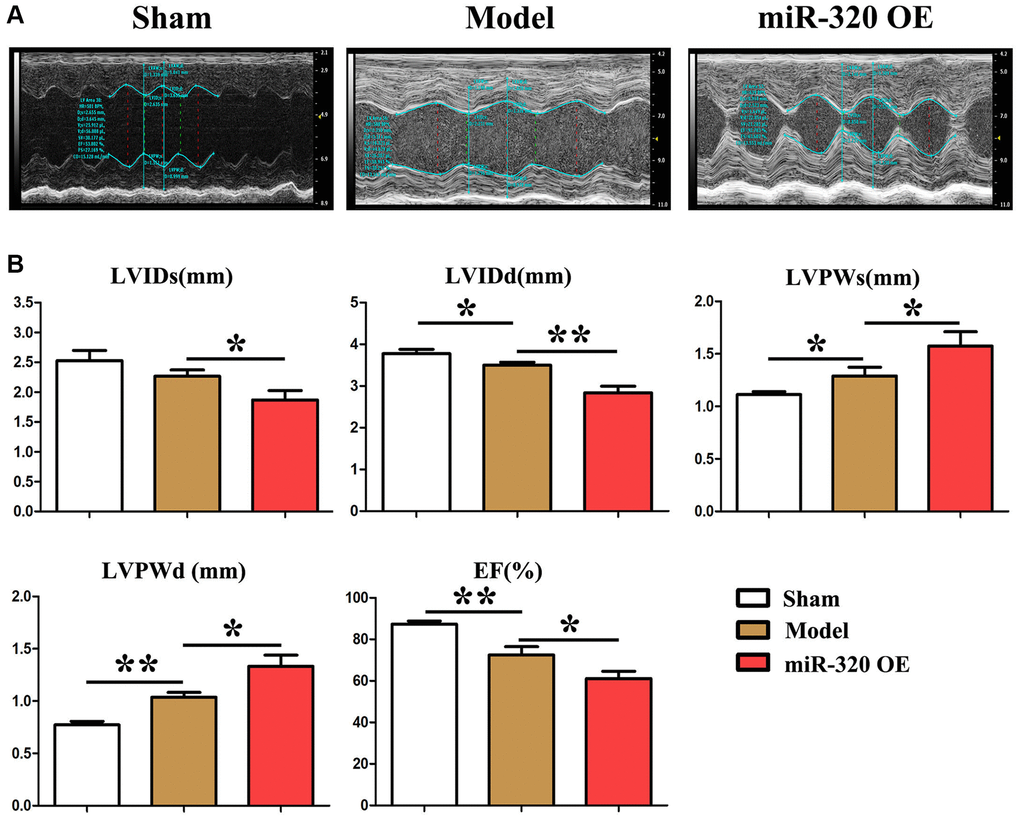

Figure 2. MiR-320 OE induced left ventricular (LV) hypertrophy and cardiac fibrosis. (A) Representative serial M-mode echocardiography in conscious sham and miR-320 OE and model mice measured before and after TAC; (B) Summary data of left ventricular internal dimension diastole (LVIDd), left ventricular internal dimension systole (LVIDs), left ventricular posterior wall dimensions diastole (LVPWd), left ventricular posterior wall dimensions systole (LVPWDs), and ejection fraction (E.F.). P < 0.05; miR-320 OE vs. model and sham vs. model.

MiR-320 OE was shown to have accelerated the cardiac function damage with significant cardiac fibrosis

Given that cardiac fibrosis is associated with cardiac hypertrophy and chronic heart failure [16], we performed Masson staining in vivo to investigate the cardiac fibrosis level in mice’s left ventricular tissues. The histological assessment exposed the differences in cardiac morphology between the model, miR-320 OE, and miR-320 OE + BP-1-102 samples (Figure 3A). Furthermore, severe myocardial interstitial and perivascular fibrosis were found in the heart of miR-320 OE mice after TAC but not in model hearts (Figure 3B). There is, increased myocardial interstitial and perivascular fibrosis by miR-320 OE were significantly reduced in miR-320 OE + BP-1-102 group. The quantitative analysis of fibrosis area/total areas, cardiocyte areas, and heart/weight ratio further showed that cardiac fibrosis was significantly enhanced in miR-320 OE and decreased in miR-320 OE + BP-1-102 group compared with the model group. (Figure 3A and 3B, P < 0.05). These results implied that miR-320 OE accelerated cardiac function damage and hypertrophy with a significant cardiac fibrosis increase.

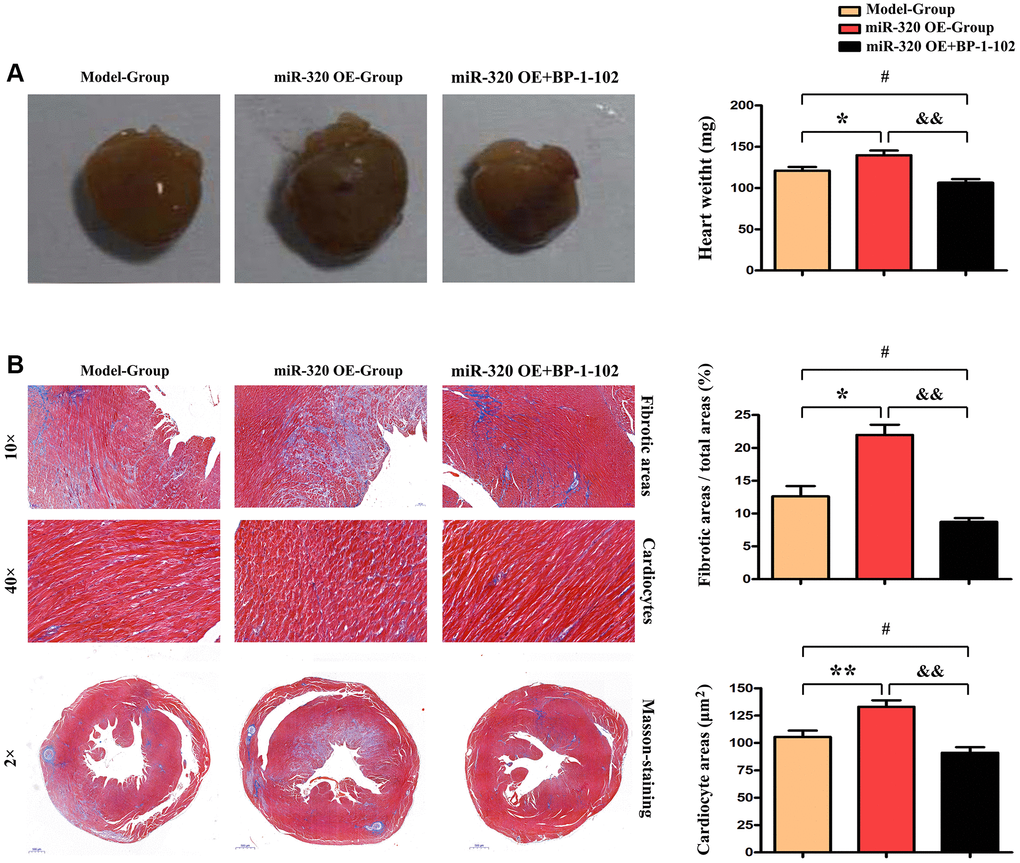

Figure 3. MiR-320 OE accelerated cardiac function damage with significant cardiac fibrosis. (A) The histological assessment was performed to evaluate cardiac morphology between the model, miR-320 OE, and miR-320 OE + BP-1–102 samples. (B) Representative pictures of myocardial connective tissue Masson staining demonstrate cardiac fibrosis and fibrosis area. The quantitative analysis of fibrosis area/total areas, cardiocyte areas, and heart/weight ratio. P < 0.05.

MiR-320 OE accelerated cardiac fibrosis by increasing the synthesis of collagenous fibers

Given that the accumulation of type I and type III collagen contributes to a dramatic increase in collagenous fibers, which increase cardiac fibrosis and destroy cardiac function [17, 18]. To investigate the effect of overexpression of miR-320 in collagen content, we applied immunofluorescence staining to mice’s left ventricular tissues. The staining identified increased type I and III collagen in the left ventricular tissues after TAC, which was more pronounced in the hearts of miR-320 OE mice (Figure 4Aa–d). Furthermore, we found that the overexpression of miR-320 increased type I and III collagen synthesis, suggesting a deterioration in cardiac fibrosis development. (Figure 4Ac–f, P < 0.05).

Moreover, our western blots further confirmed that miR-320 OE significantly enhanced type I and III collagen (Figure 4Ba). The quantitative analysis of relative protein levels further confirmed that miR-320 OE increased type I and III collagen synthesis compared to the model group. (Figure 4Bb, P < 0.05) These results implied that miR-320 OE accelerated cardiac fibrosis by increasing the collagenous fibers synthesis.

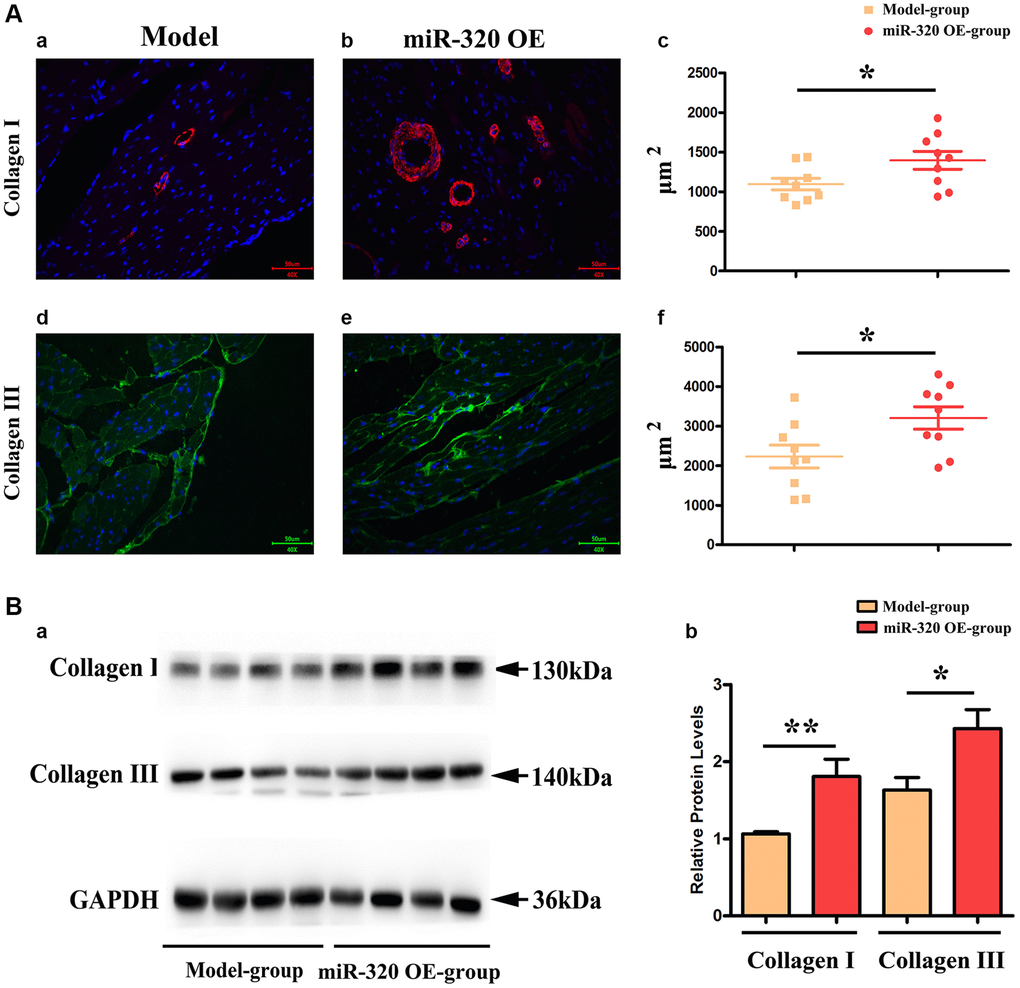

Figure 4. MiR-320 OE increased the type I and III collagen synthesis; (Aa–d) Representative pictures of type I and type III collagen staining in the left ventricular tissues; (Ac–f) The expression levels of type I and type III collagen synthesis; P < 0.05; miR-320 OE vs. model; (Ba) Representative Western blots in the left ventricular tissues to show the collagenous fibers synthesis; (Bb) The quantitative analysis of type I and type III collagen; P < 0.05; miR-320 OE vs. model.

MiR-320 OE heightened the TGF-β, IL-6, p-STAT3 signaling and suppressed PTEN in vivo

Earlier works have indicated that IL-6/STAT3 signaling pathways participate in the elastin breakage and collagenous fibers synthesis. It underlies cardiac hypertrophy and fibrosis progression [19, 20]. Additionally, various studies have confirmed that transforming growth factor-β (TGF-β) is a growth factor that emerged within damaged tissues, where it stimulates fibroblasts and contributes to collagenous fibers synthesis [21, 22]. Remarkably, it has been shown that PTEN negatively correlates to STAT3 signaling activation [23, 24]. To investigate the effect of miR-320 on IL-6/STAT3/PTEN and TGF-β expression, we applied western blots to the left ventricular tissues of mice from both groups. In this study, we found that the expression levels of IL6, TGF-β, p- STAT3, and t-STAT3 were enhanced in the left ventricular tissues of miR-320 OE mice, whereas PTEN was reduced in the miR-320 OE group. (Figure 5A) Our quantitative analysis of relative protein levels further confirmed that IL6, TGF-β, p- STAT3, and t-STAT3 were increased in the miR-320 OE group compared with the model group, whereas PTEN was reduced in the miR-320 OE group. (Figure 5B, P < 0.05) These results suggested that overexpression of miR-320 might heighten TGF-β, IL-6, p-STAT3 and suppress PTEN in cardiac hypertrophy and fibrosis.

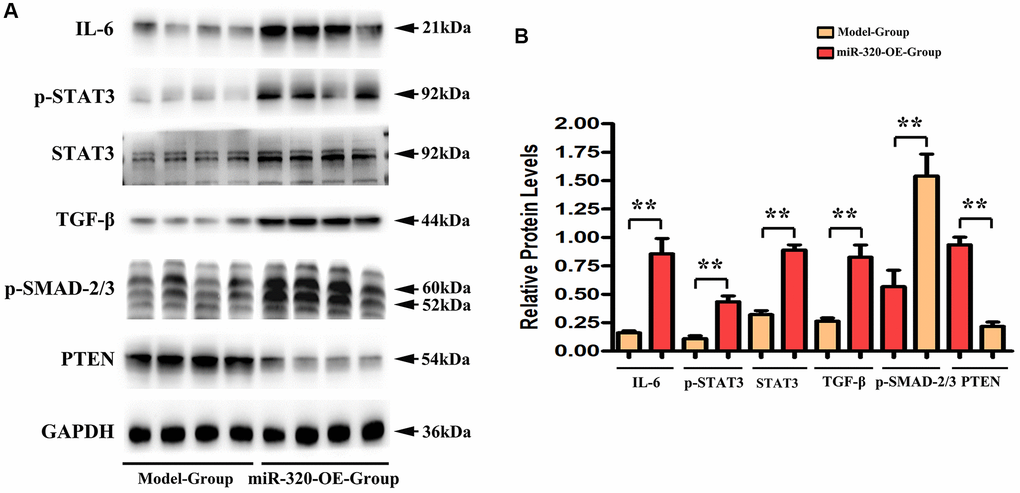

Figure 5. MiR-320 OE heightened the TGF-β, IL-6, t-STAT3, and p-STAT3 signaling and suppressed PTEN. (A) Representative Western blots in the left ventricular tissues; (B) The quantitative analysis of TGF-β, IL-6, p-STAT3, t-STAT3 and PTEN; P < 0.05; miR-320 OE vs. model.

PTEN was involved in the miR-320 mimics-induced development of hypertrophy and fibrosis in vitro

It is a consensus that cardiac fibroblasts are crucially involved in the pathophysiology of cardiac hypertrophy and fibrosis [21]. To investigate whether PTEN was involved in miR-320 mimics-induced cardiac hypertrophy and fibrosis, orexin B, an agonist that up-regulates PTEN expression, was injected into the culture medium of fibroblasts transfected with miR-320 mimics. In western blots, we found that the decrease in PTEN was reversed by injecting orexin B in fibroblasts transfected with miR-320 mimics. (Figure 6A) Moreover, the enhanced type I and type III collagen, IL6, p-STAT3, and TGF-β were all reversed by orexin B injection in fibroblasts transfected with miR-320 mimic. (Figure 6A) The quantitative analysis of relative protein levels further confirmed that orexin B significantly reduced increased levels of type I and III collagen, IL6, p-STAT3, and TGF-β in fibroblasts transfected with miR-320 mimic (Figure 6B, P < 0.05), suggesting that PTEN was involved in the miR-320 mimics-induced development of cardiac hypertrophy and fibrosis. The viability of cardiac fibroblasts was investigated by CCK8 assay. The results revealed that orexin B administration had no effect on the migration of fibroblasts (Figure 6C).

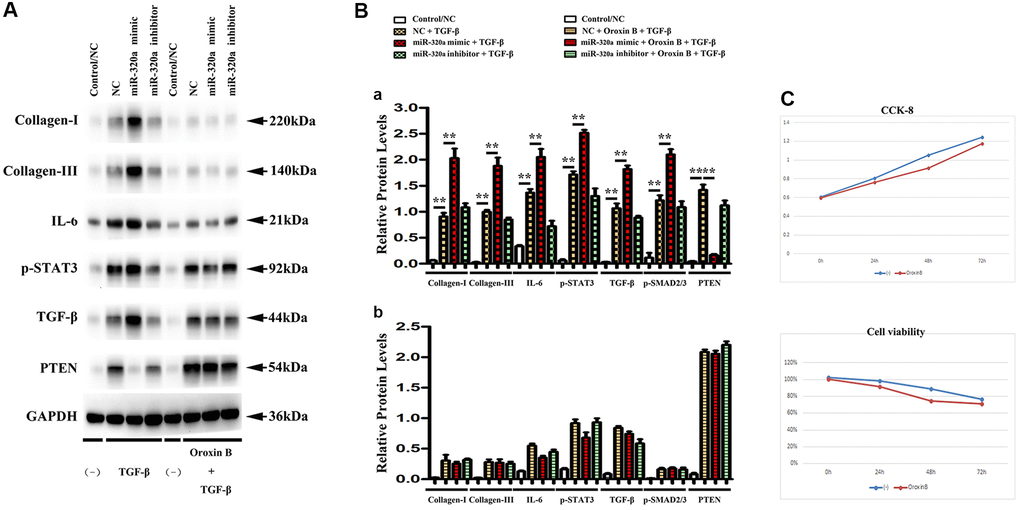

Figure 6. PTEN was involved in miR-320 mimics-induced cardiac fibrosis. (A) Representative Western blots in fibroblasts with or without orexin B injection; (B) The quantitative analysis of TGF-β, IL-6, p-STAT3, and PTEN with or without orexin B injection; P < 0.05. (C) The proliferation of fibroblasts treated with miR-320 mimics, inhibitor or negative control (NC) was measured by CCK8 assay.

STAT3 was involved in miR-320 mimics-induced development of cardiac hypertrophy and fibrosis in vitro

To investigate whether STAT3 signaling was involved in the overexpression of miR-320-induced cardiac hypertrophy and fibrosis, BP-1-102, an inhibitor of STAT3, was added into the culture medium of cardiac fibroblasts transfected with miR-320 mimic and inhibitor. In Western blots, we found the expression of p-STAT3 were significantly decreased in fibroblasts transfected with miR-320 mimic by the stimulation with BP-1-102. (Figure 7) Furthermore, the up-regulated type I and type III collagen, IL6, TGF-β, and down-regulated PTEN were significantly reversed by BP-1-102. (Figure 7) Our quantitative analysis illustrated that inhibitor BP-1-102 exposure blunted the up-regulated type I and III collagen, IL6, TGF-β, p-STAT3, and STAT3 expression and enhanced the down-regulated PTEN expression in fibroblasts transfected with miR-320 mimic by BP-1-102. (Figure 7, P < 0.05). The results implied that STAT3 was involved in miR-320 mimics-induced cardiac hypertrophy and fibrosis.

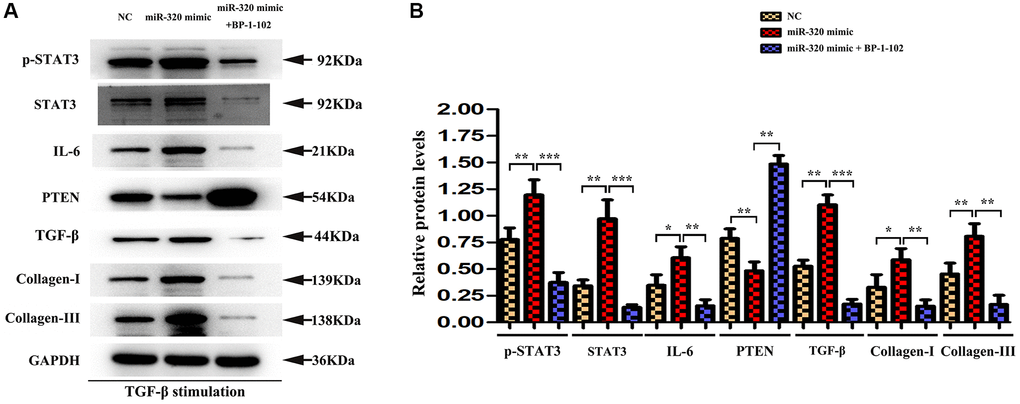

Figure 7. STAT3 was involved in miR-320 mimics-induced development of cardiac hypertrophy and fibrosis. (A) Western blots revealed that BP-1-102 significantly reversed the up-regulated STAT3, p-STAT3, type I and type III collagen, IL6, TGF-β, and down-regulated PTEN. (B) The quantitative analysis illustrated that inhibitor BP-1-102 exposure blunted the up-regulated type I and III collagen, IL6, TGF-β, p-STAT3, and STAT3 expression and enhanced the down-regulated PTEN expression in fibroblasts transfected with miR-320 mimic by BP-1-102. P < 0.05.
