A novel classification method for NSCLC based on the background interaction network and the edge-perturbation matrix

Published data sets

Lung adenocarcinoma (LUAD) and Lung squamous cell carcinoma (LUSC) expression data of the TCGA database, including clinical characteristics and survival information, were downloaded from the UCSC Xena website (https://xenabrowser.net/datapages/). Copy number variation (CNV) information was downloaded by R package RTCGA, while mutation data was downloaded by R package TCGAbiolinks. 986 (497/489) cancer samples with expression data, clinical characteristics, and survival information were prepared for the subsequent analysis. The basic clinical information of cancer samples from the TCGA dataset was displayed in Table 1. The flow diagram was provided in (Supplementary Figure 1).

The expression data of 288 lung control samples from the GTEX database were gotten from the UCSC Xena website (https://xenabrowser.net/datapages/). 181 NSCLC samples with survival information of the GSE50081 data cohort were downloaded from the GEO database (https://www.ncbi.nlm.nih.gov/geo/) and used as the validation set for model verification.

Data preprocessing

In order to keep the data consistency, 70% of the genes with 0 expression level in the three data cohorts (TCGA-LUAD, TCGA-LUSC, GTEX-LUNG) were filtered out first, and then the R package sva was used for batch calibration.

Construction of the background interaction network and edge-perturbation matrix

The Cytoscape plug-in ReactomeFIPlugIn was used to download the gene affiliation data of pathway coding in Reactome, and the functional gene interaction network in the database was constructed based on the existing gene or protein interaction information. Specifically, the background interaction network is a gene interaction network based on the pathway in Reactome, including protein-protein interaction, gene co-expression, protein domain interaction, GO (Gene Ontology) annotation, and proteins interaction data obtained from the text data mining analyses. The ReactomeFIPlugIn plug-in was used to download all genetic interaction pairs in the pathway and then merged into a large background network. The construction process of the edge disturbance matrix mainly included the following three steps [15].

First, according to the inconsistency of the expression levels of genes in the background interaction network between cancer and normal samples, the ranks of gene expression in cancer and normal samples were obtained separately (ranked from small to large, the smaller value of the expression level ranked in the front of the queue, while the bigger value of the expression level ranked in the back of the queue), and then the gene expression matrix was converted into a gene expression rank matrix.

Second, according to the interaction relationship of gene pairs in the background of interaction network, if two genes interaction existed, there would be an edge in the network that connected the two genes, then the difference between the ranks of this edge in the two genes was calculated. In this way, the delta rank matrix of each edge among all the samples were obtained. The calculation formula was displayed in the followings:

$${\delta }_{e,s}=r_{i,s}-r_{j,s}$$

In the formula, “r_i,s” represents the rank of gene “i” in sample “s”, “δ_e,s” represents the delta rank of edge “e” in sample “s”, and gene “i” and “j” are connected by the edge “e”.

Third, the average expression level of genes in normal samples was converted into a normal sample gene expression rank matrix, and the average delta rank matrix (Benchmark delta rank vector) of normal samples was established according to the background interaction network. Then, the delta rank matrix and the average delta rank matrix of the normal samples were used to construct the edge-perturbation matrix. The calculation formula was displayed in the followings:

$${\Delta }_{e,s}={\delta }_{e,s}-{\overline{\delta }}_e$$

In the formula, “δ_e,s” represents the delta rank value of the edge “e” in the sample “s”, and ${\overline{\text{δ}}}_e$ represents the average delta rank of the delta rank matrix and the normal sample, which was the eigenvalue of the edge in the edge disturbance matrix.

Finally, the specific edge perturbation matrix in the cancer sample was screened. According to the Kruskal-Wallis test, the difference of the edge disturbance matrix between the normal and the cancer sample was calculated, and the top 30,000 different edges would be selected according to the level of significant difference; At the same time, the standard deviations (SDs) of the edge disturbance matrix in the cancer samples were calculated, and the top 30,000 different edges according to the SDs were selected. The intersection of the above two edges were considered as the specific edge perturbation matrix of the cancer samples, which was named as the characteristic edge. The feature logarithm conversion formula between cancer sample and feature sample was listed as follows:

$$features={\log }_2({\Delta }_{es}+1)$$

In the formula, “Δ_es” is the eigenvalue of the edge in the edge disturbance matrix.

Clustering and survival analysis of features of edge disturbance matrix

According to the feature edge of the edge perturbation matrix specific to the cancer sample, the R package ConsensusClusterPlus was used to perform the consistent clustering analysis. The distance used for clustering is spearman, the clustering method is pam, and 100 repetitions are performed to ensure the stability of the classification.

Log-rank test was used to explore the difference in survival time among subtypes, and R package survival was used to draw the KM survival curve of patients subtypes. The R package clusterRepro and independent data sets were used to verify the efficacy of clustering of the feature edge perturbation matrices. Then, the intra-group proportion (IGP) of each subtype would be calculated, which the larger IGP indicated the better the consistency in the clustering group.

Feature analysis of edge disturbance feature subtypes

Based on the known literature or calculated various feature indicators, statistical tests were used to explore the correlation between edge disturbance feature subtypes and known feature indicators. Tumor purity and ploidy were derived from TCGA data pan-cancer analysis [27].

The homologous recombination defect score (HRD score), neoantigen load, and genome alteration frequency were derived from previous studies on the analysis of immune characteristics of TCGA data [28]. Based on previous studies, the patient's stemness index (mRNAsi) and epigenetically regulated-mRNAsi (EREG-mRNAsi) were obtained [11].

The three indicators of chromosomal instability (LST score, TAI score, and LOH score) were derived from previous studies based on the correlation analyses between genome damage and homologous recombination defects [29]. The R package CIBERSORT was used to calculate the infiltration scores of 22 immune cell types. The expression level of immune checkpoint molecules is the RNAseq level of cancer samples currently used.

In the significance analysis between various values (expression, infiltration ratio, mutation count, etc.), the Wilcoxon test was used to compare the differences between the two sets of samples. In the graphical display, ns (no significance) represents p > 0.05, ^*represents p ≤ 0.05, ^**represents p ≤ 0.01, ^***represents p ≤ 0.001, and ^****represents p ≤ 0.0001.

Copy number variant (CNV) analyses

The GISTIC method was used to detect the common copy number alteration area in all samples based on the SNP6 CopyNumber segment data. The parameters of the GISTIC method were set as follows: Q ≤ 0.05 was taken as the significance standard of the alteration. 0.90 was adopted as the confidence level, when the peak interval was determined. The analysis was performed through the corresponding MutSigCV module of the online analysis tool GenePattern (https://cloud.genepattern.org/gp/pages/index.jsf) developed by Broad Research Institute.

TIDE (tumor immune dysfunction and exclusion) prediction

The TIDE (http://tide.dfci.harvard.edu/) analysis tool was developed by researchers from Harvard University and used to evaluate the clinical effects of immune checkpoint suppression therapy. A higher tumor TIDE prediction score was corresponded to a lower immune checkpoint suppression therapy efficacy and poor prognosis. The prediction for the prognosis of immune checkpoint inhibitor (ICI) treatment in this analysis was completed by the TIDE score.

Subtype-specific characteristic clusters and pathway enrichment of feature clusters

The unique biological functions and pathways of the subtype were analyzed by identifying the unique characteristic clusters of the subtype, and Z-score was used to standardize the characteristic values of the characteristic edges, and then the characteristic clusters were screened through the following steps.

The first step is to perform hierarchical clustering based on the normalized characteristic values of the characteristic edges, and the clustering method was “complete linkage”. The number of clusters is 100, and clusters with fewer than 30 characteristic edges would be filtered out. Second, for each remaining cluster, the percentage of “characteristic edges”, whose “absolute value” of the perturbation mean was greater than 0.5 to all the “characteristic edges”, would be calculated. Third, the cluster with an average percentage greater than 0.7 in a subtype would be considered as the characteristic cluster of that subtype, and all genes in the characteristic edge corresponding to the characteristic cluster would be used for pathway enrichment analysis. Online software Metascape (http://metascape.org) would be used for enrichment analysis of KEGG and Reactome pathways, setting the parameter P < 0.01.

Differential expression analysis and differential methylation site recognition

The R software package limma would be used for analyzing the expression profile and methylation level of the subtype samples. According to the fold change (|logFC|) and significant False Discovery Rate (FDR), the genes and methylation sites that were differentially expressed in the subtype samples were screened.

Prognostic analysis

Univariate Cox regression analysis would be used for determining the hazard ratio (HR) and prognostic significance of different expressed genes, and genes with p < 0.01 would be screened as prognostic-related genes. The Kaplan-Meier method was used to generate the survival curve for prognostic analysis, and the log-rank test was used to determine the significance of the difference. The receiver operating characteristic curve (ROC) was used to evaluate the risk model’s prediction of the score, and the area under the curve (AUC) was quantified by the R package survivalROC.

Ethics statement

No interaction with human subjects of the study was involved, no ethical issues were encountered, and no ethical approval was needed.

Background interaction network construction and gene expression extraction

The Cytoscape plug-in ReactomeFIPlugIn was used to download the gene affiliation data of pathway encoding in Reactome. According to the existing gene or protein interaction information, including protein-protein interaction, gene co-expression, protein domain interaction, GO annotation and protein interaction data based on text mining, integrating all interaction information, the functional background interaction network would be constructed. A total of 7,360 nodes and 169,710 edges were included in the background interaction network.

In the three data sets (TCGA-LUAD, TCGA-LUSC, and GTEX-LUNG), 70% of the genes whose expression levels were 0 were filtered out, and then the R package sva was used for batch correction. The two datasets TCGA-LUAD and TCGA-LUSC were merged as the expression profile of cancer samples (26209 genes ×986 samples), and the GTEX-LUNG dataset was used as the expression profile of normal samples (26209 genes ×288 samples).

After filtering out the nodes in the background interaction network that were not within the range of 26209 genes, a new background interaction network was constructed, which included 6327 nodes and 153314 edges, which would be used for subsequent calculation of edge disturbances Feature matrix. The interaction network was closely connected, and most of the nodes in the network had a high degree. According to the degree of nodes in the background interaction network, the nodes were sorted from large to small.

Perturbation matrix (edge-perturbation matrix) construction and feature extraction

The perturbation of the edge in the background interaction network would inevitably lead to the alteration of the interaction relationship in the network, and the perturbation of the gene in the network to the edge could be reasonably used for simulating and revealing the pathological environment at the individual level. In order to measure the degree of disturbance of the background interaction network at the level of a single sample, based on the difference in expression fluctuations between cancer and normal samples, the Edge-Perturbation Matrix (EPM) was constructed separately. In order to compare the difference in EPM between cancer and normal samples, 1000 features were randomly selected, and logarithmic transformation was performed. It was found that the feature values of cancer samples were significantly higher than those of normal samples (Supplementary Figure 2). This showed that the degree of edge perturbation in cancer samples was greater, indicating that the degree of perturbation in the background network of cancer samples was much more obvious than that of normal samples. This provided reliable evidence for the subsequent use of EPM to reveal the heterogeneity among NSCLC samples.

In order to further perform feature extraction in this study, we used the Kruskal-Wallis test to calculate the difference of edge perturbations between cancer and normal samples, and calculated the Standard Deviations (SDs) of the edge perturbation matrices in cancer samples. The top 30,000 different edges of the above two methods were selected respectively, and the intersection edges (N = 5468) were selected as the feature edges of the edge perturbation matrix in the cancer sample for subsequent analyses.

Clustering and survival analyses of edge disturbance matrix features

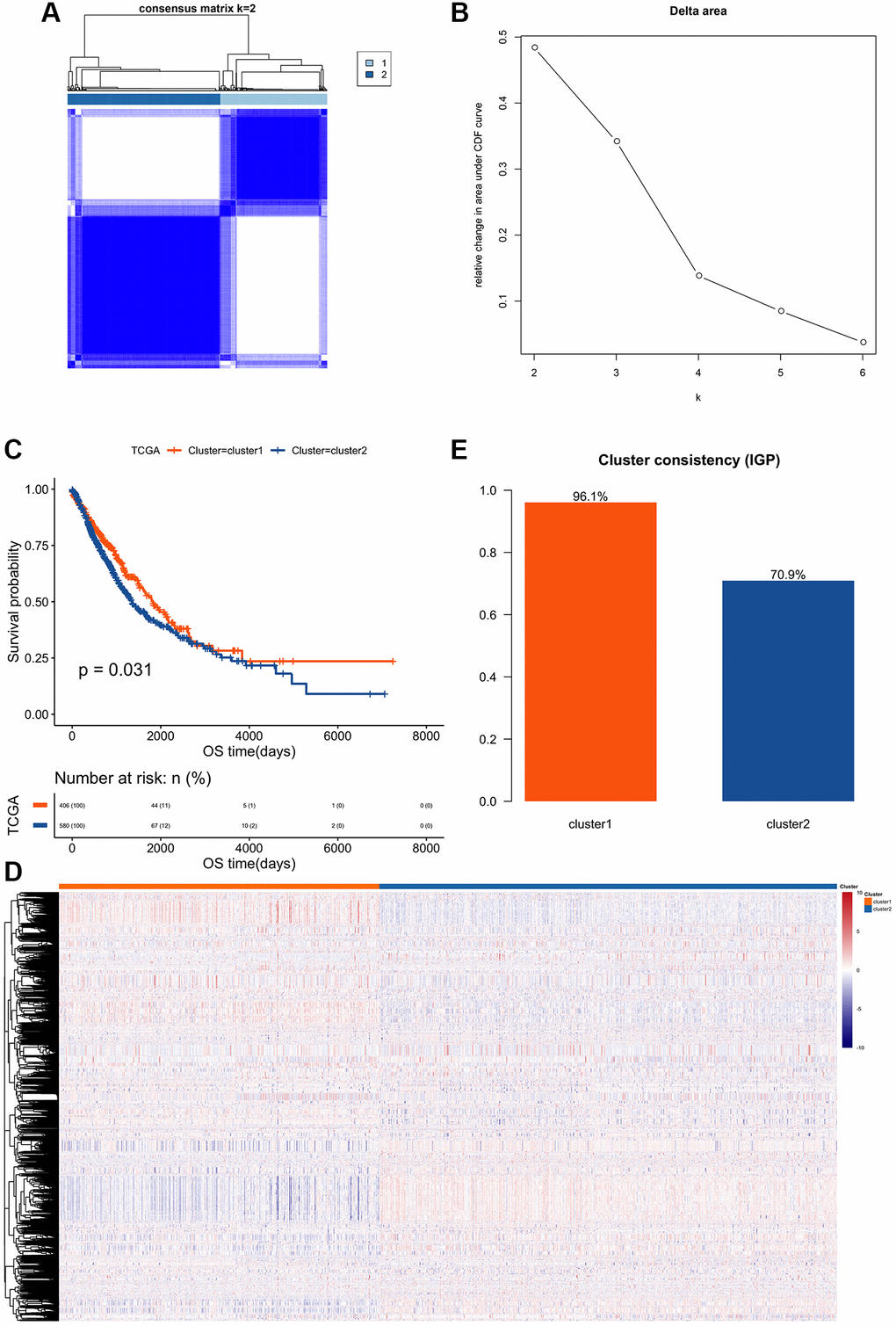

Based on the 5468 feature edges extracted in the previous step, consistent clustering analyses were put into practice based on their feature values. 986 cancer samples were divided into two different subtypes (Figure 1A and 1B). These two subtypes were named cluster 1 (N = 406) and cluster 2 (N = 580), which displayed significant differences in prognosis from each other (Figure 1C). The distance used for clustering was spearman, the clustering method was pam, and 100 repetitions were performed. The hierarchical clustering method was used to perform cluster analysis on the extracted features, and it was found that there were obvious specific feature in subtypes (Figure 1D).

In order to verify the clustering performance of gene interaction perturbation, we collected a set of independent expression data sets (GSE50081) from reported studies, and used the R package clusterRepro to calculate the intra-group proportion (IGP) of each subtype. The results showed that both cluster 1 and cluster 2 had higher IGP values (Figure 1E), which indicated that the clustering consistency of the cluster analysis based on the edge perturbation matrix in this study was better.

Comparative analysis of edge perturbation feature subtypes

Genomic heterogeneity indicators were obtained from reported studies, and statistical tests were used to explore their differences in edge perturbation feature subtypes. The results showed that the cluster 2 subtype with poor prognosis displayed higher tumor purity and genome ploidy compared with cluster 1 (Supplementary Figure 3A and 3B).

Based on previous analyses of TCGA samples, the transcriptome (mRNAsi) and epigenetic regulatory (EREG-mRNAsi) index of NSCLC samples were obtained. Through the evaluation of the stemness index in subtypes, it was found that the cluster 2 displayed a higher stemness index (Supplementary Figure 3C and 3D). The clinical characteristics of the two subtype samples were statistically analyzed. Fisher’s exact test results were displayed in the form of Stage, T, N staging and Age (p < 0.05, Supplementary Figure 3E–3J).

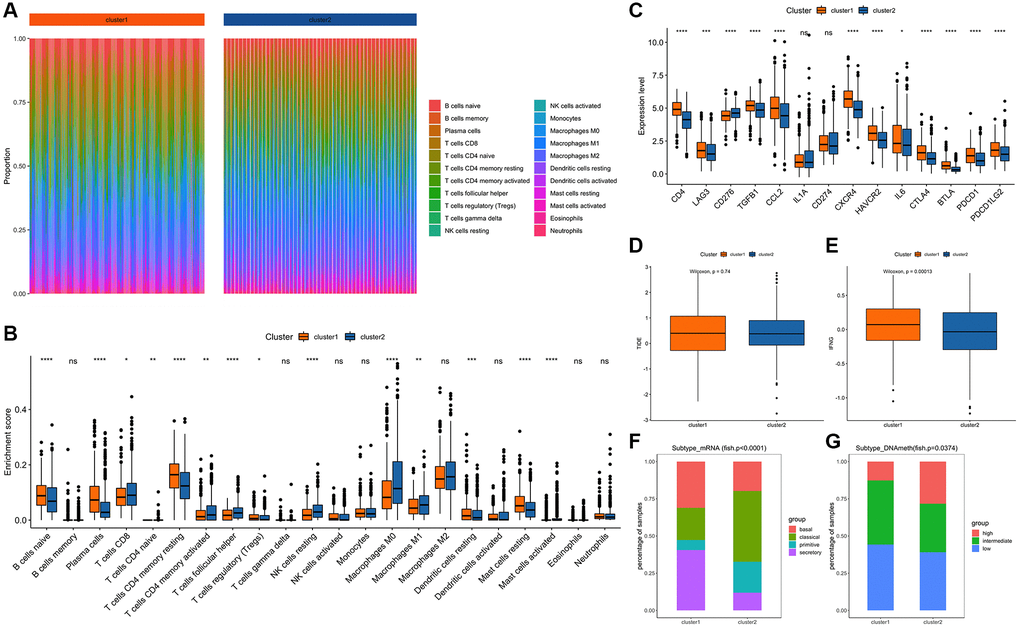

The infiltration scores of 22 immune cell types were calculated by the R package CIBERSORT, and the differences among subtype samples were further explored. The results showed that immune cells such as B cells naive, Plasma cells and Mast cells resting were significantly different in the two subtypes (p < 0.05, Figure 2A and 2B). On the other hand, the expression differences of important immune checkpoint molecules of the two subtypes were also analyzed, and it was found that multiple immune checkpoint molecules, such as PDCD1, CD4, and LAG3, were significantly different between the two subtypes (Figure 2C). Furthermore, based on online verification (http://gepia.cancer-pku.cn/detail.php?gene), CD276, CXCR4, and BTLA were found to be significantly related to the prognosis of LUAD, while CCL2 was significantly related to the prognosis of LUSC.

TIDE was used to evaluate the clinical efficiency of two subtypes receiving immune checkpoint inhibitors. There was no significant difference in TIDE scores between the two subtypes, but there were significant differences for the expression of IFNG immune checkpoints (Figure 2D and 2E).

Comparing the edge perturbation feature subtypes with the reported subtypes of NSCLC, the fish results showed that the distribution of cancer subtypes corresponding to the edge perturbation feature subtypes were different (Figure 2F and 2G). To further explore the molecular differences between the two sample sets, the R package maftools was used for somatic mutations analysis. Among the top 20 genes with mutation frequencies in the two groups, the distribution of the 15 common mutation genes that appeared in both of them were shown in (Figure 3A and 3B). In order to observe the proportion of high-frequency mutation genes in the subtypes in detail, a line chart of the proportions of these 15 genes between the two subtypes was drawn and displayed in (Figure 3C). The distribution of CNV in the two sets of samples was shown in (Figure 3D and 3E), which indicated that the CNV frequency of the two sets was significantly different (p < 0.05, Figure 3F).

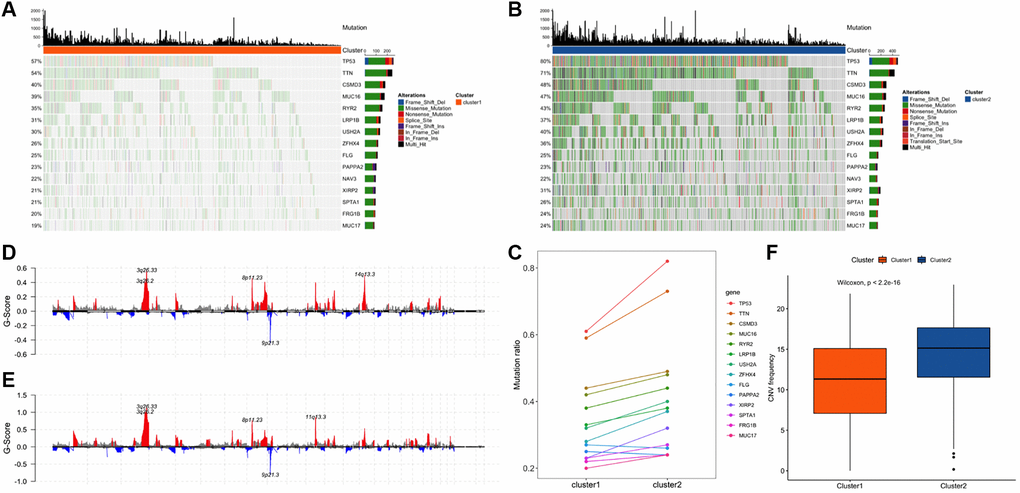

In order to further investigate the correlation between the innate immune escape mechanism and subtypes, we compared some potential factors that determine tumor immunogenicity of the two subtypes, including tumour mutational load (TML), homologous recombination deficiency (HRD), and neoantigen load, chromosome instability (Supplementary Figure 4). The functional enrichment results of the two subtype-specific clusters were further analyzed. The cluster 1 was found to be significantly enriched in those pathways such as Peptide chain elongation and Translation initiation complex formation, while the cluster 2 was significantly enriched in Fc epsilon receptor (FCERI) signaling, Fcgamma receptor (FCGR) dependent phagocytosis and other pathways (Supplementary Figure 5A and 5B).

Identification of differential methylation sites among characteristic subtypes

The TCGA-LUAD and TCGA-LUSC methylation value matrices were merged, and the samples (N = 797) that appeared in the two subtypes would be retained, and then more than 70% of the samples with NA sites were filtered out and filled with 0. Finally, after filtering out and filling, 395786 methylation sites were collected for differential analyses.

According to the fold change (|logFC|>0.1) and the significance threshold (FDR<0.01), a total of 7304 differentially methylated sites were screened in the two subtype samples by the R package limma. The |logFC| values of the differentially methylated sites were sorted from big to small, and the top 200 differentially methylated sites were plotted (Supplementary Figure 5C).

Construction and verification of risk scoring models based on differentially expressed prognostic-related genes

According to the fold change (|logFC|>0.585) and the significance threshold (FDR<0.01), a total of 945 differentially expressed genes were screened from the two subtype samples by the R package limma (Supplementary Figure 5D and 5E). Univariate cox regression analysis was performed on these 945 differentially expressed genes. When P value was less than 0.01, 9 differentially expressed genes were found to be related to the prognosis, and a forest plot was shown in (Figure 4A).

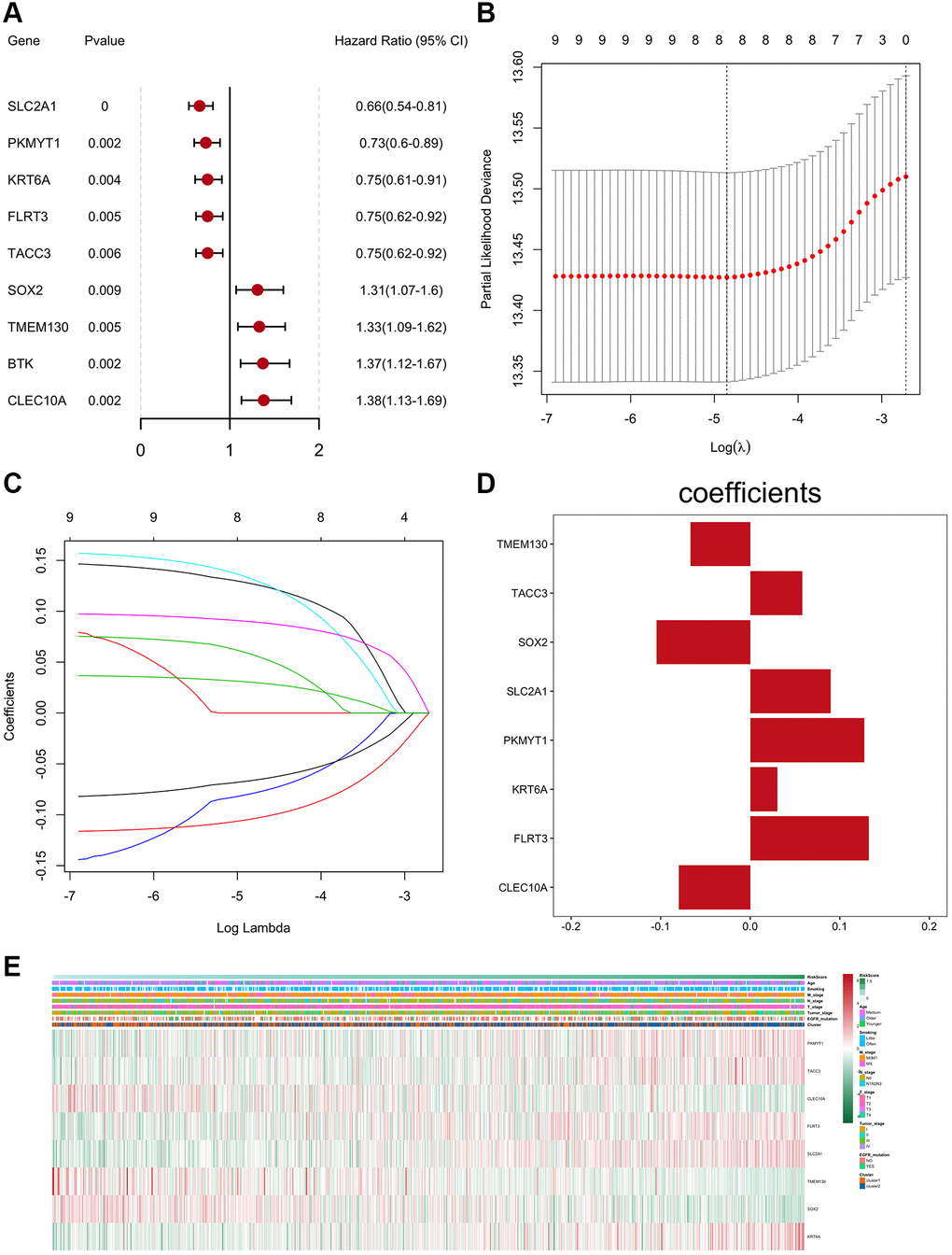

The LASSO method was further used to screen out 8 key prognostic genes (Figure 4B–4E), and after weighting the expression of these 8 genes by the LASSO regression coefficient, a risk scoring model for predicting the survival of the sample was constructed (“exp” represents gene expression level, “coef” represents LASSO regression coefficient).

$$\text{RiskScore}={\displaystyle \sum \exp \times coef}$$

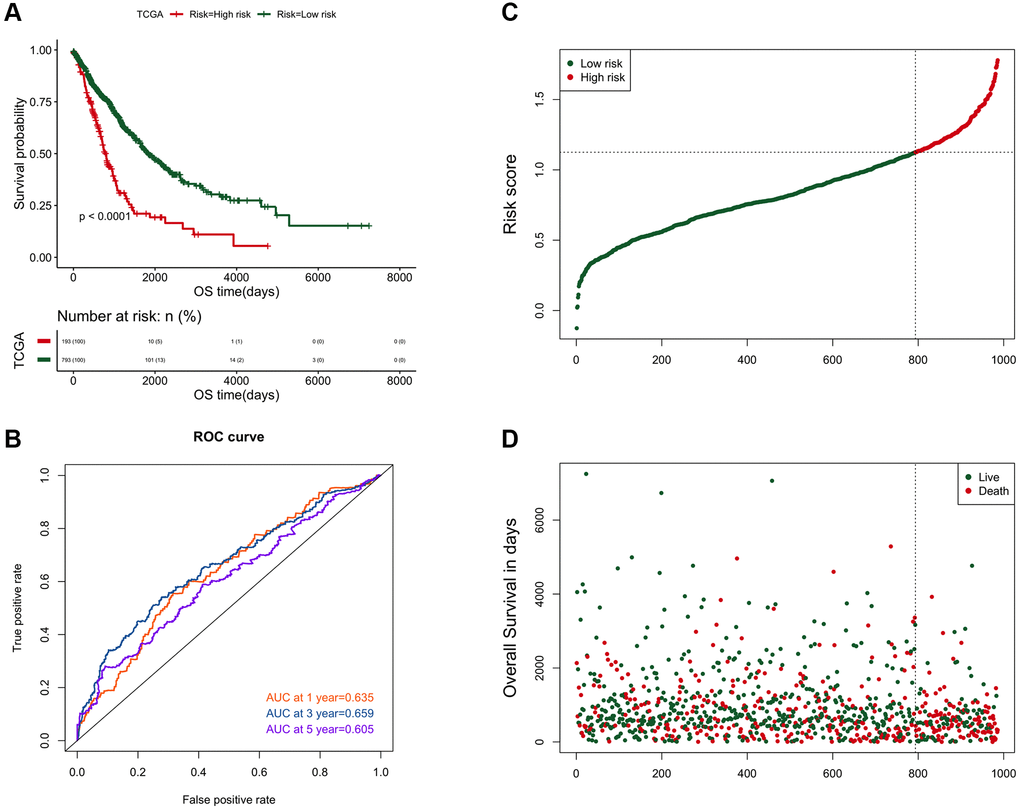

The risk score of each cancer sample was calculated based on the risk model. The surv_cutpoint function in the R package survminer was used to determine the classification threshold (1.1254), and further divide the cancer samples into high and low risk groups (N = 193/793), while significant prognosis differences were found in the two groups (Figure 5A). ROC was used to evaluate the predictive efficiency of the model, the AUC of cancer samples at 1, 3, and 5 years were 0.635, 0.659, and 0.605 (Figure 5B–5D).

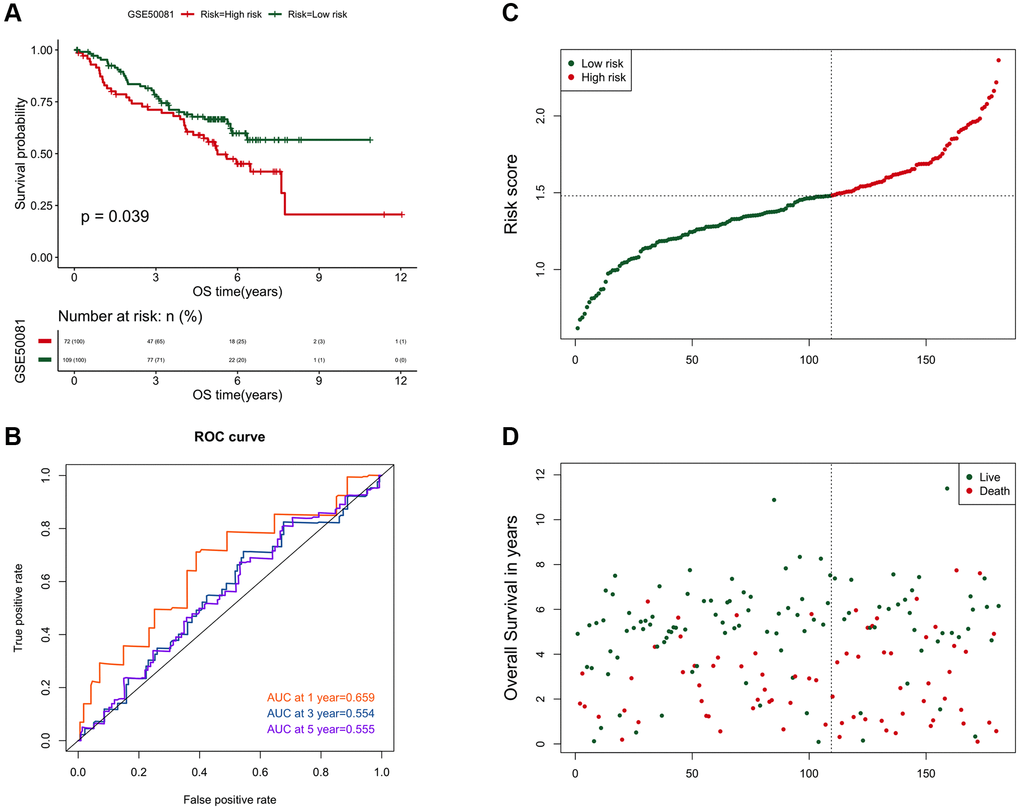

It was verified in the independent data set GSE50081, and a similar analysis result trend was obtained (Figure 6A). The ROC predictive efficiency AUC values at 1, 3 and 5 years were 0.659, 0.554 and 0.555 (Figure 6B–6D).
