Research Paper Volume 9, Issue 3 pp 914—931
Overexpression of Rab1B and MMP9 predicts poor survival and good response to chemotherapy in patients with colorectal cancer

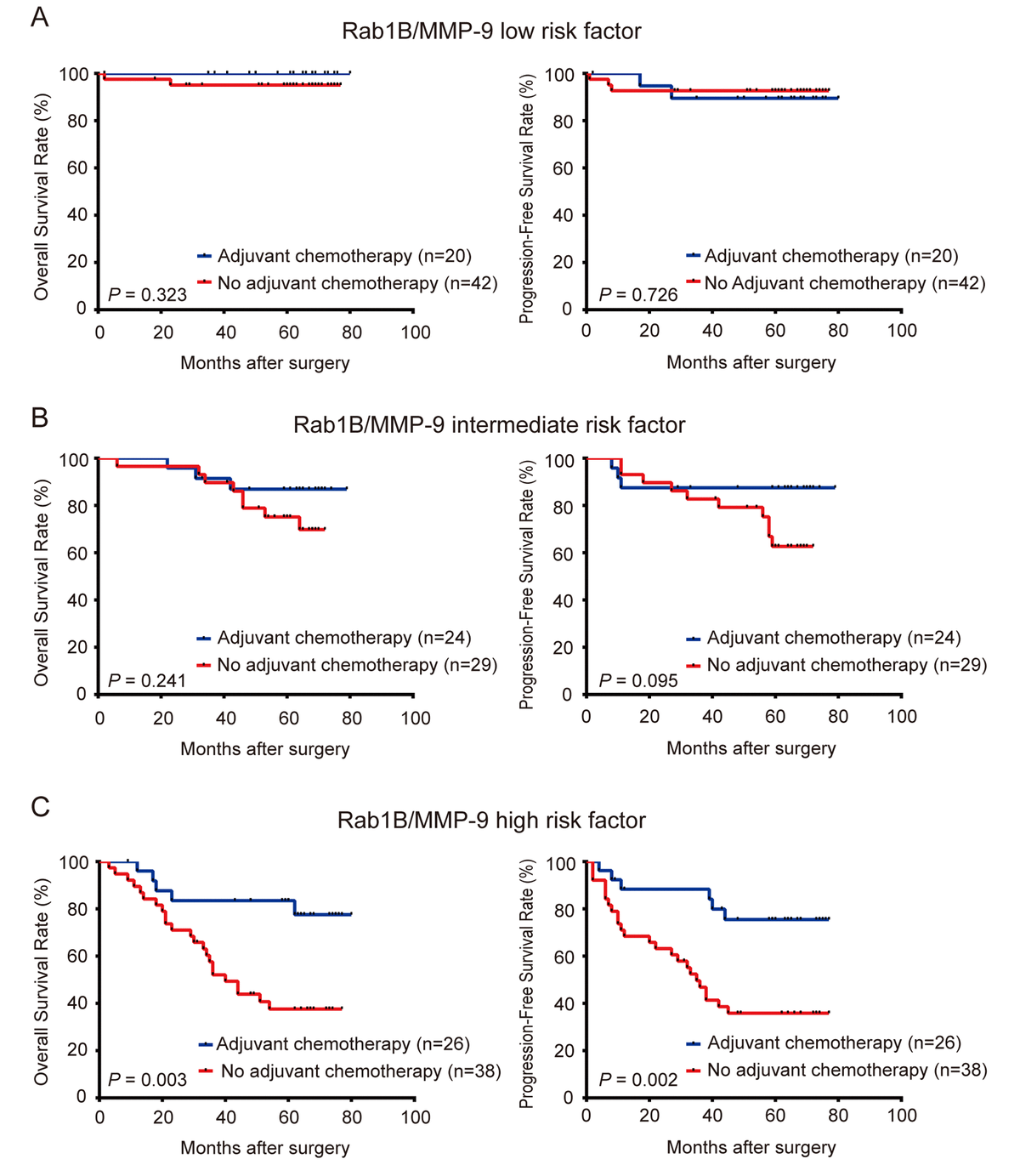

Figure 6. Combined expression of Rab1B and MMP9 proteins predicts the outcome of adjuvant chemotherapy in CRC patients. CRC Patients were stratified into three risk groups by the combined risk score of Rab1B and MMP9 protein expression. Kaplan-Meier survival was used to compare OS and PFS of CRC patients with or without adjuvant chemotherapy in low risk group (A), intermediate risk group (B), and high risk group (C).
