Common and unique transcriptional responses to dietary restriction and loss of insulin receptor substrate 1 (IRS1) in mice

Melissa M. Page; Eugene F. Schuster; Manikhandan Mudaliar; Pawel Herzyk; Dominic J. Withers; Colin Selman

doi:doi:10.18632/aging.101446

← Back

Research Paper Volume 10, Issue 5 pp 1027—1052

Common and unique transcriptional responses to dietary restriction and loss of insulin receptor substrate 1 (IRS1) in mice

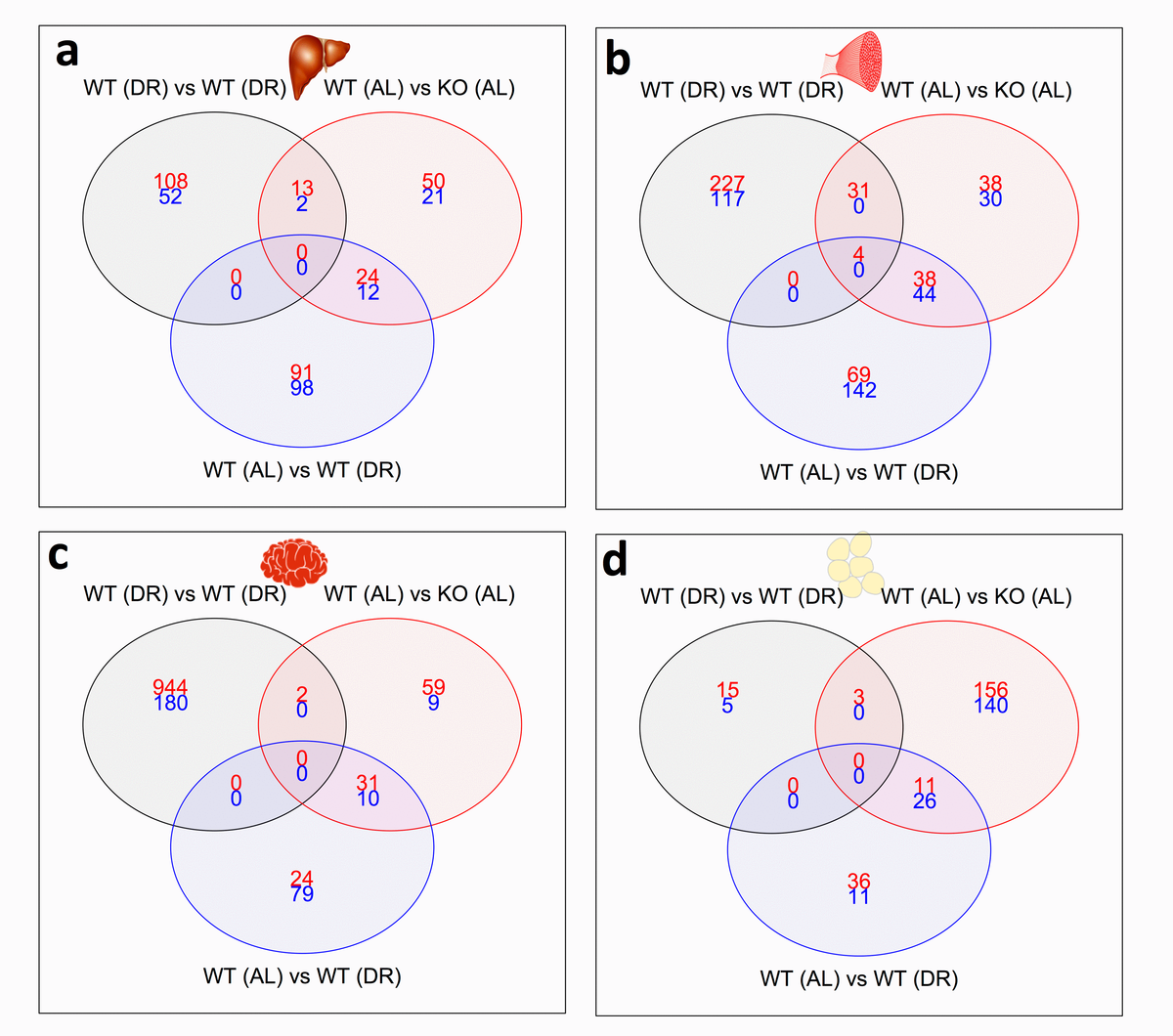

Figure 5. Shared and distinct gene expression profile between KO^AL, KO^DR and WT^DR mice. Venn diagram of similar and separate expressed genes across (a) liver, (b) skeletal muscle, (c) WAT and (d) skeletal muscle. Significantly up-regulated genes are shown in red and significantly down-regulated genes are shown in blue. Common genes that are significantly up- or down-regulated are found in overlapping circles. The numbers in the bottom far right denotes the number of genes expressed but not significantly up-regulated (red) or down-regulated (blue).
