Research Paper Volume 10, Issue 11 pp 3148—3160

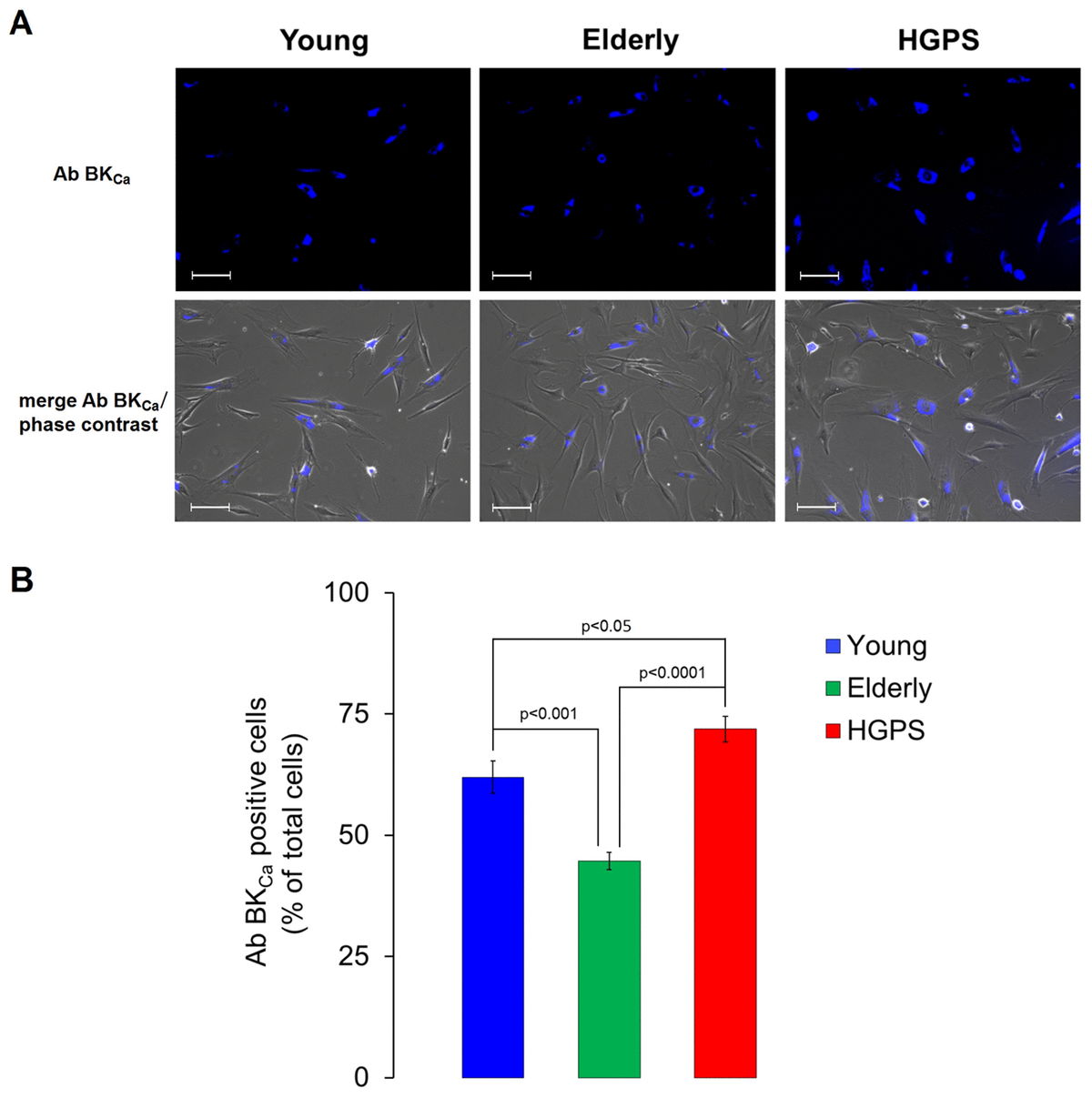

Figure 3. Immunofluorescence detection for BK_Ca channels expressed on plasma membrane in living cells. (A) Fluorescence and fluorescence/phase contrast merged micrographs of isolated hDF obtained from young, elderly and HGPS donors incubated with an anti-BK_Ca α subunit primary antibody visualized by the conjugated Alexa Fluor 350 fluorophore and acquired at 200× magnification. Scale bars: 100 μm. (B) Histogram showing the percentage of cells expressing a blue fluorescence intensity over a fixed threshold (% ± SEM). Significant differences calculated according to the Student’s t-test (p<0.05) are indicated.
