Research Paper Volume 10, Issue 12 pp 3745—3760

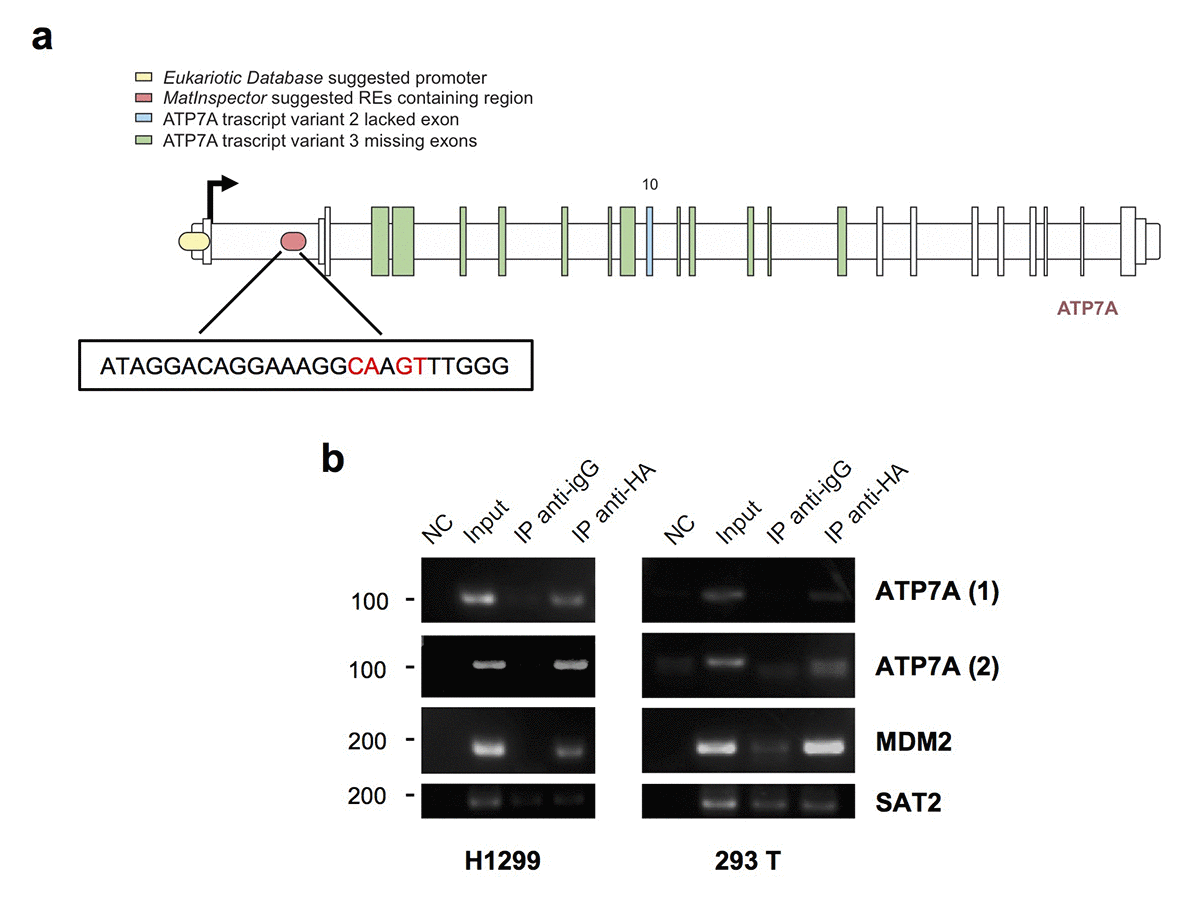

Figure 3. TAp73 physically binds ATP7A genomic areas. (a) Schematic map of the human ATP7A gene. MatInspector professional software suggested promoter region containing p53 family members-response elements is indicated in red; the insert shows the sequence of the p53 family member-RE chosen, the nearest to the TSS (ChrX: 77,961,553-77,962,65). In yellow ATP7A promoter region found on Eukaryotic Promoter Database by selecting a region from -1000 to 100 bp relative to TSS CAGEseq derived (ChrX: 77,909,608- 77,910,867) [Human Dec. 2013 (GRCh38/hg38)]. (b) A tagged TAp73 was overexpressed in H1299 and 293T cell lines for 24h. The sonicated chromatin was incubated with anti-HA or IgG antibodies. Immunoprecipitated DNA was amplified by PCR with ATP7A primers, one (ATP7A1) amplifying Eukaryotic Database suggested promoter, the other (ATP7A2) recognizing the p53-response element found on MatInspector. ChIP on MDM2 promoter was performed as a positive control, and ChIP on SAT2 promoter as a negative control. NC: PCR negative control. Figure shows a representative replicate of two independent experiments.
