Research Paper Volume 11, Issue 2 pp 350—370
BCL2L10/BECN1 modulates hepatoma cells autophagy by regulating PI3K/AKT signaling pathway

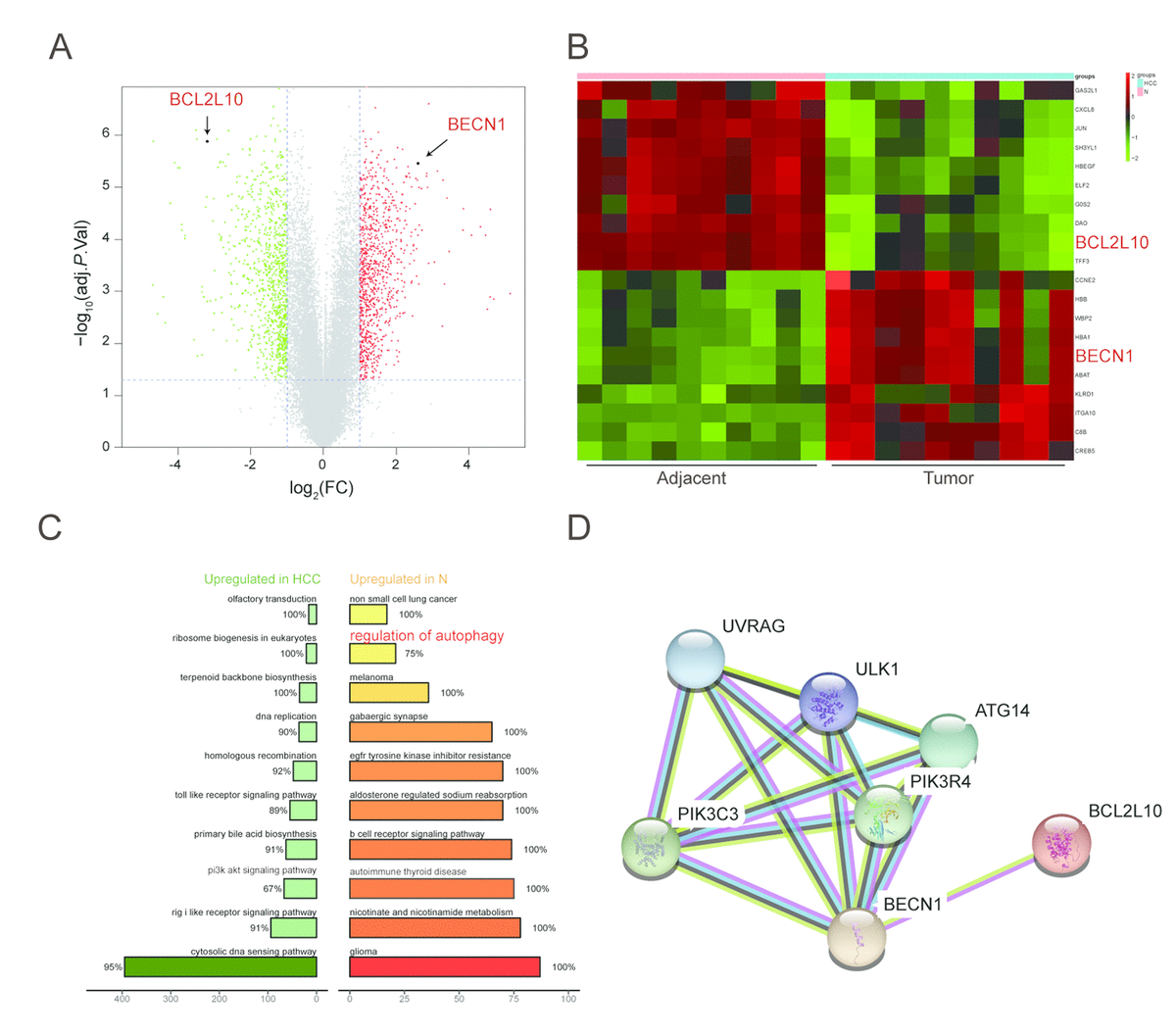

Figure 1. Function annotations for BCL2L10 / BECN1 in HCC. (A-B) Hierarchical cluster analysis of the 10 most up and down regulated mRNAs. In the heat maps, green represents genes that are down-regulated whereas red represents genes that are up-regulated. (C) Plot of ten most enriched KEGG pathways in HCC. Pathways are ordered by normalized enrichment score (NES). Percentage beside the bar indicates the proportion of differential genes in pathway gene set. (D) STRING co-expression network for BCL2L10/ BECN1 and their related signaling pathways.
