Research Paper Volume 11, Issue 10 pp 3262—3279
Abnormal gut microbiota composition contributes to cognitive dysfunction in streptozotocin-induced diabetic mice

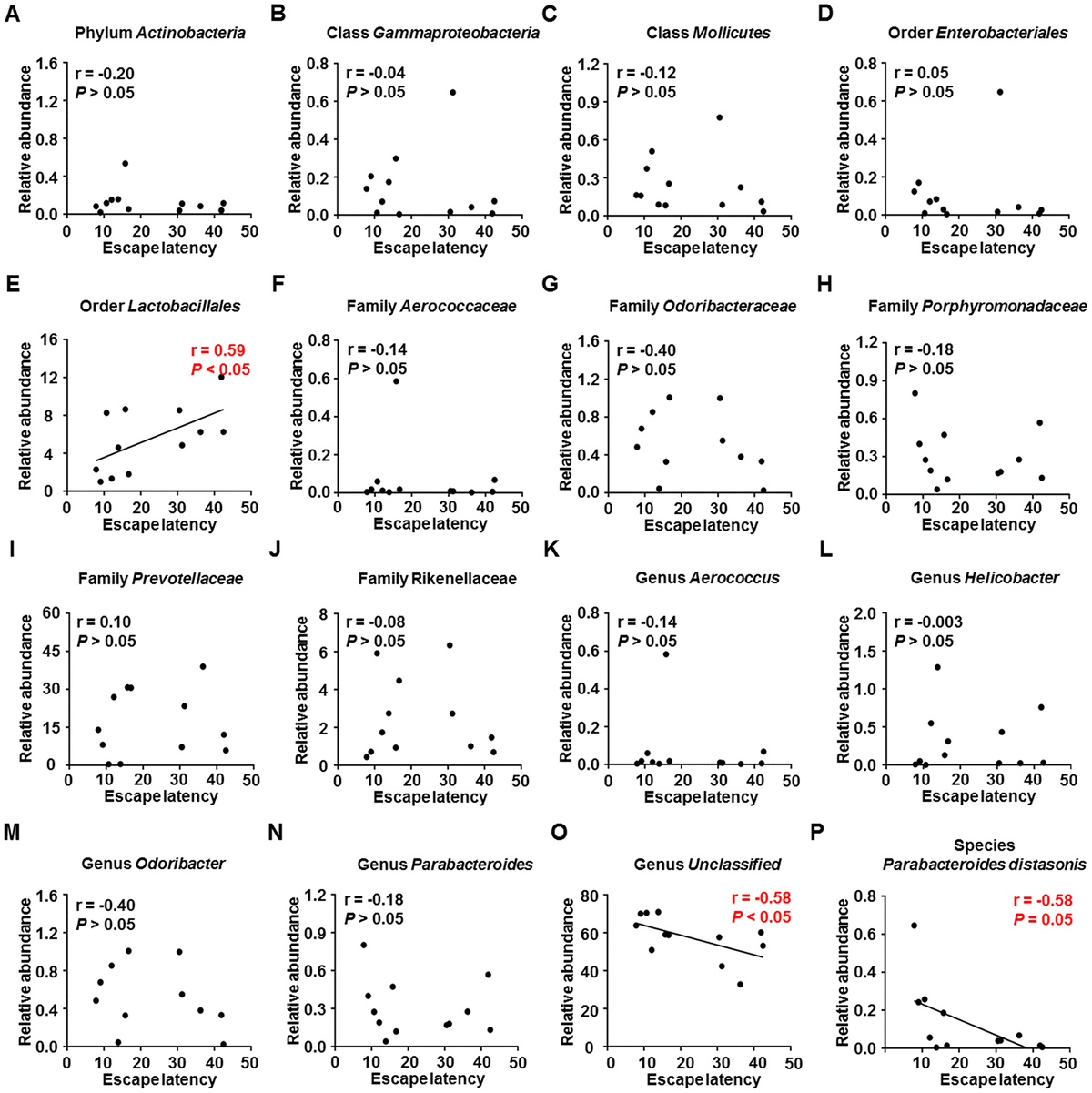

Figure 5. Correlations between MWM escape latency and relative abundance of various gut microbes (N = 12). (A) Phylum Actinobacteria (r = −0.20, P > 0.05). (B) Class Gammaproteobacteria (r = −0.04, P > 0.05). (C) Class Mollicutes (r = −0.12, P > 0.05). (D) Order Enterobacteriales (r = 0.05, P > 0.05). (E) Order Lactobacillales (r = 0.59, P < 0.05). (F) Family Aerococcaceae (r = −0.14, P > 0.05). (G) Family Odoribacteraceae (r = −0.40, P > 0.05). (H) Family Porphyromonadaceae (r = −0.18, P > 0.05). (I) Family Prevotellaceae (r = 0.10, P > 0.05). (J) Family Rikenellaceae (r = −0.08, P > 0.05). (K) Genus Aerococcus (r = −0.14, P > 0.05). (L) Genus Helicobacter (r = −0.003, P > 0.05). (M) Genus Odoribacter (r = −0.40, P > 0.05). (N) Genus Parabacteroides (r = −0.18, P > 0.05). (O) Genus Unclassified (r = −0.58, P < 0.05). (P) Species Parabacteroides distasonis (r = −0.58, P = 0.05). MWM: Morris water maze.
