Research Paper Volume 11, Issue 14 pp 5173—5191

Genetic polymorphisms and transcription profiles associated with intracranial aneurysm: a key role for NOTCH3

class="figure-viewer-img"

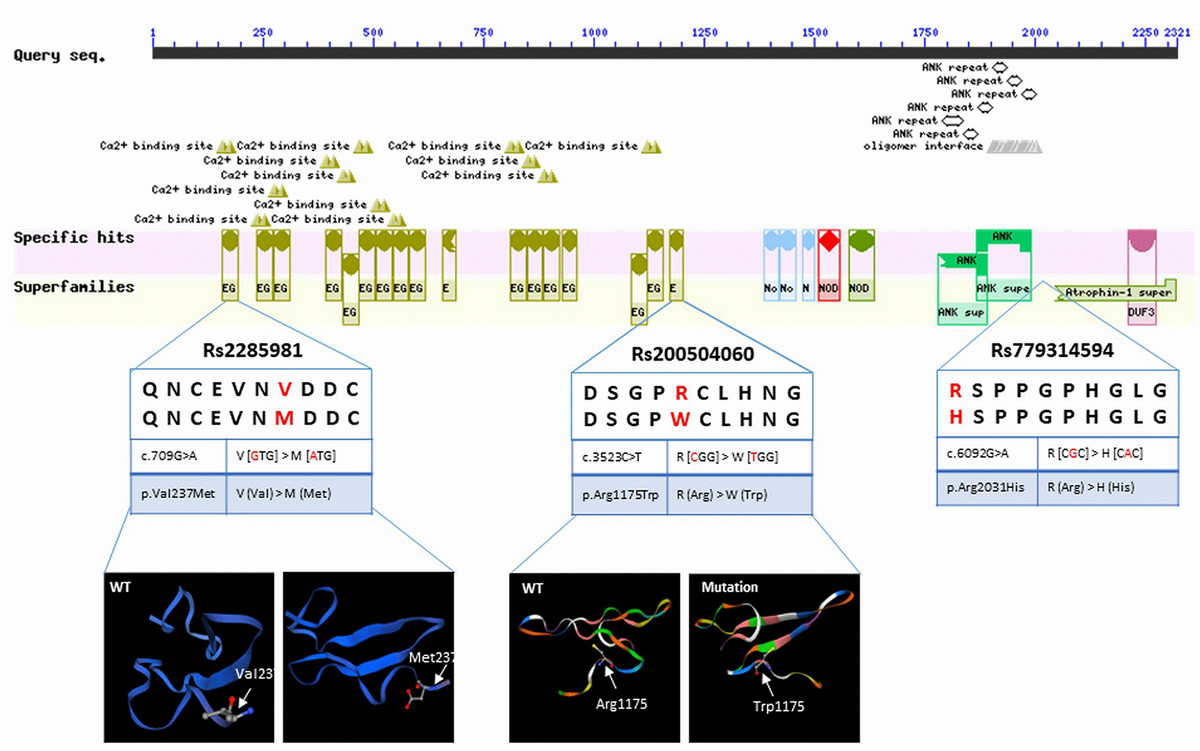

Figure 4. Sequence query of NOTCH3 conserved domains. Reprinted from https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi?INPUT_TYPE=live&SEQUENCE=AAB91371.1. Data show allelic variants that result in amino acid changes and protein structure, as modeled by SWISS-MODEL (https://www.swissmodel.expasy.org/).
