Research Paper Volume 12, Issue 5 pp 4204—4221
Comprehensive characterization of endometrial competing endogenous RNA network in infertile women of childbearing age

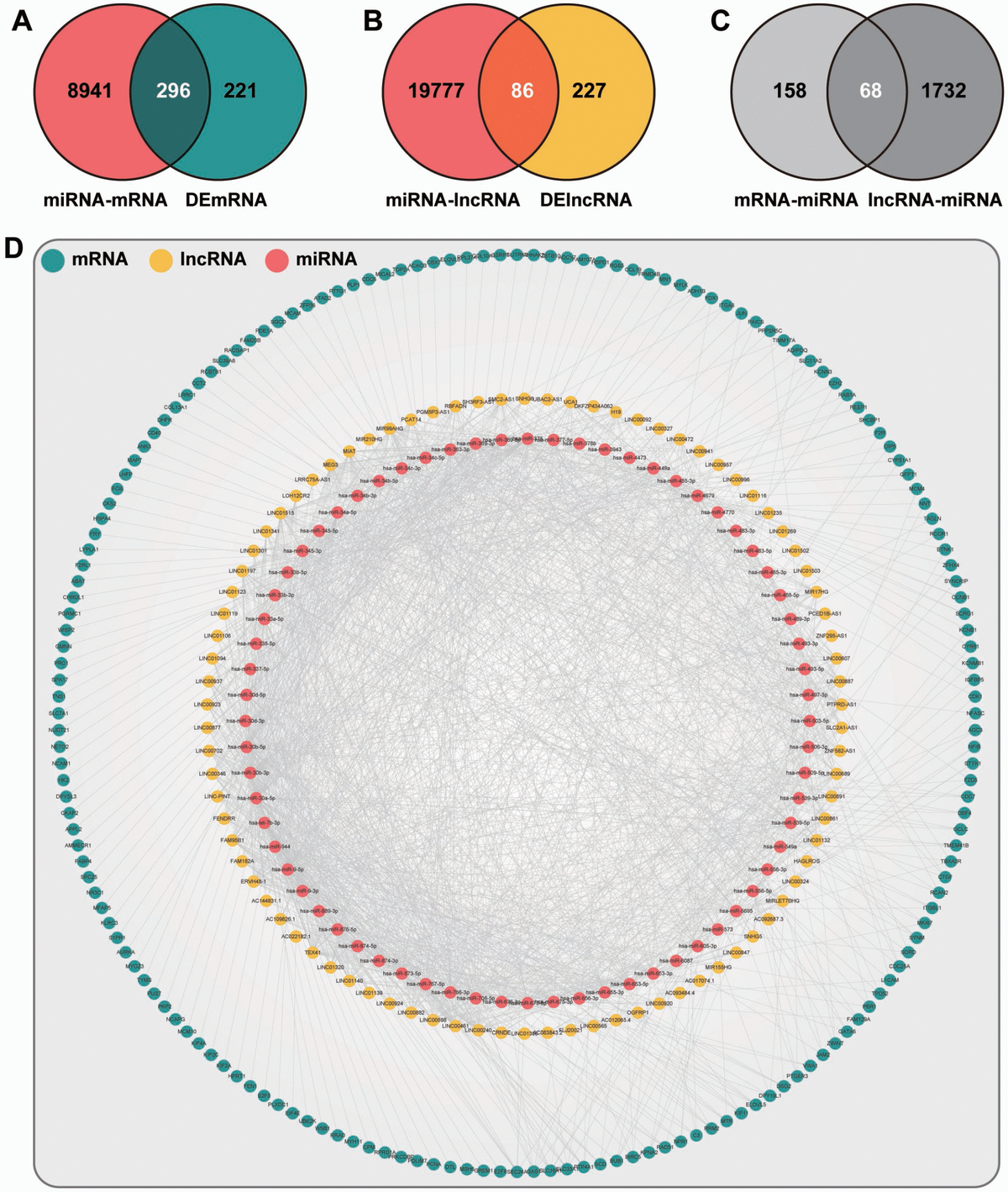

Figure 4. The layout of the ceRNA network. (A) Venn diagram of mRNAs. Red, mRNAs targeted by DEmiRNAs. Blue, mRNAs differentially expressed in endometriosis. (B) Venn diagram of lncRNAs. Red, lncRNAs targeted by DEmiRNAs. Yellow, lncRNAs differentially expressed in endometriosis. (C) Venn diagram of miRNAs. Light gray, miRNAs related to intersection mRNAs in (A). Dark gray, miRNAs related to intersection lncRNAs in (B). (D) The topological layout of ceRNA network based on DEmRNAs, DElncRNAs, and DEmiRNAs.
