Research Paper Volume 12, Issue 16 pp 16420—16436
Prognostic value and underlying mechanism of KIAA0101 in hepatocellular carcinoma: database mining and co-expression analysis

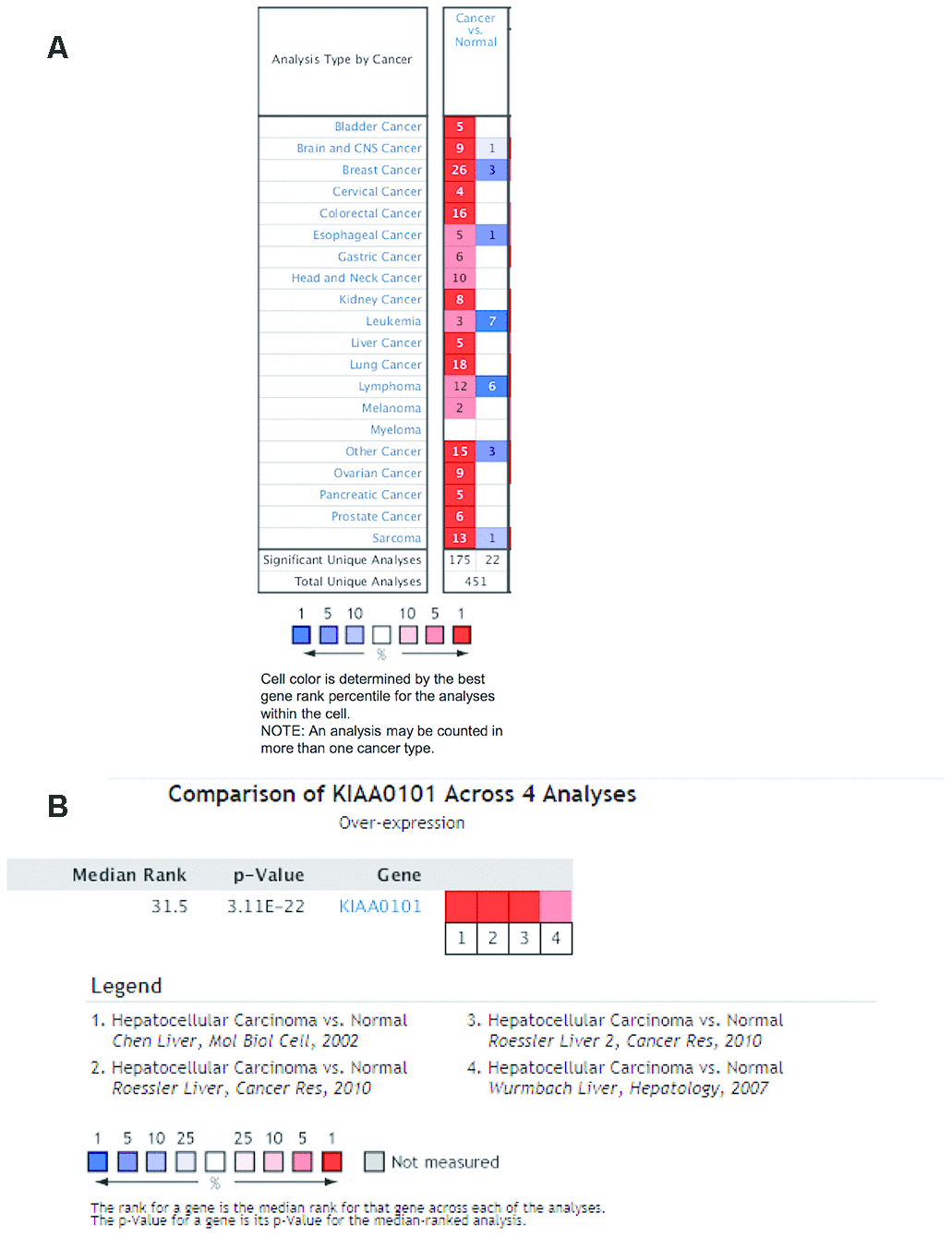

Figure 2. Ranking mRNA expression levels of KIAA0101 in a variety of cancers in the database ONCOMINE. (A) The number in the colored cell represents the number of analyses meeting thresholds. The cell color is determined by the best gene rank percentile for the analyses within the cell. The more intense red (overexpression) or blue (underexpression) indicates a more highly significant overexpressed or underexpressed gene. (B) mRNA expression of KIAA0101 in HCC demonstrated by 4 unique analyses in the ONCOMINE database: the Chen liver, the Roessler liver, the Roessler liver 2, and the Wurmbach liver datasets. The median rank for KIAA0110 is across each of the analyses. The p-value is for the media-ranked analysis. Darker red indicates a higher best gene rank percentile for the analyses within the cell. Abbreviation: HCC: hepatocellular carcinoma.
