Research Paper Volume 12, Issue 20 pp 20413—20431

Systemic analyses of expression patterns and clinical features for GIMAPs family members in lung adenocarcinoma

class="figure-viewer-img"

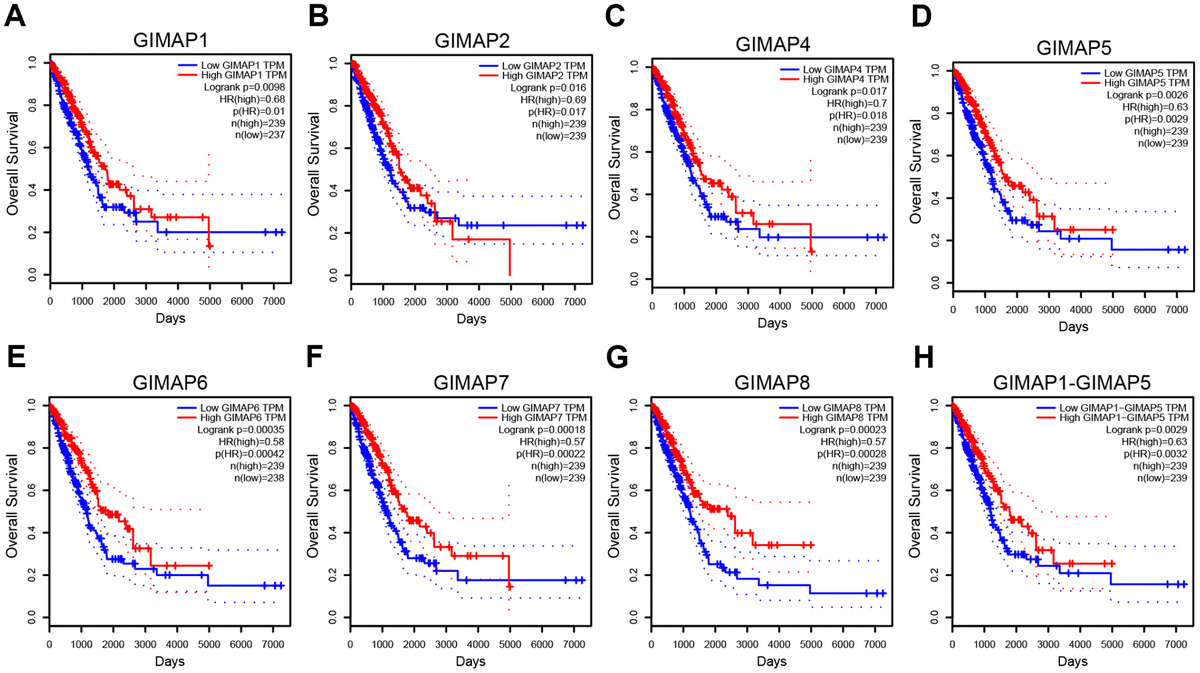

Figure 11. Prognostic value of mRNA expression of distinct GIMAPs in LUAD patients (GEPIA). mRNA expressions of all the GIMAPs family members were significantly associated with LUAD patients’ prognosis, higher mRNA expression of GIMAPs were significantly associated with longer overall survival of LUAD patients (AH).
