Research Paper Volume 13, Issue 3 pp 4138—4156
Diagnostic and prognostic values of AKR1C3 and AKR1D1 in hepatocellular carcinoma

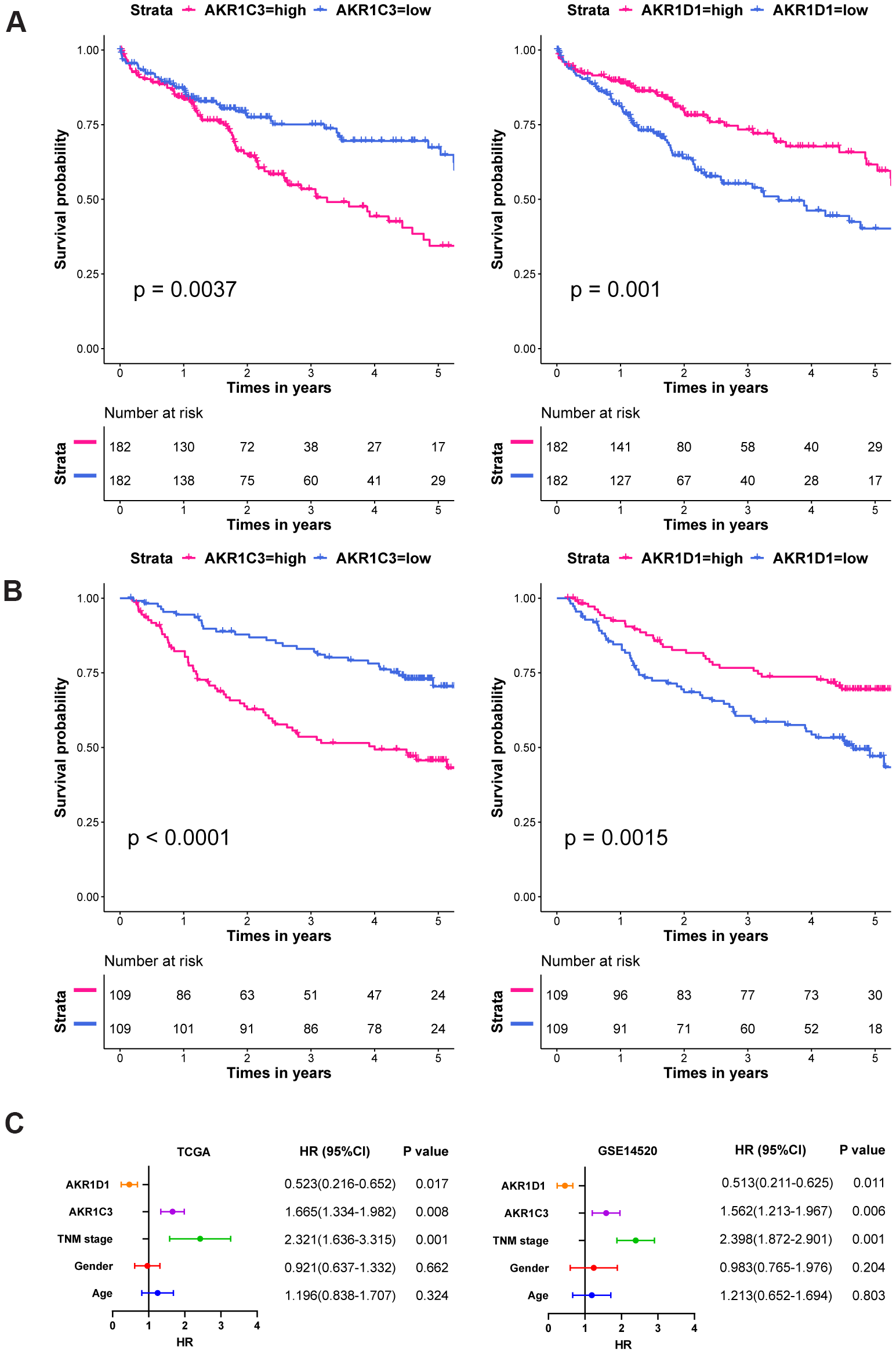

Figure 2. The survival curves and multivariate COX regression of AKR1C3 and AKR1D1. (A) The survival curves of AKR1C3 and AKR1D1 in the training set. (B) The survival curves of AKR1C3 and AKR1D1 in the validation set. (C) The multivariate COX regression of AKR1C3 and AKR1D1 in the training and validation sets.
