Research Paper Volume 13, Issue 3 pp 4428—4451
Tsukushi is a novel prognostic biomarker and correlates with tumor-infiltrating B cells in non-small cell lung cancer

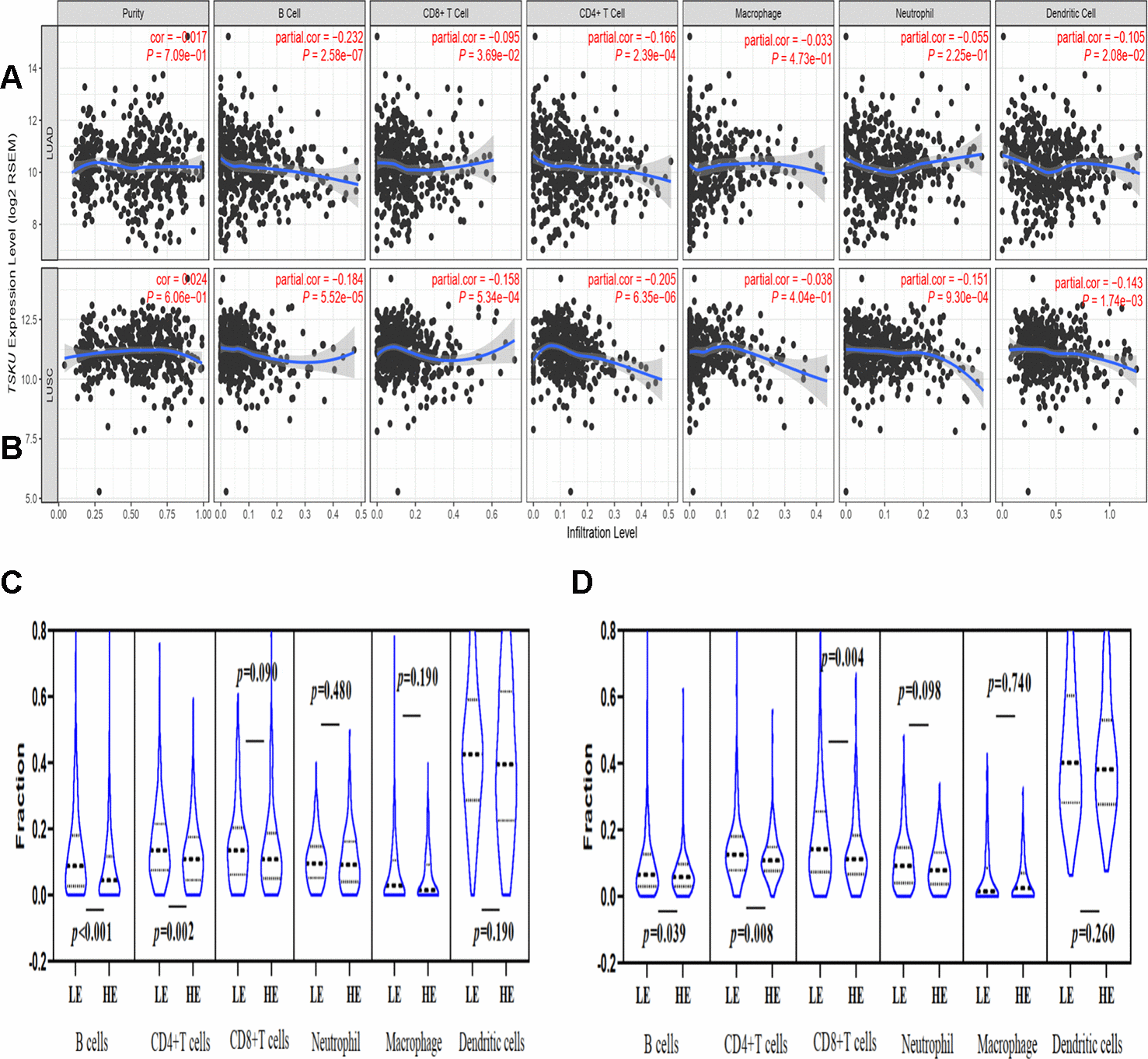

Figure 3. Correlations of TSKU expression with immune infiltration levels in LUAD and LUSC using TIMER database. (A) The correlations of TSKU expression with infiltrating levels of B cells, CD8+ T cells, CD4+ T cells, and dendritic cells in LUAD (N = 515). (B) The correlations of TSKU expression with infiltrating levels of B cells, CD8+ T cells, CD4+ T cells, neutrophils, and dendritic cells in LUSC (N = 501). (C) Comparing the proportions of different TIICs between groups with high TSKU expression levels (N = 238) and low TSKU expression levels (N = 238) in LUAD samples. (D) Comparing the proportions of different TIICs between groups with high TSKU expression levels (N = 241) and low TSKU expression levels (N = 241) in LUSC samples (LE, low expression; HE, high expression).
