Research Paper Volume 13, Issue 13 pp 17768—17788
Methylation silencing CDH23 is a poor prognostic marker in diffuse large B-cell lymphoma

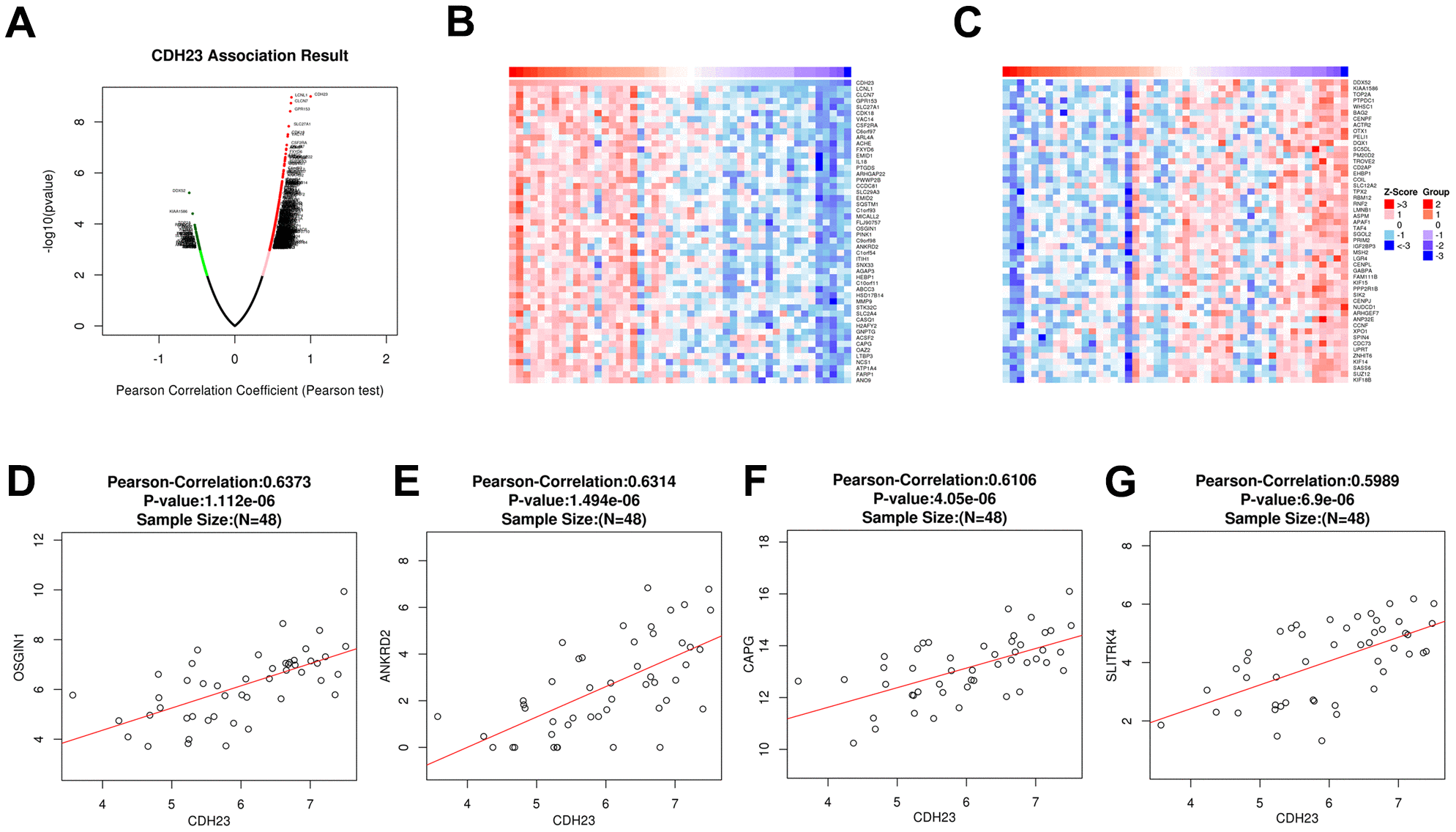

Figure 3. Correlated significant genes of CDH23 and gene correlation expression analysis for CDH23 in DLBCL (LinkedOmics). (A) Volcano plots of CDH23 correlated genes in DLBCL. Red suggests positively correlated genes and green shows negatively correlated genes. (B) Heat map of positively correlated genes with CDH23 in DLBCL, respectively (top 50). (C) Heat map of negatively correlated genes with CDH23 in DLBCL, respectively (top 50). (D) The scatter plots shows Pearson-correlation of CDH23 expression with OSGIN1. (E) The scatter plots shows Pearson-correlation of CDH23 expression with ANKRD2. (F) The scatter plots shows Pearson-correlation of CDH23 expression with CAPG. (G) The scatter plots shows Pearson-correlation of CDH23 expression with SLITRK4. OSGIN1, oxidative stress induced growth inhibitor 1. ANKRD2, ankyrin repeat domain 2. CAPG, capping actin protein, gelsolin like. SLITRK4, SLIT and NTRK like family member 4.
