Research Paper Volume 13, Issue 17 pp 20992—21008
Transcriptomic analysis of elderly women with low muscle mass: association with immune system pathway

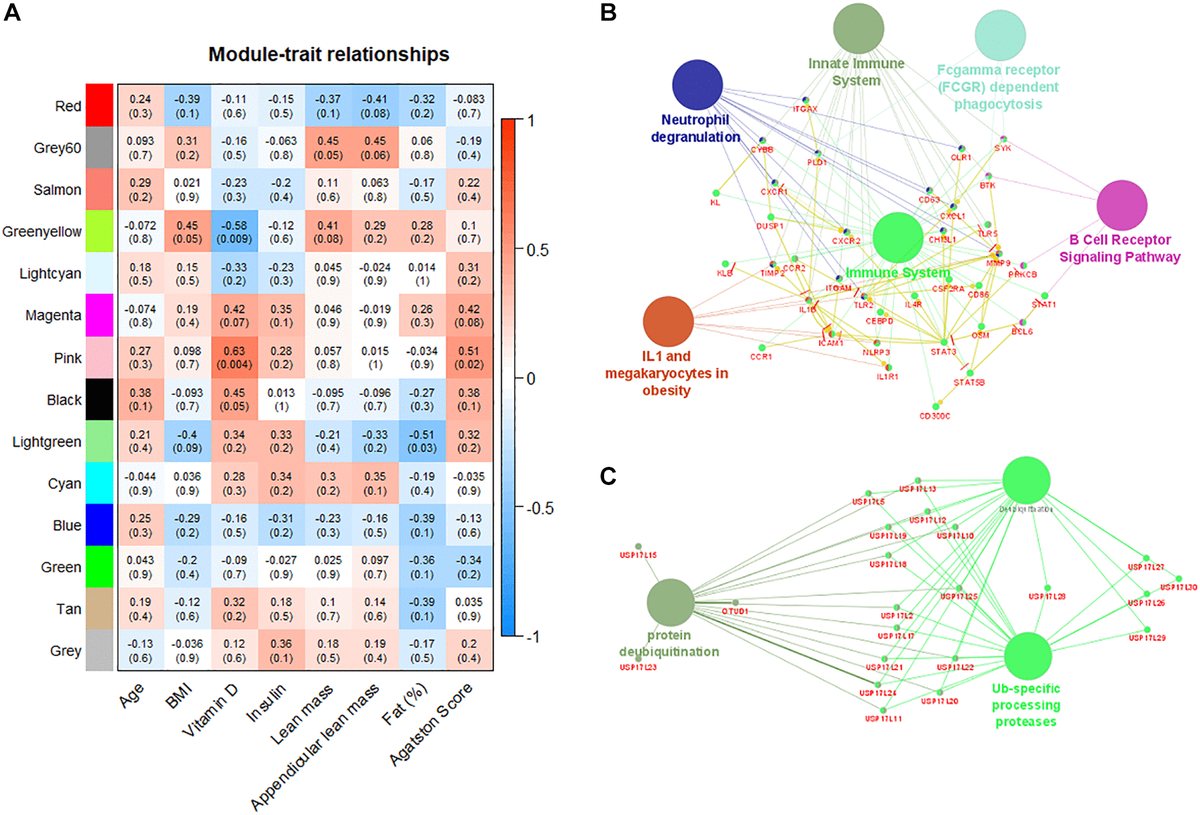

Figure 4. Weighted gene co-expression network analysis reveals modules correlated with patient´s characteristics. (A) Correlation matrix of detected gene modules with the characteristics of patients. Red color indicates positive correlation and blue color indicates negative correlation. Pink module is positively correlated with plasma levels of vitamin D and Agatston score. (B) Pink module is enriched with immune system pathways. (C) Green-yellow module is enriched with pathways associated with ubiquitination processes.
