Do senescence markers correlate in vitro and in situ within individual human donors?

Introduction

Five decades ago, Hayflick and Moorhead first described the phenomenon of limited replicative capacity of cultured primary cells, termed cellular replicative senescence [1,2]. It was postulated that this in vitro (i.e. in cultured cells) phenomenon of stable cell cycle arrest might be related to aging of the whole organisms in vivo (i.e. in living organisms). Since then many studies have focussed on cellular senescence in vitro, and have identified several triggers inducing senescence as well as pathways leading to senescence (reviewed in [3]). Considerable interest has also been given to the possible in vivo implications of senescence; by studying relevant functions, including embryonic development and attenuating liver fibrosis as well as consequences of senescence in animal models, notably age-related diseases, and tumorigenesis [4–8]. In the last few decades [9] tissues have been studied to detect cellular senescence in situ (i.e. in tissue), providing knowledge on the prevalence of senescent cells in humans at older ages or with disease.

Apart from growth arrest, several other markers of cellular senescence have been studied (reviewed in [10]). A frequently used marker is senescence-associated β- galactosidase (SAβ-gal) activity, which is upregulated in, but not essential for senescence [9,11]. Other markers are based on triggers of senescence such as DNA damage foci or reactive oxygen species (ROS), expression of genes involved in cell cycle arrest or factors that are secreted by senescent cells [3,10,12]. Most of these markers have been established by detecting senescence in vitro, but some can also be used in situ [13]. However, the number of studies on fibroblasts reporting on senescence in situ compared to in vitro is disproportionally small [14], and there is a lack of knowledge concerning the correlation of senescence markers between these conditions. In addition, only a few attempts have been made to study the correlation between different senescence markers.

Our aim is to study the correlations between the same senescence markers (A) and between different senescence markers within individual donors (B), using a unique dataset of highly standardized experiments. These experiments included in vitro short-term experiments (1); in vitro long-term experiments (2), and in situ experiments within skin biopsies (3). First we investigated correlations between the same senescence markers: in vitro between duplicate experiments (1A) and in vitro between short-term and long-term experiments (2A). In addition, we investigated correlations between different senescence markers: between in vitro markers within the same short-term experiments (1B); between in vitro markers within the same long-term experiments (2B); and intra-individually between in vitro markers and in situ p16INK4a positivity in skin biopsies (3B).

Results

Correlations between the same senescence markers

First, we studied correlations between the same markers, both in non-stressed and stressed conditions. The correlation of duplicates of each senescence marker (p16INK4a, telomere associated foci - TAF, reactive oxygen species - ROS and senescence-associated β-gal - SAβ-gal) were tested between experiment I and II of the short term experiments (Table 2). Most markers showed a significant association between experiments I and II (coefficients > 0.400), except for ROS which showed low, non-significant correlation coefficients.

Table 2. Senescence markers and their correlations between duplicate short-term experiments (1A).

	Distribution of markers
	Experiment I	Experiment II	Correlation coefficient	P-value
Non-stressed
p16INK4a, %	0.90 (0.45; 1.65)	1.61 (0.76; 2.71)	0.702	<0.001
TAF, %/nucleus	24.2 (16.9; 31.0)	24.4 (18.5; 32.1)	0.418	<0.001
ROS, FI	1477 (1280; 1706)	1455 (1295; 1762)	-0.111	0.354
SAβ-gal, FI	2959 (2389; 3813)	2987 (2187; 3951)	0.527	<0.001
Stressed
p16INK4a, %	2.17 (1.10; 4.17)	4.70 (2.33; 6.48)	0.623	<0.001
TAF, %/nucleus	20.6 (14.8; 27.9)	21.9 (16.0; 26.7)	0.414	<0.001
ROS, FI	2003 (1734; 2376)	1972 (1653; 2366)	0.139	0.244
SAβ-gal, FI	4251 (3405; 5345)	4044 (3180; 5233)	0.452	<0.001
N=100. Marker distribution is given as median (IQR). Correlations are Pearson’s partial correlation coefficient, adjusted for batch. All markers in experiment I were correlated with the same markers in experiment II. FI: fluorescence intensity. P16INK4a: percentage of p16INK4a positive cells; TAF (telomere associated foci): percentage of nuclei with ≥1 TAF/nucleus; ROS: mean fluorescence intensity peak reactive oxygen species; SAβ-gal: median fluorescence intensity peak senescence-associated β galactosidase.

Table 3 shows the correlations between ROS and SAβ-gal in the short-term versus the long-term experiments. The mean of ROS measures in the short-term experiment were significantly correlated to ROS in the long-term experiment. SAβ-gal was not significantly correlated between the short-term and long-term experiments.

Table 3. Senescence markers and their correlations between short-term versus long-term experiments (2A).

	Distribution of markers
	Short-term experiment	Long-term experiment	Correlation coefficient	P-value
Non-stressed
ROS, FI	1559 (1356; 1734)	1500 (1366; 2205)	0.419	0.010
SAβ-gal, FI	2973 (2445; 3732)	3452 (2905; 4660)	-0.009	0.959
Stressed
ROS, FI	2095 (1753; 2324)	1835 (1553; 2205)	0.426	0.009
SAβ-gal, FI	4171 (3530; 5231)	4090 (3417; 5205)	-0.006	0.972
N=40. Correlations are Pearson’s partial correlation coefficient, adjusted for batch. All mean markers of short-term experiments I and II were correlated with the same markers in the long-term experiment. FI: fluorescence intensity. ROS: mean fluorescence intensity peak reactive oxygen species; SAβ-gal: median fluorescence intensity peak senescence-associated β galactosidase.

The raw data points of the same markers between duplicate experiments and between short-term and long-term experiments are plotted in Figure 1 for visualisation.

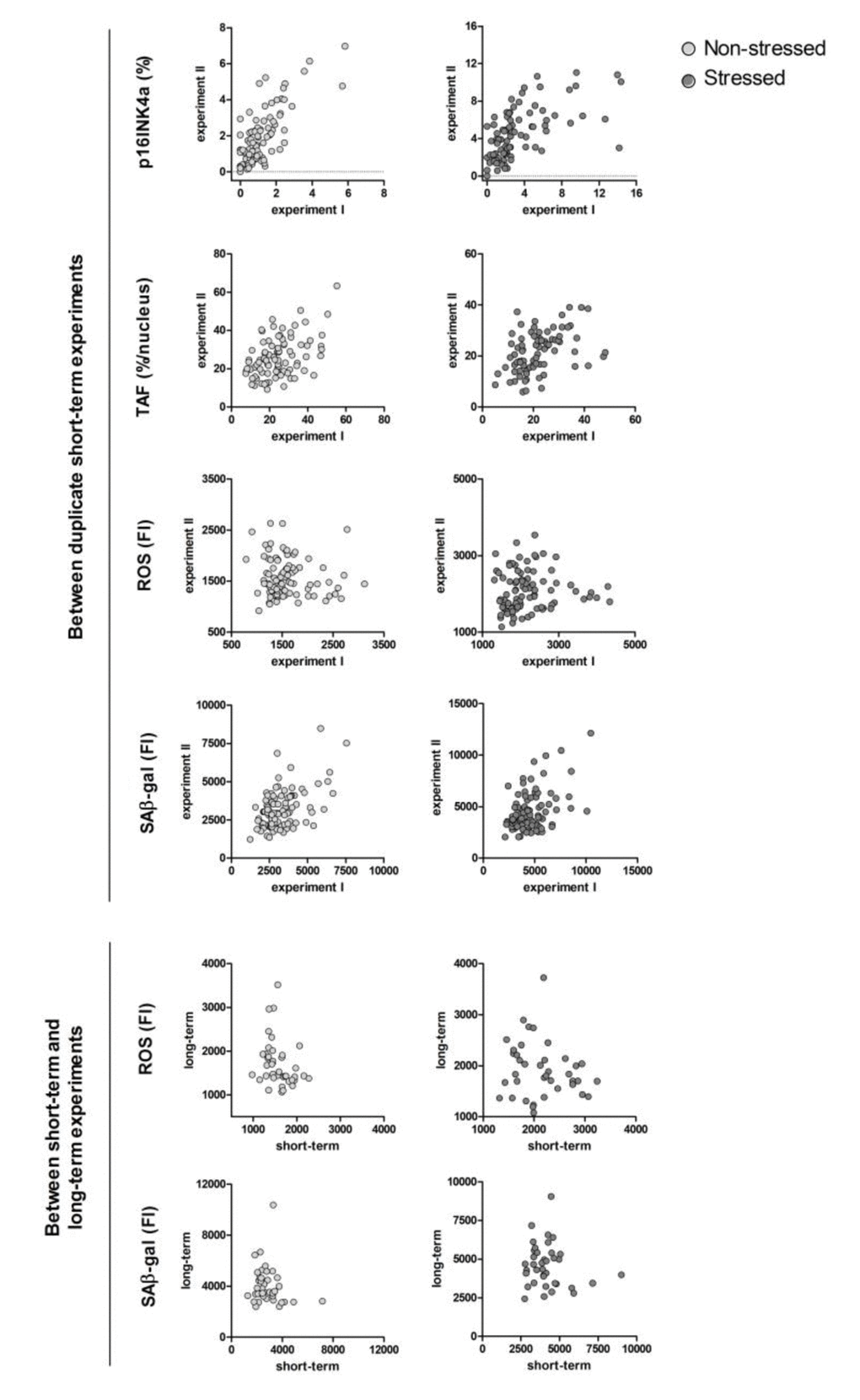

Figure 1. Correlation plots of the same senescence markers between duplicate experiments and between short-term versus long-term experiments. Each dot represents an individual donor, N=40-100. Uncorrected (not log transformed) data points are shown. P16INK4a: percentage of p16INK4a positive cells; TAF (telomere associated foci): percentage of nuclei with ≥1 TAF/nucleus; ROS: mean fluorescence intensity peak reactive oxygen species; SAβ-gal: median fluorescence intensity peak senescence-associated β galactosidase. For the between short-term and long-term experiment correlations, in vitro variables are the mean of short-term experiments.

Correlations between different senescence markers

Second, we studied correlations between different senescence markers. In the Supplementary Material, correlations between different senescence markers within the short-term (Supplementary Table 1) and long-term experiments (Supplementary Table 2) are given. In the short-term experiment each marker was tested against the 3 other markers, both in non-stressed (6 combinations) and stressed condition (6 combinations). Of these 12 senescence marker combinations, 6 were significantly correlated (in non-stressed and stressed conditions 3 each). P16INK4a showed the highest correlations with other markers. In the long-term experiment a total of 6 marker combinations were tested in both non-stressed and stressed conditions of which 3 senescence marker combinations were significantly correlated, mainly with ROS (2 in the non-stressed condition, 1 in the stressed condition). Using telomere length instead of telomere shortening reduced the amount of significant markers combination correlations, indicating a difference in telomere length and telomere shortening over time as senescence markers. In vitro senescence markers (both in non-stressed and stressed conditions) were tested for correlation with in situ p16INK4a positivity of dermal fibroblasts (Table 4). No significant correlations were observed between in situ p16INK4a positivity and any of the in vitro senescence markers (ROS, TAF, SAβ-gal or p16INK4a). In Figure 2, in vitro p16INK4a positivity in non-stressed and stressed conditions are plotted against in situ p16INK4a positivity of dermal fibroblasts, further showing this lack of intra-individual correlation.

Table 4. Intra-individual correlations: in vitro senescence markers versus in situ p16INK4a positive human fibroblasts (3B).

	Coefficient	P-value
Non-stressed
p16INK4a	0.064	0.655
TAF	-0.030	0.835
ROS	-0.097	0.498
SAβ-gal	-0.042	0.772
Stressed
p16INK4a	0.091	0.527
TAF	0.014	0.922
ROS	-0.095	0.506
SAβ-gal	0.023	0.871
Values are depicted as Pearson's partial correlation coefficient, adjusted for batch. Data for in situ and in vitro senescence markers were available for N=52 donors. P16INK4a positive dermal fibroblasts: number of positive cells per 1mm2 dermis. All in vitro variables are the mean of short-term experiments. P16INK4a: % of p16 positive cells; ROS: mean fluorescence intensity peak; SAβ-gal: median fluorescence intensity peak; telomere-associated foci (TAF): % of nuclei with ≥1 53BP1 foci per nucleus, coinciding with telomeric DNA.

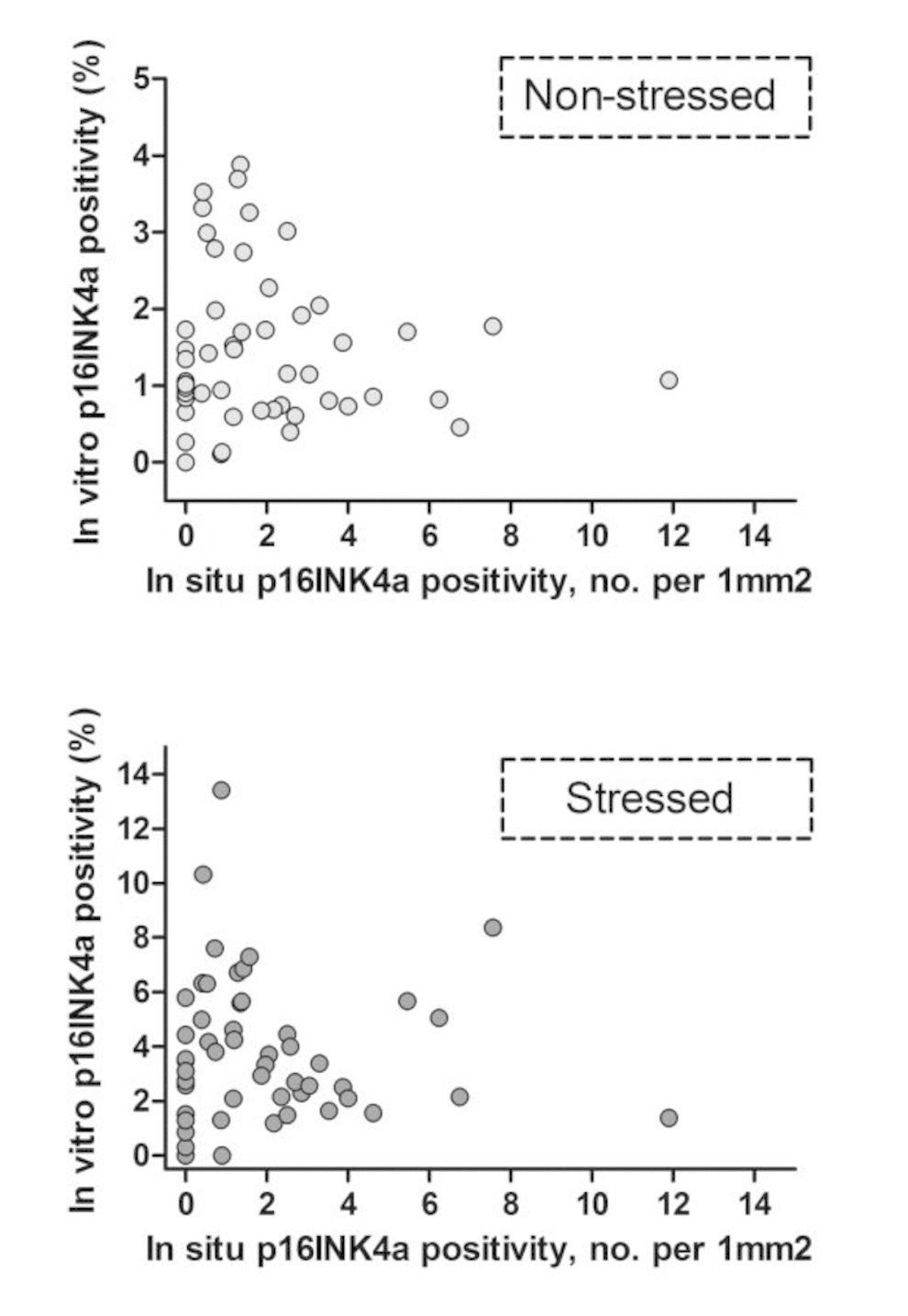

Figure 2. Intra-individual correlations: in vitro versus in situ p16INK4a positivity. Each dot represents an individual donor, N=52. In vitro p16INK4a positivity: percentage of p16INK4a positive cells - mean of experiments I and II. In situ p16INK4a positivity: number of p16INK4a positive cells per 1mm² dermis. Uncorrected (not log transformed) data points are shown.

Discussion

In individual donors, half of the correlations of the same senescence markers in vitro were significant between duplicate experiments (1A) and between short-term versus long-term experiments (2A). Within the experiments the different senescence markers were significantly correlated to each other in half of the correlations tested, both in short-term (1B) and long-term experiments (2B). In general, correlation coefficients were lower as compared to those calculated for the same senescent markers. Assessment of correlations between in situ p16INK4a positivity with different in vitro senescence markers showed a lack of correlation, both with in vitro markers in non-stressed and stressed conditions (3B).

Most correlations between duplicate experiments show that the experiments were adequately reproducible, suggesting that the influence of technical issues was limited. However, ROS showed poor reproducibility between duplicates which hampers interpretation of other tested correlations with ROS. The fact that no correlation coefficient above 0.702 was observed indicates that despite highly standardized conditions, the assays used are inherently prone to variation. Although the same markers were also correlated between the short-term and long-term experiments, this was less often the case than for the between duplicate experiment correlations. This finding is not surprising, as cell strains of an individual could respond to short-term and long-term stress differently. In our previous study we showed that SAβ-gal in the stressed condition in the short-term experiment was negatively associated with the maximum replicative capacity of the strain (a long-term outcome), whereas a positive but nonsignificant trend was seen in the non-stressed condition [15].

Senescence can be triggered in response to multiple factors and be induced through different pathways. Therefore it has been advised to use a marker of cell cycle arrest plus a minimum of two senescence markers [16]. Studies on senescence markers in single cells show that there is not a hundred percent concordance of different markers, for e.g. p16 and SAβ-gal [17], p16 and p21 [18], and γH2AX foci and p21 [19]. One of these studies also showed that SAβ-gal, senescence associated heterochromatin foci and the combination of Ki67 with γH2A.X foci were superior to other marker combinations in predicting growth curves of MRC5 fibroblast cultures [19]. A recent review [13] discussed the shortcomings of frequently used markers to assess in vitro senescence and particularly the difficulties of using these markers to detect in vivo senescence. It is a topic under debate in a still rapidly evolving field. We confirm the importance of this stance based on our results on correlations between different senescence markers. Only a half of the tested senescence marker combinations were significantly correlated within the experiment. The in vitro senescence marker that was most correlated to other in vitro senescence markers was p16INK4a. This was also the marker with the highest correlation coefficient between experiment I and II (between duplicate experiments). This good correlation of duplicates could thus explain the observation that p16INK4a correlated most frequently to the other markers, and overall appears to be the most robust in vitro senescence marker from the set of markers tested here.

A recent review has shown that while some in vitro observations on fibroblast aging have also been observed in situ in skin tissue, many observations have not been tested in situ yet [14]. To our knowledge, this is the first study in humans to directly correlate senescence markers in vitro and in situ in cultured fibroblasts and biopsies from the same individual to assess whether both are reflective of a common (epi)genetic propensity to induce cellular senescence. In mice microRNA expression profiles were compared in cultured cells and aged mouse brains, which showed only very little similarities in expression [20]. The lack of correlation between in vitro and in situ senescence markers we have observed, was not altogether surprising. While experimental set-ups allow controlling of many variables, this also decreases the natural context of human cells. It has been observed that the process of establishing fibroblasts strains from skin biopsies itself can result in a selection of a subgroup of fibroblasts. Fibroblasts from subsequent outgrowths of single skin biopsies were shown to differ in their proliferation capacities [21]. Outgrowth from different dermal layers results in higher culture survival time in fibroblasts from the papillary dermis compared to reticular dermis [22,23]. Hence, in vitro fibroblasts might only relate to a small sub-population of fibroblasts in situ and study of this sub-population in situ might be needed to detect any correlations. In addition, different culturing conditions were shown to have effects on replicative lifespan as well [24], and the process of cell culture itself has been suggested to drive some of the senescence findings in vitro [25,26]. We used atmospheric oxygen culture conditions which in itself is thought to be a stressor [27]. This can be seen in our scatterplot showing some individuals with high p16INK4a positivity in situ and low p16INK4a positivity in vitro, which might have resulted from selection of senescence resistant fibroblasts during expansion. Furthermore, a small biopsy from one location of a donor might not reflect the entire tissue or entire organism adequately. It is also not clear how a fluctuating physiological state of a donor can influence the samples tissue. Overall, in vitro experimental data from cells derived from one individual might not be representative for the cell populations in their tissues under in vivo conditions. Due to this lack of intra-individual correlation, difficulty might arise in extrapolating observations from in vitro experiments to in vivo implications. On the other hand, perhaps the in vitro characteristics of the selected subpopulation of primary cells could still reflect in vivo cellular capacities in specific situations, such as disease or in the presence of environmental stressors.

This study uses unique data on multiple senescence markers in vitro established from 100 individual fibroblast strains. We regard the high number of fibroblast strains as a strong point of this study. All culturing procedures and experiments were conducted under highly standardized conditions, and our results here highlight the need for maximally standardize the operating procedures. We measured senescence markers in cultures that were in phase IIa, and thus just a fraction of cells were senescent, reflecting the mix of dividing and senescent cells within the human body. Studying correlations in only non-dividing cultures might yield different findings. A limitation of the study is that we did not include a marker for proliferation such as Ki-67. The association between in vitro and in situ p16INK4a positivity could only be evaluated in 52 middle aged subjects that had both measurements, which limited the power to detect significant correlations. Another limitation of the present study is at the same time a limitation of many human studies in general: we have detected p16INK4a in situ, but cannot (yet) study cellular senescence in vivo in humans. Studies aiming to detect cellular senescence in vivo in animal models have shown high inter-individual variability, especially at older ages [28,29]. Inter-individual variation of senescence might also be influenced by genetic polymorphisms. In human peripheral blood T-cells, one atherosclerotic disease-related SNP was shown to associate with decreased expression of INK4/ARF transcripts [30]. Further analysis of intra-individual correlation between in vitro and in vivo senescence associated markers within animal models could help to better explore this lack of correlation. Another limitation of our study is that for in situ measurements we only have data of one senescence marker, p16INK4a, whilst consensus is lacking on which (panel of) markers should be used to appropriately detect senescent cells in situ.

In conclusion, on an individual donor level the same markers of senescence in vitro, and to a lesser extent different markers of senescence, are frequently significantly correlated within and between experiments. In vitro senescence markers and in situ fibroblast p16INK4a positivity were not correlated. Caution is warranted when interpreting results from in vitro senescence studies towards in vivo implications.

Methods

Statistics

All analyses were performed using IBM SPSS Statistics 20. Not all data was normally distributed and these variables were naturally log transformed before evaluating the correlations by calculating the Pearson partial correlation coefficient, adjusted for experiment batch. The studied correlations are explained in Figure3. First, correlations of the same senescence markers were analyzed using data of the short-term experiments I and II (duplicate experiments) (1A); the mean results of duplicates in the short-term experiments and the single measurements of the long-term experiments (as this experiment was performed once) (2A). Secondly, correlations between different senescence markers were analyzed using the mean results of duplicates within the short-term experiments (1B); the single measurements within the long-term experiment (2B); and the mean of the in vitro markers in the short-term experiments (mean results of duplicates) and in situ p16INK4a positivity (3B). For the latter correlation a subset of N=52 donors was used that had senescence markers measured both in their cultured fibroblasts (in vitro) and in their skin biopsies (in situ). All in vitro markers were measured in a non-stressed and (rotenone) stressed condition. For data visualization the percentage of fibroblasts staining positive for p16INK4a in vitro was plotted against the number of p16INK4a positive dermal cells in situ using Prism Graphpad 5 software.

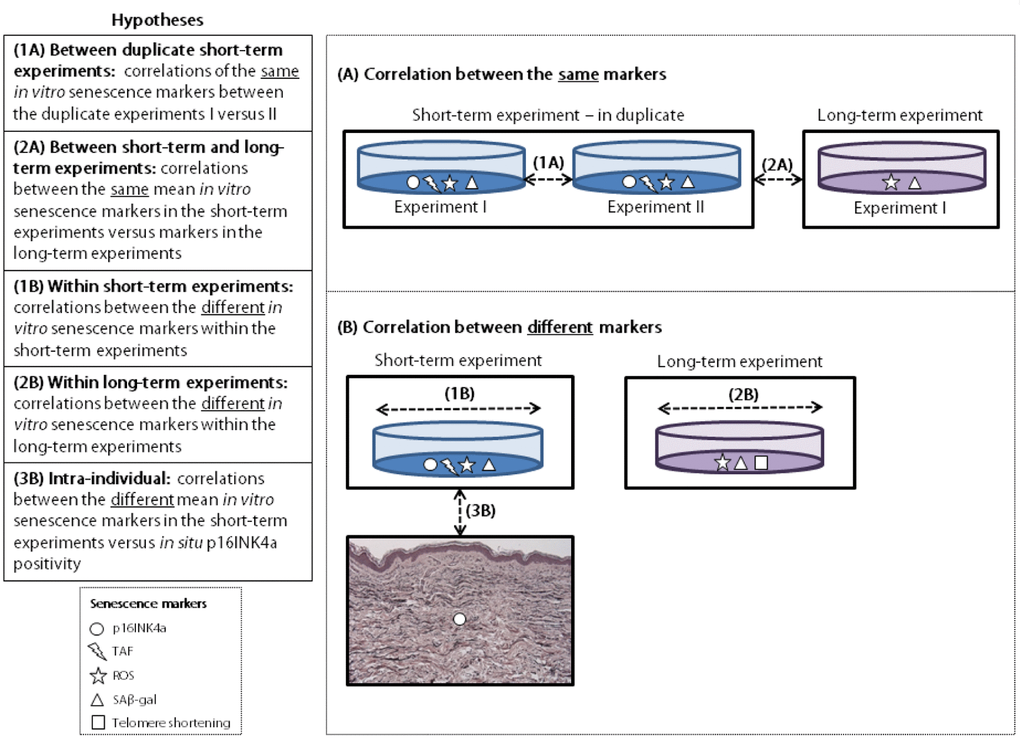

Figure 3. Explanation of hypotheses tested. TAF: telomere associated foci. ROS: reactive oxygen species. SAβ-gal: senescence-associated β galactosidase.
