Integrated analysis of the impact of age on genetic and clinical aspects of hepatocellular carcinoma

Introduction

Primary liver cancer is estimated to be the sixth most common cancer worldwide and the second main reason behind cancer mortality. With Hepatocellular Carcinoma (HCC) making up to 80% of its cases, the incidence of liver cancer varies significantly among continents and countries. 75% of all cases are recorded in Asia alone, with China standing for more than 50% of all patients diagnosed [1,2]. Gender, geographic location and ethnicity also affect the incidence rates (with male patients, and Asian populations followed by Hispanics having the highest incidence). Risk factors for HCC also differ among countries. For example, hepatitis B virus (HBV) and aflatoxin B1 (AFB1) are considered as major factors in Asian and African countries [1].

China stands for almost 22% of new cancer cases and 27% of cancer mortality worldwide. The growth and aging of the Chinese population have led to a continuous increase in cancer cases diagnosed [3]. The high incidence of liver cancer in China makes up to 55% of all cases in the world, with HCC ranking as the second major cause in cancer-mortality in males and the third in females. It is the most common type of cancer in Chinese patients under the age of 60 years, with a low incidence before the age of 35 that rises significantly after that age to reach a peak at 80-84 years with higher mortality rates in male patients [3–5].

Since 70% of HBV cases in high incidence areas are infected in perinatal stages or early childhood, the efforts to prevent HBV via vaccination programs in infants and children have shown a huge impact on the incidence rates of HBV (and HBV-related HCC) in targeted age groups. Although vaccinations may be ineffective in almost 5% of cases, still, a decrease of almost 70-85% of HBV-related HCC incidence has been recorded in Asia, and a 95% decrease in HCC related deaths has been recorded in Chinese patients younger than 19 years [1,3].

The success of HCC treatment is associated with early diagnosis. However, in many patients, the diagnosis is only established in advanced stages when a curative treatment is not an available option anymore. Therefore, advanced screening programs have been developed in many Asian countries such as Japan, South Korea, and China. Guidelines suggested that ultrasonography and measurements of blood levels of α-fetoprotein (AFP), AFP-L3, and des-γ-carboxyprothrombin (DCP) can be useful in screening for early stages’ HCC patients [4,6].

In the light of the continuous growing and aging of populations worldwide, and the significant developments of treatment options and disease control strategies, longer life expectancy has been achieved for many diseases, which translated into growing numbers of elderly patients. That created a continuous change in the cut-off of age groups in general and elderly patients in particular. Increased numbers of patients over 70 and 75 years have been recorded, with average life expectancy exceeding 80 years in some countries like South Korea. Therefore, the age cut-off of 80 years for elderly patients group has been accepted and proposed in many reports [2,7 ,8].

The process of aging can be defined as a continuous loss of physiological and biological functions of human organs that increases susceptibility for diseases and injuries. Many theories have been proposed to explain the aging effects on human cells, tissues, and organs. As for the liver, aging can affect both the function and structure of this organ. Changes in metabolic functions, synthesizing proteins abilities, sinusoids and kupffer cells, liver volume and blood flow have already been linked to aging in several reports [8–11].

One theory that has been proposed is that metabolic errors that stand behind the process of aging can actually be caused by both environmental and genetic factors, which may explain the differences among individuals and populations in the susceptibility and the speed of aging [10]. In general, genome alterations (such as DNA damage, mutations, and epi-mutations) are well-known reasons for diseases like cancer; however, they are usually monitored and fixed by the DNA repairing system that preserves the integrity of the genome [12]. Many studies tried to figure out the genetic connection between cancer and the process of aging, considering that the incidence of cancer increases significantly with age. Although cancer is associated with cellular “gain of function“ while aging is defined as a “loss of function“; however, the two have been considered as results of accumulation of cellular damages. Cancers are associated with accumulated mutations in the genome prior to any phenotype changes. Such accumulations have also been linked to aging, considering the time needed for those mutations to happen. However, such a connection has been challenged with findings which suggest that up to 50% of somatic mutations occur in early life of the human body, followed by decreased rate of mutations afterwards. Yet, the changing in tissue context with age can explain the high susceptibility and increased selection for oncogenic cells in advanced age. Another contradiction between aging and cancer is the chromosomal telomeres. The maintenance of telomeres is considered as a hallmark of cancer, while in aged cells short telomeres are a reason for ending the replication of cells. However, studies have found that cancers can indeed arise from short telomeres’ cells, but telomerase activation is still essential for the progression of cancers in the body [11,13–15].

HCC in children is a topic with limited data that requires greater attention and efforts to be explored. Liver cancer is considered to be the third common type of abdominal cancers in children, with HCC ranking second in common liver cancer types (making up to 23% of all cases). However, the high chemoresistance and low cure rates associated with HCC make it an important target for further investigation and research. The majority of pediatric HCC cases occur in patients older than 10 years but the rarity of this disease in childhood makes it very challenging to collect enough cases to carry a wide investigation. Therefore, most of the studies available are retrospective analyses with limited data [16–19].

The majority of pediatric HCC cases lack other background liver diseases such as cirrhosis. Yet, a stronger correlation with HBV infection has been found in childhood HCC, which translated into a significant decrease in incidence following the HBV vaccination programs in infants and children in Asia and the world. That created an urgent need to understand the role of other possible mechanisms of childhood HCC such as mutations and genetic alterations, which are still poorly investigated and addressed [16–22].

Recently, several genes and pathways have been investigated for a potential role in the development of HCC to clarify the genetic background of the disease, one of which is AKR1B10. Located at 7q33, AKR1B10 contains 10 exons and 9 introns, with a length of 13.8 kb and several putative oncogenic and tumor suppressor protein binding sites in its promoter [23]. The detoxification enzyme AKR1B10 is a well-known aldo-keto reductase family member that has been linked to hepatocellular carcinoma and proposed as a new possible biomarker and an independent risk factor [24–26]. In general, the NAD(P)H-dependent oxidoreductase catalyzes carbonyl compounds and reduces xenobiotic substrates by converting highly reactive aldehydic and ketonic groups into hydroxy groups, which is a form of cell protection against carbonyl toxicity. AKR1B10 is also linked to retinoid metabolism and fatty acid synthesis [23,24,27]. AKR1B10 helps in converting retinals to retinols instead of retinoic acids which are considered to be important anti-neoplastic signaling molecules [25,28,29]. Therefore, it is known for its role in intracellular detoxification, cellular proliferation and carcinogenesis [23,30]. Clinically, studies have found that higher levels of AKR1B10 expression are associated with HBV, HCV, and liver cirrhosis, which may suggest that the expression may be stimulated by the presence of such pre-HCC conditions, with a potential role in early hepatocarcinogenesis [24,26,27]. However, it was also found that high AKR1B10 expression may indicate lower risks of recurrence in HBV-related HCC patients after curative resection [29]. On another note, the relation between AKR1B10 expression and other clinical aspects like tumor size, lesions number, microvascular invasion, and metastasis is yet to be fully determined [24,29]. Yet, such a relation with tumor grade has been a subject for several studies and a correlation between AKR1B10 expression and lower tumor stage has been found which may make AKR1B10 a possible marker for HCC differentiation level [24,28,30]. Several studies have also concentrated on the links between AKR1B10 expression and drug metabolism, which is extremely important in some therapeutic approaches like chemotherapy. AKRs in general are considered as metabolizing enzymes for carbonyl-containing drugs; therefore, the family of enzymes has been investigated for a potential involvement in chemoresistance [24,28]. Studies showed that AKR1B10 in specific is linked to drug resistance [31] and its knockdown experiments showed better sensitivity to chemotherapy [28].

Although current studies and researches are devoting greater efforts to uncover more information regarding HCC both clinically and genetically, only few studies are addressing HCC in specific age groups like children and elderly patients, and even fewer studies are exploring this topic from a genetic point of view. Therefore, we, in this study, are shedding more lights on HCC patients by analyzing both their clinical and genetic characteristics in age-specific manner, in order to further investigate the differences among age groups of HCC patients and evaluate the need to address such differences in the diagnosis, treatment, and prevention strategies of HCC.

Results

Discussion

Our knowledge regarding HCC has been continuously expanding. Currently, more studies have been addressing new aspects such as HCC genetic background and novel treatments. Many genes have been explored and linked to a certain role in the development or treatments of HCC. However, only few efforts are dedicated to understand the differences and characteristics of HCC in certain groups like elderly patients or children, and even fewer studies are exploring the genetic features specific to them. Therefore, we carried, in this study, a clinical and genetic (gene mutations, CNVs, mRNA expression) analysis of elderly and young HCC patients, in order to contribute to the limited knowledge regarding this topic and help provide a solid base for further investigations.

Considering the growth and aging of populations all over the world (especially in China) and the rarity of HCC in certain age groups like children, we chose the age of 20 and 80 years as cut-off points for the young and elderly groups of patients.

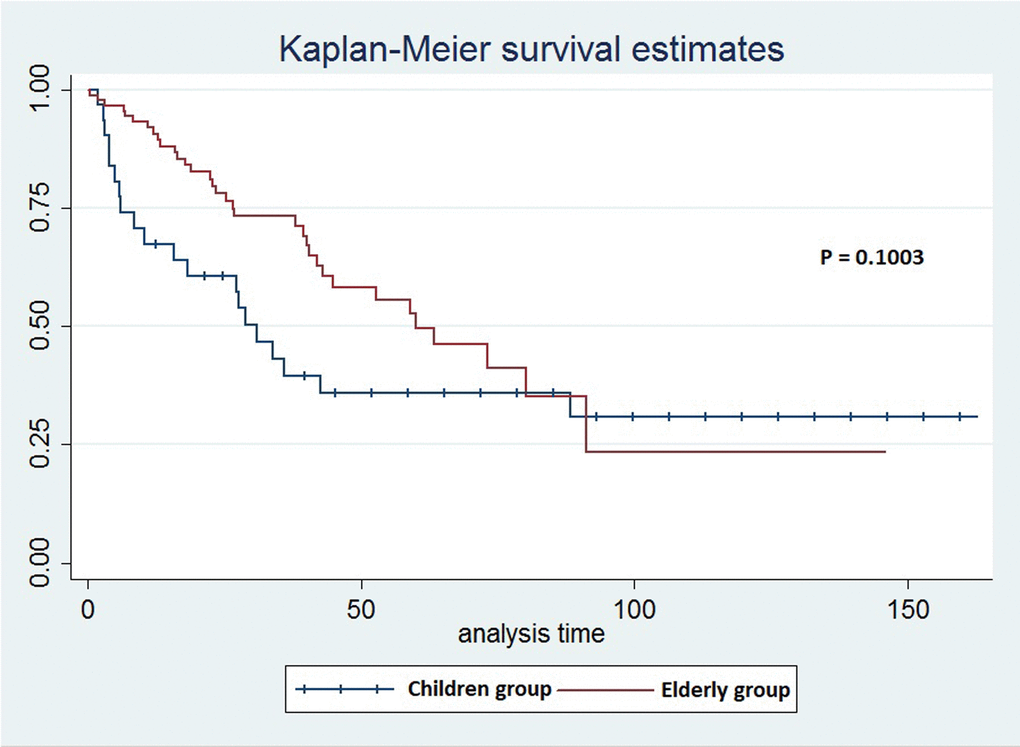

In the clinical analysis, the sample size of the elderly group was larger than the children group due to the rarity of HCC in young patients after the national program of HBV vaccination in infants and children [17]. The majority of patients in both groups were males with a higher percentage in elderly group (92%) compared to (79%) in young patients. A possible explanation could be that several risk factors for HCC (like alcohol consuming and chronic HBV history) are more common in older males [9].

In general, the process of aging and the changes it brings can explain a lot of differences among elderly patients and other age groups. The accumulation of molecular abnormalities with time, the age-related alteration in immune functions and other changes have already been pointed out for their association with cancer morbidity and mortality [36]. However, when compared to children group, the elderly group in our study showed higher rates of early survival. The better liver functions in elderly patients and the heavier burden of the tumor on young livers can lead to such differences [8]. Besides, the tumor is unlikely to grow too large without leading to organ failure or death in earlier ages [9]. The differences between age subgroups within each group also indicated the impact of age on survival of patients, with older children and younger elderly having better survival rates than other patients in their groups. However, the effect of aging itself on survival rates and the role of other causes of death in elderly group prevent us from drawing a solid conclusion, and a further investigation with better controlled data is advised.

As expected, our results showed that tumor size and lesions number can affect the survival in both groups. The majority in both groups was presented with single lesions. The average tumor size, however, was bigger in children which translated into increased risk of death; an increase that can be expected considering the smaller size of liver in younger patients.

The number of studies addressing the genetic aspect of HCC is rapidly growing, expanding our knowledge of related genes and their role in diagnosis and treatment. However, the majority of studies are age-standardized rather than age-specific, leaving doctors and care givers with an only choice of applying the finding of those studies in special age groups like children and ignoring the potential differences related to the age of patients. In children, the family history can be taken into consideration; however, for De novo alterations such a history is not useful. Therefore, doctors tend to check for common alterations, considering the lack of age-specific data. As for elderly patients, aging has been investigated for its role in cancer development in general (such as the accumulation of alterations and the compromising of DNA repair system) [12,13]. However, the current knowledge in this field is still falling behind when compared to age-standardized data, and further efforts are required to optimize the diagnosis and treatment plans. Therefore, we carried an age-specific genetic analysis that covers three main aspects: gene mutations, copy number variants (CNVs), and mRNA expression patterns.

The analysis of gene mutation patterns in children group showed that only three genes were mutated in more than one patient (BIRC6, NRXN1, and ZNF676), with NRXN1 and ZNF676 showing a significant tendency towards co-occurrence. Although such findings could indicate a role of certain genes in young HCC patients; however, the limited number of patients in this group makes it hard to draw a conclusion, and further research is recommended. The protein encoded by BIRC6 is known for its role in inhibiting cell’s apoptosis, while proteins encoded by NRXN1 acts as adhesion molecules in cells of the nervous system [37–39]. For the elderly group, 14 genes were mutated in more than three cases (21.42%). ALB had the highest rate with (35.71%). The majority of genes were presented with passenger mutations except for TP53, CTNNB1, and KMT2D having driver mutations. Of which, TP53 and CTNNB1 mutations were associated with mRNA expression irregularities, which emphasize their role in cancer development. Mutations in these three genes have already been observed in different types of cancers [37–39]. As for TP53, P53 pathway is known for its association with aging and diseases development in advanced ages since P53 functions include suppressing tumors, preserving genome integrity, and restricting the proliferation of damages cells [40]. Genes like CCDC141, DNAJC28, and MSLN showed higher prevalence in elderly patients than other age groups, while the incidence of mutations in genes like CACNA1E, LRP2, and RP1 increased with the age of patients. Those mutation patterns show that the process of aging plays a different role in different age groups, with those genes being a potential key to uncover such a role. Therefore, searching for age-specific alterations is vital to optimize the care we give to patients of specific ages, like elderly patients.

Copy number variants (CNVs) of DNA sections can overlap with certain genes and, therefore, alter their functions, leading to diseases like cancer [12]. Six genes were found to be altered in more than one patient in children group. The significant tendency of co-occurrence among all six genes (P<0.001) led us to investigate the location of those genes on human chromosomes. All six genes shared the same cyto-band: 1q44; therefore, we suggest this location to be further investigated for a relation with HCC in all patients in general (since 9.31% of all patients had an alteration in this cyto-band) and children in specific. 1q44 has been linked in other studies to abnormalities like microcephaly, seizures, and other diseases [41]. More genes were found in the elderly group (299 genes). The majority of them were located in chromosome 6 and 8 in cyto-bands like: 6p21-25, 8p11-12, and 8p21-23. Abnormalities in some of those locations like 8p21-23 have already been associated with several cancers like lung, breast, colon, brain, prostate, and even liver cancer [42], and the deletion of 8p has been proposed as a prognostic predictor in HCC patients [43]. The importance of such findings is that it gets us closer to be able to achieve a diagnosis based not only on phenotypic or genetic changes but also karyotypical changes, which may save both efforts and resources.

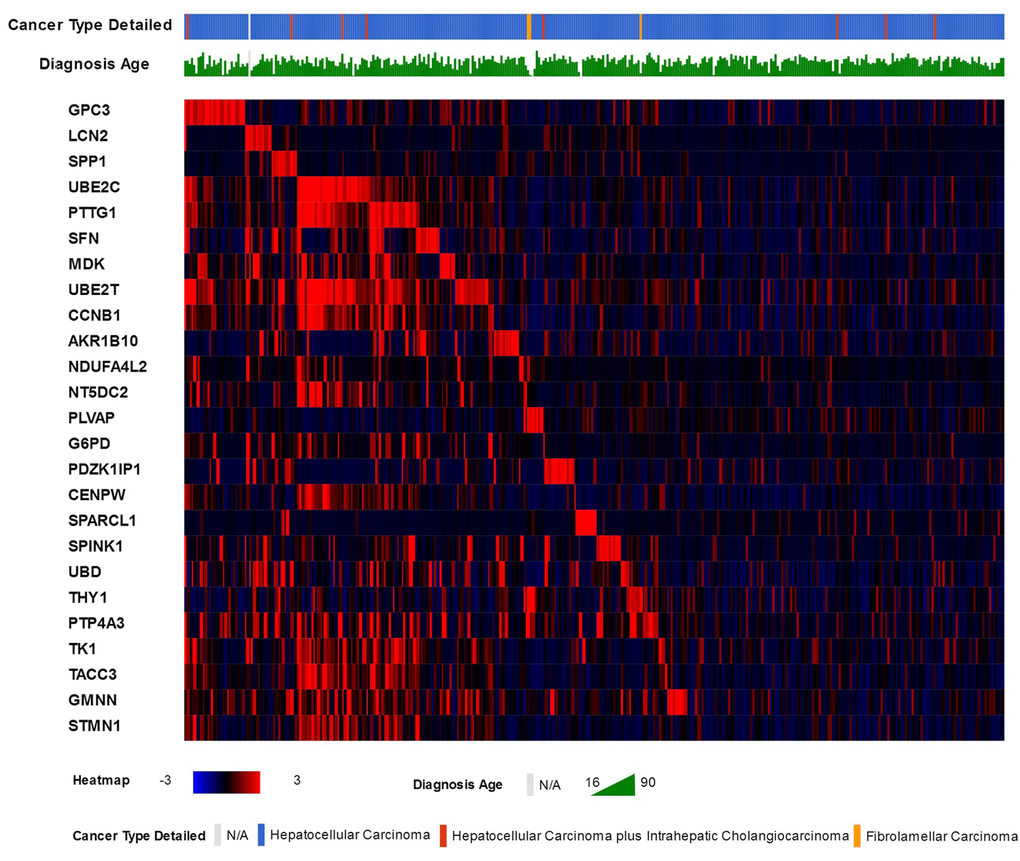

Out of 25 genes that were considered for mRNA expression analysis, 8 were up-regulated in children group. Among those genes, three (PLVAP, SPARCL1, and THY1) were associated with low rates of up-regulation in other age groups. Therefore, a primary consideration of those genes in age-specific diagnosis is highly advised for further investigation. THY1 gene encodes a protein that is associated with cell adhesion and communication. The gene is also involved in tumor suppressing, metastasis, and prognosis of many cancer types like gallbladder and nasopharyngeal carcinoma [37–39,44]. PLVAP has also been investigated as a therapeutic target in HCC [45]. mRNA analysis also showed a tendency towards co-occurrence in two pairs of genes: (UBE2C / UBE2T and PLVAP / THY1). A further investigation of the mechanisms and the roles of the given genes could help uncover age-specific patterns of alterations. For example, both UBE2C and UBE2T encode ubiquitin-conjugating enzymes that are needed in ubiquitination and cell cycle progression [37–39]. The genes have already been linked to several types of malignancies such as bladder cancer, malignant glioma, and Fanconi anemia [46–49].

12 genes were up-regulated in elderly patients, with SFN, GPC3, AKR1B10 having the highest rates (21.42%, 14.28%, 14.28%, respectively). Comparing this group’s rates to other age groups’, we found that up-regulated patterns for genes like PLVAP and AKR1B10 are more common in elderly patients, which may indicate a certain relation with advanced age. The same could be considered for genes like PDZK1IP1 that was found to be up-regulated only in patients older than 40 years. Out of the 12 genes selected in elderly group, AKR1B10 stood out as its up-regulation rates increased significantly with the age of patients. As mentioned earlier, this gene has already been linked to cell proliferation and differentiation and addressed in HCC and other types of tumors like lung and breast cancer [49]. Among the four pairs of genes found to be significantly correlated, (SFN / G6PD) and (SFN / AKR1B10) could be of a certain use in future age-specific approaches, considering their high prevalence in elderly patients and stronger relation to aging.

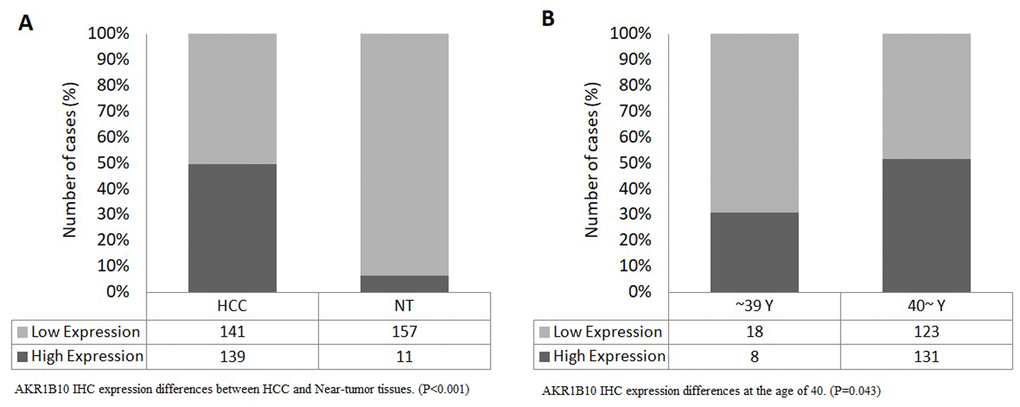

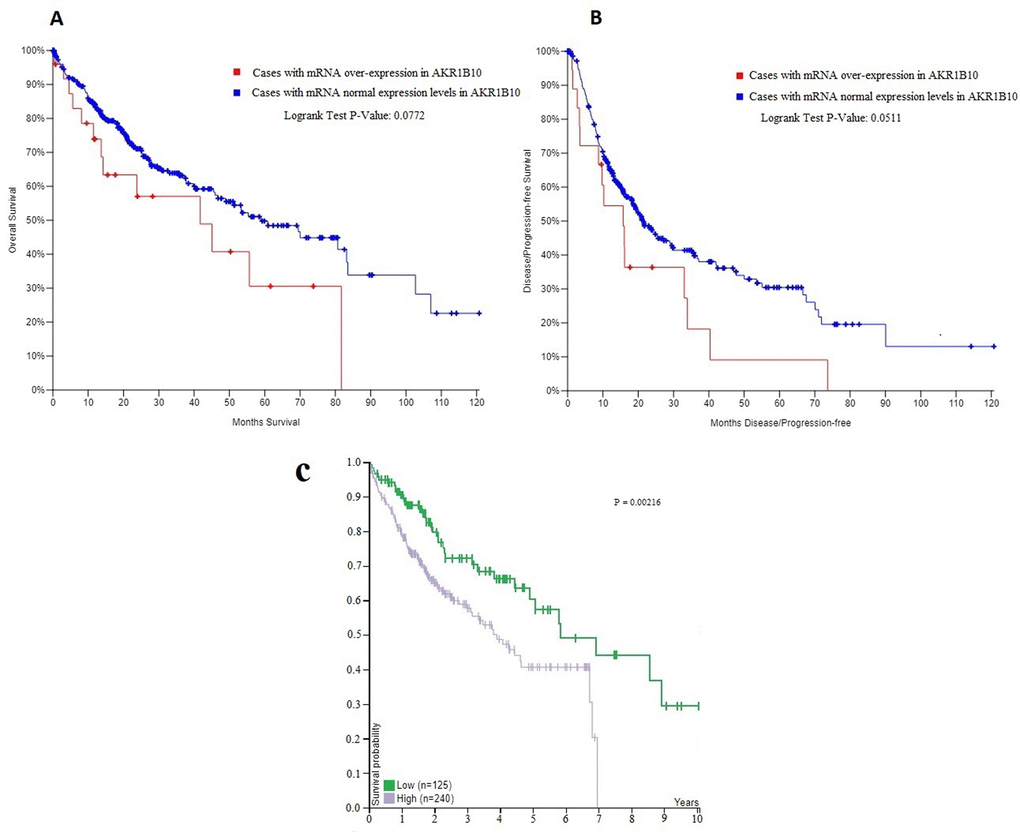

Based on the previous findings, we selected (AKR1B10) as a subject for a further immunohistochemistry (IHC) testing in order to analyze the influence of its expression levels in HCC. Our results showed statistically significant differences between AKR1B10 expression levels in HCC tissues and near-tumor tissues (P<0.001), with a high expression rate of 49.64% in HCC samples compared to only 6.58% in near-tumor samples. Those findings are in line with other studies in which high expression levels of AKR1B10 have been linked to HCC while expression levels in near-tumor tissues, normal tissues, and even benign liver lesions showed minimal to no expression levels of the gene, which makes AKR1B10 a potential biomarker for the diagnosis of HCC [27,28,50].

Another finding of our study is that AKR1B10 expression levels showed a significant difference at the age of 40 (P=0.043), with a high expression rate of 30.77% in patients younger than 40 compared to 51.57% in older patients. These results validate and emphasize the proposed relationship between AKR1B10 expression and the age of patients. Due to the rarity of HCC in patients of certain ages (especially younger than 20 years old), an independent comparison of patients younger than 20y and older than 80y was hard to be carried.

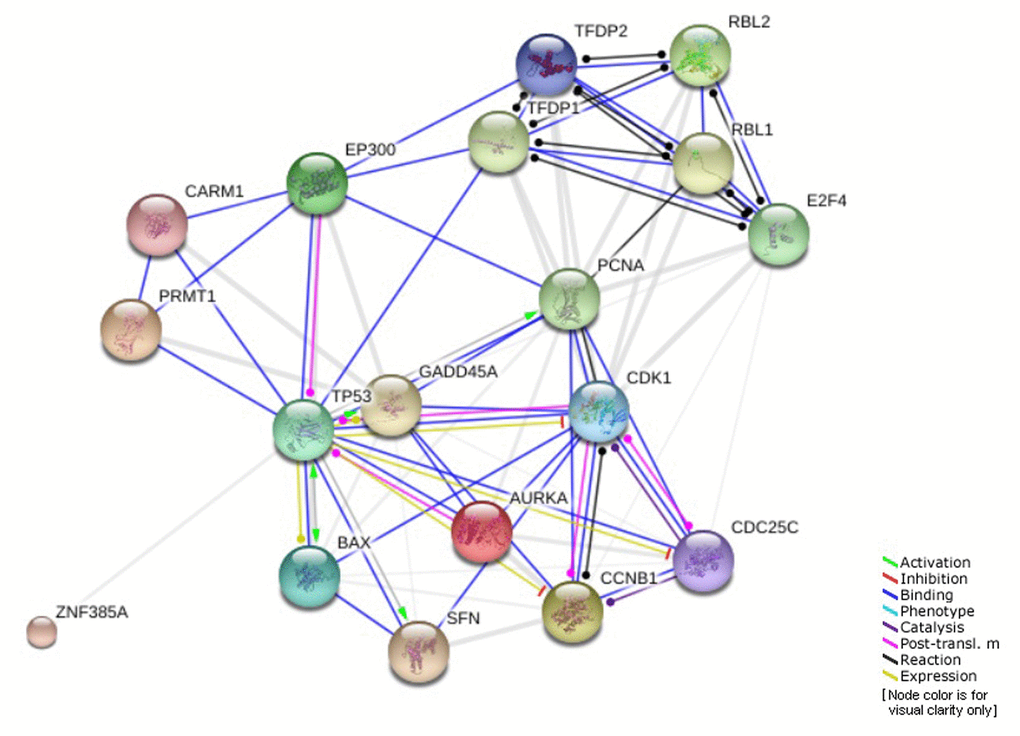

As we mentioned earlier, the promoter region of AKR1B10 includes several oncogenic and tumor suppressor protein binding sites, one of which is TP53 tumor suppressor [23,24,29]. Based on the previous results, the percentage of TP53 driver mutations was much higher after the age of 40. In addition, AKR1B10 was found to be significantly correlated with SFN regarding mRNA expression levels with high prevalence in elderly patients. SFN is one of the genes involved in G2 cell cycle arrest pathway that is regulated by TP53. The genes involved in this pathway and their interactions are shown in (Figure 7) [51]. All of that suggest a potential involvement of this specific pathway and other similar ones in the role AKR1B10 plays in different age groups of HCC patients.

The transcription factor nuclear factor erythroid 2-related factor (Nrf2) is known for its involvement in the regulation of AKR1B10 in addition to its role in the adoptive response to oxidative stress and damage [25,52], which is considered as one leading theory of aging [53]. Oxidative stress refers to the accumulation of reactive oxygen species (ROS) and reactive nitrogen species (RNS) in cells, exceeding the cellular antioxidant capacity, and therefore, damaging cellular DNA, lipids, and proteins [54,55]. Levels of accumulation increase with age, leading to a significant decline in cellular functions and repairing systems (including DNA repairing system) [53]. In general, hepatic cells have a high antioxidant ability when compared to other types of human cells; however, due to the functions of hepatic cells, accumulation of oxidative damage is quite easy to happen [56]. A study has shown that, with age, hepatic cells show a significant increase in protein carbonylation, lipid perioxidation, in addition to a decrease in antioxidant enzymes activities [57], which may easily explain how genes with a mechanism like AKR1B10 and their high expression can be involved in the increase of carcinogenesis with age.

The effect of genetic alterations and profile on the phenotype or clinical aspects of cancer patients is very important. However, genetic alterations or signatures in general can fall into three groups: Predictive, functional, or phenotypical alterations [58,59]. Therefore, passenger mutations can also be extremely useful for early screening and diagnosis of HCC which could enhance the success of treatments offered. We still encourage future studies and researches to explore possible relations between the genotype and phenotype of HCC patients in better controlled study designs.

Like all other researches in this field, we were faced with certain limitations in this study. The limited number of available data and patients (especially in children group) made it hard to draw definite conclusions based on the results. It also decreased our ability to control the conditions of the analysis to the level we wanted or find patients with certain level of similarity. The rarity of this disease in some age groups forced us to carry the analysis retrospectively. In addition, we decided to include patients from all ethnicities in the genetic analysis, considering the lack of relevant data. Such limitations are often encountered in studies like ours, which sometimes may translate into different results among different studies. However, we still believe that the contribution of this study to the limited data in this field and the results we found (especially the genetic findings) can indeed create a strong base for future researches and studies to uncover more age-specific abnormalities and carry deeper analyses in targeted age groups. Hopefully, similar future studies can optimize the diagnosis and treatment plans offered to young and elderly HCC patients in both Asian and global populations.

Materials and Methods
